2020 KIA STINGER headlamp

779
Maintenance
Light bulb position (Front)
(1) Headlamp (Low/High) (bulb type)
(2) Front turn signal lamp (bulb type)
(3) Day time running lamp / Positionlamp (LED type)
(4) Side marker (bulb type) (5) Headlamp (Low/High) (LED type)
(6)
Headlamp (Low/High assist)
(LED type)
(7) Front turn signal lamp (LED type)
(8) Day time running lamp / Position lamp (LED type)
(9) Side marker (LED type)
Light bulb position (Rear)
OCK077096L
OCK077097L
■ Head lamp - Type B
■
Head lamp - Type AOCK077096L
OCK078099N
■Rear combination lamp - Type B
■Rear combination lamp - Type A

Maintenance
80
7
(1) Stop and tail lamp (LED type)
(2) Stop lamp (LED type)
(3) Back-up lamp (bulb type)
(4) Rear turn signal lamp (bulb type)
(5) Side marker (LED type)
(6) Rear turn signal lamp (LED type)
(7) High mounted stop lamp (LED
type)
(8) License plate lamp (LED type)
Light bulb position (Side)
(1) Side repeater lamp (LED type)
Headlamp (LED type) replace-
ment (Headlamp Type B)
If the Low/High beam lamp (1, 2),
Front turn signal lamp (3), Day time
running lamp/Position lamp (4),
and/or Side marker (5) do not oper-
ate, have the vehicle checked by an
authorized Kia dealer.
The LED lamps cannot be replaced
as a single component because they
are part of an integrated unit. The
LED lamps have to be replaced with
the unit.
A skilled technician should check or
repair the head lamp (LED), for it
may damage related parts of the
vehicle.
■High mounted stop lamp
OCK077050L ■License plate lamp
OCK077051L
OCK077052
■ Side repeater lamp
OCK077100L
■Head lamp - Type B

781
Maintenance
Side marker bulb replacement
(Headlamp Type A)
If the side marker (1) does not oper-
ate, have the vehicle checked by an
authorized Kia dealer.
A skilled technician should check or
repair the side marker, for it may
damage related parts of the vehicle.
Position lamp + DRL (LED
type) bulb replacement
(Headlamp Type A)
If the position lamp + DRL (LED) (1)
does not operate, have the vehicle
checked by an authorized Kia dealer.
The LED lamps cannot be replaced
as a single component because they
are part of an integrated unit. The
LED lamps have to be replaced with
the unit.
A skilled technician should check or
repair the position lamp + DRL
(LED), for it may damage related
parts of the vehicle.
Headlamp (Low/High beam)
bulb replacement (Headlamp
Type A)
1. Remove the service cover clip onthe wheel housing.
OCK077101L
■Head lamp - Type A
OCK077073
■Head lamp - Type A
OCK077074
■Head lamp - Type A

Maintenance
82
7
2. Remove the headlamp bulb cover
by turning it counterclockwise.
3. Disconnect the headlamp bulb socket-connector. 4. Remove the bulb-socket from the
headlamp assembly by turning the
bulb-socket counterclockwise until
the tabs on the bulb-socket align
with the slots on the headlamp
assembly.
5. Install a new bulb-socket assem- bly in the headlamp assembly by
aligning the tabs on the bulb-sock-
et with the slots in the headlamp
assembly. Push the bulb-socket
into the headlamp assembly and
turn the bulb-socket clockwise.
6. Connect the headlamp bulb sock- et-connector.
7. Install the headlamp bulb cover by turning it clockwise.
8. Install the clip on the service cover.
❈ If it is difficult to replace light bulbs,
have the vehicle checked by an
authorized Kia dealer.
Headlamp bulb
OCK077075
OCK077076
OQL075058
WARNING- Halogen
bulbs
Halogen bulbs contain pres- surized gas that will produce
flying pieces of glass if broken.
Always handle them carefully, and avoid scratches and abra-
sions. If the bulbs are lit, avoid
contact with liquids.

783
Maintenance
Never touch the glass with barehands. Residual oil may cause the
bulb to overheat and burst when lit.
A bulb should be operated only
when installed in a headlight.
If a bulb becomes damaged or cracked, replace it immediately
and carefully dispose of it.
Wear eye protection when chang- ing a bulb. Allow the bulb to cool
down before handling it.Front turn signal lamp bulb
replacement (Headlamp Type A)
1. Open the hood.
2. Remove the strut bar and the air cleaner assembly. 3. Remove the bulb-socket from the
headlamp assembly by turning the
bulb-socket counterclockwise until
the tabs on the bulb-socket align
with the slots on the headlamp
assembly.
4. Remove the bulb from the bulb- socket by pressing it in and rotat-
ing it counterclockwise until the
tabs on the bulb align with the
slots in the bulb-socket. Pull the
bulb out of the bulb-socket.
5. Insert a new bulb by inserting it into the bulb-socket and rotating it
until it locks into place.
OCK077077
OCK077078
OCK077079

Maintenance
84
7
6. Install the socket in the headlamp
assembly by aligning the tabs on
the bulb-socket with the slots in
the assembly. Push the bulb-sock-
et into the headlamp assembly
and turn the socket clockwise.
7. Install the strut bar and the air cleaner assembly.
❈ If it is difficult to replace light bulbs,
have the vehicle checked by an
authorized Kia dealer.Stop and tail lamp (LED type)
bulb replacement
If the stop and tail lamp (LED) (1, 2)
does not operate, have the vehicle
checked by an authorized Kia dealer.
The LED lamps cannot be replaced
as a single component because they
are part of an integrated unit. The
LED lamps have to be replaced with
the unit.
A skilled technician should check or
repair the stop and tail lamp (LED),
for it may damage related parts of
the vehicle.
Rear side marker (LED type)
bulb replacement
If the rear side marker (LED) (1)
does not operate, have the vehicle
checked by an authorized Kia dealer.
The LED lamps cannot be replaced
as a single component because they
are part of an integrated unit. The
LED lamps have to be replaced with
the unit.
A skilled technician should check or
repair the rear side marker (LED), for
it may damage related parts of the
vehicle.
OCK077053OCK077102L

83

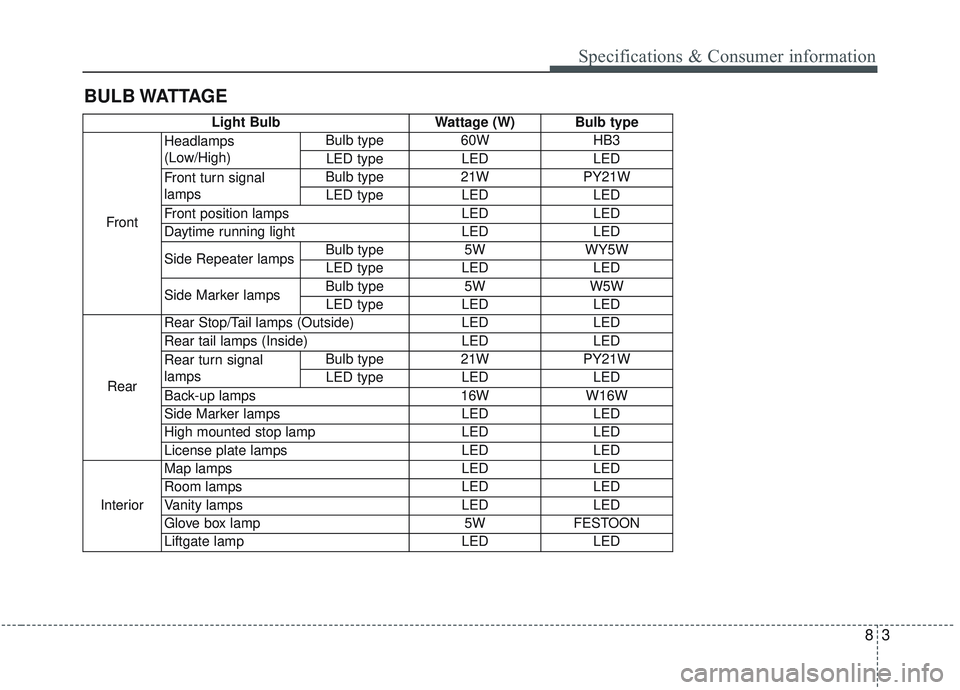

BULB WATTAGESpecifications & Consumer information
Light Bulb
Wattage (W) Bulb type
Front Headlamps
(Low/High)
Bulb type
60WHB3
LED type LEDLED
Front turn signal
lamps Bulb type
21WPY21W
LED type LEDLED
Front position lamps LEDLED
Daytime running light LEDLED
Side Repeater lamps Bulb type
5WWY5W
LED type LEDLED
Side Marker lamps Bulb type
5WW5W
LED type LEDLED
Rear Rear Stop/Tail lamps (Outside)
LEDLED
Rear tail lamps (Inside) LEDLED
Rear turn signal
lamps Bulb type
21WPY21W
LED type LEDLED
Back-up lamps 16WW16W
Side Marker lamps LEDLED
High mounted stop lamp LEDLED
License plate lamps LEDLED
Interior Map lamps
LEDLED
Room lamps LEDLED
Vanity lamps LEDLED
Glove box lamp 5WFESTOON
Liftgate lamp LEDLED
