2020 KIA RIO trip computer

• Sunshade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
49
• Resetting the sunroof . . . . . . . . . . . . . . . . . . . . . . . . . 4-49
Steering wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-51
• Electric Power Steering (EPS) . . . . . . . . . . . . . . . . . . 4-51
• Tilt and telescopic steering . . . . . . . . . . . . . . . . . . . . . 4-52
• Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . 4-52
• Heated steering wheel . . . . . . . . . . . . . . . . . . . . . . . . . 4-53
Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-54\
• Inside rearview mirror . . . . . . . . . . . . . . . . . . . . . . . . 4-54
• Outside rearview mirror. . . . . . . . . . . . . . . . . . . . . . . 4-54
Instrument cluster . . . . . . . . . . . . . . . . . . . . . . . . . 4-57
• Instrument cluster control . . . . . . . . . . . . . . . . . . . . . 4-58
• LCD window control . . . . . . . . . . . . . . . . . . . . . . . . . . 4-58
• Gauges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 4-59
• Transmission Shift Indicator . . . . . . . . . . . . . . . . . . . 4-62
LCD windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-64
• Over view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
64
• Trip information (Trip computer) . . . . . . . . . . . . . . . 4-64
• LCD modes (for type B cluster) . . . . . . . . . . . . . . . . . 4-69
• Service mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-70
• User settings mode (for type B cluster) . . . . . . . . . . . 4-70
Warning and indicator lights . . . . . . . . . . . . . . . . 4-79
• Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-79
• Indicator lights. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-87
Rear view monitor system . . . . . . . . . . . . . . . . . . . 4-91
• Rear view monitor function . . . . . . . . . . . . . . . . . . . . 4-91
Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-92\
• Battery saver function. . . . . . . . . . . . . . . . . . . . . . . . . 4-92
• Headlight escort function . . . . . . . . . . . . . . . . . . . . . . 4-92
• Headlight welcome function . . . . . . . . . . . . . . . . . . . . 4-92
• Daytime running light . . . . . . . . . . . . . . . . . . . . . . . . . 4-93
• Lighting control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-93
• High beam operation. . . . . . . . . . . . . . . . . . . . . . . . . . 4-95
• Turn signals and lane change signals . . . . . . . . . . . . 4-96
• Front fog light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-97
Wipers and washers . . . . . . . . . . . . . . . . . . . . . . . . 4-98
• Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-99
• Windshield washers (front) . . . . . . . . . . . . . . . . . . . 4-100
• Rear window wiper and washer switch (for 5 door) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-102
Interior light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-103
• Automatic turn off function . . . . . . . . . . . . . . . . . . . 4-103
• Map lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10\
3
• Room lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-104
• Trunk/Liftgate room lamp . . . . . . . . . . . . . . . . . . . . 4-106
• Glove box lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-106
• Vanity mirror lamp . . . . . . . . . . . . . . . . . . . . . . . . . . 4-107
Defroster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-108
• Rear window defroster . . . . . . . . . . . . . . . . . . . . . . . 4-108
4
SC CAN (ENG) 4.QXP 12/12/2019 5:08 PM Page 2

Features of your vehicle
64
4
Over view
LCD windows show the following var-
ious information to drivers.
- Trip information
- LCD modes
- Warning messages
Trip information (Trip computer)
The trip computer is a microcomput-
er-controlled driver information sys-
tem that displays information related
to driving.
✽ ✽
NOTICE
Some driving information stored in
the trip computer (for example
Average Vehicle Speed) resets if the
battery is disconnected.
Trip Modes
- For Type A cluster
LCD WINDOWS (IF EQUIPPED)
OSC046119
To change the trip mode, press the
TRIP button.

Elapsed Time [A]

TRIP A



TRIP B



FUEL ECONOMY

Service

Service

Speed
SC CAN (ENG) 4.QXP 12/12/2019 5:11 PM Page 64

465
Features of your vehicle
- For Type B clusterFuel Economy
Distance To Empty (1)
The range is the estimated dis-tance the vehicle can be driven
with the remaining fuel. - Distance range : 1 ~ 9,999 km or
1 ~ 99,999 mi.
If the estimated distance is below 1 km (1 mi.), the trip computer will
display “---” as distance to empty.
✽ ✽ NOTICE
• If the vehicle is not on level ground
or the battery power has been
interrupted, the distance to empty
function may not operate correct-
ly.
• The distance to empty may differ from the actual driving distance as
it is an estimate of the available
driving distance.
• The trip computer may not regis- ter additional fuel if less than 6
liters (1.6 gallons) of fuel are
added to the vehicle.
• The fuel economy and distance to empty may vary significantly
based on driving conditions, driv-
ing habits, and condition of the
vehicle.



Accumulate Info



Digital speedometer
Drive Info


TRIP
To change the trip mode, scroll the
MOVE scroll switch ( / ) in the
trip computer mode.
OSC047131C
OSC047132C
■ Type A
■ Type B
SC CAN (ENG) 4.QXP 12/12/2019 5:11 PM Page 65

469
Features of your vehicle
- If the engine is running, the informa-tion will be accumulated even when
the vehicle is not in motion.LCD Modes (for type B cluster)
(1) Trip Computer mode
This mode displays driving informa-
tion like the tripmeter, fuel economy,
and so on.
❈ For more details, refer to “Trip
Computer” in this chapter.
(2) User Setting mode
On this mode, you can change the
settings of the doors, lamps and so
on. (3) Master warning mode
This mode informs of warning mes-
sages related to TPMS fail, low pres-
sure (if equipped) or Low engine oil
(if equipped).
❈
For controlling the LCD modes,
refer to “LCD window Control” in
this chapter.
OSC046119
SC CAN (ENG) 4.QXP 12/12/2019 5:11 PM Page 69

839
Maintenance
When recharging the battery,
observe the following precautions:
The battery must be removed fromthe vehicle and placed in an area
with good ventilation.
Do not allow cigarettes, sparks, or flame near the battery.
Watch the battery during charging, and stop or reduce the charging
rate if the battery cells begin
gassing (boiling) violently or if the
temperature of the electrolyte of
any cell exceeds 49°C (120°F).
Wear eye protection when check- ing the battery during charging.
Disconnect the battery charger in the following order.
1. Turn off the battery charger main switch.
2. Unhook the negative clamp from the negative battery terminal.
3. Unhook the positive clamp from the positive battery terminal. Before performing maintenance or
recharging the battery, turn off all
accessories and stop the engine.
The negative battery cable must be removed first and installed last
when the battery is disconnected.Reset items
The following items should be reset
after the battery has been dis-
charged or the battery has been dis-
connected.
Auto up/down window
Sunroof
Trip computer
Climate control system
SC CAN (ENG) 8.qxp 6/7/2019 9:41 AM Page 39

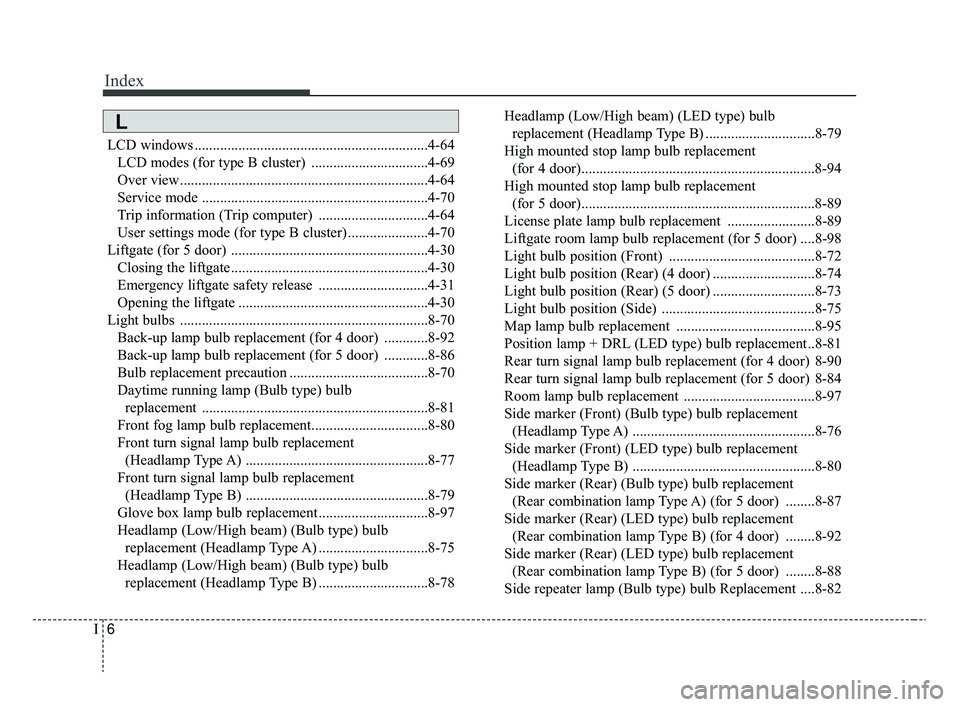

Index
6I
LCD windows ................................................................4-64LCD modes (for type B cluster) ................................4-69
Over view ....................................................................4-64\
Service mode ..............................................................4-70
Trip information (Trip computer) ..............................4-64
User settings mode (for type B cluster) ......................4-70
Liftgate (for 5 door) ......................................................4-30 Closing the liftgate ......................................................4-30
Emergency liftgate safety release ..............................4-31
Opening the liftgate ....................................................4-30
Light bulbs ....................................................................8-70\
Back-up lamp bulb replacement (for 4 door) ............8-92
Back-up lamp bulb replacement (for 5 door) ............8-86
Bulb replacement precaution ......................................8-70
Daytime running lamp (Bulb type) bulb replacement ..............................................................8-81
Front fog lamp bulb replacement................................8-80
Front turn signal lamp bulb replacement (Headlamp Type A) ..................................................8-77
Front turn signal lamp bulb replacement (Headlamp Type B) ..................................................8-79
Glove box lamp bulb replacement ..............................8-97
Headlamp (Low/High beam) (Bulb type) bulb replacement (Headlamp Type A) ..............................8-75
Headlamp (Low/High beam) (Bulb type) bulb replacement (Headlamp Type B) ..............................8-78 Headlamp (Low/High beam) (LED type) bulb
replacement (Headlamp Type B) ..............................8-79
High mounted stop lamp bulb replacement (for 4 door)................................................................8-94
High mounted stop lamp bulb replacement (for 5 door)................................................................8-89
License plate lamp bulb replacement ........................8-89
Liftgate room lamp bulb replacement (for 5 door) ....8-98
Light bulb position (Front) ........................................8-72
Light bulb position (Rear) (4 door) ............................8-74
Light bulb position (Rear) (5 door) ............................8-73
Light bulb position (Side) ..........................................8-75
Map lamp bulb replacement ......................................8-95
Position lamp + DRL (LED type) bulb replacement..8-81
Rear turn signal lamp bulb replacement (for 4 door) 8-90
Rear turn signal lamp bulb replacement (for 5 door) 8-84
Room lamp bulb replacement ....................................8-97
Side marker (Front) (Bulb type) bulb replacement (Headlamp Type A) ..................................................8-76
Side marker (Front) (LED type) bulb replacement (Headlamp Type B) ..................................................8-80
Side marker (Rear) (Bulb type) bulb replacement (Rear combination lamp Type A) (for 5 door) ........8-87
Side marker (Rear) (LED type) bulb replacement (Rear combination lamp Type B) (for 4 door) ........8-92
Side marker (Rear) (LED type) bulb replacement (Rear combination lamp Type B) (for 5 door) ........8-88
Side repeater lamp (Bulb type) bulb Replacement ....8-82
L
SC CAN (ENG) Index.qxp 12/12/2019 5:06 PM Page 6
