Features of your vehicle
78
4
Low Fuel
This warning message illuminates if
the fuel tank is nearly empty.
Add fuel as soon as possible.
Check headlight
This warning message illuminates if
there is a malfunction (burned-out
bulb except LED lamp or circuit mal-
function) with the headlamp. In this
case, have your vehicle inspected by
an authorized Kia dealer.
✽ ✽
NOTICE
• When replacing the bulb, use the
same wattage bulb.
For more information, refer to
“BULB WATTAGE” in chapter 8.
• If different wattage bulb is equipped with the vehicle, this
warning message is not displayed.
Check High Beam Assist (HBA)
system
This warning message illuminates if
the high beam assist system has a
malfunction. In this case, have your
vehicle inspected by an authorized
Kia dealer.
Device in wireless charger (if equipped)
If a smart phone is still left on the
wireless charging pad unattended,
even when the Engine start/stop but-
ton is turned to the ACC or OFF posi-
tion. And the instrument panel's one
time driving information mode has
finished, a warning message will lit
up on the instrument panel.
❈ For more details, refer to “Smart
Phone Wireless Charger” in this
chapter.
Check Forward Collision-
avoidance Assist system (if equipped)
This warning message illuminates if there is a malfunction with the
Forward Collision-avoidance Assist
(FCA) system. In this case, have
your vehicle inspected by an
authorized Kia dealer.
❈ For more details, refer to “Forward
Collision-avoidance Assist(FCA)
system” in chapter 5.

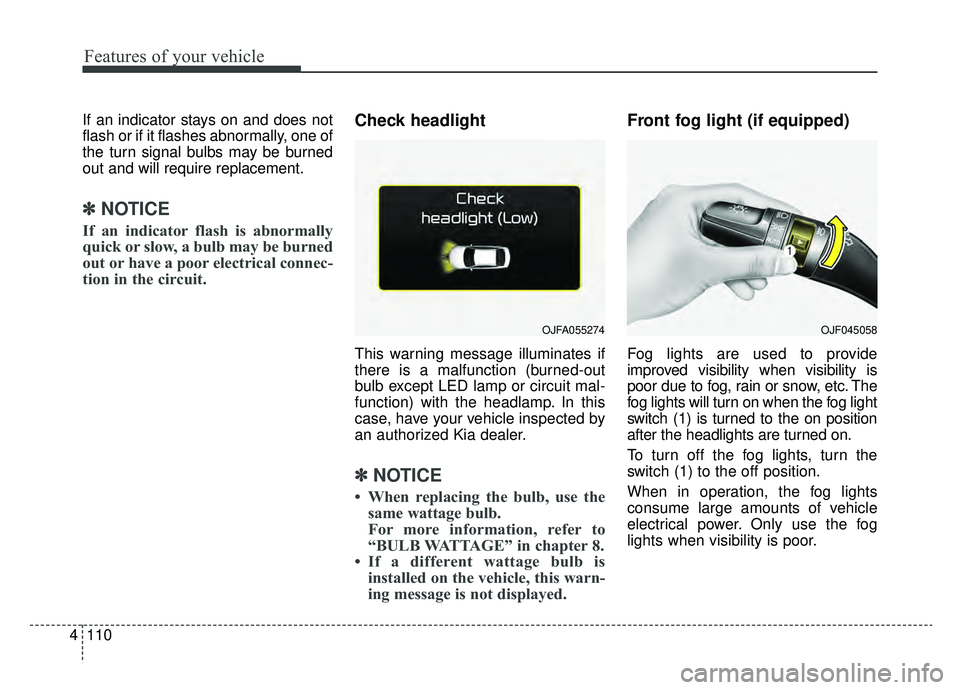

Features of your vehicle
110
4
If an indicator stays on and does not
flash or if it flashes abnormally, one of
the turn signal bulbs may be burned
out and will require replacement.
✽ ✽
NOTICE
If an indicator flash is abnormally
quick or slow, a bulb may be burned
out or have a poor electrical connec-
tion in the circuit.
Check headlight
This warning message illuminates if
there is a malfunction (burned-out
bulb except LED lamp or circuit mal-
function) with the headlamp. In this
case, have your vehicle inspected by
an authorized Kia dealer.
✽ ✽NOTICE
• When replacing the bulb, use the
same wattage bulb.
For more information, refer to
“BULB WATTAGE” in chapter 8.
• If a different wattage bulb is installed on the vehicle, this warn-
ing message is not displayed.
Front fog light (if equipped)
Fog lights are used to provide
improved visibility when visibility is
poor due to fog, rain or snow, etc. The
fog lights will turn on when the fog light
switch (1) is turned to the on position
after the headlights are turned on.
To turn off the fog lights, turn the
switch (1) to the off position.
When in operation, the fog lights
consume large amounts of vehicle
electrical power. Only use the fog
lights when visibility is poor.
OJFA055274OJF045058

I7
Index
Front turn signal lamp (Bulb type) bulb replacement (Headlamp Type A) ..................................................7-80
Front turn signal lamp (Bulb type) bulb replacement (Headlamp Type B) ..................................................7-80
Glove box lamp (Bulb type) bulb replacement ..........7-88
Headlamp (High beam) bulb replacement (Headlamp Type A) ..................................................7-78
Headlamp (Low beam) bulb replacement (Headlamp Type A) ..................................................7-77
Headlamp (Low/High beam) (LED type) bulb replacement (Headlamp Type B) ..............................7-79
High mounted stop lamp (LED type) bulb replacement ..............................................................7-86
License plate lamp (Bulb type) bulb replacement ......7-85
Light bulb position (Front) ........................................7-75
Light bulb position (Rear) ..........................................7-76
Light bulb position (Side) ..........................................7-76
Map lamp (LED type) bulb replacement ..................7-86
Personal lamp (LED type) bulb replacement ............7-88
Position lamp + DRL (LED type) bulb replacement..7-81
Rear turn signal lamp bulb replacement ....................7-82
Room lamp (Bulb type) bulb replacement ................7-87
Side repeater lamp (LED type) bulb replacement ......7-82
Stop lamp (LED type) bulb replacement (Sedan) ......7-84
Tail lamp (LED type) bulb replacement (Sedan)........7-84
Trunk lamp (LED type) bulb replacement..................7-89
Vanity mirror lamp (Bulb type) bulb replacement ....7-87 Lighting........................................................................\
4-103
Battery saver function ..............................................4-103
Check headlight ......................................................4-110
Daytime running light ..............................................4-103
Dynamic Bending Light ..........................................4-111
Front fog light ..........................................................4-110
Headlight leveling device..........................................4-110
High Beam Assist ....................................................4-106
High beam operation ................................................4-105
Lighting control ........................................................4-103
Turn signals and lane change signals........................4-109
Luggage volume ..............................................................8-5
Maintenance services ......................................................7-4 Owner maintenance precautions ..................................7-5
Owner’s responsibility ..................................................7-4
Mirrors ........................................................................\
..4-48 Inside rearview mirror ................................................4-48
Outside rearview mirror ..............................................4-50
Online factory authorized manuals (U.S. only) ............8-15 Electrical troubleshooting manual ..............................8-15
Owner's manual ..........................................................8-15
Service manual ............................................................8-15
