2020 KIA NIRO PHEV Navigation System Quick Reference Guide

2-27
Seeing the fuel economy history
You can check the driving dates, distances, and average fuel
economy for previous driving records.
On the ECO Driving screen, touch Fuel Economy
History.
0000
A
When there is the best fuel economy, appears before the
record.
0000
A
To delete a record, touch Menu >
Delete History.
Seeing the fuel economy information
You can check the fuel economy for driving.
On the ECO Driving screen, touch Fuel Economy.
\037
\036
\035
\034
a Returns to the previous step.
b Can see the graphs for hybrid fuel economy and electric
motor usage.
c Can see the average fuel economy of the vehicle.
d Can initialize all fuel economy graphs.
0000
A
The graphs are updated every 2.5 minutes. When you stop
the vehicle, the graphs are initialized.
0000
A
The average fuel economy is the average fuel economy
accumulated after fueling. Accordingly, even when the graph
is initialized, the information is maintained.
0000
A
To access the online user’s manual on the ECO Driving screen,
touch Menu >
User’s Manual on Web (QR Code) and then
scan the displayed QR code.

2-28
Energy flows screen
\037\036
\035
\034
a Returns to the previous step.
b Can see the driving status of the vehicle.
c Can see the energy flows among the engine, motor, and
battery.
d The list of menu items appears.
000EUser’s Manual on Web (QR Code): Displays the QR code
that provides access to the online user manual for the
system.
000ESplit Screen: Can turn on or off the split screen mode.
Seeing the energy flows (PHEV only)
You can see the energy flows of the vehicle.
On the Plug-in Hybrid screen, touch Energy Flow.

2-29
Energy flowsDescription
Driving and charging with
the engine power
Driving with the motor
power and charging with
the engine power
[In case of braking
Energy flows
Description
Charging with both the
deceleration energy for
braking and the power of
engine
Charging with the
deceleration energy for
braking
[In case of starting the vehicle
Energy flows
Description
Starting with the motor
power
[In case of driving
Energy flows
Description
Driving with the engine
and motor
Driving with the engine
power
Driving with the motor
power

2-30
Energy flowsDescription
Braking the vehicle by
decreasing the power of
engine and charging with
its deceleration energy
Braking the vehicle by
decreasing the power of
engine
[In case of idling
Energy flows
Description
No power transfer in
standby mode
Charging with the engine
power in standby mode

Radio
Listening to the radio
Listening to HD Radio™
Listening to SiriusXM™ radio
03

3-2

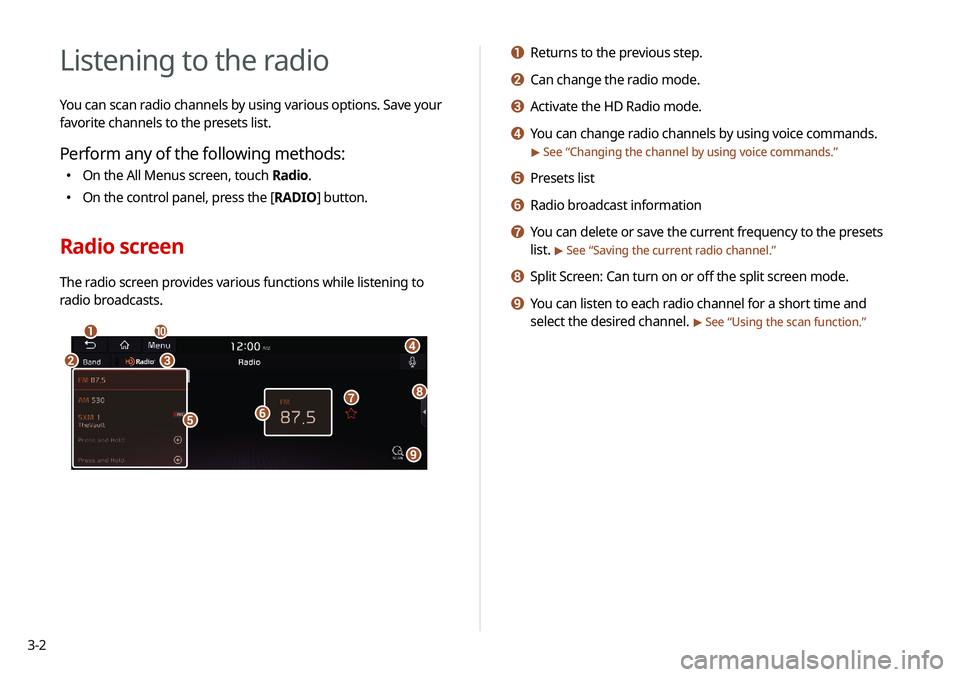

Listening to the radio
You can scan radio channels by using various options. Save your
favorite channels to the presets list.
Perform any of the following methods:
000EOn the All Menus screen, touch Radio.
000EOn the control panel, press the [
RADIO] button.
Radio screen
The radio screen provides various functions while listening to
radio broadcasts.
\037
\036\035
\034
\033\032
\031
\030
\027
\026
a Returns to the previous step.
b Can change the radio mode.
c Activate the HD Radio mode.
d You can change radio channels by using voice commands.
> See “Changing the channel by using voice commands.”
e Presets list
f Radio broadcast information
g You can delete or save the current frequency to the presets
list.
> See “Saving the current radio channel.”
h Split Screen: Can turn on or off the split screen mode.
i You can listen to each radio channel for a short time and
select the desired channel.
> See “Using the scan function.”

3-3
\335Warning
Driving while distracted can result in a loss of vehicle control
that may lead to an accident, severe bodily injury, or death. The
driver's primary responsibility is the safe and legal operation of
the vehicle, and the use of any vehicle systems, including the
touch screen and steering wheel controls, which take the driver's
eyes, attention, and focus away from the safe operation of the
vehicle, or which are not permissible by law, should never be used
during the operation of the vehicle.
j The list of menu items appears.
000EEnter Station: Can select or directly enter the desired
radio frequency.
000EStation List: Can see the list of available radio stations.
000EInfo: Turns the Radio text information transmitted from
the broadcasting station on and off.
000EReorder Presets: Can change the location of a channel by
dragging on the presets list.
> See “
Changing the order of
registered channels.”
000E Delete Presets: Can delete a registered channel from the
presets list.
> See “
Deleting a registered channel.”
000E Set Number of Presets: Used to set the number of
channels to display on the preset list.
> See “
Changing the
number of channels to display on the preset list.”
000E Sound Settings: Can configure system sound settings.
> See “
Configuring the sound settings.”
000E User's Manual on Web (QR Code): Displays the QR code
that provides access to the online user manual for the
system.
000ESplit Screen: Can turn on or off the split screen mode.
0000
A
The broadcast station names and local information are
displayed using GPS data. Those information may not appear
when there is no GPS data received.
0000
A
The displayed broadcast station names may not match the
actual ones.

3-4
Changing the radio channel
Perform any of the following methods:
000EOn the Radio screen, touch the desired channel from the
presets list.
0000
A
You can also change the channel by using the Move lever/
button on the steering wheel.
000EOn the control panel, press the
[ SEEK ] or [TRACK ] button.
You can move to the previous or next channel with good
reception.
000E When you know an accurate frequency, turn the [TUNE/FILE]
knob on the control panel to change the frequency.
You can listen to the changed radio broadcast.
Changing the channel by using voice
commands
You can change the radio channel by using voice commands.
1 On the Radio screen, touch .
2 When a guiding beep is heard, say the desired
radio station channel.
Changing the radio mode
Perform any of the following methods:
000E On the Radio screen, touch Band repeatedly.
000EOn the control panel, press the [
RADIO] button repeatedly.
The radio mode changes in the order of FM >
AM >
SiriusXM.
