2020 KIA FORTE Filter

735
Maintenance
AIR CLEANER
Filter replacement
The air filter must be replaced when
necessary, and should not be
washed.
While inspecting the air cleaner com-
partment, the air filter can be
cleaned using compressed air.1. Loosen the air cleaner cover
attaching clips and open the cover. 2. Wipe the inside of the air cleaner.
3. Replace the air cleaner filter.
4. Lock the cover with the cover
attaching clips.
OBD078009L
OBD078010LOBD078011L

Maintenance
36
7
✽ ✽
NOTICE
Insert the hinge(1) and engage the
clips when mounting the air cleaner
cover.
Replace the filter according to the
Maintenance Schedule.
If the vehicle is operated in extreme-
ly dusty or sandy areas, replace the
element more often than the usual
recommended intervals. (Refer to the
“Maintenance under severe usage
conditions” section in this Chapter.)
OBD078068
CAUTION - Air filter
maintenance
Do not drive with the air clean-
er removed; this will result inexcessive engine wear.
When removing the air cleaner filter, be careful that dust ordirt does not enter the airintake, or damage may result.
Use a Kia genuine part. Use of a non-genuine part coulddamage the air flow sensor.

737
Maintenance
CLIMATE CONTROL AIR FILTER
Filter inspection
The climate control air filter should
be replaced according to the
Maintenance Schedule. If the vehicle
is operated in severely air-polluted
cities or on dusty rough roads for a
long period, it should be inspected
more frequently and replaced earlier.
When you replace the climate control
air filter, replace it performing the fol-
lowing procedure, and be careful to
avoid damaging other components.1. Open the glove box and removethe stoppers on both sides. 2. With the glove box open, pull the
support strap (1).
OBD078012OBD078013

Maintenance
38
7
3. Remove the climate control air fil-
ter cover while pressing the lock
on both sides of the cover. 4. Replace the climate control air fil-
ter.
5. Reassemble in the reverse order of disassembly.
When replacing the climate control
air filter, install it properly. Otherwise,
the system may produce noise, and
the effectiveness of the filter may be
reduced.
OJFC075126OBD078014

7105
Maintenance
EMISSION CONTROL SYSTEM
The emission control system of your
vehicle is covered by a written limited
warranty. Please see the warranty
information contained in the
Warranty & Consumer Information
manual in your vehicle.
Your vehicle is equipped with an
emission control system to meet all
applicable emission regulations.
There are three emission control
systems, as follows.
(1) Crankcase emission control sys-tem
(2) Evaporative emission control sys- tem
(3) Exhaust emission control system
In order to assure the proper function
of the emission control systems, it is
recommended that you have your
vehicle inspected and maintained by
an authorized Kia dealer in accor-
dance with the maintenance sched-
ule in this manual. Caution for the Inspection and
Maintenance Test (With Electronic
Stability Control (ESC) system)
To prevent the vehicle from mis-
firing during dynamometer test-
ing, turn the Electronic Stability
Control (ESC) system off by
pressing the ESC switch.
After dynamometer testing is completed, turn the ESC system
back on by pressing the ESC
switch again.1. Crankcase emission control system
The positive crankcase ventilation
system is employed to prevent air
pollution caused by blow-by gases
being emitted from the crankcase.
This system supplies fresh filtered air
to the crankcase through the air
intake hose. Inside the crankcase,
the fresh air mixes with blow-by
gases, which then pass through the
PCV valve into the induction system.
2. Evaporative emission con-trol (including ORVR:
Onboard Refueling Vapor
Recovery)
system
The Evaporative Emission Control
System is designed to prevent fuel
vapors from escaping into the atmos-
phere.
(The ORVR system is designed to
allow the vapors from the fuel tank to
be loaded into a canister while refu-
eling at the gas station, preventing
the escape of fuel vapors into the
atmosphere.)

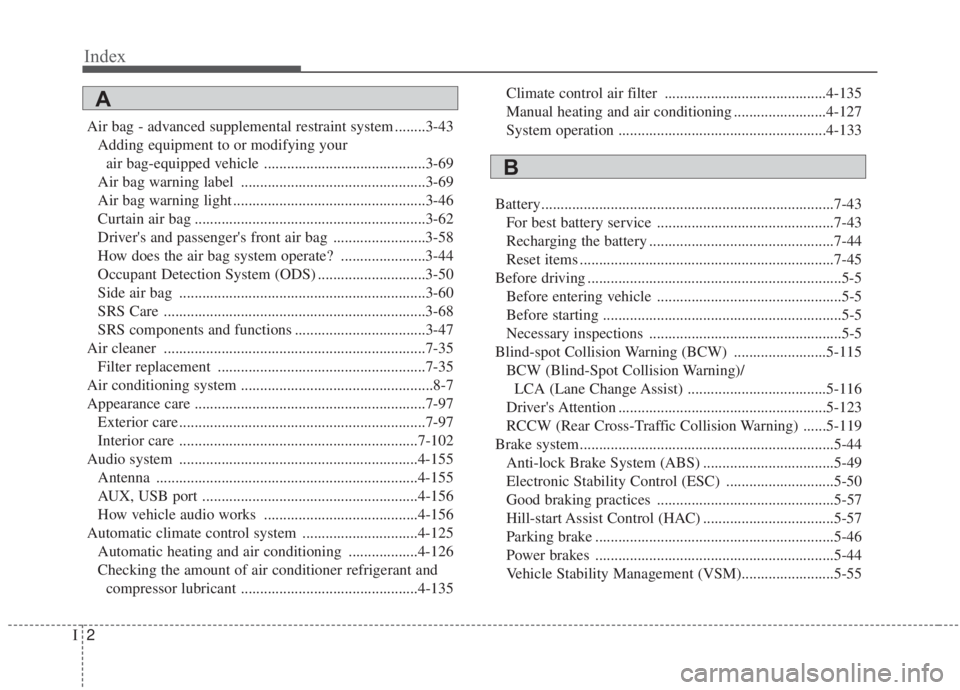

Index
2I
Air bag - advanced supplemental restraint system ........3-43Adding equipment to or modifying your air bag-equipped vehicle ..........................................3-69
Air bag warning label ................................................3-69
Air bag warning light ..................................................3-46
Curtain air bag ............................................................3-62
Driver's and passenger's front air bag ........................3-58
How does the air bag system operate? ......................3-44
Occupant Detection System (ODS) ............................3-50
Side air bag ................................................................3-60
SRS Care ....................................................................3-68\
SRS components and functions ..................................3-47
Air cleaner ....................................................................7-35\
Filter replacement ......................................................7-35
Air conditioning system ..................................................8-7
Appearance care ............................................................7-97 Exterior care ................................................................7-97
Interior care ..............................................................7-102
Audio system ..............................................................4-155 Antenna ....................................................................4-15\
5
AUX, USB port ........................................................4-156
How vehicle audio works ........................................4-156
Automatic climate control system ..............................4-125 Automatic heating and air conditioning ..................4-126
Checking the amount of air conditioner refrigerant and compressor lubricant ..............................................4-135 Climate control air filter ..........................................4-135
Manual heating and air conditioning ........................4-127
System operation ......................................................4-133
Battery........................................................................\
....7-43 For best battery service ..............................................7-43
Recharging the battery ................................................7-44
Reset items ..................................................................7-45
Before driving ..................................................................5-5 Before entering vehicle ................................................5-5
Before starting ..............................................................5-5
Necessary inspections ..................................................5-5
Blind-spot Collision Warning (BCW) ........................5-115 BCW (Blind-Spot Collision Warning)/LCA (Lane Change Assist) ....................................5-116
Driver's Attention ......................................................5-123
RCCW (Rear Cross-Traffic Collision Warning) ......5-119
Brake system..................................................................5-44 Anti-lock Brake System (ABS) ..................................5-49
Electronic Stability Control (ESC) ............................5-50
Good braking practices ..............................................5-57
Hill-start Assist Control (HAC) ..................................5-57
Parking brake ..............................................................5-46
Power brakes ..............................................................5-44
Vehicle Stability Management (VSM)........................5-55
A
B

I3
Index
Brake/clutch fluid ..........................................................7-32Checking the brake/clutch fluid level ........................7-32
Bulb wattage ....................................................................8-4
Checking fluid levels ....................................................7-25
Child Restraint System (CRS) ......................................3-32 Children Always in the Rear ......................................3-32
Installing a Child Restraint System (CRS) ................3-36
Selecting a Child Restraint System (CRS) ................3-33
Climate control air filter ................................................7-37 Filter inspection ..........................................................7-37
Cruise Control System ..................................................5-86 To cancel cruise control, do one of the following ......5-88
To decrease the cruising speed ..................................5-88
To increase cruise control set speed ..........................5-87
To resume cruising speed at more than approximately 30 km/h (20 mph) ....................................................5-89
To set cruise control speed..........................................5-87
To temporarily accelerate with the cruise control on ..5-88
To turn cruise control off, do one of the following ....5-89
Declaration of Conformity ..........................................4-161 IC ........................................................................\
......4-161 Defroster ......................................................................4-\
114
Rear window defroster ..............................................4-114
Dimensions ......................................................................8-\
2
Door locks......................................................................4-\
19 Child-protector rear door lock ....................................4-22
Engine off door unlock system ..................................4-22
Impact sensing door unlock system ............................4-22
Operating door locks from inside the vehicle ............4-20
Operating door locks from outside the vehicle ..........4-19
Drive mode integrated control system ........................5-111
Driver Attention Warning (DAW)................................5-134 Resetting the system ................................................5-136
System disabled ........................................................5-136
System malfunction ..................................................5-137
System setting and activation ..................................5-134
Dual Clutch Transmission (DCT)..................................5-22 Dual clutch transmission operation ............................5-22
Good driving practices ................................................5-34
LCD display for transmission temperature and warning message ......................................................5-24
Economical operation ..................................................5-139
Emergency starting ..........................................................6-5 Jump starting ................................................................6-5
Push-starting ................................................................6-6
C
D
E

Index
4I
Emission control system ..............................................7-105Crankcase emission control system ..........................7-105
Evaporative emission control (including ORVR: Onboard Refueling Vapor Recovery) system ........7-105
Exhaust emission control system ..............................7-106
Engine ........................................................................\
......8-3
Engine compartment ................................................2-6, 7-4
Engine coolant ..............................................................7-28 Changing the coolant ..................................................7-31
Checking the coolant level..........................................7-28
Engine number ..............................................................8-12
Engine oil ......................................................................7-\
26 Changing the engine oil and filter ..............................7-27
Checking the engine oil level ....................................7-26
Engine start/stop button ................................................5-11 Engine start/stop button position ................................5-11
Illuminated engine start/stop button ..........................5-11
Starting the engine ......................................................5-14
Stopping the engine (Manual transmission) ..............5-17
Explanation of scheduled maintenance items ..............7-21
Exterior overview ............................................................2-2
Forward Collision-avoidance Assist (FCA) (Camera + Radar type) ................................................5-72Brake operation ..........................................................5-75
FCA warning message and system control ................5-74 Limitation of the system ............................................5-80
Limitation of the system ............................................5-83
Recognizing pedestrians ............................................5-84
Sensor to detect the distance from the vehicle in front (front radar/camera) ..................................................5-76
System malfunction ....................................................5-78
System setting and activation ....................................5-72
Forward Collision-avoidance Assist (FCA) (Camera type) ..............................................................5-59Brake operation ..........................................................5-62
FCA front view camera sensor ..................................5-63
FCA warning message and system control ................5-61
Limitation of the system ............................................5-67
System malfunction ....................................................5-65
System setting and activation ....................................5-59
Fuel filler lid ..................................................................4-38 Closing the fuel filler lid ............................................4-38
Opening the fuel filler lid ..........................................4-38
Fuel requirements ............................................................1-3 Do not use methanol ....................................................1-4
Fuel Additives ..............................................................1-5
Gasoline containing alcohol and methanol ..................1-3
Operation in foreign countries ......................................1-5
Fuses ........................................................................\
......7-61 Engine compartment fuse replacement ......................7-64
Fuse/relay panel description ......................................7-67
Inner panel fuse replacement ......................................7-63
F
