2020 KIA CADENZA lock

9-9
Door (if equipped)
You can confi gure the operation environment for the trunk and
doors.
Auto Lock (if equipped)
You can set the time to automatically lock all doors.
Auto Unlock (if equipped)
You can set the time to automatically unlock all doors.
Ambient Light (if equipped)
You can set the brightness and color of the ambient light.
000eBrightness: Can set the brightness of the ambient light.
000eColor: Can change the color of the ambient light. You can
select or directly enter the desired color.
One Touch Turn Signal (if equipped)
You can set the number of turn signal lamp fl ashes when the
lamp lever is operated.
Headlight Delay (if equipped)
You can set to turn off the taillights and headlights in 15 seconds
after turning off the vehicle to ensure visibility.
High Beam Assist (if equipped)
You can set to automatically control the high beam when an
oncoming vehicle is approaching to decrease the high beam
glare.
,@/"',@:(
1&@(8*%&<64"@&6>"7/5@'.4$#@JOEC


<002c0040002f00220027002c0011001100140040003a002800010012001a003100260040002800160038002a00250026003c003600340022004000260036003e00220037002f0035004000270017002e00340018002400230011001100110040000f004a00
4f00450043000100010001001a000e001a>


ß
1



ß
1


9-10
2 Press Unlock (if equipped)
You can set to unlock all doors by pressing the door unlock button
twice.
 A
When you press the door unlock button once, only the driver’s
seat door is unlocked.
Smart Trunk (if equipped)
Opens the trunk automatically when approaching the trunk with
the smart key.
Cluster (if equipped)
You can set the data to display on the instrument cluster and the
volume and type for guiding beep.
Service Interval (if equipped)
You can set to guide you when to perform the vehicle inspection.
000eEnable Service Interval: Sets the service inspection interval.
When it exceeds, the notifi cation is provided.
000eDistance: Sets the driving distance for a service.
000eDuration: Sets the service cycle.
000eReset: Initializes the settings for distance and duration.
Energy Consumption Reset (if equipped)
You can set to automatically initialize the average fuel economy.
000eAfter Ignition: The average fuel economy is automatically
initialize whenever you drive the vehicle.
000eAfter Refueling: The average fuel economy is automatically
initialize whenever you refuel the vehicle.
000eOff : The average fuel economy initialize is unavailable.
,@/"',@:(
1&@(8*%&<64"@&6>"7/5@'.4$#@JOEC


<002c0040002f00220027002c0011001100140040003a002800010012001a003100260040002800160038002a00250026003c003600340022004000260036003e00220037002f0035004000270017002e00340018002400230011001100110040000f004a00
4f00450043000100010001001a000e00120011>


ß
1



ß
1

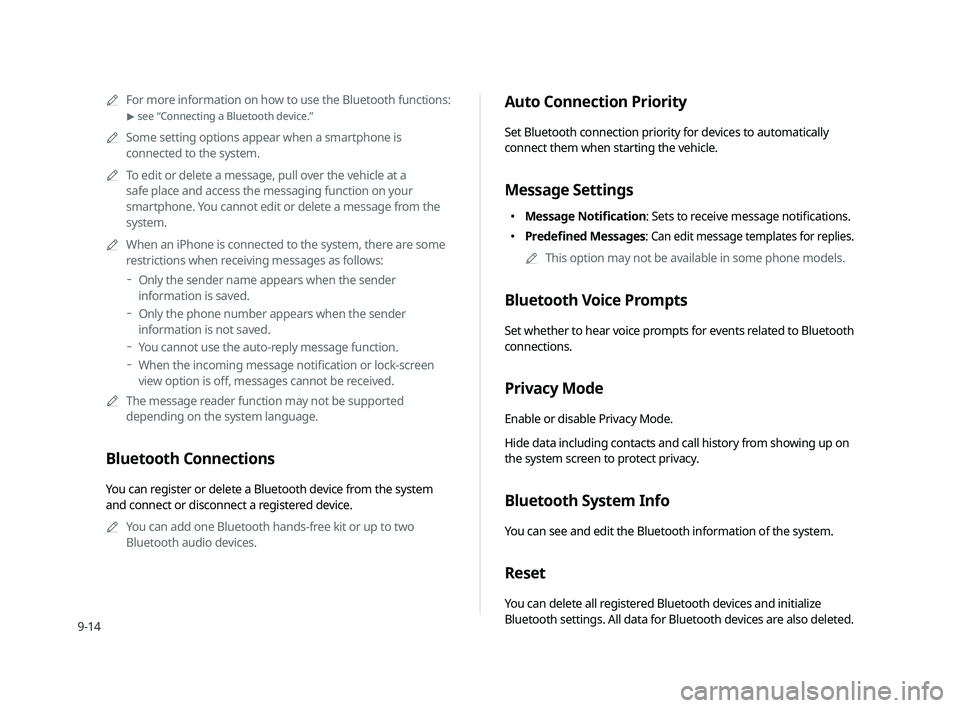

9-14 A
For more information on how to use the Bluetooth functions:
> see “Connecting a Bluetooth device.”
 A
Some setting options appear when a smartphone is
connected to the system.
 A
To edit or delete a message, pull over the vehicle at a
safe place and access the messaging function on your
smartphone. You cannot edit or delete a message from the
system.
 A
When an iPhone is connected to the system, there are some
restrictions when receiving messages as follows:
000dOnly the sender name appears when the sender
information is saved.
000dOnly the phone number appears when the sender
information is not saved.
000dYou cannot use the auto-reply message function.
000dWhen the incoming message notifi cation or lock-screen
view option is off , messages cannot be received.
 A
The message reader function may not be supported
depending on the system language.
Bluetooth Connections
You can register or delete a Bluetooth device from the system
and connect or disconnect a registered device.
 A
You can add one Bluetooth hands-free kit or up to two
Bluetooth audio devices.
Auto Connection Priority
Set Bluetooth connection priority for devices to automatically
connect them when starting the vehicle.
Message Settings
000eMessage Notifi cation: Sets to receive message notifi cations.
000ePredefi ned Messages:
Can edit message templates for replies.
 A
This option may not be available in some phone models.
Bluetooth Voice Prompts
Set whether to hear voice prompts for events related to Bluetooth
connections.
Privacy Mode
Enable or disable Privacy Mode.
Hide data including contacts and call history from showing up on
the system screen to protect privacy.
Bluetooth System Info
You can see and edit the Bluetooth information of the system.
Reset
You can delete all registered Bluetooth devices and initialize
Bluetooth settings. All data for Bluetooth devices are also deleted.
,@/"',@:(
1&@(8*%&<64"@&6>"7/5@'.4$#@JOEC


<002c0040002f00220027002c0011001100140040003a002800010012001a003100260040002800160038002a00250026003c003600340022004000260036003e00220037002f0035004000270017002e00340018002400230011001100110040000f004a00
4f00450043000100010001001a000e00120015>


ß
1



ß
1


9-34
SW Info/Update
You can see the versions of system components. You can also
update the system to the latest version.
Perform any of the following methods:
000eSetting in the General screen: On the All Menus screen, touch
Setup >
General >
SW Info/Update.
000eSetting in the System Info screen: On the All Menus screen,
touch Setup >
General >
System Info >
SW Info/Update.
The SW Info/Update screen appears.
Type A
Screen Saver
You can select the items to display on the screen saver in standby
mode.
Digital Clock
Displays the digital clock on the system screen saver.
Analog Clock
Displays the analog clock on the system screen saver.
None
Displays nothing on the system screen saver.
,@/"',@:(
1&@(8*%&<64"@&6>"7/5@'.4$#@JOEC


<002c0040002f00220027002c0011001100140040003a002800010012001a003100260040002800160038002a00250026003c003600340022004000260036003e00220037002f0035004000270017002e00340018002400230011001100110040000f004a00
4f00450043000100010001001a000e00140015>


ß
1



ß
1


10-6
Phone projection
Symptom Possible cause Solution
The phone projection function
is not performed when a
smartphone is connected using
a USB cable.Phone projection is not
supported.
Visit the website to check whether your smartphone supports the
phone projection.
000eAndroid Auto: https://support.google.com/androidauto
000eApple CarPlay: http://www.apple.com/ios/carplay
The function is inactive.
000eOn the All Menus screen, touch Setup >
Device Connections,
select the function to use, and then turn on the phone projection
option.
000eMake sure that the phone projection is not disabled in the
application settings or block-out settings on your smartphone.
Smartphone is encountered with
poor operation or malfunction. 000eCheck that the smartphone battery level is not too low.
Recognition may not work properly when the battery level is too
low.
000eThe phone projection may not work properly when the signal
strength is weak.
000eWhen the smartphone is locked, fi rst unlock it.
000eInitialize the smartphone and connect the device again.
A black screen appears when
the phone projection is
activated or in use.The smartphone malfunctions.
000eRemove the USB cable from the smartphone and connect the
device again.
000eInitialize the smartphone and connect the device again.
,@/"',@:(
1&@(8*%&<64"@&6>"7/5@'.4$#@JOEC


<002c0040002f00220027002c0011001100140040003a002800010012001a003100260040002800160038002a00250026003c003600340022004000260036003e00220037002f0035004000270017002e00340018002400230011001100110040000f004a00
4f0045004300010001000100120011000e0017>


ß
1



ß
1


10-10
Available functions in the rear seat
(if equipped)
Rear-seat remote control locked
Rear-seat sleep mode On
Front-seat driver is having a conversation with a rear-
seat occupant
Wireless charging
Wireless charging in progress
Wireless charging complete
Wireless charging failure
 A
Some icons may not appear depending on the vehicle model
and specifi cations.
UVO
Talking with a UVO phone
UVO phone’s microphone off
Vehicle location sharing
Sending the vehicle location
Receiving the vehicle location
Sending/receiving the vehicle location
UVO network’s signal strength
System update
Scheduling the update
Updating
,@/"',@:(
