2020 KIA CADENZA navigation

2-22
c c The list of menu items appears.
000eNotifi cation Popup: Set to display notifi cations upon
receipt in a pop-up.
000eUser's Manual on Web (QR Code): Displays the QR
code that provides access to the online user manual
for the system.
000eSplit Screen: Can turn on or off the split screen mode.Seeing notifi cations (if equipped)
You can view UVO notifi cations including the navigation and map
update information.
 A
Subscribe to UVO to check the function. > See “Subscribing to
the service.”
1 On the All Menus screen, touch Notifi cations.
2 Select to view the item.
ca
b
a a Returns to the previous step.
b b View the list of received notifi cations. Select from the list
to view details.
 A
Important notifi cations are marked with next to
the title.
 A
You cannot display notifi cation details while driving.
Stop the vehicle fi rst to view notifi cations.
,@/"',@:(
1&@(8*%&<64"@&6>"7/5@'.4$#@JOEC


<002c0040002f00220027002c0011001100140040003a002800010012001a003100260040002800160038002a00250026003c003600340022004000260036003e00220037002f0035004000270017002e00340018002400230011001100110040000f004a00
4f004500430001000100010013000e00130013>


ß
1



ß
1

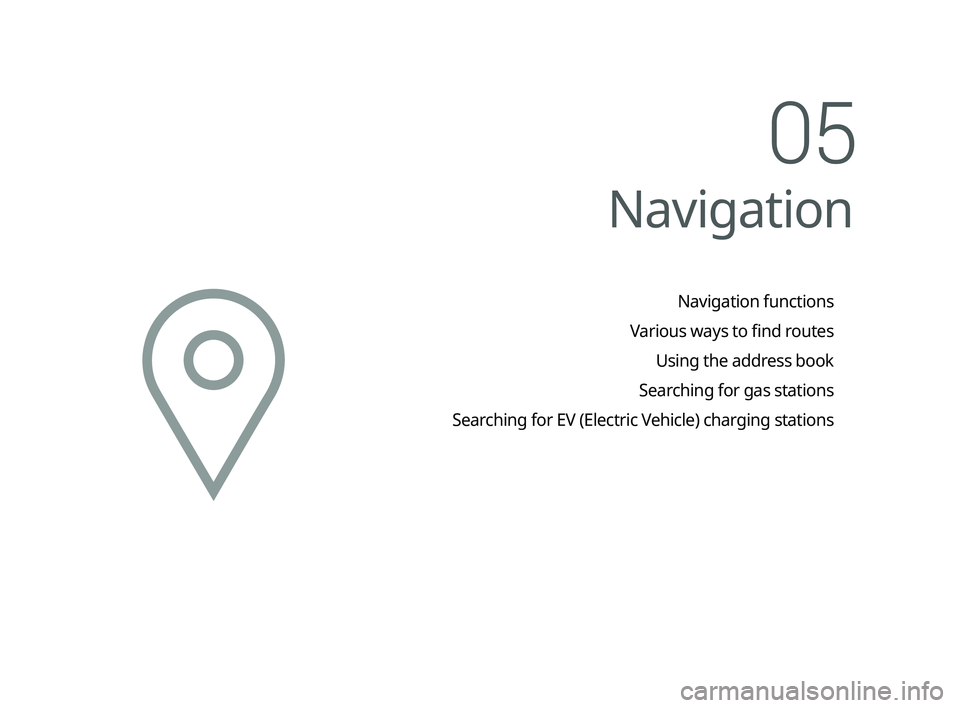

05
Navigation
Navigation functions
Various ways to fi nd routes
Using the address book
Searching for gas stations
Searching for EV (Electric Vehicle) charging stations
,@/"',@:(
1&@(8*%&<64"@&6>"7/5@'.4$#@JOEC


<002c0040002f00220027002c0011001100140040003a002800010012001a003100260040002800160038002a00250026003c003600340022004000260036003e00220037002f0035004000270017002e00340018002400230011001100110040000f004a00
4f004500430001000100010016000e0012>


ß
1



ß
1


5-2
Navigation functions
Navigation Menu overview
You can use the navigation system conveniently through various
functions on the Navigation Menu screen.
ap
b
o
cdef
ghijk
Type A
klmn
Type B
a a Returns to the previous step.
b b Search for a location by entering various types of keywords
such as place name and address.
> See “Searching by keyword.”
c c Search for POIs by category to set as a destination.
> See “Searching the nearby points of interest.”
d d Select any of previous destinations to set as a destination.
> See “Searching by previous destinations.”
e e Register the location or use the address book for setting a
destination.
> See “Using the address book.”
f f You can easily search for Kia Dealerships. > See “Searching for
Kia Dealerships (if equipped).”
g g You can cancel guidance to the destination. > See “Stopping the
route guidance.”
h h You can see the entire route information to the destination.
i i You can edit the current route so that you can travel via
waypoints on the way to the destination.
> See “Editing the
route.”
j j You can change the route search criteria to resume routing.
> See “Changing the route search criteria.”
k k You can set a destination after searching for gas stations or
EV charging stations.
> See “Searching for gas stations,” “Searching
for EV (Electric Vehicle) charging stations (EV only).”
 A
When the station data is received in real time, the menu
name changes to "Real-time Stations."
,@/"',@:(
1&@(8*%&<64"@&6>"7/5@'.4$#@JOEC


<002c0040002f00220027002c0011001100140040003a002800010012001a003100260040002800160038002a00250026003c003600340022004000260036003e00220037002f0035004000270017002e00340018002400230011001100110040000f004a00
4f004500430001000100010016000e0013>


ß
1



ß
1


5-6
Map screen
The map screen provides various functions and information, as
follows:
i
hg
j
a
b
c
d
e
f
klm
n
Type A
o
Type B (EV only)
 A
Navigation service may not be provided correctly under the
following conditions:
000dWhen the vehicle drives on a straight road continuously,
the system may guide you to drive straight. It is not a
malfunction.
000dGuidance may not be followed immediately after the
vehicle makes a turn at an intersection or drives through an
intersection.
000dThe system may guide you to make a U-turn in a prohibited
area.
000dThe system may guide you to a traffi c-blocked road (e.g. no-
entry road or road under construction).
000dThe system may guide you to a road away from the
destination when there is no road to the destination or
there are only narrow roads on the way.
000dGuidance may not be proper when the vehicle is off the
route.
000dGuidance may not match the actual distance on an
overpass or underpass due to the diff erence of the start
point.
000dWhen you are driving at high speeds, route recalculations
may take longer.
 A
Because the navigation system is used for information
purposes only, Kia does not assume responsibility of the
accuracy of the information.
 A
When the traffi c information is not received, the status icon
appears at the top of the map screen.
000dHD Radio: The system is using the HD radio data. If no
traffi c information is available, the status icon (
) will be
displayed instead.
,@/"',@:(
1&@(8*%&<64"@&6>"7/5@'.4$#@JOEC


<002c0040002f00220027002c0011001100140040003a002800010012001a003100260040002800160038002a00250026003c003600340022004000260036003e00220037002f0035004000270017002e00340018002400230011001100110040000f004a00
4f004500430001000100010016000e0017>


ß
1



ß
1


5-7
j j Displays quick menu items that can be used during guidance.
k k Can cancel the route guidance. > See “Stopping the route
guidance.”
l l Displays the remaining distance to the destination and
the estimated time of arrival. For more details, touch the
information item.
m m Displays or hides the detailed guidance.
n n You can see the system information on the map. (It can
display up to two items.)
000eTraffi c information (with an icon if there is no HD data
reception)
000eBluetooth connection status
o o Check the range you can drive with the current amount of
battery (EV only).
 A
The screen may diff er depending on the vehicle model and
specifi cations.
a a Displays the Home screen.
b b Used to change the map display mode.
000e
(Heading Up): Rotates the map depending on the
travel direction.
000e
(North Up): Displays the map with the north fi xed at
the top.
000e
(3D Map): Rotates the map depending on the travel
direction for 3D view.
c c You can adjust the volume of navigation or GPS warning
sound.
d d Zooms in the map.
e e The scale of the map automatically changes.
f f Zooms out the map.
g g Displays the point to change the driving direction.
h h Displays the next point to change the driving direction.
i i Displays the lanes in diff erent colors.
000eOrange: Recommended lane
000eWhite: Available lane
000eGray: Unavailable lane
,@/"',@:(
1&@(8*%&<64"@&6>"7/5@'.4$#@JOEC


<002c0040002f00220027002c0011001100140040003a002800010012001a003100260040002800160038002a00250026003c003600340022004000260036003e00220037002f0035004000270017002e00340018002400230011001100110040000f004a00
4f004500430001000100010016000e0018>


ß
1



ß
1


5-8
Adjusting the navigation volume
You can adjust the volume of navigation or GPS warning sound.
On the map screen, touch and then touch or ,
or use the control bar to adjust the volume.
 A
To have the navigation sound always output fi rst over media
sound, check Navigation Volume Priority.
 A
To turn off the navigation sound, touch
and then touch .
 A
To adjust the navigation volume, on the All Menus screen,
touch Setup >
Sound >
Navigation Volume >
Use Map
Screen Volume Buttons or Volume Knob. During guidance,
use the Volume knob on the control panel or the Volume lever/
button on the steering wheel to adjust the navigation volume.
> See “Use Map Screen Volume Buttons or Volume Knob.”
Using the detailed guidance
When the vehicle needs to change the driving direction or lanes,
a zoomed-in map automatically appears.
 A
To display or hide the detailed guidance, touch or .
When the detailed guidance appears while driving,
select and perform the desired function.
a
b
a a For more information about the highway exits or rest areas,
touch Details.
b b You can check the POIs near the highway exit.
,@/"',@:(
1&@(8*%&<64"@&6>"7/5@'.4$#@JOEC


<002c0040002f00220027002c0011001100140040003a002800010012001a003100260040002800160038002a00250026003c003600340022004000260036003e00220037002f0035004000270017002e00340018002400230011001100110040000f004a00
4f004500430001000100010016000e0019>


ß
1



ß
1


5-9
2 Select an item from the real-time traffi c
information list and see the details.
 A
To reroute using recent traffi c information while in
guidance, touch Detour.
 A
To see traffi c information along the current route or to see
all available traffi c information, touch On Route.
 A
To select the type of traffi c information, touch Filter.
3 Check the detailed traffi c information.
 A
Traffi c information for border crossings and speed limits
for individual roads may not be accurate. Depending on
the road conditions, note the information.
Stopping the route guidance
To stop route guidance, touch Pause Route.
The destination displayed at the bottom of the screen disappears
and the Pause Route is replaced by Resume Route.
 A
To resume guidance to the previous destination, touch
Resume Route.
 A
To cancel guidance to the destination, touch and hold Pause
Route, Resume Route, or Navigation Menu >
Cancel Route
on the All Menus screen.
Seeing traffi c Information
You can see real-time traffi c information such as ongoing road
works or accidents.
1 On the map screen, touch >
Traffi c.
,@/"',@:(
1&@(8*%&<64"@&6>"7/5@'.4$#@JOEC


<002c0040002f00220027002c0011001100140040003a002800010012001a003100260040002800160038002a00250026003c003600340022004000260036003e00220037002f0035004000270017002e00340018002400230011001100110040000f004a00
4f004500430001000100010016000e001a>


ß
1



ß
1


5-10
Searching by keyword
Enter various types of keywords such as place name and address
and then search for the destination.
1 On the Navigation Menu screen, touch Places.
 A
Available icons and their arrangement may diff er
depending on the vehicle model and specifi cations.

Various ways to fi nd routes
On the Navigation menu, you can set the destination by using
various searches, such as entering the location information or
selecting from recent destinations or categorized places.
Perform any of the following methods:
000eOn the All Menus screen, touch Navigation Menu.
000eOn the control panel, press the [NAV] button.
 A
Available icons and their arrangement may diff er depending
on the vehicle model and specifi cations.
,@/"',@:(
