2020 INFINITI QX60 display

The vehicle should be driven with the VDC
system on for most driving conditions.
If the vehicle is stuck in mud or snow, the
VDC system reduces the engine output to
reduce wheel spin. The engine speed will be
reduced even if the accelerator is depressed
to the floor. If maximum engine power is
needed to free a stuck vehicle, turn the VDC
system off.
To turn off the VDC system, push the VDC
OFF switch. The
indicator light and the
Forward Emergency Braking with Pedestrian
Detection system warning light will come on. Push the VDC OFF switch again or restart
the engine to turn on the system. For addi-
tional information, refer to “Vehicle Dynamic
Control (VDC) system” in the “Starting and
driving” section of this manual.
The Rear Door Alert system functions under
certain conditions to indicate there may be an
object or passenger in the rear seat(s). Check
the seat(s) before exiting the vehicle.
The Rear Door Alert system is initially dis-
abled. The driver can enable the system using
the vehicle information display. For additional
information, refer to “Vehicle information
display warnings and indicators” in this sec-
tion.
When the system is enabled:
∙ The system is activated when a rear door is opened and closed within 10 minutes
of the vehicle being driven. When the ve-
hicle is started and the system is acti-
vated, a visual message appears in the
vehicle information display. For addi-
tional information, refer to “Rear Door
Alert is activated” in this section.
∙ If a rear door is opened and closed but the vehicle is not driven within approxi-
mately 10 minutes, the system will not be
activated. A rear door must be opened
and closed and the car driven within
10 minutes for the system to activate.
LIC3344
VEHICLE DYNAMIC CONTROL (VDC)
OFF SWITCH REAR DOOR ALERT
Instruments and controls2-51

When the Rear Door Alert system is acti-
vated:∙ When the driver puts the vehicle in the P (Park) position, a notification message
appears in the vehicle information display
with the options to “Dismiss Message” or
“Disable Alert” if desired.
∙ Select “Disable Alert” to temporarily disable for that stop.
∙ No selection or ‘Dismiss Message” will keep the alert enabled for that stop.
∙ If the alert is enabled when a driver exits the vehicle, a message will appear in the
vehicle information display that states
“Check Back Seat for All Articles.”
If “Horn & Alert” setting is selected:
∙ An audible horn sound will occur after a short time unless a rear door is
opened and closed within a short time
to deactivate the alert.
∙ If the doors are locked before the alert is deactivated by opening a rear door,
the horn will sound.
∙ If the liftgate is opened before a rear door is opened, the horn will be de-
layed until after the liftgate is closed. NOTE:
If “Alert Only” setting is selected, the mes-
sage alert will still be shown in the vehicle
information display but the horn will not
sound.
WARNING
∙ If the driver selects “Disable Alert”, no
audible alert will be provided regardless
of rear door open/close status.
∙ There may be times when there is an ob- ject or passenger in the rear seat(s) but
the audible alert does not sound. For ex-
ample, this may occur if rear seat passen-
gers enter or exit the vehicle during a trip.
∙ The system does not directly detect ob- jects or passengers in the rear seat(s). In-
stead, it can detect when a rear door is
opened and closed, indicating that there
may be something in the rear seat(s).
NOTE:
There may be times when the horn sounds
but there are no objects or passengers in the
rear seat(s).
For additional information, refer to “Rear
Door Alert is activated” in this section. To use the outlets for devices that require
120v power, place the ignition in the ON
position and push the power inverter switch.
CAUTION
∙ Use power outlets with the engine run-
ning to avoid discharging the vehicle
battery.
∙ Do not attempt to use this while driving.
∙ Do not use double adapters or more than one electrical accessory; doing so could
significantly drain the battery of your
vehicle.
LIC2231
POWER INVERTER SWITCH (if so
equipped)
2-52Instruments and controls

The interior lights will automatically turn on
and stay on for a period of time when:∙ The doors are unlocked by the Intelligent Key, a key or the request switch while all
doors are closed and the ignition switch is
in the OFF position.
∙ The doors and/or liftgate is opened.
∙ The switch is individually pushed.
When the ON switch
1is pushed, the inte-
rior lights illuminate.
When the DOOR/OFF switch
2is pushed,
the interior lights do not illuminate unless
individually pushed. NOTE:
The footwell lights and step lights illuminate
when the driver and passenger doors are
open regardless of the interior light switch
position. These lights will turn off automati-
cally after a period of time while doors are
open to prevent the battery from becoming
discharged.
CAUTION
Do not use for extended periods of time
with the engine stopped. This could result in
a discharged battery.
CONSOLE LIGHT
The console light1will turn on whenever
the parking lights or headlights are illumi-
nated.
The console light brightness can be adjusted
with the illumination brightness control in the
vehicle information display.
SIC4357LIC3970
INTERIOR LIGHTS
Instruments and controls2-71

LOCKING WITH INSIDE LOCK
KNOB
To lock the door without the key, move the
inside lock to the lock position
1, then close
the door.
To unlock the door without the key, move the
inside lock knob to the unlock position
2.
LOCKING WITH POWER DOOR
LOCK SWITCH
To lock all the doors without a key, push the
door lock switch (driver’s or front passenger’s
side) to the lock position
1. When locking the
door this way, be certain not to leave the key
inside the vehicle.
To unlock all the doors without a key, push
the door lock switch (driver’s or front passen-
ger’s side) to the unlock position
2.
Lockout protection
When the power door lock switch is moved to
the lock position and any door is open, all
doors will lock. With the Intelligent Key left in
the vehicle and any door open, all doors will
unlock automatically and chime will sound
after the door is closed.
These functions help prevent the Intelligent
Key from being accidentally locked inside the
vehicle.
AUTOMATIC DOOR LOCKS
∙ All doors lock automatically when the ve- hicle speed reaches 15 mph (24 km/h).
∙ All doors unlock automatically when the transmission is placed in the P (Park) po-
sition or when the ignition switch is
placed in the OFF position, depending on
the option selected in the “Vehicle Set-
tings” menu.
NOTE:
The Auto Door Unlock function can be
changed using “Vehicle Settings” of the ve-
hicle information display. For additional in-
formation, refer to “Vehicle information dis-
play” in the “Instruments and controls”
section of this manual.SPA2726SPA2727
3-6Pre-driving checks and adjustments

∙ When the Intelligent Key is placed near anelectric appliance such as a personal
computer.
∙ When the vehicle is parked near a parking meter.
In such cases, correct the operating condi-
tions before using the Intelligent Key function
or use the mechanical key.
Although the life of the battery varies de-
pending on the operating conditions, the bat-
tery’s life is approximately two years. If the
battery is discharged, replace it with a new
one.
When the Intelligent Key battery is low, an
indicator illuminates in the vehicle informa-
tion display. For additional information, refer
to “Vehicle information display” in the “Instru-
ments and controls” section of this manual.
Since the Intelligent Key is continuously re-
ceiving radio waves, if the key is left near
equipment which transmits strong radio
waves, such as signals from a TV and per-
sonal computer, the battery life may become
shorter.
For additional information, refer to “Battery
replacement” in the “Do-it-yourself” section
of this manual. As many as four Intelligent Keys can be reg-
istered and used with one vehicle. For infor-
mation about the purchase and use of addi-
tional Intelligent Keys, it is recommended that
you visit an INFINITI retailer.
CAUTION
Listed below are conditions or occurrences
which will damage the Intelligent Key:
∙ Do not allow the Intelligent Key, which
contains electrical components, to come
into contact with water or salt water.
This could affect the system function.
∙ Do not drop the Intelligent Key.
∙ Do not strike the Intelligent Key sharply against another object.
∙ Do not change or modify the Intelligent Key.
∙ Wetting may damage the Intelligent Key. If the Intelligent Key gets wet, immedi-
ately wipe until it is completely dry.
∙ Do not place the Intelligent Key for an extended period in an area where tem-
peratures exceed 140°F (60°C).
∙ Do not attach the Intelligent Key with a key holder that contains a magnet. ∙ Do not place the Intelligent Key near
equipment that produces a magnetic
field, such as a TV, audio equipment and
personal computers.
If an Intelligent Key is lost or stolen, INFINITI
recommends erasing the ID code of that In-
telligent Key from the vehicle. This may pre-
vent the unauthorized use of the Intelligent
Key to operate the vehicle. For information
regarding the erasing procedure, it is recom-
mended that you visit an INFINITI retailer.
3-8Pre-driving checks and adjustments

NOTE:∙ Request switches for all doors and lift-
gate can be deactivated when the I-Key
Door Lock feature is switched to OFF
using the “Vehicle Settings” menu on the
vehicle information display. For addi-
tional information, refer to “Vehicle in-
formation display” in the “Instruments
and controls” section of this manual.
∙ Doors lock with the door handle request
switch while the ignition switch is not in
the LOCK position. ∙
Doors do not lock by pushing the door
handle request switch while the driver’s
door is open.
∙ Doors do not lock with the door handle
request switch with the Intelligent Key
inside the vehicle and a beep sounds to
warn you. However, when an Intelligent
Key is inside the vehicle, doors can be
locked with another Intelligent Key.
CAUTION
∙ After locking the doors using the request
switch, make sure that the doors have
been securely locked by operating the
door handles or the rear liftgate opener
switch.
∙ When locking the doors using the request switch, make sure to have the Intelligent
Key in your possession before operating
the request switch to prevent the Intelli-
gent Key from being left in the vehicle.
∙ The request switch is operational only when the Intelligent Key has been de-
tected by the Intelligent Key system. Lockout protection
To prevent the Intelligent Key from being
accidentally locked in the vehicle, lockout
protection is equipped with the Intelligent
Key system.
When the driver’s side door is open, the doors
are locked, and then the Intelligent Key is put
inside the vehicle and all the doors are closed;
the lock will automatically unlock and the
door buzzer sounds.
NOTE:
The doors may not lock when the Intelligent
Key is in the same hand that is operating the
request switch to lock the door. Put the In-
telligent Key in a purse, pocket or your other
hand.
LPD2811
Pre-driving checks and adjustments3-11

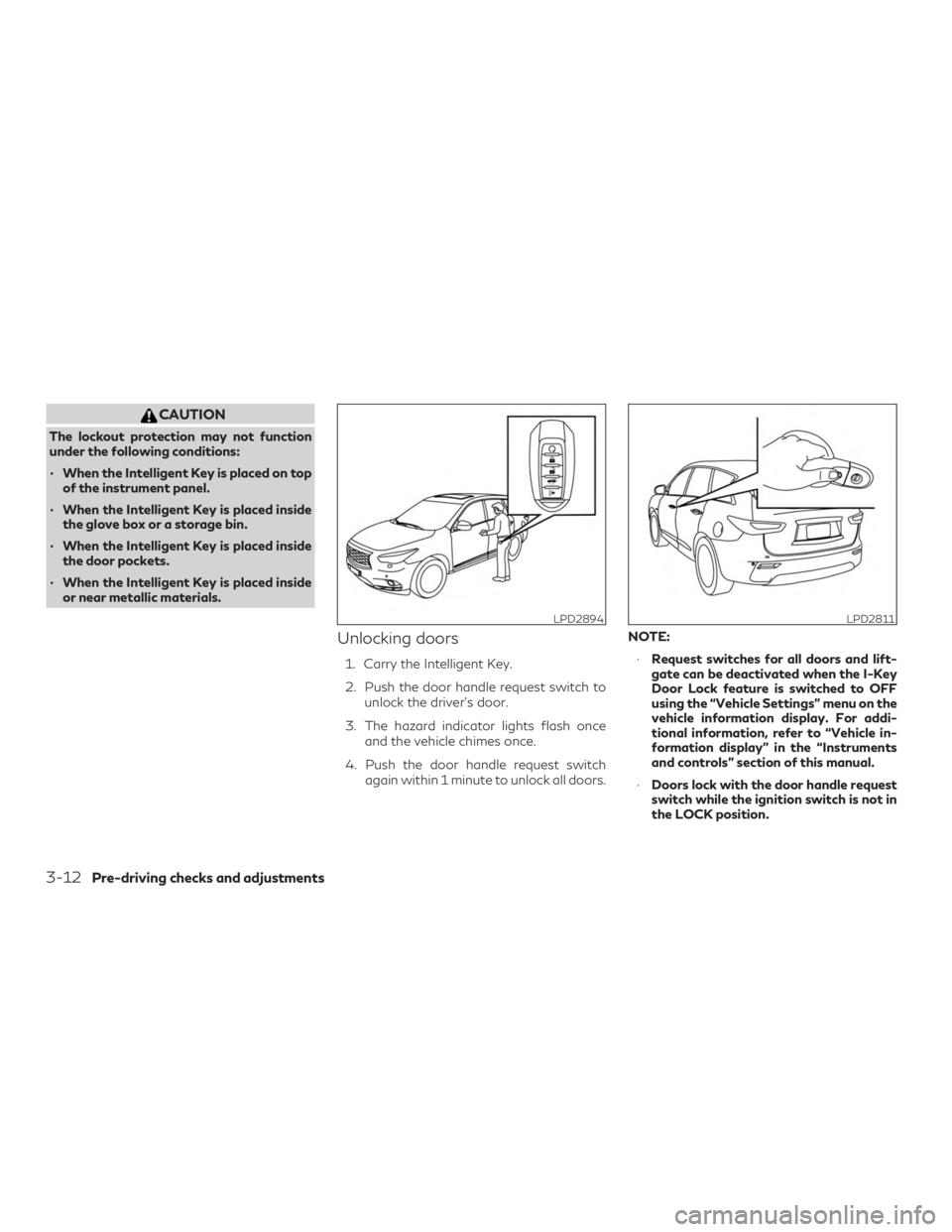

CAUTION
The lockout protection may not function
under the following conditions:
∙ When the Intelligent Key is placed on topof the instrument panel.
∙ When the Intelligent Key is placed inside the glove box or a storage bin.
∙ When the Intelligent Key is placed inside the door pockets.
∙ When the Intelligent Key is placed inside or near metallic materials.
Unlocking doors
1. Carry the Intelligent Key.
2. Push the door handle request switch to
unlock the driver’s door.
3. The hazard indicator lights flash once and the vehicle chimes once.
4. Push the door handle request switch again within 1 minute to unlock all doors. NOTE:
∙ Request switches for all doors and lift-
gate can be deactivated when the I-Key
Door Lock feature is switched to OFF
using the “Vehicle Settings” menu on the
vehicle information display. For addi-
tional information, refer to “Vehicle in-
formation display” in the “Instruments
and controls” section of this manual.
∙ Doors lock with the door handle request
switch while the ignition switch is not in
the LOCK position.
LPD2894LPD2811
3-12Pre-driving checks and adjustments

If a door handle is pulled while unlocking the
doors, that door may not be unlocked. Re-
turning the door handle to its original position
will unlock the door. If the door does not
unlock after returning the door handle, push
the door handle request switch to unlock the
door.
All doors will be locked automatically unless
one of the following operations is performed
within 1 minute after pushing the request
switch.∙ Opening any door.
∙ Pushing the ignition switch.
The interior lights timer illuminates for a pe-
riod of time when a door is unlocked and the
DOOR/OFF switch is pressed.
The interior lights can be turned off without
waiting by performing one of the following
operations: ∙ Placing the ignition switch in the ON po- sition.
∙ Locking the doors with the remote con- trol.
∙ Switching the DOOR/OFF switch to the OFF position. ∙ Switching the Auto Room Lamp feature
to the OFF position using the “Vehicle
Settings” menu on the vehicle informa-
tion display. For additional information,
refer to “Vehicle information display” in
the “Instruments and controls” section of
this manual.
For additional information, refer to “Interior
lights” in the “Instruments and controls” sec-
tion of this manual.
HOW TO USE THE REMOTE
KEYLESS ENTRY FUNCTION
The remote keyless entry function can oper-
ate all door locks using the remote keyless
function of the Intelligent Key. The remote
keyless function can operate at a distance of
33 ft (10 m) away from the vehicle. The op-
erating distance depends upon the conditions
around the vehicle.
The remote keyless entry function will not
function under the following conditions: ∙ When the Intelligent Key is not within the operational range.
∙ When the doors or the rear liftgate are open or not closed securely.
∙ When the Intelligent Key battery is dis- charged.
CAUTION
When locking the doors using the Intelli-
gent Key, be sure not to leave the key in the
vehicle.
Pre-driving checks and adjustments3-13
