2020 INFINITI QX60 headrest

1. Folding 3rd row bench (P. 1-2)
2. Folding 2nd row bench (P. 1-2)
3. Roof-mounted curtain side-impactand rollover supplemental air bag
(P. 1-50)
4. Head restraints/headrests (P.1-12)
5. Front seat belt with pretensioner(s)
and shoulder height adjuster
(P. 1-17, 1-50)
6. Supplemental air bags (P.1-50)
7. Occupant classification sensor
(weight sensor) (P.1-50)
8. Front seats (P. 1-2)
9. Front seat-mounted side-impact
supplemental air bag (P. 1-50)
10. LATCH (Lower Anchors and Tethers
for CHildren) (P. 1-28)
11. 2nd row seat top tether strap anchor
(located on bottom of seatback)
(P. 1-28)
12. 3rd row bench seat top tether strap
anchor (located on bottom of
seatback) (P. 1-28)
Refer to the page number indicated in paren-
theses for operating details.
LII2420
AIR BAGS, SEAT BELTS AND CHILD
RESTRAINTS
0-2Illustrated table of contents

1 Safety—Seats, seat belts and
supplemental restraint system
Seats............................................1-2
Front power seat adjustment ..................1-3
2nd row bench seat adjustment ................1-5
3rd row bench seat adjustment ................1-8
Armrests ......................................1-8
Flexible seating ...............................1-8
Head restraints/headrests .......................1-12
Adjustable head restraint/headrest
components ................................. 1-13
Non-adjustable head restraint/headrest
components ................................. 1-13
Remove ...................................... 1-13
Removable (without Dual Head
Restraint/Headrest Rear Seat Mobile
Entertainment System (MES) only) ............1-14
Install ........................................ 1-14
Adjust ....................................... 1-15
Folding head restraint/headrest ..............1-16
Seat belts ....................................... 1-17
Precautions on seat belt usage ...............1-17
Seat belt warning light ......................1-20
Pregnant women ............................ 1-20
Injured persons .............................. 1-20Pre-crash seat belts with comfort
function (front seats) (if so equipped)
.........1-20
Three-point type seat belt with retractor ......1-21
Seat belt extenders ........................... 1-25
Seat belt maintenance ........................ 1-25
Child safety .................................... 1-26
Infants ...................................... 1-26
Small children ................................ 1-27
Larger children ............................... 1-27
Child restraints ................................. 1-28
Precautions on child restraints ...............1-29
LATCH (Lower Anchors and Tethers for
CHildren) system ............................ 1-30
Rear-facing child restraint installation
using LATCH ............................... 1-34
Rear-facing child restraint installation
using the seat belts .......................... 1-36
Forward-facing child restraint installation
using LATCH ............................... 1-38
Forward-facing child restraint installation
using the

seat belts .......................... 1-42
Booster seats ................................ 1-47
Supplemental Restraint System (SRS) ...........1-50

∙ Do not allow people to ride in any area ofyour vehicle that is not equipped with
seats and seat belts. Be sure everyone in
your vehicle is in a seat and using a seat
belt properly.
∙ Do not allow more than one person to use the same seat belt.
∙ Do not fold down the rear seats when occupants are in the rear seat area or any
luggage is on the rear seats.
– Make sure that the seat path is clear before moving the seat.
– Be careful not to allow hands or feet to get caught or pinched in the seat.
∙ Head restraints/headrests should be ad- justed properly as they may provide sig-
nificant protection against injury in an
accident. Always replace and adjust them
properly if they have been removed for
any reason.
∙ If the head restraints/headrests are re- moved for any reason, they should be se-
curely stored to prevent them from caus-
ing injury to passengers or damage to the
vehicle in case of sudden braking or an
accident. ∙ When returning the seatbacks to the up-
right position, be certain they are com-
pletely secured in the latched position. If
they are not completely secured, passen-
gers may be injured in an accident or sud-
den stop.
∙ Properly secure all cargo to help prevent it from sliding or shifting. Do not place
cargo higher than the seatbacks. In a sud-
den stop or collision, unsecured cargo
could cause personal injury.
Folding the 2nd row bench seat
To fold the 2nd row bench seat flat for maxi-
mum cargo hauling:
1. Make sure that the head restraints/headrests are lowered. To re-
move the head restraints/headrests,
push and hold the lock knob while mov-
ing the head restraints/headrests in an
upward direction. Store the head
restraints/headrests properly so it is not
loose in the vehicle.
2. Stow the 2nd row seat belts in the seat belt hooks found on the sides of the
vehicle.
LRS2144
Safety—Seats, seat belts and supplemental restraint system1-9

3. Lift up on the recline lever on the side ofthe outboard seats to fold the seatbacks
flat.
4. To return the 2nd row bench seats to a seating position, push up on the seat-
back until it latches in place.
3rd row manual folding seats
To fold the 3rd row seats flat for maximum
cargo capacity:
1. Pull the strap
Ato release the head
restraint/headrest forward.
2. Stow the 3rd row seat belts in the seat belt hooks
Dfound on the sides of the
cargo area.
3. Pull up on the latch
Blocated in the
upper corner of each seatback and lower
the seatback forward over the seat base. Manual operation to return the 3rd row seats
to a seating position (if so equipped):
1. Use the pull straps
Cto raise each seat-
back. Pull back until the seatback latches
into position. Make sure to properly
raise each seatback to an upright and
secured position.
2. Do not use the pull strap to return the head restraint/headrest to the upright
position. Pull back on the head
restraint/headrest until it latches in the
upright position.
LRS2964
1-10Safety—Seats, seat belts and supplemental restraint system

Power operation to return the 3rd row seats
to a seating position (if so equipped):1. Push and hold the corresponding switch
Elocated on the right and left side in the
cargo area.
A beep sounds once and the seatback will be
returned automatically.
A beep sounds twice when the seatback is
fully returned to the seating position.
If the control unit detects any obstacle or
malfunctions while in the power operation, a
beep sounds for 4 seconds and the seatback
will return to the folded position automati- cally. Check if there are any obstacles caught
that prevent seats from returning to the
folded position. It is recommended that you
visit an INFINITI retailer if the beep still
sounds.
CAUTION
When operating the 3rd row power seat-
back return, make sure that the vehicle is
stopped and the transmission is in the P
(Park) position.
WARNING
∙ When the seat is returned to the normal
seating position, the head
restraints/headrests must be returned
to the upright position to properly pro-
tect vehicle occupants.
∙ Never allow anyone to ride in the cargo area or on the 3rd row seats when they
are in the fold-down position. In a colli-
sion, people riding in these areas are more
likely to be seriously injured or killed.
∙ Do not allow people to ride in any area of your vehicle that is not equipped with
seats and seat belts. Be sure everyone in
your vehicle is in a seat and using a seat
belt properly. ∙ Do not fold down the 3rd row seats when
occupants are in the 3rd row seat area or
any luggage is on the 3rd row seats.
– Make sure that the seat path is clear
before moving the seat.
– Be careful not to allow hands or feet to
get caught or pinched in the seat.
∙ Properly secure all cargo to help prevent it from sliding or shifting. Do not place
cargo higher than the seatbacks. In a sud-
den stop or collision, unsecured cargo
could cause personal injury.LRS2623
Safety—Seats, seat belts and supplemental restraint system1-11

WARNING
Head restraints/headrests supplement the
other vehicle safety systems. They may
provide additional protection against in-
jury in certain rear end collisions. Adjust-
able head restraints/headrests must be ad-
justed properly, as specified in this section.
Check the adjustment after someone else
uses the seat. Do not attach anything to the
head restraint/headrest stalk, except for
genuine INFINITI accessories specifically
tested for use with the vehicle’s head
restraint/headrest stalk. Do not remove
the head restraint/headrest. Do not use
the seat if the head restraint/headrest has
been removed. If the head
restraint/headrest was removed, reinstall
and properly adjust the head
restraint/headrest before an occupant
uses the seating position. Failure to follow
these instructions can reduce the effective-
ness of the head restraints/headrests. This
may increase the risk of serious injury or
death in a collision.The illustration shows the seating positions
equipped with head restraints/headrests.

Indicates the seating position is equipped
with a head restraint.
 Indicates the seating position is equipped
with a headrest.
+ Indicates the seating position is not
equipped with a head restraint or headrest (if
applicable).
∙ Your vehicle is equipped with a head restraint/headrest that may be inte-
grated, adjustable or non-adjustable. ∙ Adjustable head restraints/headrests
have multiple notches along the stalk(s)
to lock them in a desired adjustment po-
sition.
∙ The non-adjustable head restraints/headrests have a single lock-
ing notch to secure them to the seat
frame.
∙ Proper Adjustment: – For the adjustable type, align the headrestraint/headrest so the center of
your ear is approximately level with
the center of the head
restraint/headrest.
– If your ear position is still higher than the recommended alignment, place
the head restraint/headrest at the
highest position.
∙ If the head restraint/headrest has been removed, ensure that it is reinstalled and
locked in place before riding in that des-
ignated seating position.
LRS2308
HEAD RESTRAINTS/HEADRESTS
1-12Safety—Seats, seat belts and supplemental restraint system

ADJUSTABLE HEAD RESTRAINT/
HEADREST COMPONENTS
1. Removable head restraint/headrest
2. Multiple notches
3. Lock knob
4. Stalks
NON-ADJUSTABLE HEAD
RESTRAINT/HEADREST
COMPONENTS
1. Removable head restraint/headrest
2. Single notch
3. Lock knob
4. Stalks
REMOVE
Use the following procedure to remove the
head restraint/headrest:1. Pull the head restraint/headrest up to the highest position.
2. Push and hold the lock knob.
3. Remove the head restraint/headrest from the seat.
4. Store the head restraint/headrest prop- erly in a secure place so it is not loose in
the vehicle.
LRS2300LRS2299LRS2302
Safety—Seats, seat belts and supplemental restraint system1-13

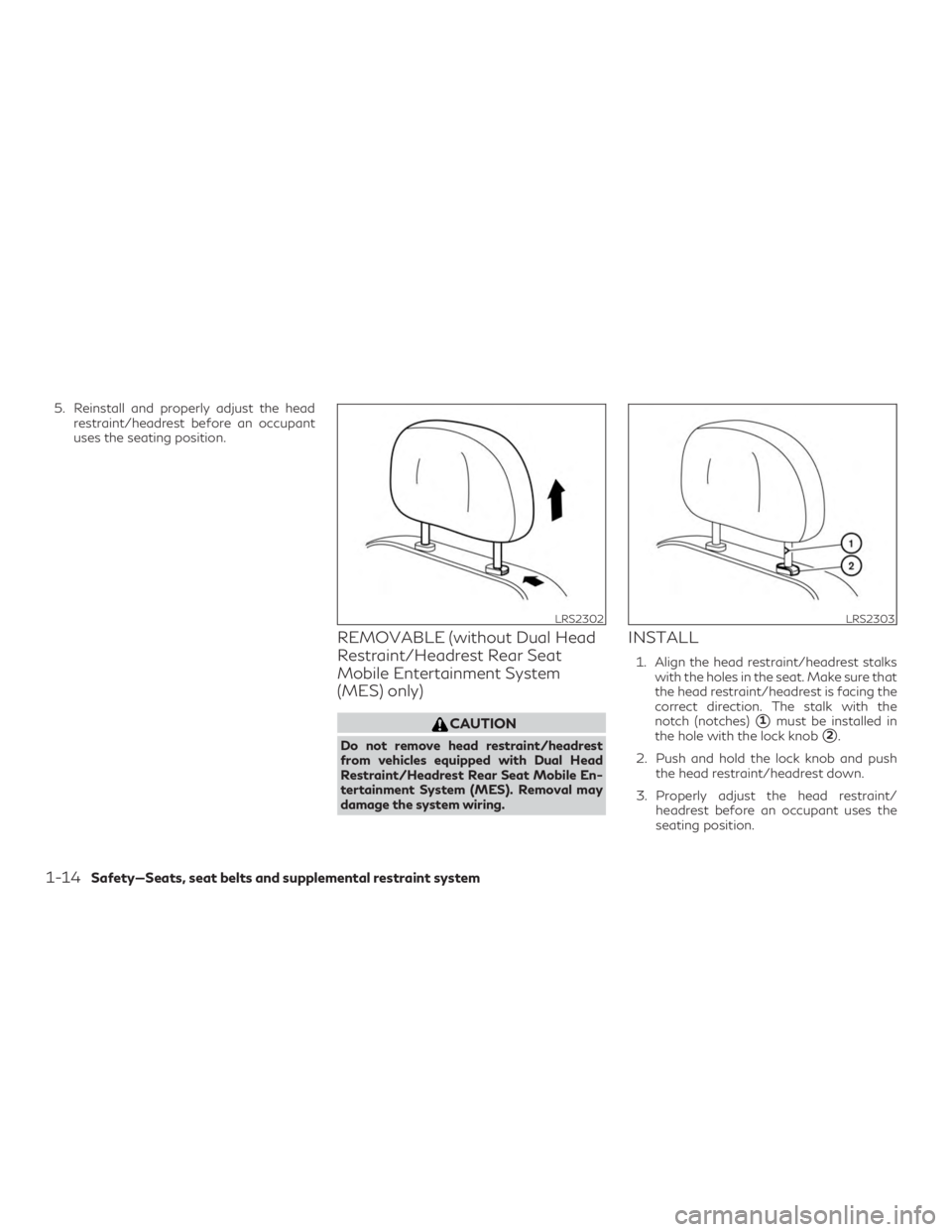

5. Reinstall and properly adjust the headrestraint/headrest before an occupant
uses the seating position.
REMOVABLE (without Dual Head
Restraint/Headrest Rear Seat
Mobile Entertainment System
(MES) only)
CAUTION
Do not remove head restraint/headrest
from vehicles equipped with Dual Head
Restraint/Headrest Rear Seat Mobile En-
tertainment System (MES). Removal may
damage the system wiring.
INSTALL
1. Align the head restraint/headrest stalkswith the holes in the seat. Make sure that
the head restraint/headrest is facing the
correct direction. The stalk with the
notch (notches)
1must be installed in
the hole with the lock knob
2.
2. Push and hold the lock knob and push the head restraint/headrest down.
3. Properly adjust the head restraint/ headrest before an occupant uses the
seating position.
LRS2302LRS2303
1-14Safety—Seats, seat belts and supplemental restraint system
