If you have a flat tire, refer to “Flat tire” in
the “In case of emergency” section of this
manual.
TIRE PRESSURE
Tire Pressure Monitoring System
(TPMS)
WARNING
Radio waves could adversely affect
electric medical equipment. Those
who use a pacemaker should contact
the electric medical equipment
manufacturer for the possible influ-
ences before use.
This vehicle is equipped with the Tire
Pressure Monitoring System (TPMS).
It monitors tire pressure of all tires
except the spare. When the low tire
pressure warning light is lit and the
“Tire Pressure Low – Add Air” warning
appears in the vehicle information dis-
play, one or more of your tires is sig-
nificantly under-inflated. If equipped,the system also displays pressure of all
tires (except the spare tire) on the dis-
play screen by sending a signal from a
sensor that is installed in each wheel.
The TPMS will activate only when the
vehicle is driven at speeds above 16
mph (25 km/h). Also, this system may
not detect a sudden drop in tire pres-
sure (for example a flat tire while driv-
ing).
For additional information, refer to
“Low tire pressure warning light” in the
“Instruments and controls” section,
“Tire Pressure Monitoring System
(TPMS)” in the “Starting and driving”
section and “Flat tire” in the “In case of
emergency” section of this manual.
Tire inflation pressure
Check the tire pressures (including the
spare) often and always prior to long
distance trips. The recommended tire
pressure specifications are shown on
the F.M.V.S.S./C.M.V.S.S. certifica-tion label or the Tire and Loading In-
formation label under the “Cold Tire
Pressure” heading. The Tire and Load-
ing Information label is affixed to the
driver side center pillar. Tire pressures
should be checked regularly because:
• Most tires naturally lose air over
time.
• Tires can lose air suddenly when
driven over potholes or other objects
or if the vehicle strikes a curb while
parking.
The tire pressures should be checked
when the tires are cold. The tires are
considered COLD after the vehicle has
been parked for 3 or more hours, or
driven less than 1 mile (1.6 km) at mod-
erate speeds.
TPMS with Tire Inflation Indicator
provides visual and audible signals
outside the vehicle for inflating the
tires to the recommended COLD tire
pressure. For additional information,
WHEELS AND TIRES

1. Vent (P. 4-33)
2. Headlight/fog light/turn signalswitch (P. 2-44)
3. Instrument brightness control
(P. 2-39)
4. Meters and gauges (P. 2-4) Warning and indicator lights (P. 2-8)
Vehicle information display (P. 2-16)
5. Driver supplemental air bag (P.1-50) Horn (P. 2-45)
6. Backup Collision Intervention (BCI)
switch (if so equipped) (P. 5-60)
7. Trip reset switch (P. 2-4)
8. Wiper and washer switch (P. 2-35) Rear wiper and washer switch
(P. 2-35)
9. Rear window and outside mirror
defroster switch (P. 2-39)
10. Center display* Navigation system* (if so equipped)
11. Automatic heater and air
conditioner controls (P. 4-34)
12. Front passenger supplemental air
bag (P. 1-57)
13. Glove box (P. 2-58)
14. Center multi-function control
buttons*
15. Power outlet (P. 2-53)
16. Shift lever (P. 5-19)
LII2544
INSTRUMENT PANEL
0-6Illustrated table of contents

17. Audio system controls*Front passenger air bag status light
(P. 1-50)
18. Hazard warning flasher switch
(P. 6-2)
19. Push-button ignition switch
(P. 5-13)
20. Cruise control switches
(if so equipped) (P. 5-78)
Intelligent Cruise Control (ICC)
switches (if so equipped) (P. 5-80)
21. Dynamic driver assistance switch
(if so equipped) (P. 5-32, 5-48,
5-100)
22. Tilt and telescopic steering wheel
control (P. 3-31)
23. Bluetooth® Hands-Free Phone
System*
24. Steering wheel switch for audio
control* 25. Hood release (P. 3-22)
Vehicle Dynamic Control (VDC) OFF
switch (P. 2-51)
Heated steering wheel switch
(if so equipped) (P. 2-48)
Warning systems switch
(if so equipped) (P. 2-50)
Power inverter switch
(if so equipped) (P. 2-52)
Liftgate instrument panel switch
(P. 3-22)
26. Control panel and vehicle informa-
tion display switches (P. 2-17)
*: Refer to the separate INFINITI InTouchTM
Owner’s Manual (if so equipped).
Refer to the page number indicated in paren-
theses for operating details.
Illustrated table of contents0-7

SUPPLEMENTAL AIR BAG
WARNING LIGHT
The supplemental air bag warning light,
displaying
in the instrument panel,
monitors the circuits for the air bag systems,
pretensioner(s) and all related wiring.
When the ignition switch is placed in the ON
position, the supplemental air bag warning
light illuminates for about 7 seconds and then
turns OFF. This means the system is opera-
tional. If any of the following conditions occur, the
front air bag, side air bag, curtain air bag and
pretensioner systems need servicing:
∙ The supplemental air bag warning light remains on after approximately 7 sec-
onds.
∙ The supplemental air bag warning light flashes intermittently.
∙ The supplemental air bag warning light does not come on at all.
Under these conditions, the front air bag, side
air bag, curtain air bag or pretensioner sys-
tems may not operate properly. They must be
checked and repaired. It is recommended that
you visit an INFINITI retailer for this service.WARNING
If the supplemental air bag warning light is
on, it could mean that the front air bag, side
air bag, curtain air bag and/or pretensioner
systems will not operate in an accident. To
help avoid injury to yourself or others, have
your vehicle checked as soon as possible. It
is recommended that you visit an INFINITI
retailer for this service.
Repair and replacement procedure
The front air bags, side air bags, curtain air
bags and pretensioner(s) are designed to in-
flate on a one-time-only basis. As a reminder,
unless it is damaged, the supplemental air
bag warning light remains illuminated after
inflation has occurred. These systems should
be repaired and/or replaced as soon as pos-
sible. It is recommended that you visit an
INFINITI retailer for this service.
When maintenance work is required on the
vehicle, the front air bags, side air bags, cur-
tain air bags, pretensioner(s) and related
parts should be pointed out to the person
performing the maintenance. The ignition
switch should always be in the LOCK position
when working under the hood or inside the
vehicle.
LRS0100
Safety—Seats, seat belts and supplemental restraint system1-69

2 Instruments and controls
Instrument panel.................................2-2
Meters and gauges ...............................2-4
Speedometer and odometer ...................2-4
Tachometer ...................................2-6
Engine coolant temperature gauge .............2-6
Fuel gauge ....................................2-7
Distance To Empty (DTE) ......................2-7
Warning lights, indicator lights and audible
reminders ........................................2-8
Checking lights ................................2-8
Warning lights ................................2-9
Indicator lights .............................. 2-13
Audible reminders ............................ 2-15
Vehicle information display .....................2-16
How to use the vehicle information
display ....................................... 2-17
Startup display ............................... 2-17
Resetting the trip computer ...................2-17
Settings ...................................... 2-17
Vehicle information display warnings and
indicators ................................... 2-26
Security systems ............................... 2-32
Vehicle security system ......................2-32
INFINITI Vehicle Immobilizer System .........2-34 Wiper and washer switch
.......................2-35
Switch operation ............................ 2-35
Rain-sensing auto wiper system
(if so equipped) .............................. 2-37
Rear switch operation ....................... 2-38
Rear window and outside mirror defroster
switch ......................................... 2-39
Headlight and turn signal switch ................2-39
Headlight control switch .....................2-39
LED Daytime Running Lights (DRL)
system ...................................... 2-43
Instrument brightness control ................2-44
Turn signal switch ........................... 2-44
Fog light switch ............................. 2-45
Horn ........................................... 2-45
Climate controlled seat switches
(if so equipped) ................................. 2-45
Heated seat switches (if so equipped) ...........2-46
Heated 2nd

row seat switches (if so equipped) . . 2-47
Heated steering wheel switch Type A
(if so equipped) ................................. 2-48
Heated steering wheel Type B (if so equipped). . . 2-49
Warning systems switch (if so equipped) ........2-50
Vehicle Dynamic Control (VDC) OFF switch ......2-51

1. Vent (P. 4-33)
2. Headlight/fog light/turn signalswitch (P. 2-44)
3. Instrument brightness control
(P. 2-39)
4. Meters and gauges (P. 2-4) Warning and indicator lights (P. 2-8)
Vehicle information display (P. 2-16)
5. Driver supplemental air bag (P.1-50) Horn (P. 2-45)
6. Backup Collision Intervention (BCI)
switch (if so equipped) (P. 5-60)
7. Trip reset switch (P. 2-4)
8. Wiper and washer switch (P. 2-35) Rear wiper and washer switch
(P. 2-35)
9. Rear window and outside mirror
defroster switch (P. 2-39)
10. Center display* Navigation system* (if so equipped)
11. Automatic heater and air
conditioner controls (P. 4-34)
12. Front passenger supplemental air
bag (P. 1-57)
13. Glove box (P. 2-58)
14. Center multi-function control
buttons*
15. Power outlet (P. 2-53)
16. Shift lever (P. 5-19)
LII2544
INSTRUMENT PANEL
2-2Instruments and controls

17. Audio system controls*Front passenger air bag status light
(P. 1-50)
18. Hazard warning flasher switch
(P. 6-2)
19. Push-button ignition switch
(P. 5-13)
20. Cruise control switches
(if so equipped) (P. 5-78)
Intelligent Cruise Control (ICC)
switches (if so equipped) (P. 5-80)
21. Dynamic driver assistance switch
(if so equipped) (P. 5-32, 5-48,
5-100)
22. Tilt and telescopic steering wheel
control (P. 3-31)
23. Bluetooth® Hands-Free Phone
System*
24. Steering wheel switch for audio
control* 25. Hood release (P. 3-22)
Vehicle Dynamic Control (VDC) OFF
switch (P. 2-51)
Heated steering wheel switch
(if so equipped) (P. 2-48)
Warning systems switch
(if so equipped) (P. 2-50)
Power inverter switch
(if so equipped) (P. 2-52)
Liftgate instrument panel switch
(P. 3-22)
26. Control panel and vehicle informa-
tion display switches (P. 2-17)
*: Refer to the separate INFINITI InTouchTM
Owner’s Manual (if so equipped).
Refer to the page number indicated in paren-
theses for operating details.
Instruments and controls2-3

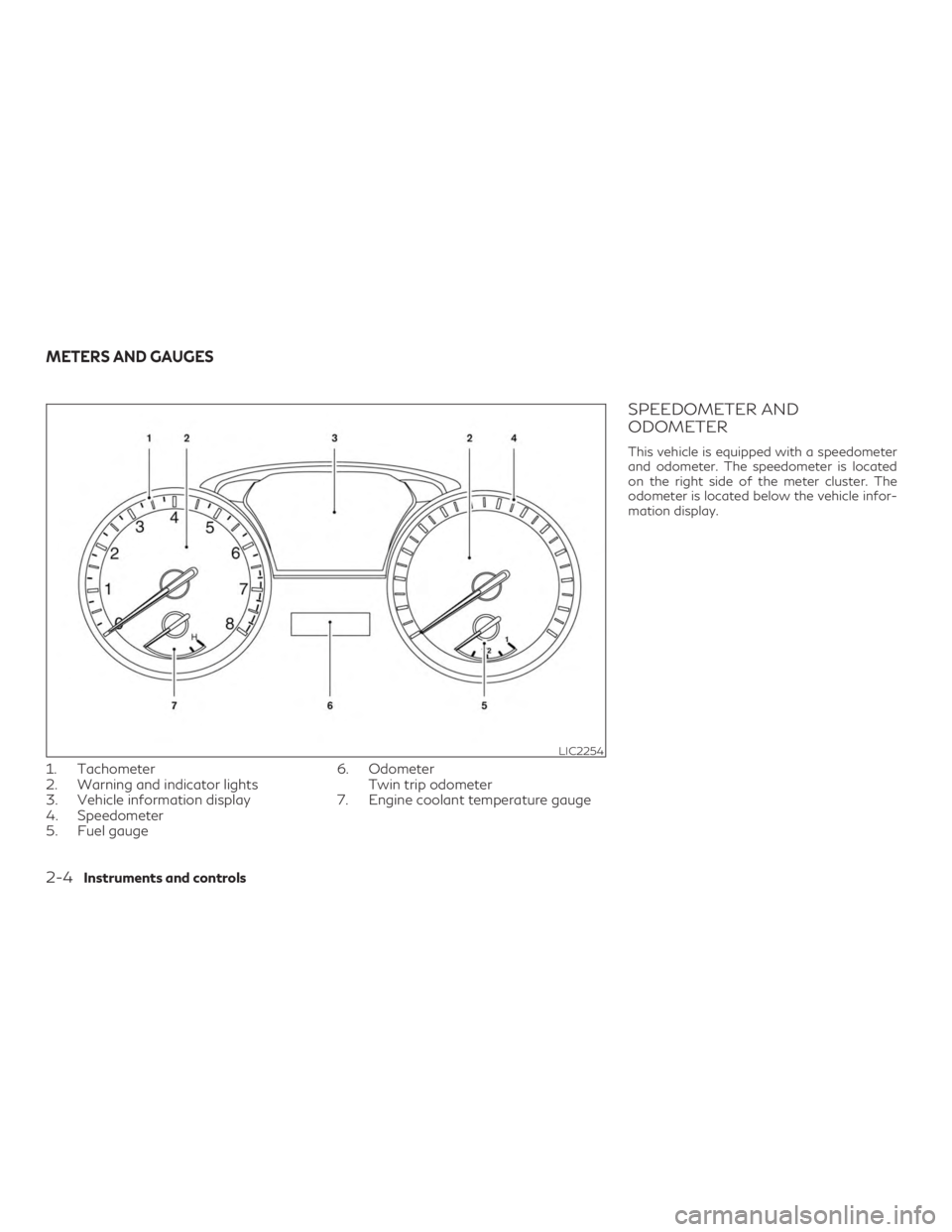

1. Tachometer
2. Warning and indicator lights
3. Vehicle information display
4. Speedometer
5. Fuel gauge6. Odometer
Twin trip odometer
7. Engine coolant temperature gauge
SPEEDOMETER AND
ODOMETER
This vehicle is equipped with a speedometer
and odometer. The speedometer is located
on the right side of the meter cluster. The
odometer is located below the vehicle infor-
mation display.
LIC2254
METERS AND GAUGES
2-4Instruments and controls
