2020 INFINITI QX60 Programming homelink

Rear Door Alert................................ 2-51
Power inverter switch (if so equipped) ...........2-52
E-call (SOS) button (if so equipped) .............2-53
Power outlets .................................. 2-53
12v outlets .................................. 2-53
120v outlet (if so equipped) ..................2-55
Extended storage switch .......................2-55
Storage ........................................ 2-56
Front-door pockets ......................... 2-56
Seatback pockets ........................... 2-57
Storage trays ............................... 2-57
Glove box ................................... 2-58
Console box ................................ 2-58
Overhead sunglasses storage ................2-59
Cup holders ................................. 2-60
Cargo area storage bin ......................2-61
Luggage hooks ............................. 2-62
Roof rack (if so equipped) ....................2-62
Windows ...................................... 2-63
Power windows ............................. 2-63Moonroof (if so equipped)
......................2-66
Power moonroof ............................ 2-66
Dual panel moonroof (if so equipped) ...........2-67
Power moonroof ............................ 2-67
Interior lights .................................... 2-71
Console light ................................. 2-71
Map lights .................................. 2-72
Personal lights .............................. 2-72
Cargo light .................................. 2-72
HomeLink® Universal Transceiver ..............2-73
Programming HomeLink® ...................2-74
Programming HomeLink® for Canadian
customers and gate openers .................2-75
Operating the HomeLink® Universal
Transceiver ................................. 2-76
Programming trouble-diagnosis ..............2-76
Clearing the

programmed information ........2-76
Reprogramming a single HomeLink®
button ...................................... 2-76
If your vehicle is stolen .......................2-77

CAUTION
Do not use for extended periods of time
with the engine stopped. This could result in
a discharged battery.The HomeLink® Universal Transceiver pro-
vides a convenient way to consolidate the
functions of up to three individual hand-held
transmitters into one built-in device.
HomeLink® Universal Transceiver:
∙ Will operate most radio frequency de- vices such as garage doors, gates, home
and office lighting, entry door locks and
security systems.
∙ Is powered by your vehicle’s battery. No separate batteries are required. If the ve-
hicle’s battery is discharged or is discon-
nected, HomeLink® will retain all pro-
gramming.
When the HomeLink® Universal Transceiver
is programmed, retain the original transmit-
ter for future programming procedures (Ex-
ample: new vehicle purchases). Upon sale of
the vehicle, the programmed HomeLink®
Universal Transceiver buttons should be
erased for security purposes. For additional
information, refer to “Programming
HomeLink®” in this section.
WARNING
∙ Do not use the HomeLink® Universal Transceiver with any garage door opener
that lacks safety stop and reverse fea-
tures as required by federal safety stan-
dards. (These standards became effec-
tive for opener models manufactured
after April 1, 1982.) A garage door
opener which cannot detect an object in
the path of a closing garage door and
then automatically stop and reverse does
not meet current federal safety stan-
dards. Using a garage door opener with-
out these features increases the risk of
serious injury or death.
∙ During the programming procedure your garage door or security gate will open
and close (if the transmitter is within
range). Make sure that people or objects
are clear of the garage door, gate, etc.,
that you are programming.
∙ Your vehicle’s engine should be turned off while programming the HomeLink® Uni-
versal Transceiver. Do not breathe ex-
haust gases; they contain colorless and
odorless carbon monoxide. Carbon mon-
oxide is dangerous. It can cause uncon-
sciousness or death.
HOMELINK® UNIVERSAL
TRANSCEIVER
Instruments and controls2-73

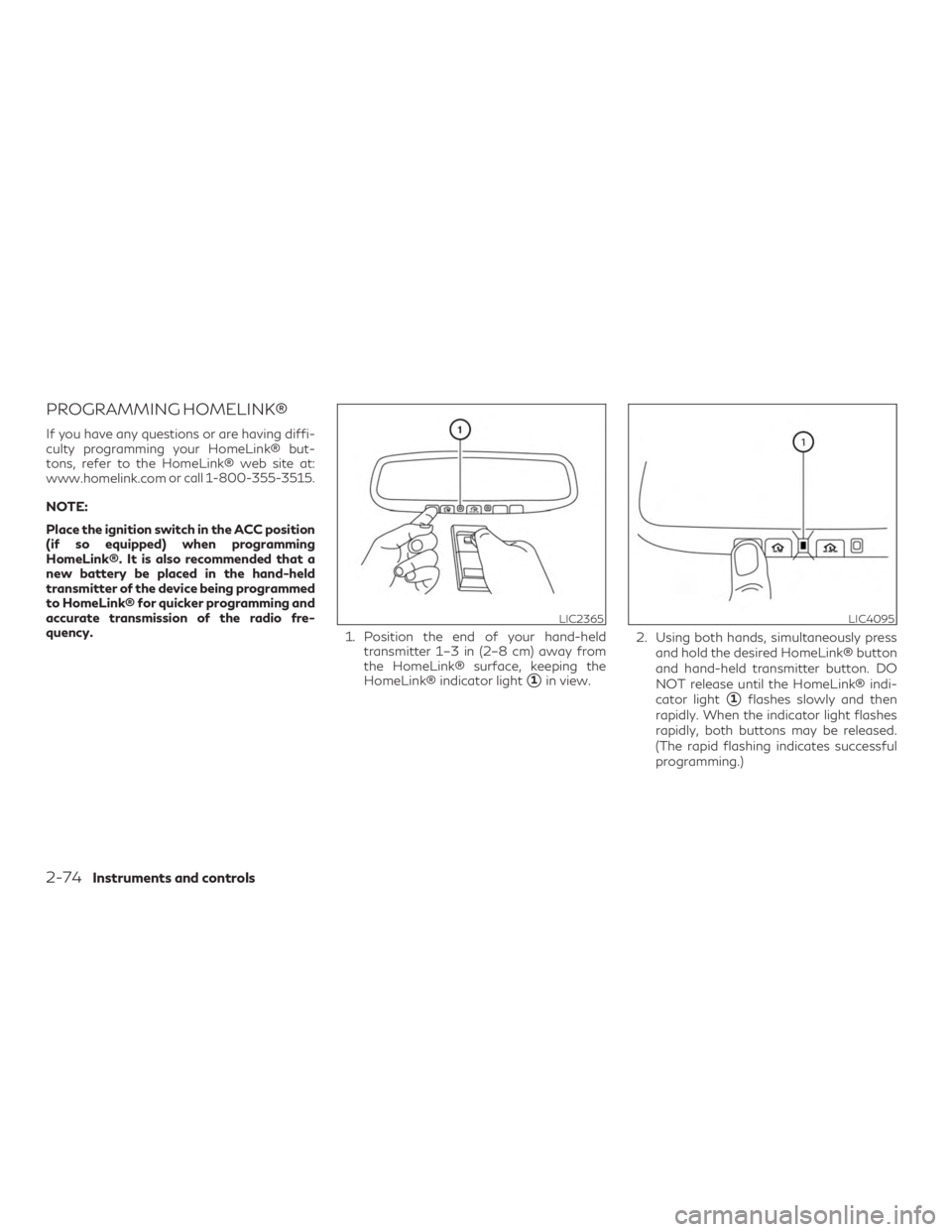

PROGRAMMING HOMELINK®
If you have any questions or are having diffi-
culty programming your HomeLink® but-
tons, refer to the HomeLink® web site at:
www.homelink.com
or call 1-800-355-3515.
NOTE:
Place the ignition switch in the ACC position
(if so equipped) when programming
HomeLink®. It is also recommended that a
new battery be placed in the hand-held
transmitter of the device being programmed
to HomeLink® for quicker programming and
accurate transmission of the radio fre-
quency.1. Position the end of your hand-held
transmitter 1–3 in (2–8 cm) away from
the HomeLink® surface, keeping the
HomeLink® indicator light
1in view. 2. Using both hands, simultaneously press
and hold the desired HomeLink® button
and hand-held transmitter button. DO
NOT release until the HomeLink® indi-
cator light
1flashes slowly and then
rapidly. When the indicator light flashes
rapidly, both buttons may be released.
(The rapid flashing indicates successful
programming.)
LIC2365LIC4095
2-74Instruments and controls

NOTE:
Some devices may require you to replace
Step 2 with the cycling procedure noted in
“Programming HomeLink® for Canadian
customers and gate openers” in this section.3. Press and hold the programmed HomeLink® button and observe the in-
dicator light.
∙ If the indicator light
1is
solid/continuous, programming is
complete and your device should acti-
vate when the HomeLink® button is
pressed and released.
∙ If the indicator light
1blinks rapidly
for 2 seconds and then turns to a
solid/continuous light, continue with
Steps 4-6 for a rolling code device. A
second person may make the follow-
ing steps easier. Use a ladder or other
device. Do not stand on your vehicle to
perform the next steps.
4. At the receiver located on the garage door opener motor in the garage, locate
the “learn” or “smart” button (the name
and color of the button may vary by
manufacturer but it is usually located
near where the hanging antenna wire is
attached to the unit). If there is difficulty locating the button, reference the ga-
rage door opener’s manual.
5. Press and release the “learn” or “smart” button.
6. Return to the vehicle and firmly press and hold the trained HomeLink® button
for 2 seconds and release. Repeat the
“press/hold/release” sequence up to
three times to complete the training pro-
cess. HomeLink® should now activate
your rolling code equipped device.
7. If you have any questions or are having difficulty programming your HomeLink®
buttons, refer to the HomeLink® web
site at: www.homelink.com or call
1-800-355-3515.
PROGRAMMING HOMELINK®
FOR CANADIAN CUSTOMERS
AND GATE OPENERS
Canadian radio-frequency laws require trans-
mitter signals to “time-out” (or quit) after sev-
eral seconds of transmission – which may not
be long enough for HomeLink® to pick up the
signal during training. Similar to this Canadian
law, some U.S. gate operators are designed to
“timeout” in the same manner.
If you live in Canada or you are having diffi-
culties training a gate operator orgarage
door opener by using the “Training” proce-
dures, replace “Programming HomeLink®”
step 2 with the following:
NOTE:
When programming a garage door opener,
etc., unplug the device during the “cycling”
process to prevent possible damage to the
garage door opener components. 1. For additional information, refer to “Pro- gramming HomeLink®” step 1 in this
section.
2. Using both hands, simultaneously press and hold the desired HomeLink® button
and the hand-held transmitter button.
During training, your hand-held trans-
mitter may automatically stop transmit-
ting. Continue to press and hold the de-
sired HomeLink® button while you press
and re-press (“cycle”) your hand-held
transmitter every 2 seconds until the fre-
quency signal has been learned. The
HomeLink® indicator light will flash
slowly and then rapidly after several sec-
onds upon successful training. DO NOT
release until the HomeLink® indicator
light flashes slowly and then rapidly.
When the indicator light flashes rapidly,
Instruments and controls2-75

both buttons may be released. The rapid
flashing indicates successful training.
Proceed with “Programming
HomeLink®” step 3 to complete.
If the device was unplugged during the
programming procedure, remember to
plug it back in when programming is
completed.
OPERATING THE HOMELINK®
UNIVERSAL TRANSCEIVER
The HomeLink® Universal Transceiver, after
it is programmed, can be used to activate the
programmed device. To operate, simply press
and release the appropriate programmed
HomeLink® Universal Transceiver button.
The amber indicator light will illuminate while
the signal is being transmitted.
For convenience, the hand-held transmitter
of the device may also be used at any time.
PROGRAMMING TROUBLE-
DIAGNOSIS
If the HomeLink® does not quickly learn the
hand-held transmitter information:∙ replace the hand-held transmitter batter- ies with new batteries. ∙ position the hand-held transmitter with
its battery area facing away from the
HomeLink® surface.
∙ press and hold both the HomeLink® and hand-held transmitter buttons without
interruption.
∙ position the hand-held transmitter1-3in (2 - 8 cm) away from the HomeLink®
surface. Hold the transmitter in that po-
sition for up to 15 seconds. If HomeLink®
is not programmed within that time, try
holding the transmitter in another posi-
tion – keeping the indicator light in view
at all times.
If you continue to have programming difficul-
ties, please contact the INFINITI Consumer
Affairs Department. The phone numbers are
located in the Foreword of this manual.
CLEARING THE PROGRAMMED
INFORMATION
The following procedure clears the pro-
grammed information from both buttons. In-
dividual buttons cannot be cleared. However,
individual buttons can be reprogrammed. For
additional information, refer to “Reprogram-
ming a single HomeLink® button” in this sec-
tion. To clear all programming:
1. Press and hold the two outer HomeLink® buttons until the indicator
light begins to flash in approximately
10 seconds. Do not hold for longer than
20 seconds.
2. Release both buttons.
HomeLink® is now in the programming mode
and can be programmed at any time begin-
ning with “Programming HomeLink®” -
Step 1.
REPROGRAMMING A SINGLE
HOMELINK® BUTTON
To reprogram a HomeLink® Universal Trans-
ceiver button, complete the following: 1. Press and hold the desired HomeLink® button. DO NOT release the button.
2. The indicator light will begin to flash af- ter 20 seconds. Without releasing the
HomeLink® button, proceed with “Pro-
gramming HomeLink®” - Step 1.
For questions or comments, contact
HomeLink® at: www.homelink.com or
1–800–355–3515 (except Mexico).
2-76Instruments and controls
