2020 INFINITI QX60 ACC position

REAR SWITCH OPERATION
WARNING
In freezing temperatures the washer solu-
tion may freeze on the rear window and
obscure your vision which may lead to an
accident. Warm the rear window with the
defroster before you wash the rear
window.
CAUTION
∙ Do not operate the washer continuouslyfor more than 30 seconds.
∙ Do not operate the washer if the windshield-washer fluid reservoir is
empty.
∙ Do not fill the windshield-washer fluid reservoir with windshield-washer fluid
concentrates at full strength. Some
methyl alcohol based windshield-washer
fluid concentrates may permanently
stain the grille if spilled while filling the
windshield-washer fluid reservoir.
∙ Pre-mix windshield-washer fluid concen- trates with water to the manufacturer’s
recommended levels before pouring the
fluid into the windshield-washer fluid
reservoir. Do not use the windshield-
washer fluid reservoir to mix the
windshield-washer fluid concentrate and
water.
If the rear window wiper operation is inter-
rupted by snow, etc., the wiper may stop
moving to protect its motor. If this occurs,
turn the wiper switch to OFF and remove the
snow, etc. on and around the wiper arms.
After about 1 minute, turn the switch on
again to operate the wiper. The rear window wiper and washer operate
when the ignition switch is in the ON position.
Turn the switch clockwise from the OFF po-
sition to operate the wiper.
1Intermittent (INT) — intermittent opera-
tion (not adjustable)
2Low (ON) — continuous low speed op-
eration
Push the switch forward
3to operate the
washer. The wiper will also operate several
times.
LIC3129
2-38Instruments and controls

Ambient image sensor maintenance
The ambient image sensor
1for the High
Beam Assist system is located in front of the
inside mirror. To maintain the proper opera-
tion of the High Beam Assist system and
prevent a system malfunction, be sure to ob-
serve the following:
∙ Always keep the windshield clean.
∙ Do not attach a sticker (including trans- parent material) or install an accessory
near the ambient image sensor. ∙ Do not strike or damage the areas around
the ambient image sensor. Do not touch
the sensor lens that is located on the
ambient image sensor.
If the ambient image sensor is damaged due
to an accident, it is recommended that you
visit an INFINITI retailer.
Battery saver system
If the ignition switch is placed in the OFF
position while the headlight switch is in
the
orposition, the headlights
will turn off after a period of time.
NOTE:
The Battery Saver system may be disabled.
For additional information, refer to “Vehicle
information display” in this section.
CAUTION
Even though the battery saver feature au-
tomatically turns off the headlights after a
period of time, you should turn the head-
light switch to the OFF position when the
engine is not running to avoid discharging
the vehicle battery.
LED DAYTIME RUNNING LIGHTS
(DRL) SYSTEM
The LED portion of the headlights automati-
cally illuminate at 100% intensity when the
engine is started and the parking brake re-
leased. The LED Daytime Running Lights
(DRL) system operates with the headlight
switch in the OFF position. When you turn
the headlight switch to the
position for
full illumination, the LED lights switch from
LED DRL system to the park function.
If the parking brake is applied before the
engine is started, the LED DRL system does
not illuminate. The LED DRL system illumi-
nates when the parking brake is released. The
LED DRL system will remain on until the
ignition switch is placed in the OFF position.
It is necessary at dusk to turn the headlight
switch on for interior controls and switches
to illuminate, as those remain off while the
switch is in the OFF position.
WARNING
When the LED DRL system is active, tail
lights on your vehicle are not on. It is neces-
sary at dusk to turn on your headlights.
Failure to do so could cause an accident in-
juring yourself and others.
LSD3164
Instruments and controls2-43

When the Rear Door Alert system is acti-
vated:∙ When the driver puts the vehicle in the P (Park) position, a notification message
appears in the vehicle information display
with the options to “Dismiss Message” or
“Disable Alert” if desired.
∙ Select “Disable Alert” to temporarily disable for that stop.
∙ No selection or ‘Dismiss Message” will keep the alert enabled for that stop.
∙ If the alert is enabled when a driver exits the vehicle, a message will appear in the
vehicle information display that states
“Check Back Seat for All Articles.”
If “Horn & Alert” setting is selected:
∙ An audible horn sound will occur after a short time unless a rear door is
opened and closed within a short time
to deactivate the alert.
∙ If the doors are locked before the alert is deactivated by opening a rear door,
the horn will sound.
∙ If the liftgate is opened before a rear door is opened, the horn will be de-
layed until after the liftgate is closed. NOTE:
If “Alert Only” setting is selected, the mes-
sage alert will still be shown in the vehicle
information display but the horn will not
sound.
WARNING
∙ If the driver selects “Disable Alert”, no
audible alert will be provided regardless
of rear door open/close status.
∙ There may be times when there is an ob- ject or passenger in the rear seat(s) but
the audible alert does not sound. For ex-
ample, this may occur if rear seat passen-
gers enter or exit the vehicle during a trip.
∙ The system does not directly detect ob- jects or passengers in the rear seat(s). In-
stead, it can detect when a rear door is
opened and closed, indicating that there
may be something in the rear seat(s).
NOTE:
There may be times when the horn sounds
but there are no objects or passengers in the
rear seat(s).
For additional information, refer to “Rear
Door Alert is activated” in this section. To use the outlets for devices that require
120v power, place the ignition in the ON
position and push the power inverter switch.
CAUTION
∙ Use power outlets with the engine run-
ning to avoid discharging the vehicle
battery.
∙ Do not attempt to use this while driving.
∙ Do not use double adapters or more than one electrical accessory; doing so could
significantly drain the battery of your
vehicle.
LIC2231
POWER INVERTER SWITCH (if so
equipped)
2-52Instruments and controls

The E-call (SOS) button is used in combina-
tion with an INFINITI InTouch™ Services
subscription to call for assistance in case of
an emergency.
Pressing the button will (with a paid subscrip-
tion) reach a response specialist that will pro-
vide assistance based on the situation de-
scribed by the vehicle’s occupant. For
additional information, or to enroll your ve-
hicle, refer to www.InfinitiUSA.com/intouch,
or call 855–444–7244.
12V OUTLETS
The power outlets are for powering electrical
accessories such as cellular telephones. They
are rated at 12 volt, 120W (10A) maximum.
The instrument panel and console power
outlets are powered only when the ignition
switch is in the ACC or ON position.
The power outlet in the cargo area is pow-
ered directly by the vehicle’s battery.
LIC3376
Instrument Panel
LIC3624
Center Console
LIC3737
E-CALL (SOS) BUTTON (if so
equipped)POWER OUTLETS
Instruments and controls2-53

∙ Heavy loading of the crossbars has thepotential to affect the vehicle stability
and handling during sudden or unusual
handling maneuvers.
∙ Properly secure all cargo with ropes or straps to help prevent it from sliding or
shifting. In a sudden stop or collision, un-
secured cargo could cause personal
injury.
∙ Drive extra carefully when the vehicle is loaded at or near the cargo carrying ca-
pacity, especially if the significant por-
tion of that load is carried on the
crossbars.
CAUTION
∙ Use care when placing or removing itemsfrom the roof rack. If you cannot com-
fortably lift the items onto the roof rack
from the ground, use a ladder or a stool.
Do not apply any load directly to the roof side
rails
A. CrossbarsBmust be installed be-
fore applying load/cargo/luggage to the
roof of the vehicle. Genuine NISSAN/INFINITI accessory cross-
bars may be available through a
NISSAN/INFINITI dealer/retailer. It is rec-
ommended that you visit a
NISSAN/INFINITI dealer/retailer for addi-
tional information.
The service load capacity for the roof side
rails is 165 lbs. (74 kg.), however do not ex-
ceed the crossbars load capacity.
Be careful that your vehicle does not exceed
the Gross Vehicle Weight Rating (GVWR) or
its Gross Axle Weight Rating (GAWR front
and rear).
For additional information regarding GVWR
and GAWR, refer to:
∙ F.M.V.S.S. or C.M.V.S.S. certification la- bel (located on the driver’s door pillar).
POWER WINDOWS
WARNING
∙ Make sure that all passengers have theirhands, etc., inside the vehicle while it is in
motion and before closing the windows.
Use the window lock switch to prevent
unexpected use of the power windows.
∙ To help avoid risk of injury or death through unintended operation of the ve-
hicle and/or its systems, including en-
trapment in windows or inadvertent door
lock activation, do not leave children,
people who require the assistance of oth-
ers or pets unattended in your vehicle.
Additionally, the temperature inside a
closed vehicle on a warm day can quickly
become high enough to cause a signifi-
cant risk of injury or death to people and
pets.
The power windows operate when the igni-
tion switch is placed in the ON position or for
a period of time after the ignition switch is
placed in the OFF position. If the driver’s or
passenger’s door is opened during this period
of time, the power to the windows is can-
celed.
WINDOWS
Instruments and controls2-63

POWER MOONROOF
The moonroof will only operate when the
ignition switch is placed in the ON position.
The power moonroof is operational for a pe-
riod of time, even if the ignition switch is
placed in the ACC or OFF position. If the
driver’s door or the front passenger’s door is
opened during this period of time, the power
to the moonroof is canceled.
Sliding the moonroof
To fully open or close the moonroof, push the
switch to the open
2or close1position
and release it; it need not be held. The roof
will automatically open or close all the way. To stop the roof, push the switch once more
while it is opening or closing.
Tilting the moonroof
To tilt up, first close the moonroof, then push
the switch to the tilt up position
1and re-
lease it; it need not be held. To tilt down the
moonroof, push the switch to the tilt down
position
2.
Resetting the moonroof switch
If the moonroof does not operate properly,
perform the following procedure to initialize
the moonroof operation system:
1. Place the ignition switch in the ON posi- tion.
2. Push and hold the moonroof tilt switch forward until the moonroof stops.
3. Release the moonroof switch.
4. Push and hold the tilt up switch within 6 seconds.
5. The roof glass will Tilt-Down, Slide- Close, Slide-Open, Slide-Close, Tilt-Up,
Tilt-Down.
6. Release the switch; initialization is com- plete if the moonroof operates normally. If the moonroof does not operate properly
after performing the procedure above, have
your vehicle checked. It is recommended that
you visit an INFINITI retailer for this service.
Auto-reverse function (when
closing or tilting down the
moonroof)
The auto-reverse function can be activated
when the moonroof is closed or tilted down
by automatic operation when the ignition
switch is placed in the ON position or for a
period of time after the ignition switch is
placed in the OFF position.
Depending on the environment or driving
conditions, the auto-reverse function may
be activated if an impact or load similar to
something being caught in the moonroof oc-
curs.
WARNING
There are some small distances immedi-
ately before the closed position which can-
not be detected. Make sure that all passen-
gers have their hands, etc., inside the
vehicle before closing the moonroof.
LIC2313
MOONROOF (if so equipped)
2-66Instruments and controls

When closing
If the control unit detects something caught
in the moonroof as it moves to the front, the
moonroof will immediately open backward.
When tilting down
If the control unit detects something caught
in the moonroof as it tilts down, the moon-
roof will immediately tilt up.
If the auto-reverse function malfunctions
and repeats opening or tilting up the moon-
roof, keep pushing the tilt down switch within
5 seconds after it happens; the moonroof will
fully close gradually. Make sure nothing is
caught in the moonroof.
WARNING
∙ In an accident you could be thrown fromthe vehicle through an open moonroof.
Always use seat belts and child
restraints.
∙ Do not allow anyone to stand up or ex- tend any portion of their body out of the
moonroof opening while the vehicle is in
motion or while the moonroof is closing.
CAUTION
∙ Remove water drops, snow, ice or sandfrom the moonroof before opening.
∙ Do not place heavy objects on the moon- roof or surrounding area.
Sunshade
Open and close the sunshade by sliding it
forward or backward.
If the moonroof does not close
Have your moonroof checked and repaired. It
is recommended that you visit an INFINITI
retailer for this service.
POWER MOONROOF
The front moonroof is a power moonroof;
the rear moonroof is fixed glass. The power
moonroof will only operate when the ignition
switch is placed in the ON position. The
moonroof is operational for a period of time,
even if the ignition switch is placed in the
ACC or OFF position. If the driver’s door or
the front passenger’s door is opened during
this period of time, the power to the moon-
roof is canceled.
LIC2313
DUAL PANEL MOONROOF (if so
equipped)
Instruments and controls2-67

WARNING
∙ In an accident you could be thrown fromthe vehicle through an open moonroof.
Always use seat belts and child
restraints.
∙ Do not allow anyone to stand up or ex- tend any portion of their body out of the
moonroof opening while the vehicle is in
motion or while the moonroof is closing.
CAUTION
∙ Remove water drops, snow, ice or sandfrom the moonroof before opening.
∙ Do not place heavy objects on the moon- roof or surrounding area.
If the moonroof does not close
Have your moonroof checked and repaired. It
is recommended that you visit an INFINITI
retailer for this service.

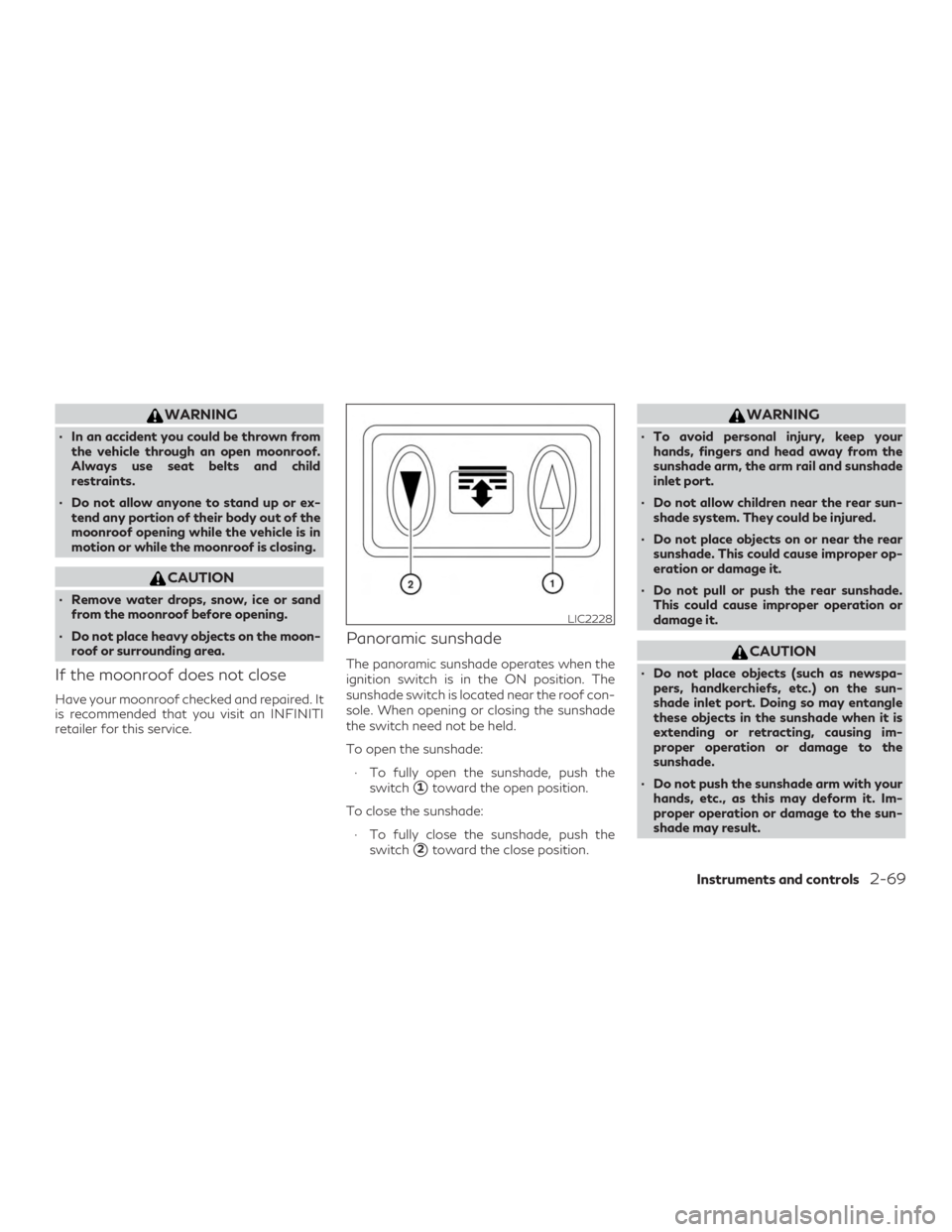

Panoramic sunshade
The panoramic sunshade operates when the
ignition switch is in the ON position. The
sunshade switch is located near the roof con-
sole. When opening or closing the sunshade
the switch need not be held.
To open the sunshade:
∙ To fully open the sunshade, push the switch
1toward the open position.
To close the sunshade: ∙ To fully close the sunshade, push the switch
2toward the close position.
WARNING
∙ To avoid personal injury, keep yourhands, fingers and head away from the
sunshade arm, the arm rail and sunshade
inlet port.
∙ Do not allow children near the rear sun- shade system. They could be injured.
∙ Do not place objects on or near the rear sunshade. This could cause improper op-
eration or damage it.
∙ Do not pull or push the rear sunshade. This could cause improper operation or
damage it.
CAUTION
∙ Do not place objects (such as newspa-pers, handkerchiefs, etc.) on the sun-
shade inlet port. Doing so may entangle
these objects in the sunshade when it is
extending or retracting, causing im-
proper operation or damage to the
sunshade.
∙ Do not push the sunshade arm with your hands, etc., as this may deform it. Im-
proper operation or damage to the sun-
shade may result.
LIC2228
Instruments and controls2-69
