When the vehicle speed lowers to less than
approximately 16 mph (25 km/h), the head-
light uses the low beam.
To turn off the High Beam Assist system, turn
the headlight switch to the
position or
select the low beam position by placing the
lever in the neutral position.

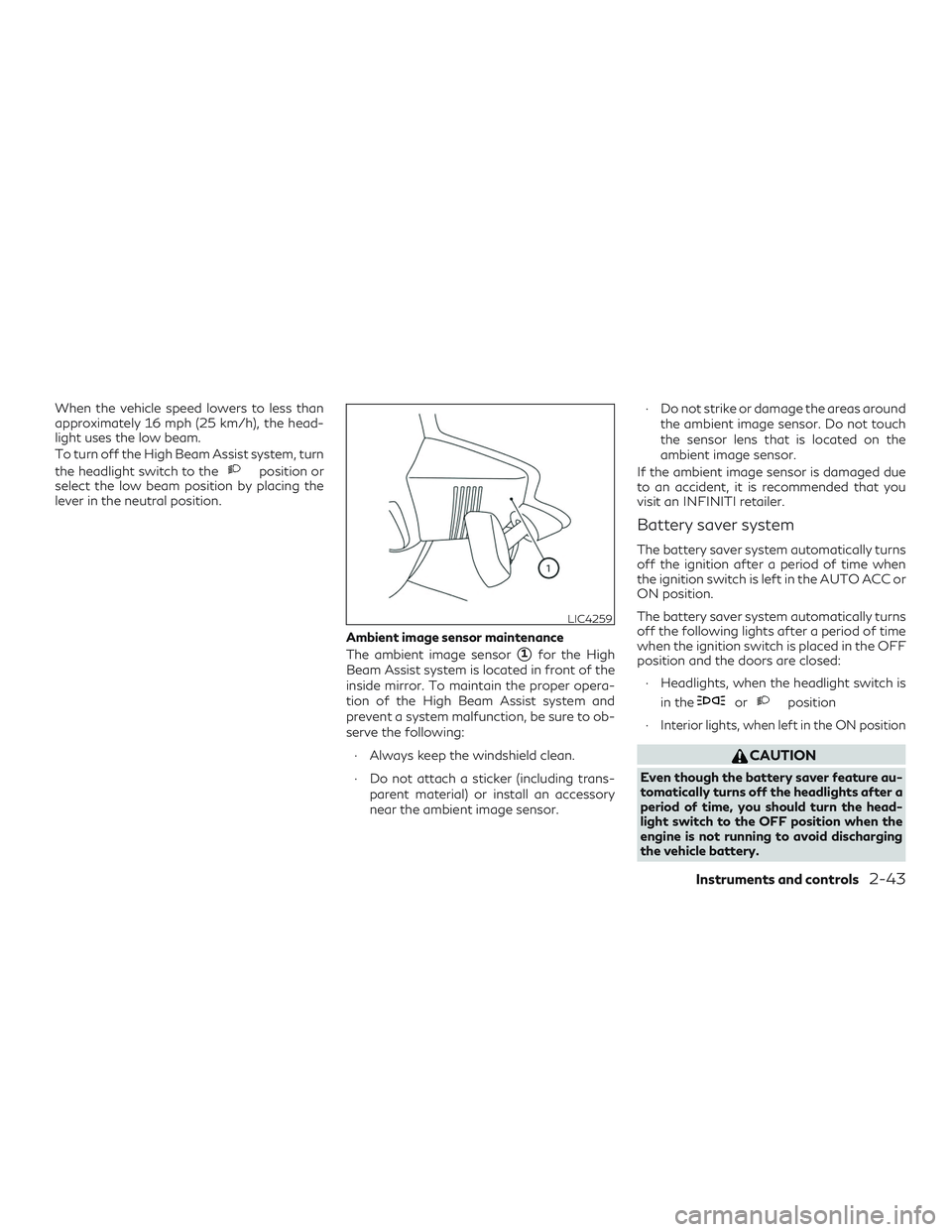

Ambient image sensor maintenance
The ambient image sensor
1for the High
Beam Assist system is located in front of the
inside mirror. To maintain the proper opera-
tion of the High Beam Assist system and
prevent a system malfunction, be sure to ob-
serve the following:
∙ Always keep the windshield clean.
∙ Do not attach a sticker (including trans- parent material) or install an accessory
near the ambient image sensor. ∙ Do not strike or damage the areas around
the ambient image sensor. Do not touch
the sensor lens that is located on the
ambient image sensor.
If the ambient image sensor is damaged due
to an accident, it is recommended that you
visit an INFINITI retailer.
Battery saver system
The battery saver system automatically turns
off the ignition after a period of time when
the ignition switch is left in the AUTO ACC or
ON position.
The battery saver system automatically turns
off the following lights after a period of time
when the ignition switch is placed in the OFF
position and the doors are closed:
∙ Headlights, when the headlight switch is in the
orposition
∙
Interior lights, when left in the ON position
CAUTION
Even though the battery saver feature au-
tomatically turns off the headlights after a
period of time, you should turn the head-
light switch to the OFF position when the
engine is not running to avoid discharging
the vehicle battery.
LIC4259
Instruments and controls2-43

Display brightness
The brightness of the display may be con-
trolled by the Navigation System. The bright-
ness will also be adjusted automatically ac-
cording to the exterior ambient lighting
brightness.
NOTE:∙ A sensor
1is built into the Head Up
Display to control the brightness of the
image. Make sure the sensor is clear of
obstructions or the display may become
dark and difficult to recognize. ∙
Do not apply strong light to the sensor of
Head Up Display. Doing so may cause a
malfunction.
The E-call (SOS) button is used in combina-
tion with an INFINITI InTouch™ Services
subscription to call for assistance in case of
an emergency.
Pressing the button will (with a paid subscrip-
tion) reach a response specialist that will pro-
vide assistance based on the situation de-
scribed by the vehicle’s occupant. For
additional information, or to enroll your ve-
hicle, refer to www.InfinitiUSA.com/intouch,
or call 855–444–7244.
LIC4264LIC3830
E-CALL (SOS) BUTTON (if so
equipped)
Instruments and controls2-53

When the Intelligent Key battery is dis-
charged or strong radio waves are present
near the operating location, the Intelligent
Key operating range becomes narrower, and
the Intelligent Key may not function properly.
The operating range is within 31.5 in (80 cm)
from each request switch or one touch unlock
sensor
1.
If the Intelligent Key is too close to the door
glass, handle or rear bumper, the request
switches or the one touch unlock sensor may
not function.
If any of the front doors are recently closed
and locked, you must wait 2 seconds before
you can unlock the door with the one touch
unlock sensor. Pulling the handle within
2 seconds of locking the door will allow you
time to confirm that the door has been locked
without accidentally unlocking the door with
the one touch unlock sensor.
If you pull the door handle with your gloved
hand, the one touch unlock sensor operation
may not function. When the Intelligent Key is within the operat-
ing range, it is possible for anyone, even
someone who does not carry the Intelligent
Key, to push the request switch or the one
touch unlock sensor to lock/unlock the door
within range.
DOOR LOCKS/UNLOCKS
PRECAUTION
∙ Do not push the door handle request
switch with the Intelligent Key held in
your hand as illustrated. The close dis-
tance to the door handle will cause the
Intelligent Key system to have difficulty
recognizing that the Intelligent Key is
outside the vehicle.
∙ Within 2 seconds after the doors are locked using the door handle request
switch, make sure that the doors have
been securely locked by operating the
door handles.
LPD2716
Pre-driving checks and adjustments3-9

∙ To prevent the Intelligent Key from beingleft inside the vehicle, make sure you
carry the key with you before locking the
doors and liftgate.
∙ The Intelligent Key system (opening/closing doors with the door
handle request switch or the one touch
unlock sensor) can be set to remain inac-
tive. For additional information, refer to
the separate INFINITI InTouch™ Own-
er’s Manual.
∙ The door cannot be unlocked using the one touch unlock operation after locking
the door within 2 seconds. To unlock the
door, release the one touch unlock sensor
once and touch it again.
∙ If a large amount of water runs down on the door handle (for example, when
washing the vehicle or in heavy rain), the
door may unlock if the Intelligent Key is in
range of operation. To prevent the door
from being unlocked, the Intelligent Key
should be more than 7 ft (2 m) away from
the vehicle.
∙ Do not hold and pull the door handle quickly. The door will be unlocked but will
not open. Release the door handle once
and pull it again to open the door. ∙ If you pull the door handle with a gloved
hand, the one touch unlock operation
may not function.
INFINITI INTELLIGENT KEY
OPERATION
You can lock or unlock the doors without
taking the Intelligent Key out of your pocket
or bag.
LPD2717
3-10Pre-driving checks and adjustments

When you carry the Intelligent Key with you,
you can lock or unlock all doors by pushing
the door handle request switch
A(driver’s or
front passenger’s) within the range of opera-
tion. You can also unlock the corresponding door
by touching the one touch unlock sensorB
(driver’s or front passenger’s) within the
range of operation and unlock the other
doors by using the door handle request
switch
A.
Locking all doors and fuel-filler
door
1. Place the ignition switch in the OFF po-
sition and make sure you carry the Intel-
ligent Key with you.
2. Close all doors.
3. Push the door handle request switch (driver’s or front passenger’s)
Awhile
carrying the Intelligent Key with you.
4. All the doors, liftgate and fuel-filler door will lock.
5. The hazard indicator flashes twice and the outside chime sounds twice.
LPD2734LPD2733LPD3036
Pre-driving checks and adjustments3-11

Unlocking doors and fuel-filler door
1. Touch the one touch unlock sensorB
(driver’s or passenger’s door) while car-
rying the Intelligent Key with you.
2. The door handle welcome lights illumi- nate, the hazard indicator lights flash
once and the vehicle beeps once. The
corresponding door will unlock.
3. Push the door handle request switch
A
within 1 minute.
4. The hazard indicator flashes once and the vehicle beeps once again. All doors,
liftgate and fuel-filler door will unlock. All doors and the fuel-filler door will lock
automatically unless one of the following op-
erations is performed within 1 minute after
pushing the request switch or one touch un-
lock operation while the doors are locked.
∙ Opening any door.
∙ Pushing the ignition switch.
During this 1–minute time period, if the
button on the Intelligent Key is pushed, all
doors will be locked automatically after an-
other 1 minute has passed. NOTE:
The one-touch unlock sensor can be deacti-
vated when the Touch Sensitive Door Sensor
setting is switched to OFF in the “Comfort &
Convenience” options of the “Settings”
menu of the lower touch-screen display. For
additional information, refer to the separate
INFINITI InTouch™ Owner’s Manual.
If a door handle is pulled too quickly while
unlocking the doors using the one touch un-
lock sensor, you may be unable to open the
door. Returning the door handle to its original
position will allow you to open the door.
All doors will be locked automatically unless
one of the following operations is performed
within 1 minute after unlocking the door(s).
∙ Opening any door.
∙ Pushing the ignition switch.
The interior light timer illuminates for a period
of time when a door is unlocked.
The interior light can be turned off without
waiting by performing one of the following
operations: ∙ Placing the ignition switch in the ON po- sition.
LPD2733LPD2734
Pre-driving checks and adjustments3-13

∙ Locking the doors with the IntelligentKey.
∙ When the DOOR/OFF switch is pushed.
For additional information, refer to “Interior
lights” in the “Instruments and controls” sec-
tion of this manual.
Door handle welcome lights
When you unlock the doors using the Intelli-
gent Key, request switch or one touch unlock
sensor, the door handle welcome lights
A
will illuminate for a period of time. The wel-
come lights will also illuminate when you
open an unlocked door without carrying the
Intelligent Key with you. When you lock the
doors using the Intelligent Key or request
switch, the door handle welcome lights fade
out. NOTE:
The door handle welcome lights and one
touch unlock sensor can be deactivated in
the ”Comfort & Convenience” options of the
“Settings” menu in the lower touch-screen
display. For additional information, refer to
the separate INFINITI InTouch™ Owner’s
Manual.
HOW TO USE THE REMOTE
KEYLESS ENTRY FUNCTION
The remote keyless entry function can oper-
ate all door locks using the remote keyless
function of the Intelligent Key. The remote
keyless function can operate at a distance of
33 ft (10 m) away from the vehicle. The op-
erating distance depends upon the conditions
around the vehicle.
The remote keyless entry function will not
function under the following conditions:
∙ When the Intelligent Key is not within the operational range.
∙ When the doors or the rear liftgate are open or not closed securely.
∙ When the Intelligent Key battery is dis- charged.
Driver’s and passenger’s side
LPD2732
3-14Pre-driving checks and adjustments

3. Push and hold the power liftgate closeswitch
located on the liftgate for
more than 3 seconds or until two beeps
are heard.
The liftgate will open to the selected position
setting. To change the position of the liftgate,
repeat steps 1-3.
OPENING THE FUEL-FILLER
DOOR
The fuel-filler door automatically unlocks
when the driver’s door is unlocked.
1. Unlock the fuel-filler door using one of the following operations:
∙ Unlock the driver’s door with the Intel- ligent Key.
∙ Push the power door lock switch to the unlock position.
∙ Touch the one touch unlock sensor (driver’s or front passenger’s) while
carrying the Intelligent Key with you. For additional information, refer to
“Locking all doors and fuel-filler door”
in this section.
2. To open the fuel-filler door, push the right side of the fuel-filler door to re-
lease.
To lock, close the fuel-filler door securely and
lock the doors.
FUEL-FILLER CAP
WARNING
∙ Gasoline is extremely flammable and highly explosive under certain conditions.
You could be burned or seriously injured if
it is misused or mishandled. Always stop
the engine and do not smoke or allow
open flames or sparks near the vehicle
when refueling.
∙ Do not attempt to top off the fuel tank after the fuel pump nozzle shuts off au-
tomatically. Continued refueling may
cause fuel overflow, resulting in fuel
spray and possibly a fire.LPD2725
FUEL-FILLER DOOR
3-30Pre-driving checks and adjustments
