2020 INFINITI QX50 display

HOW TO ENABLE/DISABLE THE
RCTA SYSTEM
Perform the following steps to enable or dis-
able the RCTA system.1. Press the MENU button below the lower display screen.
2. Select “Driver Assistance.”
3. Select “Blind Spot Assist.”
4. Select “ON” to turn the “Blind Spot Warning” system on or off.
NOTE: ∙ The RCTA system is integrated into the
BSW system. There is not a separate se-
lection in the vehicle information display
for the RCTA system. When the BSW is
disabled, the RCTA system is also dis-
abled.
∙ When enabling/disabling the system,
the system setting will be retained even
if the engine is restarted.
LSD2922
5-70Starting and driving

SYSTEM TEMPORARILY
UNAVAILABLE
When radar blockage is detected, the system
will be deactivated automatically. The “Un-
available: Side Radar Obstruction” warning
message will appear in the vehicle informa-
tion display.
The systems are not available until the condi-
tions no longer exist.
The radar sensors may be blocked by tempo-
rary ambient conditions such as splashing
water, mist or fog.
The blocked condition may also be caused by
objects such as ice, frost or dirt obstructing
the radar sensors.
NOTE:
If the BSW system stops working, the RCTA
system will also stop working.
Action to take
When the above conditions no longer exist,
the system will resume automatically.
LSD3609
Starting and driving5-73

Malfunction
When the RCTA system malfunctions, it will
turn off automatically. The system malfunc-
tion warning message will appear in the ve-
hicle information display.
NOTE:
If the BSW system stops working, the RCTA
system will also stop working.
Action to take
Stop the vehicle in a safe location, place the
vehicle in the P (Park) position, turn the en-
gine off and restart the engine. If the mes-
sage continues to appear, have the system
checked. It is recommended that you visit an
INFINITI retailer for this service.
SYSTEM MAINTENANCE
The two radar sensors1for the BSW and
RCTA systems are located near the rear
bumper. Always keep the area near the radar
sensors clean.
The radar sensors may be blocked by tempo-
rary ambient conditions such as splashing
water, mist or fog.
The blocked condition may also be caused by
objects such as ice, frost or dirt obstructing
the radar sensors.
Check for and remove objects obstructing
the area around the radar sensors. Do not attach stickers (including transparent
material), install accessories or apply addi-
tional paint near the radar sensors.
Do not strike or damage the area around the
radar sensors. It is recommended that you
visit an INFINITI retailer if the area around
the radar sensors is damaged due to a colli-
sion.
Radio frequency statement
For USA
FCC ID: OAYSRR3B
This device complies with Part 15 of the FCC
Rules.
Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) this device must
accept any interference received, including
interference that may cause undesired op-
eration.
FCC Warning
Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to oper-
ate the equipment.
LSD2920
5-74Starting and driving

For Canada
Applicable law: Canada 310
This device complies with Industry Canada
licence-exempt RSS standard(s).
Operation is subject to the following two
conditions: (1) This device may not cause in-
terference, and (2) this device must accept
any interference, including interference that
may cause undesired operation of the device.
Frequency bands: 24.05 – 24.25GHz
Output power: less than 20 milliwatts
PRECAUTIONS ON CRUISE
CONTROL
1. RES+ switch
2. SET– switch
3. Cruise control
switch
4. CANCEL switch
∙ If the cruise control system malfunctions, it will cancel automatically.
The
indicator in the vehicle infor-
mation display will blink to warn the
driver. ∙ If the engine coolant temperature be-
comes excessively high, the cruise control
system will be canceled automatically.
∙ If the
indicator blinks, turn the
Cruise control
switch off and have
the system checked. It is recommended
that you visit an INFINITI retailer for this
service.
∙
Theindicator may sometimes blink
when the Cruise control
switch is
turned on while pushing the RES+, SET– or
CANCEL switch. To properly set the cruise
control system, perform the steps below.
WARNING
Do not use the cruise control when driving
under the following conditions:
∙ When it is not possible to keep the vehicle at a set speed
∙ In heavy traffic or in traffic that varies in speed
∙ On winding or hilly roads
∙ On slippery roads (rain, snow, ice, etc.)
∙ In very windy areas
Doing so could cause a loss of vehicle con-
trol and result in an accident.
LSD2929
CRUISE CONTROL (if so equipped)
Starting and driving5-75

CRUISE CONTROL OPERATIONS
The cruise control allows driving at a speed
between 25 - 89 mph (40 - 144 km/h) with-
out keeping your foot on the accelerator
pedal.
To turn on the cruise control,push the Cruise
control
switch on. Theindicator in
the vehicle information display will illuminate.
To set cruising speed, accelerate the vehicle
to the desired speed, push the SET– switch
and release it. The
indicator in the ve-
hicle information display will illuminate. Take
your foot off the accelerator pedal. Your ve-
hicle maintains the set speed.
∙ To pass another vehicle, depress the ac-
celerator pedal. When you release the
pedal, the vehicle returns to the previ-
ously set speed.
∙ The vehicle may not maintain the set speed when going up or down steep hills.
If this happens, drive without the cruise
control.
To cancel the preset speed, use one of the
following three methods:
∙ Push the CANCEL switch; the
indicator in the vehicle informa-
tion display goes out. ∙ Tap the brake pedal; the
indicator
goes out.
∙ Push the Cruise control
switch off.
The
indicator in the vehicle infor-
mation display go out.
The cruise control is automatically canceled
and the
indicator in the vehicle informa-
tion display goes out if:
∙ You depress the brake pedal while push- ing the RES+ or SET– switch. The preset
speed is deleted from memory.
∙ The vehicle slows down more than 8 mph (13 km/h) below the set speed.
∙ You move the shift lever to N (Neutral).
To reset at a faster cruising speed, use one of
the following three methods:
∙ Depress the accelerator pedal. When the vehicle attains the desired speed, push
and release the SET– switch.
∙ Push and hold the RES+ switch. When the vehicle attains the speed you desire,
release the switch.
∙ Push and release the RES+ switch. Each time you do this, the set speed increases
by about 1 mph (1.6 km/h). To reset at a slower cruising speed,
use one
of the following three methods:
∙ Lightly tap the brake pedal. When the vehicle attains the desired speed, push
the SET– switch and release it.
∙ Push and hold the SET– switch. Release the switch when the vehicle slows to the
desired speed.
∙ Push and release the SET– switch. Each time you do this, the set speed decreases
by about 1 mph (1.6 km/h).
To resume the preset speed, push and re-
lease the RES+ switch. The vehicle returns to
the last set cruising speed when the vehicle
speed is over 25 mph (40 km/h).
5-76Starting and driving

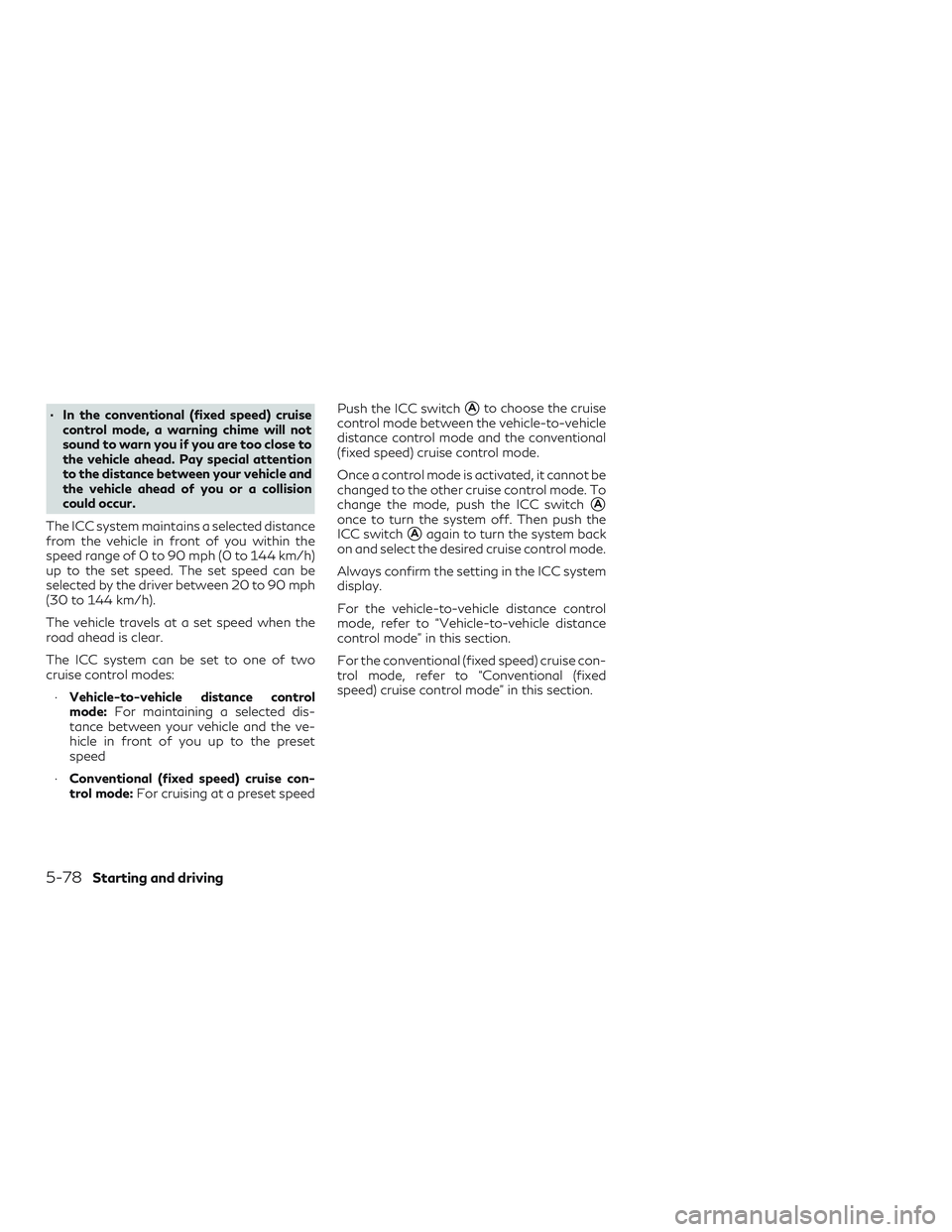

∙ In the conventional (fixed speed) cruisecontrol mode, a warning chime will not
sound to warn you if you are too close to
the vehicle ahead. Pay special attention
to the distance between your vehicle and
the vehicle ahead of you or a collision
could occur.
The ICC system maintains a selected distance
from the vehicle in front of you within the
speed range of 0 to 90 mph (0 to 144 km/h)
up to the set speed. The set speed can be
selected by the driver between 20 to 90 mph
(30 to 144 km/h).
The vehicle travels at a set speed when the
road ahead is clear.
The ICC system can be set to one of two
cruise control modes: ∙ Vehicle-to-vehicle distance control
mode: For maintaining a selected dis-
tance between your vehicle and the ve-
hicle in front of you up to the preset
speed
∙ Conventional (fixed speed) cruise con-
trol mode: For cruising at a preset speed Push the ICC switchAto choose the cruise
control mode between the vehicle-to-vehicle
distance control mode and the conventional
(fixed speed) cruise control mode.
Once a control mode is activated, it cannot be
changed to the other cruise control mode. To
change the mode, push the ICC switch
A
once to turn the system off. Then push the
ICC switch
Aagain to turn the system back
on and select the desired cruise control mode.
Always confirm the setting in the ICC system
display.
For the vehicle-to-vehicle distance control
mode, refer to “Vehicle-to-vehicle distance
control mode” in this section.
For the conventional (fixed speed) cruise con-
trol mode, refer to “Conventional (fixed
speed) cruise control mode” in this section.
5-78Starting and driving

VEHICLE-TO-VEHICLE
DISTANCE CONTROL MODE
OPERATION
The vehicle-to-vehicle distance control mode
is designed to maintain a selected distance
from the vehicle in front of you and can re-
duce the speed to match a slower vehicle
ahead. The system will decelerate the vehicle
as necessary and if the vehicle ahead comes
to a stop, the vehicle decelerates to a stand-
still. However, the ICC system can only apply
up to 40% of the vehicle’s total braking
power.
This system should only be used when traffic
conditions allow vehicle speeds to remain
fairly constant or when vehicle speeds
change gradually. If a vehicle moves into the
traveling lane ahead or if a vehicle traveling
ahead rapidly decelerates, the distance be-
tween vehicles may become closer because
the ICC system cannot decelerate the vehicle
quickly enough. If this occurs, the ICC system
will sound a warning chime and blink the
system display to notify the driver to take
necessary action.
The system will cancel and a warning chime
will sound if the speed is below approxi-
mately 15 mph (25 km/h) and a vehicle is notdetected ahead. The system will also disen-
gage when the vehicle goes above the maxi-
mum set speed.
For additional information, refer to “Ap-
proach warning” in this section.
The following items are controlled in the
vehicle-to-vehicle distance control mode:
∙ When there are no vehicles traveling ahead, the vehicle-to-vehicle distance
control mode maintains the speed set by
the driver. The set speed range is be-
tween approximately 20 and 90 mph (30
and 144 km/h).
∙ When there is a vehicle traveling ahead, the vehicle-to-vehicle distance control
mode adjusts the speed to maintain the
distance, selected by the driver, from the
vehicle ahead. If the vehicle ahead comes
to a stop, the vehicle decelerates to a
standstill within the limitations of the sys-
tem. The system will cancel once it judges
a standstill with a warning chime.
∙ When the vehicle traveling ahead has moved out from its lane of travel, the
vehicle-to-vehicle distance control mode
accelerates and maintains vehicle speed
up to the set speed. The ICC system does not control vehicle
speed or warn you when you approach sta-
tionary and slow moving vehicles. You must
pay attention to vehicle operation to main-
tain proper distance from vehicles ahead
when approaching toll gates or traffic con-
gestion.
Starting and driving5-81

2.DISTANCEswitch:
Changes the vehicle’s following distance:
∙ Long
∙ Middle
∙ Short
3. CANCEL switch:
Deactivates the system without erasing
the set speed.
4. ICC switch:
Master switch to activate the system.
5. SET- switch:
Sets desired cruise speed or reduces
speed incrementally.

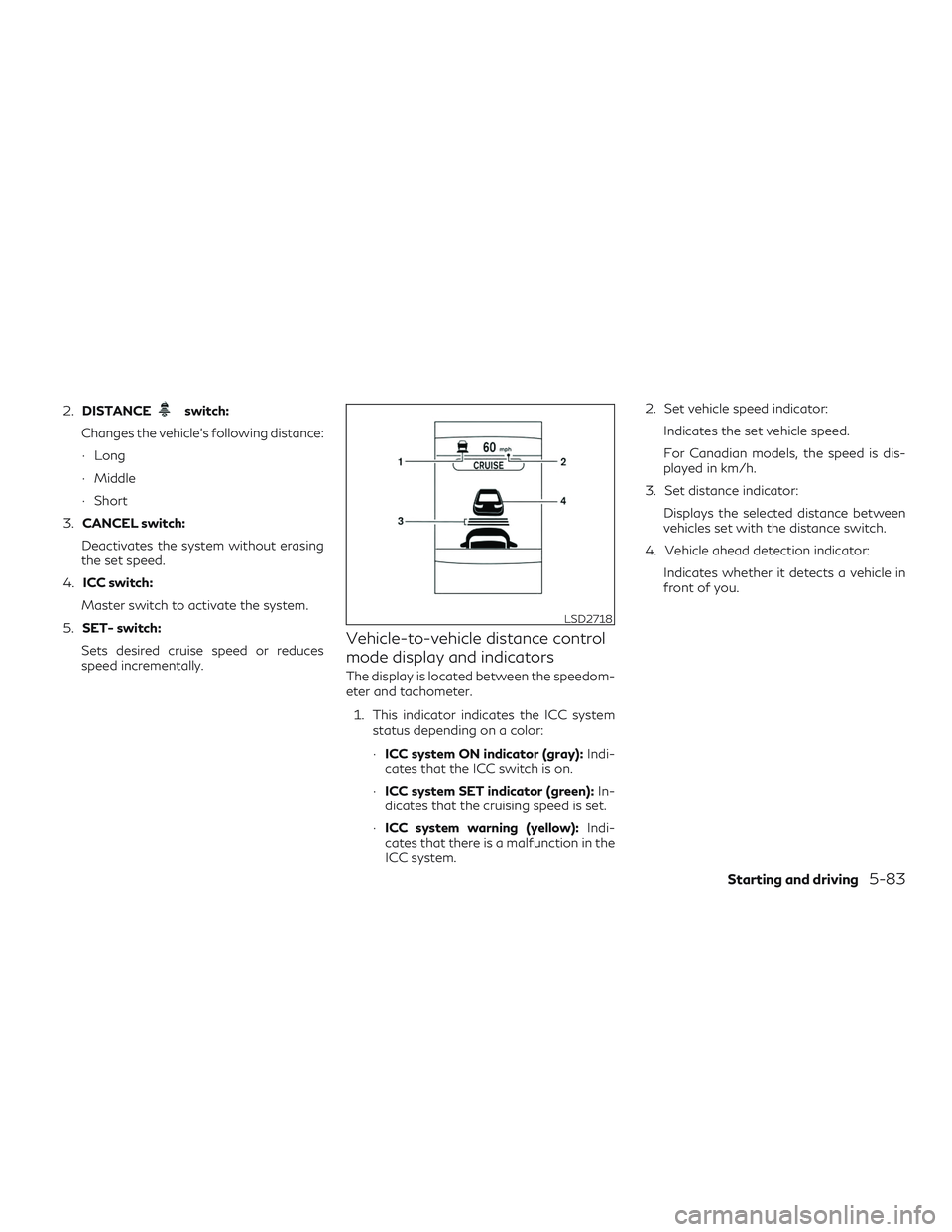

Vehicle-to-vehicle distance control
mode display and indicators
The display is located between the speedom-
eter and tachometer.
1. This indicator indicates the ICC system status depending on a color:
∙ ICC system ON indicator (gray): Indi-
cates that the ICC switch is on.
∙ ICC system SET indicator (green): In-
dicates that the cruising speed is set.
∙ ICC system warning (yellow): Indi-
cates that there is a malfunction in the
ICC system. 2. Set vehicle speed indicator:
Indicates the set vehicle speed.
For Canadian models, the speed is dis-
played in km/h.
3. Set distance indicator: Displays the selected distance between
vehicles set with the distance switch.
4. Vehicle ahead detection indicator: Indicates whether it detects a vehicle in
front of you.
LSD2718
Starting and driving5-83
