2020 INFINITI QX50 sensor

3. Push and hold the power liftgate closeswitch
located on the liftgate for
more than 3 seconds or until two beeps
are heard.
The liftgate will open to the selected position
setting. To change the position of the liftgate,
repeat steps 1-3.
OPENING THE FUEL-FILLER
DOOR
The fuel-filler door automatically unlocks
when the driver’s door is unlocked.
1. Unlock the fuel-filler door using one of the following operations:
∙ Unlock the driver’s door with the Intel- ligent Key.
∙ Push the power door lock switch to the unlock position.
∙ Touch the one touch unlock sensor (driver’s or front passenger’s) while
carrying the Intelligent Key with you. For additional information, refer to
“Locking all doors and fuel-filler door”
in this section.
2. To open the fuel-filler door, push the right side of the fuel-filler door to re-
lease.
To lock, close the fuel-filler door securely and
lock the doors.
FUEL-FILLER CAP
WARNING
∙ Gasoline is extremely flammable and highly explosive under certain conditions.
You could be burned or seriously injured if
it is misused or mishandled. Always stop
the engine and do not smoke or allow
open flames or sparks near the vehicle
when refueling.
∙ Do not attempt to top off the fuel tank after the fuel pump nozzle shuts off au-
tomatically. Continued refueling may
cause fuel overflow, resulting in fuel
spray and possibly a fire.LPD2725
FUEL-FILLER DOOR
3-30Pre-driving checks and adjustments

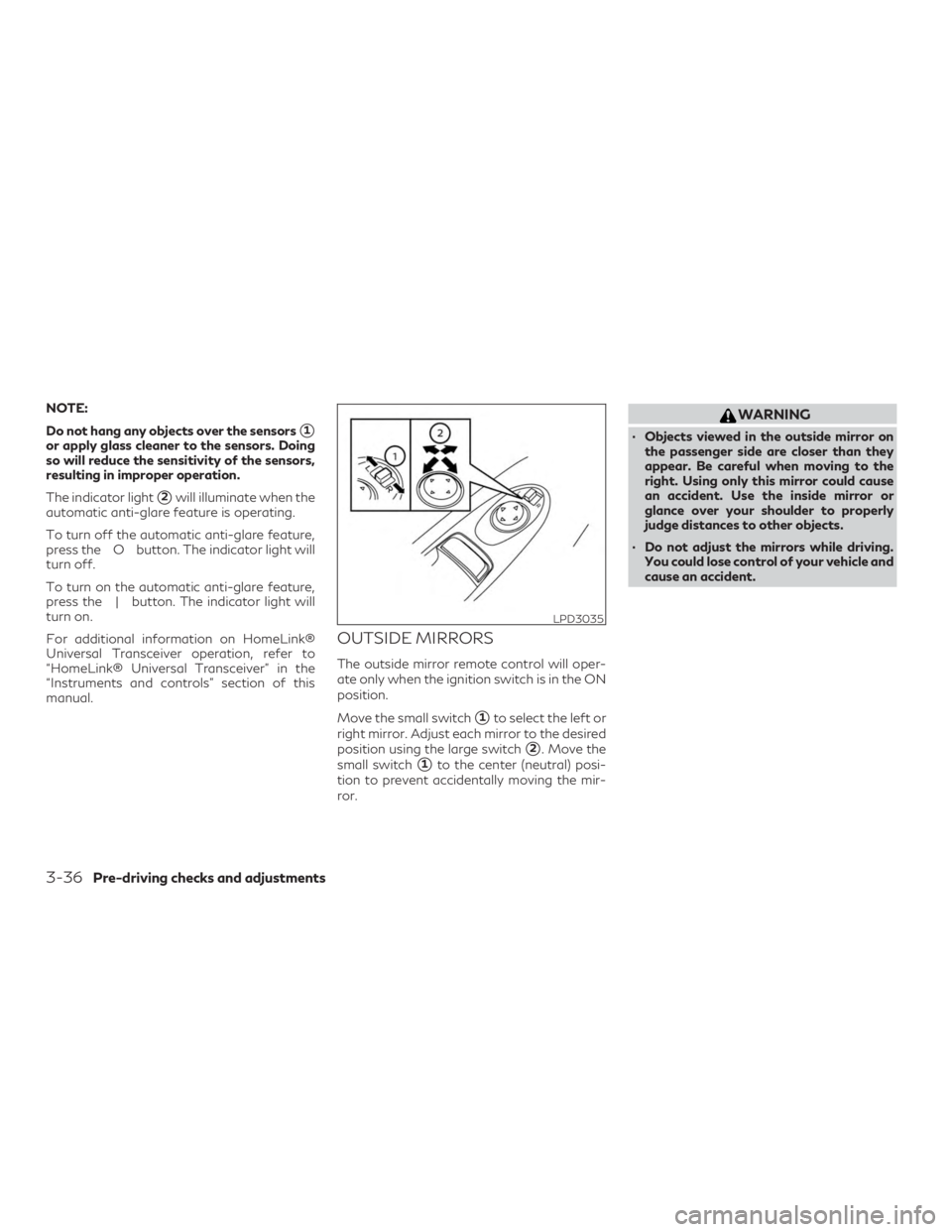

NOTE:
Do not hang any objects over the sensors
1
or apply glass cleaner to the sensors. Doing
so will reduce the sensitivity of the sensors,
resulting in improper operation.
The indicator light
2will illuminate when the
automatic anti-glare feature is operating.
To turn off the automatic anti-glare feature,
press the O button. The indicator light will
turn off.
To turn on the automatic anti-glare feature,
press the | button. The indicator light will
turn on.
For additional information on HomeLink®
Universal Transceiver operation, refer to
“HomeLink® Universal Transceiver” in the
“Instruments and controls” section of this
manual.
OUTSIDE MIRRORS
The outside mirror remote control will oper-
ate only when the ignition switch is in the ON
position.
Move the small switch
1to select the left or
right mirror. Adjust each mirror to the desired
position using the large switch
2. Move the
small switch
1to the center (neutral) posi-
tion to prevent accidentally moving the mir-
ror.
WARNING
∙ Objects viewed in the outside mirror on the passenger side are closer than they
appear. Be careful when moving to the
right. Using only this mirror could cause
an accident. Use the inside mirror or
glance over your shoulder to properly
judge distances to other objects.
∙ Do not adjust the mirrors while driving. You could lose control of your vehicle and
cause an accident.
LPD3035
3-36Pre-driving checks and adjustments

4 Monitor, climate, audio, phone and voice
recognition systems
INFINITI InTouchTMOwner’s Manual.............4-2
RearView Monitor (if so equipped) ................4-3
RearView Monitor system operation ...........4-4
How to read the displayed lines ................4-5
Difference between predicted and actual
distances .....................................4-5
How to park with predicted course lines ........4-7
Adjusting the screen ...........................4-9
How to turn on and off predicted course
lines ..........................................4-9
RearView Monitor system limitations ..........4-9
System maintenance ........................ 4-10
Around View® Monitor (if so equipped) ..........4-11
Around View® Monitor system operation ....4-12
Difference between predicted and actual
distances .................................... 4-17
How to park with predicted course lines ......4-18
How to switch the display ...................4-20
Around View® Monitor settings .............4-20
Adjusting the screen ......................... 4-21
Around View® Monitor system
limitations .................................. 4-22
System maintenance ........................ 4-24Camera aiding sonar (parking sensor)
(if so equipped)
................................. 4-24
Sonar system operation .....................4-25
Turning on and off the sonar function ........4-26
Sonar system limitations .....................4-27
System maintenance ........................ 4-28
Moving Object Detection (MOD)
(if so equipped) ................................. 4-29
MOD system operation ......................4-30
Turning MOD on and off ....................4-32
MOD system limitations .....................4-32
System maintenance ........................ 4-33
Vents .......................................... 4-34
Heater and air conditioner (automatic) ..........4-35
Automatic operation ........................ 4-36
Manual operation ........................... 4-37
Operating tips ............................... 4-38
CLIMATE setting screen .....................4-39
Rear climate

control (if so equipped) .........4-41
Heater and air conditioner settings
(if so equipped) ................................. 4-42
Servicing air conditioner ........................ 4-43

When the “[X]” icon is displayed on the
screen, the camera image may be receiving
temporary electronic disturbances from sur-
rounding devices. This will not hinder normal
driving operation but the system should be
inspected. It is recommended that you visit an
INFINITI retailer for this service.SYSTEM MAINTENANCE
CAUTION
∙ Do not use alcohol, benzine or thinner toclean the camera. This will cause
discoloration.
∙ Do not damage the cameras as the moni- tor screen may be adversely affected.
If dirt, rain or snow accumulates on any of the
cameras
1, the Around View® Monitor may
not display objects clearly. Clean the camera
by wiping with a cloth dampened with a di-
luted mild cleaning agent and then wiping
with a dry cloth.
WARNING
Failure to follow the warnings and instruc-
tions for proper use of the sonar function as
outlined in this section could result in seri-
ous injury or death.
∙ The sonar is a convenience feature. It is not a substitute for proper parking.
∙ This function is designed as an aid to the driver in detecting large stationary ob-
jects to help avoid damaging the vehicle.
∙ The driver is always responsible for safety during parking and other
maneuvers.
∙ Always look around and check that it is safe to move before parking.
∙ Read and understand the limitations of the sonar as contained in this section.
The sonar function helps to inform the driver
of large stationary objects around the vehicle
when parking by issuing an audible and visual
alert.
LHA5237LHA4554
CAMERA AIDING SONAR (parking
sensor) (if so equipped)
4-24Monitor, climate, audio, phone and voice recognition systems

Sonar function settings
To set up the sonar function to your preferred
settings, press the MENU button, touch the
“Settings” key, and then touch the “Parking
Sonar” key on the lower display.
Designs and items displayed on the screen
may vary depending on the models.
Auto Show Sonar Image (if so equipped):
When the sonar detects an object while this
item is turned on, the Around View® Monitor
will interrupt the current view in the display to
show the surrounding area of the vehicle.Front (if so equipped):
When this item is
turned on, the front sonar sensors are active
and a sonar indicatorCwill appear at the
corner of the vehicle to inform the driver
when an obstacle is near. Another sonar indi-
cator
Dmay also appear on either a side
view, front or rear-wide view Around View®
Monitor screen to aid the driver when an
object is near.
Rear: When this item is turned on, the rear
sonar sensors are active and a sonar indicator
Cwill appear at the corner of the vehicle to
inform the driver when an obstacle is near.
Another sonar indicator
Dmay also appear
on either a side view, front or rear-wide view Around View® Monitor screen to aid the
driver when an object is near.
Distance:
Adjust the sensitivity level of the
sonar to “Short”, “Medium”, or “Long”.
Volume: Adjust the volume of the buzzer to
“High”, “Medium”, or “Low”.
SONAR SYSTEM LIMITATIONS
WARNING
Listed below are the system limitations for
the sonar function. Failure to operate the
vehicle in accordance with these system
limitations could result in serious injury or
death.
∙ Inclement weather or ultrasonic sources such as an automatic car wash, a truck’s
compressed-air brakes or a pneumatic
drill may affect the function of the sys-
tem, including reduced performance or a
false activation.
∙ The system is not designed to prevent contact with small or moving objects.
∙ The system will not detect small objects below the bumper, and may not detect
objects close to the bumper or on the
ground.
LHA5275LHA5276
Monitor, climate, audio, phone and voice recognition systems4-27

∙ The system may not detect the followingobjects:
– Fluffy objects such as snow, cloth, cotton, grass or wool.
– Thin objects such as rope, wire or chain.
– Wedge-shaped objects.
∙ If your vehicle sustains damage to the bumper fascia, leaving it misaligned or
bent, the sensing zone may be altered
causing inaccurate measurement of ob-
jects or false alarms.
CAUTION
Excessive noise (such as audio system vol-
ume or an open vehicle window) will inter-
fere with the tone and it may not be heard.
System temporarily unavailable
When the amber markers are displayed at the
corners of the vehicle icon and the function
cannot be activated from the Camera setting
menu (the setting items are grayed out), the
sonar system may be malfunctioning.
SYSTEM MAINTENANCE
CAUTION
Keep the surface of the sonar sensors (lo-
cated on the front and rear bumper fascia)
free from accumulations of snow, ice and
dirt. Do not scratch the surface of the sonar
sensors when cleaning. If the sensors are
covered, the accuracy of the sonar function
will be diminished.
4-28Monitor, climate, audio, phone and voice recognition systems

Rear window and outside mirror (if
so equipped) defroster switch
For additional information, refer to “Rear
window defroster, outside mirror defroster,
and wiper deicer (if so equipped) switch” in
the “Instruments and controls” section of this
manual.
OPERATING TIPS
The sensors,AandBon the instrument
panel, help the system maintain a constant
temperature. Do not put anything on or
around these sensors. ∙ When the engine coolant temperature
and outside air temperature are low, the
air may flow from defroster or feet vents
to initialize automatic heating mode. This
is not a malfunction. After the coolant
temperature warms up, air will flow nor-
mally from the feet vents
∙ A visible mist may be seen coming from the ventilators in hot, humid conditions as
the air is cooled rapidly. This does not
indicate a malfunction.
LHA4686
4-38Monitor, climate, audio, phone and voice recognition systems

high-density Plasmacluster®ions also have a
proven skin moisture preserving effect.
The Plasmacluster® icon on the CLIMATE
screen indicates the status of the Plasma-
cluster® ion emission from the system and
changes with the amount of the air flow.
Automatic air recirculation control with the
exhaust gas/outside odor detection sensor:
The Automatic Climate Control System
comes with an exhaust gas
detection/outside odor sensor. When the au-
tomatic air circulation control is activated, the
sensor detects odors outside the vehicle such
as pulp or chemicals, and exhaust such as
gasoline or diesel. When such odors or gases
are detected the display and the system au-
tomatically change from fresh air mode to the
recirculation mode.
When the automatic air recirculation is on, for
the first 5 minutes, the air recirculation mode
is selected to prevent dust, dirt, and pollen
from entering the vehicle and to clean the air
inside of the vehicle.
After 5 minutes, the sensor detects exhaust
gas and automatically alternates between
the air recirculation mode and the fresh air
mode.The automatic air recirculation mode can be
activated under the following conditions.
∙ The air flow control is not in the front defroster mode (the indicator light on
the
front defroster button is turned
off).
∙ The outside temperature is about 32°F (0°C) or more.
REAR CLIMATE CONTROL (if so
equipped)
1. Rear temperature display
2.
Rear temperature control in-
crease button
3.
Rear temperature control de-
crease button
You can adjust the climate control system for
rear seat passengers using the buttons on the
back of the console.
Press the
to increase the rear tempera-
ture.
Rear temperature switch (if so equipped)
LHA4582
Monitor, climate, audio, phone and voice recognition systems4-41
