2020 INFINITI Q50 TPMS

8-32Do-it-yourself
TYPES OF TIRES

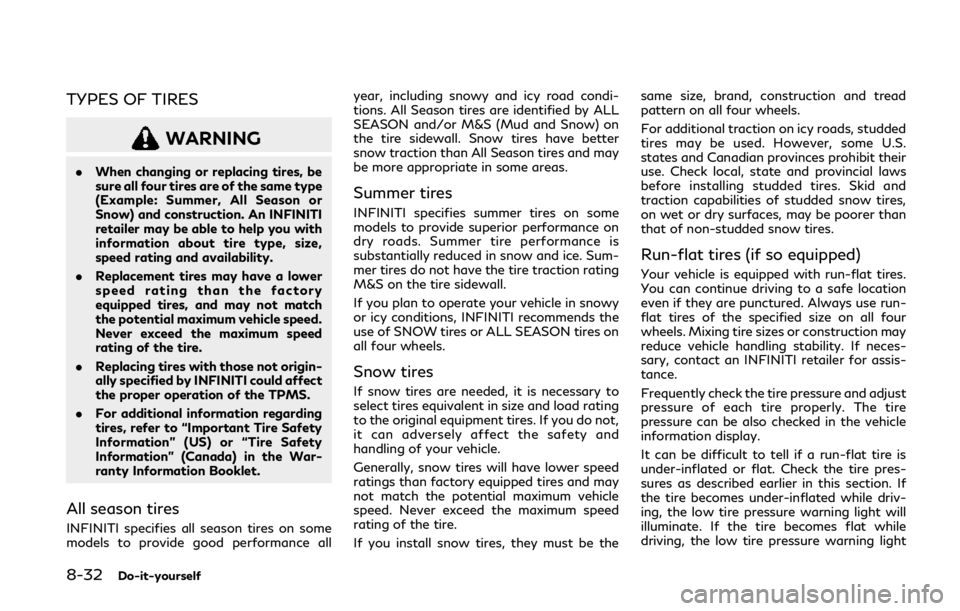

WARNING
.When changing or replacing tires, be
sure all four tires are of the same type
(Example: Summer, All Season or
Snow) and construction. An INFINITI
retailer may be able to help you with
information about tire type, size,
speed rating and availability.
. Replacement tires may have a lower
speed rating than the factory
equipped tires, and may not match
the potential maximum vehicle speed.
Never exceed the maximum speed
rating of the tire.
. Replacing tires with those not origin-
ally specified by INFINITI could affect
the proper operation of the TPMS.
. For additional information regarding
tires, refer to “Important Tire Safety
Information” (US) or “Tire Safety
Information” (Canada) in the War-
ranty Information Booklet.
All season tires
INFINITI specifies all season tires on some
models to provide good performance all year, including snowy and icy road condi-
tions. All Season tires are identified by ALL
SEASON and/or M&S (Mud and Snow) on
the tire sidewall. Snow tires have better
snow traction than All Season tires and may
be more appropriate in some areas.
Summer tires
INFINITI specifies summer tires on some
models to provide superior performance on
dry roads. Summer tire performance is
substantially reduced in snow and ice. Sum-
mer tires do not have the tire traction rating
M&S on the tire sidewall.
If you plan to operate your vehicle in snowy
or icy conditions, INFINITI recommends the
use of SNOW tires or ALL SEASON tires on
all four wheels.
Snow tires
If snow tires are needed, it is necessary to
select tires equivalent in size and load rating
to the original equipment tires. If you do not,
it can adversely affect the safety and
handling of your vehicle.
Generally, snow tires will have lower speed
ratings than factory equipped tires and may
not match the potential maximum vehicle
speed. Never exceed the maximum speed
rating of the tire.
If you install snow tires, they must be thesame size, brand, construction and tread
pattern on all four wheels.
For additional traction on icy roads, studded
tires may be used. However, some U.S.
states and Canadian provinces prohibit their
use. Check local, state and provincial laws
before installing studded tires. Skid and
traction capabilities of studded snow tires,
on wet or dry surfaces, may be poorer than
that of non-studded snow tires.
Run-flat tires (if so equipped)
Your vehicle is equipped with run-flat tires.
You can continue driving to a safe location
even if they are punctured. Always use run-
flat tires of the specified size on all four
wheels. Mixing tire sizes or construction may
reduce vehicle handling stability. If neces-
sary, contact an INFINITI retailer for assis-
tance.
Frequently check the tire pressure and adjust
pressure of each tire properly. The tire
pressure can be also checked in the vehicle
information display.
It can be difficult to tell if a run-flat tire is
under-inflated or flat. Check the tire pres-
sures as described earlier in this section. If
the tire becomes under-inflated while driv-
ing, the low tire pressure warning light will
illuminate. If the tire becomes flat while
driving, the low tire pressure warning light

Replacing wheels and tires
When replacing a tire, use the same size,
tread design, speed rating and load carrying
capacity as originally equipped. (See “Speci-
fications” (P.10-8) for recommended types
and sizes of tires and wheels.)
After the ignition switch is placed in the ON
position, it may take a period of time for the
tire pressure to be displayed in the vehicle
information display while the vehicle is
driven. Depending on the radio wave circum-
stance, tire pressure may not correctly be
displayed.
WARNING
.The use of tires other than those
recommended or the mixed use of
tires of different brands, construc-
tion (bias, bias-belted, radial or run-
flat), or tread patterns can adversely
affect the ride, braking, handling,
ground clearance, body-to-tire clear-
ance, tire chain clearance, speed-
ometer calibration, headlight aim
and bumper height. Some of these
effects may lead to accidents and
could result in serious personal injury.
. For Two-Wheel Drive (2WD) models,
if your vehicle was originally equipped with 4 tires that were the
same size and you are only replacing
2 of the 4 tires, install the new tires
on the rear axle. Placing new tires on
the front axle may cause loss of
vehicle control in some driving condi-
tions and cause an accident and
personal injury.
. If the wheels are changed for any
reason, always replace with wheels
which have the same off-set dimen-
sion. Wheels of a different off-set
could cause premature tire wear,
degrade vehicle handling character-
istics and/or interference with the
brake discs/drums. Such interference
can lead to decreased braking effi-
ciency and/or early brake pad/shoe
wear. See “Wheels and tires” (P.10-
9) of this manual for wheel off-set
dimensions.
. Since the spare tire is not equipped
with the TPMS, when a spare tire is
mounted or a wheel is replaced, the
TPMS will not function and the low
tire pressure warning light will flash
for approximately 1 minute. The light
will remain on after 1 minute. Have
your tires replaced and/or TPMS
system reset as soon as possible. It
is recommended you visit an INFINITI
retailer for these services. .
Replacing tires with those not origin-
ally specified by INFINITI could affect
the proper operation of the TPMS.
. The TPMS sensor may be damaged if
it is not handled correctly. Be careful
when handling the TPMS sensor.
. When replacing the TPMS sensor, the
ID registration may be required. It is
recommended you contact an
INFINITI retailer for ID registration.
. Do not use a valve stem cap that is
not specified by INFINITI. The valve
stem cap may become stuck.
. Be sure that the valve stem caps are
correctly fitted. Otherwise the valve
may be clogged up with dirt and
cause a malfunction or loss of pres-
sure.
. Do not install a damaged or deformed
wheel or tire even if it has been
repaired. Such wheels or tires could
have structural damage and could fail
without warning.
. The use of retread tire is not recom-
mended.
. For additional information regarding
tires, refer to “Important Tire Safety
Information” (US) or “Tire Safety
Information” (Canada) in the War-
Do-it-yourself8-37

other corrosive materials, check lubrication
frequently.
Lights*:Clean the headlights on a regular
basis. Make sure that the headlights, stop
lights, tail lights, turn signal lights, and other
lights are all operating properly and installed
securely. Also check headlight aim.
Road wheel nuts (lug nuts)*: When checking
the tires, make sure no wheel nuts are
missing, and check for any loose wheel nuts.
Tighten if necessary.
Tire rotation*: Tires should be rotated every
5,000 miles (8,000 km). If your vehicle is
equipped with different sized tires in the
front and rear, tires cannot be rotated.
Tires*: Check the pressure with a gauge
often and always prior to long distance trips.
If necessary, adjust the pressure in all tires,
including the spare, to the pressure speci-
fied. Check carefully for damage, cuts or
excessive wear.
Tire Pressure Monitoring System (TPMS)
transmitter components: Replace the TPMS
transmitter grommet seal, valve core and
cap when the tires are replaced due to wear
or age.
Wheel alignment and balance: If the vehicle
should pull to either side while driving on a
straight and level road, or if you detect
uneven or abnormal tire wear, there may be
a need for wheel alignment. If the steering wheel or seat vibrates at
normal highway speeds, wheel balancing
may be needed.
For additional information regarding tires,
refer to “Important Tire Safety Information”
(US) or “Tire Safety Information” (Canada) in
the INFINITI Warranty Information Booklet.
Windshield:
Clean the windshield on a
regular basis. Check the windshield at least
every six months for cracks or other damage.
Have a damaged windshield repaired by a
qualified repair facility. It is recommended
that you have a damaged windshield re-
paired by an INFINITI retailer, or an INFINITI
Certified Collision Center. To locate a colli-
sion center in your area, refer to http://
collision.infinitiusa.com.
Windshield wiper blades*: Check for cracks
or wear if they do not wipe properly.
Inside the vehicle
The maintenance items listed here should be
checked on a regular basis, such as when
performing scheduled maintenance, cleaning
the vehicle, etc.
Accelerator pedal: Check the pedal for
smooth operation and make sure the pedal
does not catch or require uneven effort.
Keep the floor mat away from the pedal.
Automatic transmission P (Park) mechan-
ism: On a fairly steep hill, check that your vehicle is held securely with the shift lever in
the P (Park) position without applying any
brakes.
Brake pedal:
Check the pedal for smooth
operation. If the brake pedal suddenly goes
down further than normal, the pedal feels
spongy or the vehicle seems to take longer to
stop, have your vehicle checked immediately.
It is recommended you visit an INFINITI
retailer for this service. Keep the floor mat
away from the pedal.
Brakes: Check that the brakes do not pull the
vehicle to one side when applied.
Parking brake: Check the parking brake
operation regularly. The vehicle should be
securely held on a fairly steep hill with only
the parking brake applied. If the parking
brake needs adjusted, it is recommended you
visit an INFINITI retailer for this service.
Seats: Check seat position controls such as
seat adjusters, seatback recliner, etc. to
ensure they operate smoothly and that all
latches lock securely in every position. Check
that the head restraints move up and down
smoothly and that the locks (if so equipped)
hold securely in all latched positions.
Seat belts: Check that all parts of the seat
belt system (for example, buckles, anchors,
adjuster and retractors) operate properly
and smoothly, and are installed securely.
Check the belt webbing for cuts, fraying,
Maintenance and schedules9-3

11-4
INFINITI Vehicle Immobilizer System ............ 2-30Engine start .................................................... 2-30
Inside mirror .......................................................... 3-29
Inspection/maintenance (I/M) test ............. 10-22
Instrument brightness control ......................... 2-40
Instrument panel ..................................................... 2-5
Intelligent All-Wheel Drive (AWD) ............... 5-121
Intelligent Cruise Control (ICC) ........................ 5-71
Intelligent Cruise Control (ICC) system
ON indicator ......................................................... 2-22
Intelligent Key .......................................................... 3-2
Intelligent Key system ........................................... 3-6 Battery replacement ..................................... 8-19
Key operating range ....................................... 3-8
Key operation ................................................... 3-9
Warning signals .............................................. 3-13
Intercooler cooling system .................................. 8-5
Interior light control switch .............................. 2-55
Interior light replacement .................................. 8-24
Interior lights ......................................................... 2-54
Interior trunk lid release .................................... 3-24
ISOFIX child restraint ......................................... 1-23
J
Jump starting ........................................................... 6-5
K
Keyless entry (See remote keyless
entry system) ........................................................ 3-15 Keys ........................................................................\
.... 3-2
For Intelligent Key system ............................ 3-6
L
Labels Air bag warning labels ................................. 1-58
Air conditioner specification label ......... 10-13
Emission control information label ........ 10-12
Engine serial number ................................. 10-12
F.M.V.S.S./C.M.V.S.S.
certification label ........................................ 10-12
Tire and Loading
information label ............................. 8-28, 10-13
Vehicle identification number (VIN) ....... 10-11
Lane Departure Warning (LDW)/Lane
Departure Prevention (LDP) ............................ 5-33
LATCH system ..................................................... 1-23
License plate
Installing front license plate .................... 10-14
Light
Air bag warning light .................................... 1-58
Bulb replacement ........................................... 8-22
Fog light switch ............................................. 2-41
Headlight switch ............................................ 2-34
Indicator lights ................................................ 2-15
Interior light control switch ........................ 2-55
Interior lights ................................................... 2-54
Map lights ........................................................ 2-54
Personal lights ................................................ 2-54
Replacement ................................................... 8-22
Trunk light ....................................................... 2-56 Vanity mirror lights ....................................... 2-56
Warning/indicator lights and
audible reminders .......................................... 2-10
Lights
Exterior and interior light replacement ... 8-24
Loading information (See vehicle
loading information) ......................................... 10-16
Lock
Automatic door locks ..................................... 3-5
Door locks .......................................................... 3-4
Power door lock ............................................... 3-4
Trunk lid ........................................................... 3-22
Locking with mechanical key ............................. 3-4
Log-in function .................................................... 3-15
Loose Fuel Cap warning ........................ 2-21, 3-27
Low fuel warning light ....................................... 2-12
Low outside temperature warning ................. 2-22
Low tire pressure warning light ...................... 2-12
Low tire pressure warning system
(See Tire Pressure Monitoring
System (TPMS)) ................................ 5-5, 6-3, 8-26
M
Maintenance
Battery .............................................................. 8-11
General maintenance ...................................... 9-2
Indicators for maintenance (vehicle
information display) ...................................... 2-23
Inside the vehicle ............................................. 9-3
Maintenance log ............................................ 9-11
Maintenance precautions .............................. 8-2

Supplemental air bag warning labels ............. 1-58
Supplemental air bag warning light .... 1-58, 2-15
Supplemental restraint system ........................ 1-40Precautions on supplemental
restraint system ............................................ 1-40
Switch Autolight switch ............................................. 2-35
Fog light switch ............................................. 2-41
Hazard warning flasher switch .................... 6-2
Headlight switch ............................................ 2-34
Ignition switch ................................................ 5-16
Power door lock switch ................................. 3-5
Rear window and outside mirror
defroster switch ............................................. 2-34
Turn signal switch ........................................ 2-40
Vehicle Dynamic Control (VDC)
off switch ......................................................... 2-41
T
Tachometer ............................................................. 2-8
Temperature gauge
Engine coolant temperature gauge ............ 2-8
Theft (INFINITI Vehicle Immobilizer System)
Engine start .................................................... 2-30
Thigh extension ....................................................... 1-5
Three-way catalyst ................................................ 5-5
Tilt/telescopic steering ...................................... 3-27
Tire Flat Tire - Visit dealer warning ................. 2-21
Run-flat tires .................................................... 6-4
Tire replacement indicator .......................... 2-24 Tire rotation ................................................... 8-34
Tire pressure Low tire pressure warning light ................ 2-12
Tire Pressure Low - Add Air warning ........... 2-21
Tires Flat tire ............................................................... 6-3
Low tire pressure
warning system ........................... 5-5, 6-3, 8-26
Run-flat tires .................................................. 8-32
Tire and Loading
information label ............................. 8-28, 10-13
Tire chains ....................................................... 8-34
Tire dressing ...................................................... 7-4
Tire pressure ................................................... 8-26
Tire Pressure Monitoring
System (TPMS) ........................... 5-5, 6-3, 8-26
Types of tires .................................................. 8-32
Uniform tire quality grading .................... 10-19
Wheel/tire size ............................................... 10-9
Wheels and tires ............................................ 8-26
Towing Flat towing ................................................... 10-19
Tow truck towing ............................................ 6-8
Towing a trailer ........................................... 10-19
TPMS
Tire Pressure
Monitoring System .................... 5-5, 6-3, 8-26
TPMS, Tire pressure monitoring system
TPMS with Tire Inflation Indicator ............ 5-8
Trailer towing ..................................................... 10-19 Transceiver
HomeLink
®Universal Transceiver ............ 2-57
Transmission
Automatic Transmission Fluid (ATF) ......... 8-9
Driving with automatic transmission ....... 5-16
Transmission shift lever lock release ....... 5-19
Transmitter (See remote keyless
entry system) ........................................................ 3-15
Traveling or registering in
another country ................................................. 10-11
Trip computer ....................................................... 2-26
Trip odometer ....................................................... 2-26
Trunk
Interior trunk lid release .............................. 3-24
Light .................................................................. 2-56
Pass-through ..................................................... 1-7
Trunk hooks .................................................... 2-49
Trunk lid ........................................................... 3-22
Trunk lid release switch ............................... 3-23
Trunk open request switch ......................... 3-23
Trunk release power cancel switch .......... 3-24
Turn signal switch ............................................... 2-40
U
Underbody cleaning ............................................... 7-3
Uniform tire quality grading ........................... 10-19
V
Vanity mirror ......................................................... 3-32
Vanity mirror lights ............................................. 2-56
11-7

11-8
Variable voltage control system ..................... 8-13
VehicleDimensions ................................................... 10-10
Recovery (freeing a stuck vehicle) ............ 6-10
Vehicle Dynamic Control (VDC)
off switch ......................................................... 2-41
Vehicle dynamic control
(VDC) system ................................................ 5-129
Vehicle Dynamic Control (VDC)
warning light ................................................... 2-15
Vehicle identification number (VIN) ............. 10-11
Vehicle information display .............................. 2-18
Vehicle loading information ............................ 10-16
Vehicle security system ...................................... 2-29
Vehicle speedAverage speed ............................ 2-26
Ventilators ............................................................. 4-35
W
Warning Flat Tire - Visit dealer warning ................. 2-21
Hazard warning flasher switch .................... 6-2
Indicators for operation (vehicle
information display) ...................................... 2-20
Lights ................................................................ 2-10
Power steering warning light ..................... 2-14
Predictive Forward Collision
Warning (PFCW) ........................................ 5-110
Tire Pressure Monitoring
System (TPMS) ........................... 5-5, 6-3, 8-26
Vehicle information display ........................ 2-18 Warning lights, indicator lights and
audible reminders .......................................... 2-10
Warning labels Air bag warning labels ................................. 1-58
Warning light Air bag warning light ........................ 1-58, 2-15
Anti-lock braking system (ABS)
warning light ................................................... 2-10
Brake warning light ....................................... 2-11
Forward Emergency Braking (FEB)
system warning light .................................... 2-11
Low fuel warning light ................................. 2-12
Low tire pressure warning light ................ 2-12
Seat belt warning light and chime ............ 2-14
Warranty Emission control system warranty ........ 10-20
Washer switch Wiper and washer switch ........................... 2-31
Washing .................................................................... 7-2
Waxing ....................................................................... 7-2
Welcome light and farewell light function .... 3-10
Wheel/tire size ..................................................... 10-9
Wheels and tires .................................................. 8-26
Care of wheels .................................................. 7-3
Cleaning aluminum alloy wheels .................. 7-3
Cleaning bright wheels .................................. 7-4
Window washer fluid ......................................... 8-10
Window(s)
Cleaning ............................................................... 7-3
Power windows ............................................. 2-49 Wiper
Rain-sensing auto wiper system ............... 2-33
Wiper and washer switch ........................... 2-31
Wiper blades ................................................... 8-15
Wiper and washer switch ................................. 2-31
