2020 HYUNDAI SONATA LIMITED fuses

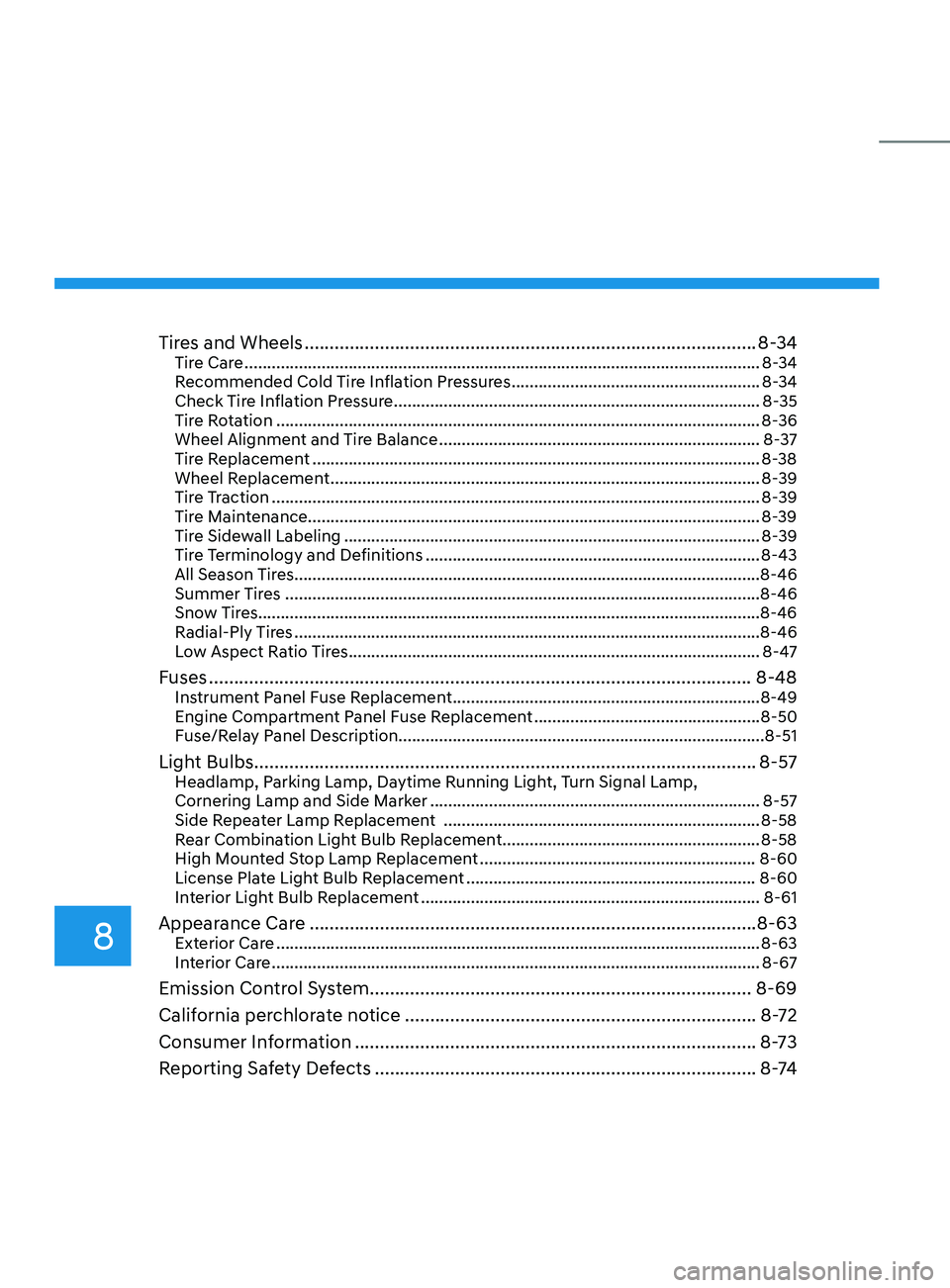

Tires and Wheels ........................................................................\
..................8- 34Tire Care ........................................................................\
..........................................8- 34
Recommended Cold Tire Inflation Pressures .......................................................8-34
Check Tire Inflation Pressure
........................................................................\
......... 8-35
Tire Rotation
........................................................................\
................................... 8-36
Wheel Alignment and Tire Balance

....................................................................... 8-

37
Tire Replacement
........................................................................\
........................... 8-38
Wheel Replacement
........................................................................\
....................... 8-39
Tire Traction
........................................................................\
.................................... 8-39
Tire Maintenance........................................................................\
............................ 8-39
Tire Sidewall Labeling
........................................................................\
.................... 8-39
Tire Terminology and Definitions

........................................................................\
.. 8-43
All Season Tir

es ........................................................................\
............................... 8-46
Summer Tires
........................................................................\
................................. 8-46
Snow Tires........................................................................\
.......................................8-46
Radial-Ply Tires
........................................................................\
............................... 8-46
Low Aspect Ratio Tires
........................................................................\
................... 8-47
Fuses ........................................................................\
.................................... 8-48Instrument Panel Fuse Replacement ....................................................................8-49
E ngine Compartment Panel Fuse Replacement ..................................................8-50
Fuse/Relay Panel Description........................................................................\
.........8-51
Light Bulbs ........................................................................\
............................ 8-57Headlamp, Parking Lamp, Daytime Running Light, Turn Signal Lamp,
Cornering Lamp and Side Marker
........................................................................\
. 8-57
Side R
epeater Lamp Replacement ...................................................................... 8-58
Rear Combination Light Bulb Replacement
.........................................................8-58
High Mounted Stop Lamp Replacement
.............................................................8-60
License Plate Light Bulb Replacement

................................................................ 8-60
In

terior Light Bulb Replacement
........................................................................\
... 8-61
Appearance Care ........................................................................\
................. 8-63Exterior Care ........................................................................\
................................... 8-63
In terior Care ........................................................................\
.................................... 8-67
Emission Control System ........................................................................\
....8-69
Calif ornia perchlorate notice
...................................................................... 8-

72
Consumer Information
........................................................................\
........ 8-73
Reporting Safety Defects

........................................................................\
.... 8

-74
8

8-3
08
Tires and Wheels ........................................................................\
..................8-34Tire Care ........................................................................\
.......................................... 8-34
Recommended Cold Tire Inflation Pressures ....................................................... 8-34
Check Tire Inflation Pressure ........................................................................\
......... 8-35
Tire Rotation ........................................................................\
................................... 8-36
Wheel Alignment and Tire Balance ....................................................................... 8-37
Tire Replacement ........................................................................\
........................... 8-38
Wheel Replacement ........................................................................\
....................... 8-39
Tire Traction ........................................................................\
.................................... 8-39
Tire Maintenance........................................................................\
............................ 8-39
Tire Sidewall Labeling ........................................................................\
.................... 8-39
Tire Terminology and Definitions ........................................................................\
.. 8-43
All Season Tires ........................................................................\
............................... 8-46
Summer Tires ........................................................................\
................................. 8-46
Snow Tires........................................................................\
.......................................8-46
Radial-Ply Tires ........................................................................\
............................... 8-46
Low Aspect Ratio Tires ........................................................................\
................... 8-47
Fuses ........................................................................\
....................................8-48Instrument Panel Fuse Replacement .................................................................... 8-49
Engine Compartment Panel Fuse Replacement .................................................. 8-50
Fuse/Relay Panel Description........................................................................\
.........8-51
Light Bulbs ........................................................................\
............................ 8-57Headlamp, Parking Lamp, Daytime Running Light, Turn Signal Lamp,
Cornering Lamp and Side Marker ........................................................................\
. 8-57
Side Repeater Lamp Replacement ...................................................................... 8-58
Rear Combination Light Bulb Replacement ......................................................... 8-58
High Mounted Stop Lamp Replacement ............................................................. 8-60
License Plate Light Bulb Replacement ................................................................ 8-60
Interior Light Bulb Replacement ........................................................................\
... 8-61
Appearance Care ........................................................................\
................. 8-63Exterior Care ........................................................................\
................................... 8-63
Interior Care ........................................................................\
.................................... 8-67
Emission Control System ........................................................................\
.... 8-69
California perchlorate notice ...................................................................... 8-72
Consumer Information ........................................................................\
........ 8-73
Reporting Safety Defects ........................................................................\
.... 8 -74

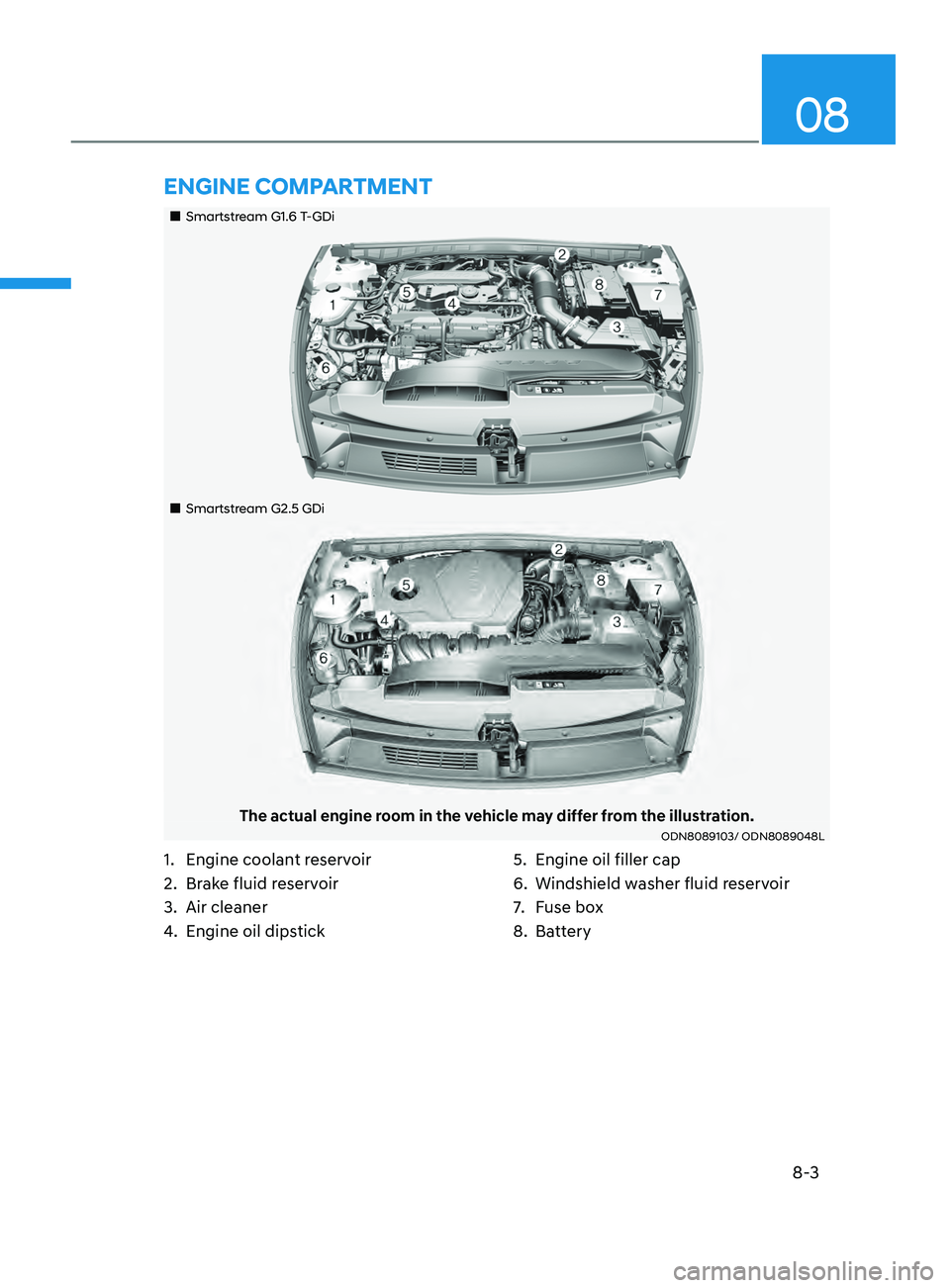

1. Engine coolant reservoir
2.

Br
ake fluid reservoir
3.

Air cleaner
4.
E

ngine oil dipstick 5.
E ngine oil filler cap
6.

Windshield w
asher fluid reservoir
7.
F

use box
8.

Ba
ttery
EnginE CompartmEnt
„„Smartstream G1.6 T-GDi
„„Smartstream G2.5 GDi
The actual engine room in the vehicle may differ from the illustration.ODN8089103/ ODN8089048L

Maintenance8-48

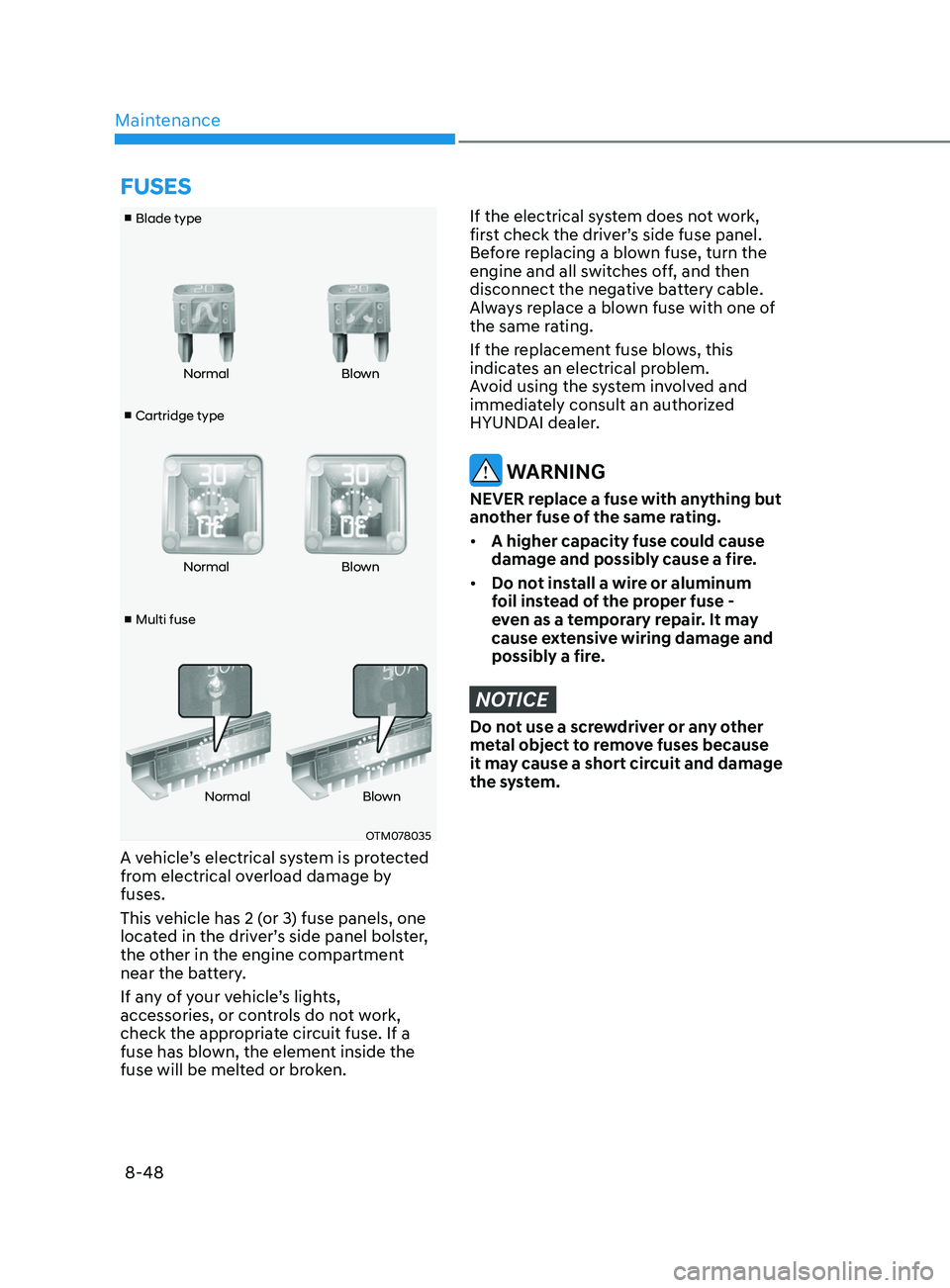

■ Cartridge type
■ Blade type
■ Multi fuse Normal
Blown
Normal Blown
Normal Blown
OTM078035
A vehicle’s electrical system is protected
from electrical overload damage by
fuses.
This vehicle has 2 (or 3) fuse panels, one
located in the driver’s side panel bolster,
the other in the engine compartment
near the battery.
If any of your vehicle’s lights,
accessories, or controls do not work,
check the appropriate circuit fuse. If a
fuse has blown, the element inside the
fuse will be melted or broken.
If the electrical system does not work,
first check the driver’s side fuse panel.
Before replacing a blown fuse, turn the
engine and all switches off, and then
disconnect the negative battery cable.
Always replace a blown fuse with one of
the same rating.
If the replacement fuse blows, this
indicates an electrical problem.
Avoid using the system involved and
immediately consult an authorized
HYUNDAI dealer.
WARNING
NEVER replace a fuse with anything but
another fuse of the same rating.
• A higher capacity fuse could cause
damage and possibly cause a fire.
• Do not install a wire or aluminum
foil instead of the proper fuse -
even as a temporary repair. It may
cause extensive wiring damage and
possibly a fire.
NOTICE
Do not use a screwdriver or any other
metal object to remove fuses because
it may cause a short circuit and damage
the system.
fuSES

08
8-49

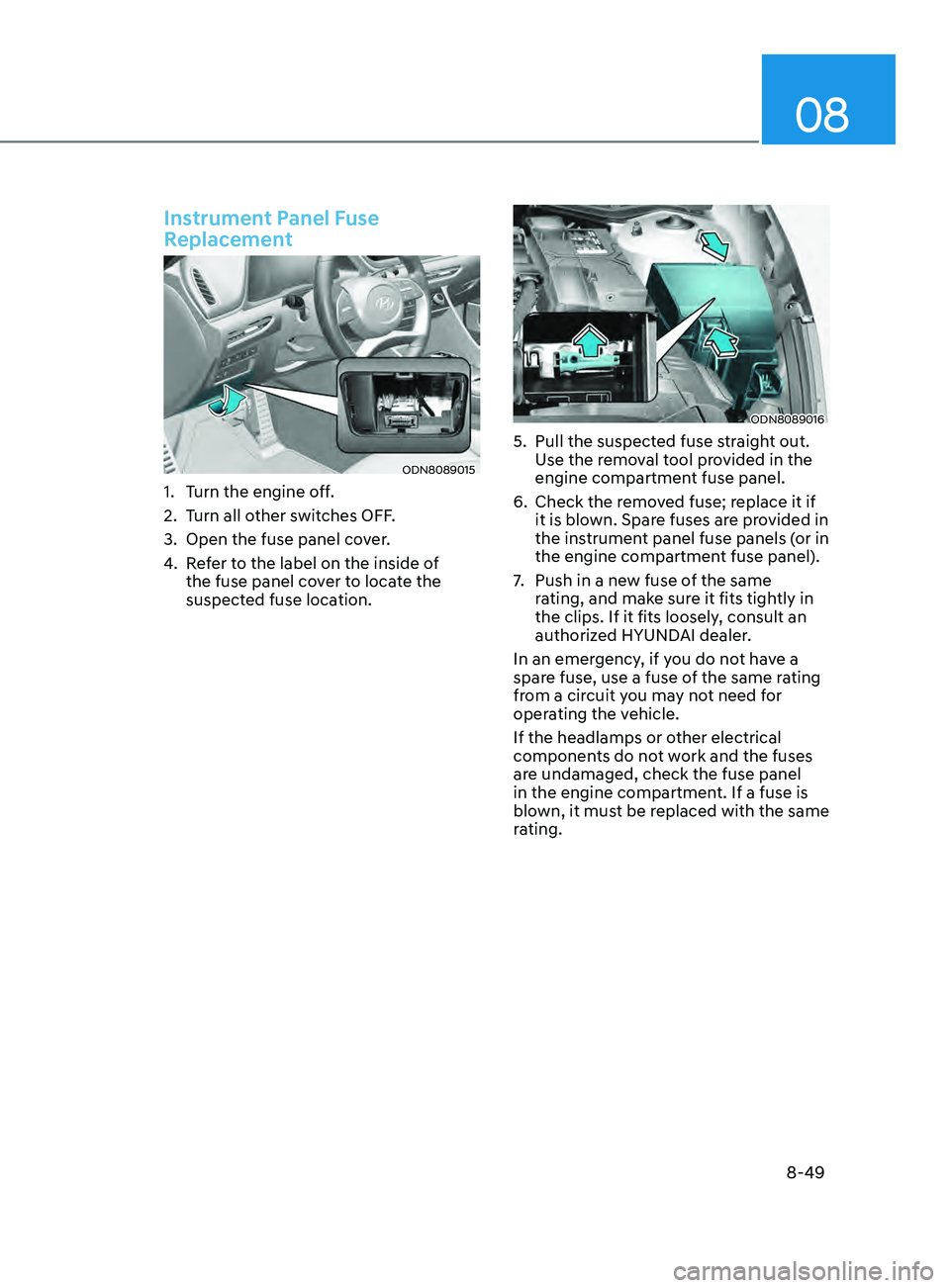

Instrument Panel Fuse
Replacement
ODN8089015
1. Turn the engine off.
2.
T
urn all other switches OFF.
3.

Open the fuse panel co
ver.
4.
R

efer to the label on the inside of
the fuse panel cover to locate the
suspected fuse location.
ODN8089016
5. Pull the suspect ed fuse straight out.
Use the removal tool provided in the
engine compartment fuse panel.
6.

Check the r
emoved fuse; replace it if
it is blown. Spare fuses are provided in
the instrument panel fuse panels (or in
the engine compartment fuse panel).
7.
Push in a ne

w fuse of the same
rating, and make sure it fits tightly in
the clips. If it fits loosely, consult an
authorized HYUNDAI dealer.
In an emergency, if you do not have a
spare fuse, use a fuse of the same rating
from a circuit you may not need for
operating the vehicle.
If the headlamps or other electrical
components do not work and the fuses
are undamaged, check the fuse panel
in the engine compartment. If a fuse is
blown, it must be replaced with the same
rating.

I
I -7

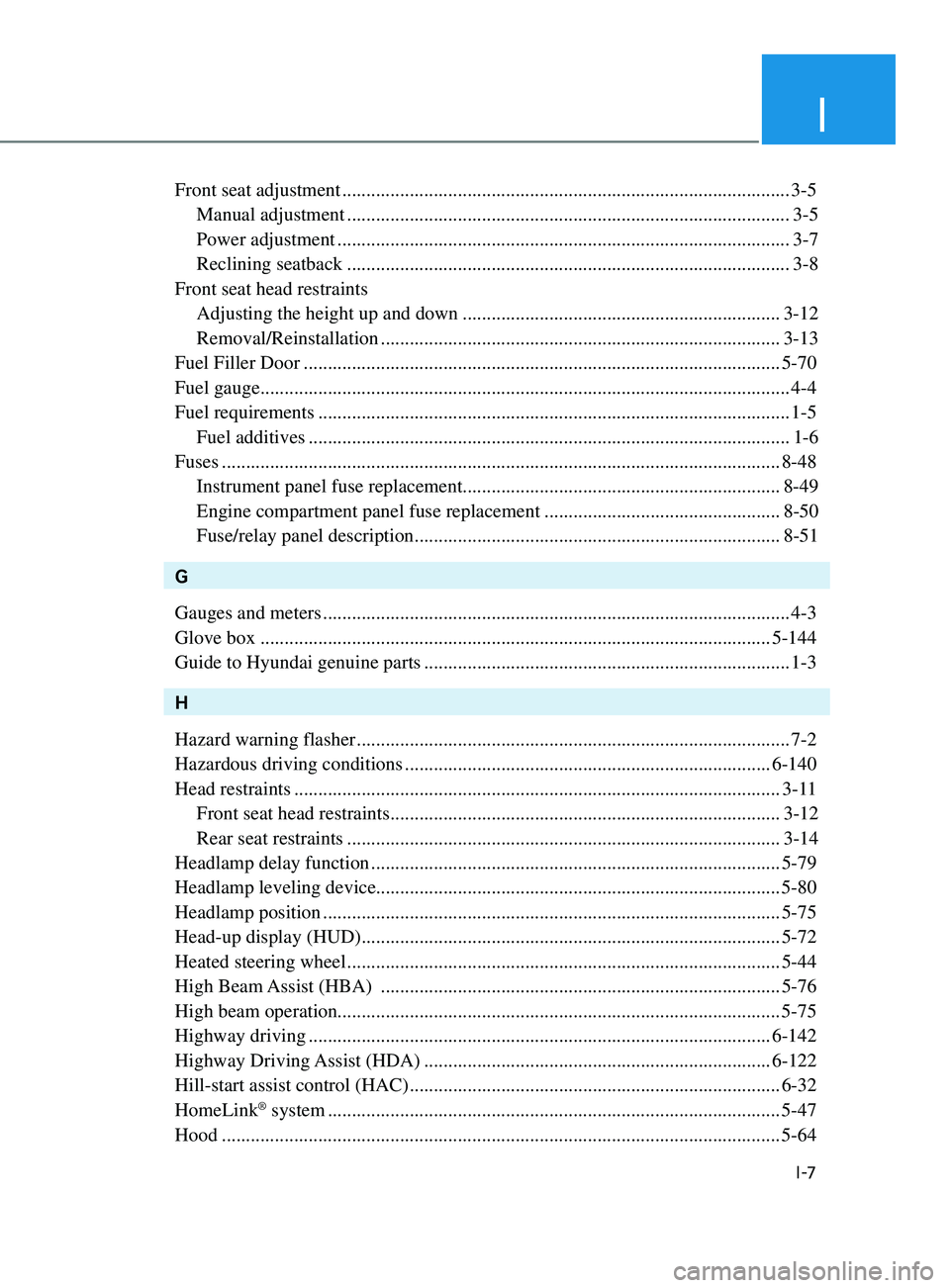

Front seat adjustment ........................................................................\
..................... 3-5
Manual adjustment

........................................................................\
.................... 3-5
Power adjustment


........................................................................\
...................... 3-7
Reclining seatback


........................................................................\
.................... 3-8
Front seat head restraints Adjusting the height up and down


.................................................................. 3-12
Removal/Reinstallation


........................................................................\
........... 3-13
Fuel Filler Door
........................................................................\
........................... 5-70
Fuel gauge
........................................................................\
...................................... 4-4
Fuel requirements


........................................................................\
.......................... 1-5
Fuel additives


........................................................................\
............................ 1-6
Fuses
........................................................................\
............................................ 8-48
Instrument panel fuse replacement.................................................................. 8-49
Engine compartment panel fuse replacement
................................................. 8-50
Fuse/relay panel description


........................................................................\
.... 8-51
G
Gauges and meters


........................................................................\
......................... 4-3
Glove box
........................................................................\
.................................. 5-144
Guide to Hyundai genuine parts


........................................................................\
.... 1-3
H
Hazard warning flasher


........................................................................\
.................. 7-2
Hazardous driving conditions


........................................................................\
.... 6-140
Head restraints


........................................................................\
............................. 3-11
Front seat head restraints


........................................................................\
......... 3-12
Rear seat restraints


........................................................................\
.................. 3-14
Headlamp delay function


........................................................................\
............. 5-79
Headlamp leveling device........................................................................\
............ 5-80
Headlamp position


........................................................................\
....................... 5-75
Head-up display (HUD)
........................................................................\
............... 5-72
Heated steering wheel


........................................................................\
.................. 5-44
High Beam Assist (HBA)


........................................................................\
........... 5-76
High beam operation........................................................................\
.................... 5-75
Highway driving
........................................................................\
........................ 6-142
Highway Driving Assist (HDA)
........................................................................\
6-122
Hill-start assist control (HAC)


........................................................................\
..... 6-32
HomeLink
® system ........................................................................\
...................... 5-47
Hood

........................................................................\
............................................ 5-64
