3-62
Convenient features of your vehicle

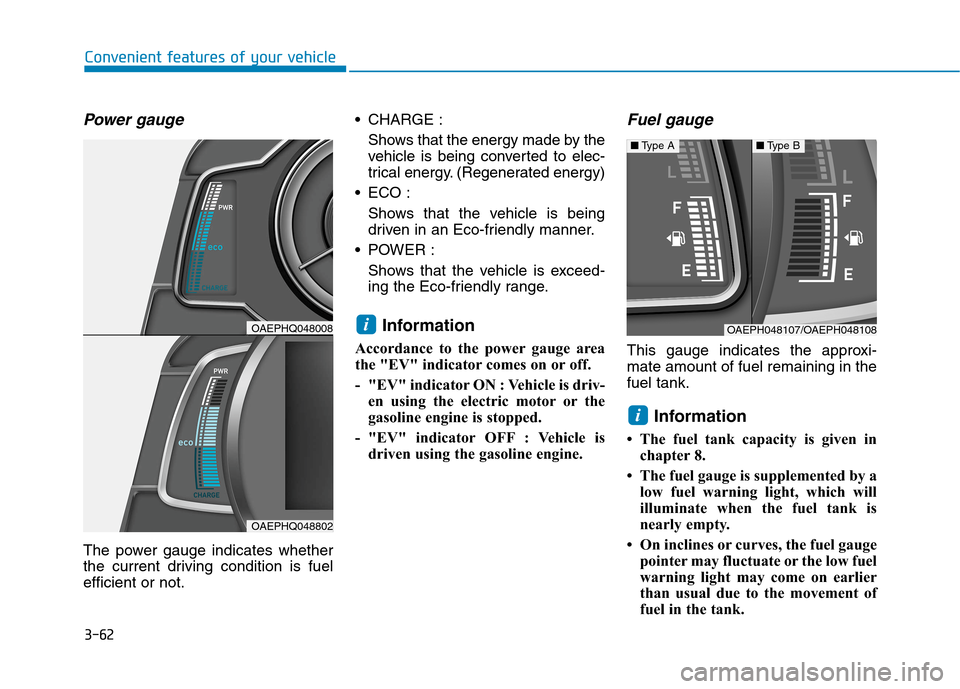

Power gauge
The power gauge indicates whether
the current driving condition is fuel
efficient or not. CHARGE :
Shows that the energy made by the
vehicle is being converted to elec-
trical energy. (Regenerated energy)
ECO :
Shows that the vehicle is being
driven in an Eco-friendly manner.
POWER :
Shows that the vehicle is exceed-
ing the Eco-friendly range.
Information
Accordance to the power gauge area
the "EV" indicator comes on or off.
- "EV" indicator ON : Vehicle is driv-
en using the electric motor or the
gasoline engine is stopped.
- "EV" indicator OFF : Vehicle is
driven using the gasoline engine.
Fuel gauge
This gauge indicates the approxi-
mate amount of fuel remaining in the
fuel tank.
Information
• The fuel tank capacity is given in
chapter 8.
• The fuel gauge is supplemented by a
low fuel warning light, which will
illuminate when the fuel tank is
nearly empty.
• On inclines or curves, the fuel gauge
pointer may fluctuate or the low fuel
warning light may come on earlier
than usual due to the movement of
fuel in the tank.
i
i
■Type A■Type B
OAEPHQ048008
OAEPHQ048802
OAEPH048107/OAEPH048108
