2020 Hyundai Ioniq Hybrid air conditioning

Trip computer (hybrid vehicle) ........................3-109
Trip modes ......................................................................3-109
Trip computer (plug-in hybrid vehicle) ..........3-114
Trip modes ......................................................................3-114
Lighting................................................................3-119
Exterior Lights ...............................................................3-119
Interior Lights ................................................................3-127
Welcome System ..........................................................3-129
Wipers and washers ..........................................3-130
Windshield Wipers .......................................................3-130
Windshield Washers ....................................................3-131
Rear View Monitor (RVM) ...............................3-132
Reverse Parking Distance Warning (PDW) ....3-134
Self-Diagnosis ...............................................................3-137
Forward/Reverse Parking Distance
Warning (PDW) .................................................3-138
Self-Diagnosis ...............................................................3-142
Automatic climate control system ...................3-143
Automatic Heating and Air Conditioning.................3-144
Manual Heating and Air Conditioning......................3-145
System Operation .........................................................3-152
System Maintenance....................................................3-153
Windshield defrosting and defogging ............3-155
To Defog Inside Windshield ........................................3-155
To Defrost Outside Windshield ..................................3-156
Defogging Logic ............................................................3-156
Rear Window Defroster ..............................................3-156
Auto Defogging System .............................................3-157
Climate control additional features.................3-159
Automatic Ventilation .................................................3-159
Sunroof inside air recirculation.................................3-159
Storage compartment ........................................3-160
Center Console Storage ..............................................3-160
Glove Box ........................................................................3-160
Sunglass Holder.............................................................3-161
Multi Box .........................................................................3-161
Interior features ...............................................3-162
Cup Holder ......................................................................3-162
Sunvisor ...........................................................................3-163
Power Outlet .................................................................3-163
Wireless Cellular Phone Charging System..............3-164
Clock .................................................................................3-166
Clothes Hanger ..............................................................3-167
Floor Mat Anchor(s).....................................................3-168
Cargo Security Screen .................................................3-168
3

3-93
Convenient features of your vehicle
3
Switching to Hybrid mode to
allow heating or air condition-
ing (Plug-in hybrid vehicle)
This message is displayed when the
vehicle automatically switches to
HEV mode to allow heating or air
conditioning. It is when the coolant
temperature is low (below 7 °F (-14
°C)) and the driver turns on the heat-
ing or cooling system.
If the coolant temperature gets high-
er than 7 °F (-14 °C) or the driver
turns off the heating or cooling sys-
tem the vehicle returns to its default
(EV) mode.
Maintaining Hybrid mode to
continue heating or air condi-
tioning (Plug-in hybrid vehicle)
This message is displayed when the
vehicle maintains the HEV mode to
allow heating or air conditioning. The
mode does not change when the
driver presses the [HEV] button to
switch from the HEV mode to EV
mode while the heating and cooling
system is on and the coolant temper-
ature is below 7 °F (-14 °C).
Low/High System Temp.
Maintaining Hybrid mode
(Plug-in hybrid vehicle)
This message is displayed when the
temperature of the high-voltage
(hybrid) battery is too low or too high.
This warning message is to protect
the battery and the hybrid system.
OAEPHQ049841LOAEPHQ049842LOAEPHQ049834L/OAEPHQ049835L

3-143
Convenient features of your vehicle
3
A AU
UT
TO
OM
MA
AT
TI
IC
C
C
CL
LI
IM
MA
AT
TE
E
C
CO
ON
NT
TR
RO
OL
L
S
SY
YS
ST
TE
EM
M
OAEPH049500N
1. Driver's temperature control button
2. Passenger's temperature control but-
ton
3. Fan speed control button
4. Mode selection button
5. AUTO (automatic control) button
6. OFF button
7. Front windshield defrost button
8. Rear window defrost button
9. Air conditioning button
10. Air intake control button
11. Driver only button
12. SYNC button
13. Climate control information screen

3-144
Convenient features of your vehicle
Automatic Heating and Air
Conditioning
The Automatic Climate Control
System is controlled by setting the
desired temperature.
1. Press the AUTO button.
The modes, fan speeds, air intake
and air-conditioning will be controlled
automatically by the temperature set-
ting you select.2. Press the temperature control
knob to the desired temperature. If
the temperature is set to the low-
est setting (Lo), the air condition-
ing system will operate continu-
ously. After the interior has cooled
sufficiently, adjust the button to a
higher temperature set point
whenever possible.To turn the automatic operation off,
select any button of the following:
- Mode selection button
- Front windshield defroster button
(Press the button one more time
to deselect the front windshield
defroster function. The 'AUTO'
sign will illuminate on the infor-
mation screen once again.)
- Fan speed control button
The selected function will be con-
trolled manually while other functions
operate automatically.
For your convenience and to improve
the effectiveness of the climate con-
trol, use the AUTO button and set the
temperature to 73°F (23°C).
OAEE049303
OAEPH049688N

3-145
Convenient features of your vehicle
3
Never place anything near the
sensor to ensure better control of
the heating and cooling system.
Manual Heating and Air
Conditioning
The heating and cooling system can
be controlled manually by pushing
buttons other than the AUTO button.
In this case, the system works
sequentially according to the order of
buttons selected.
When pressing any button except the
AUTO button while using automatic
operation, the functions not selected
will be controlled automatically.
1. Start the vehicle ( indicator
ON).
2. Set the mode to the desired posi-
tion.
To improve the effectiveness of
heating and cooling, select:
- Heating:
- Cooling:3. Set the temperature control to the
desired position.
4. Set the air intake control to the
outside (fresh) air position.
5. Set the fan speed control to the
desired speed.
6. If air conditioning is desired, turn
the air conditioning system on.
7. Press the AUTO button to convert
to full automatic control of the sys-
tem.
NOTICE
OAE048304

3-149
Convenient features of your vehicle
3

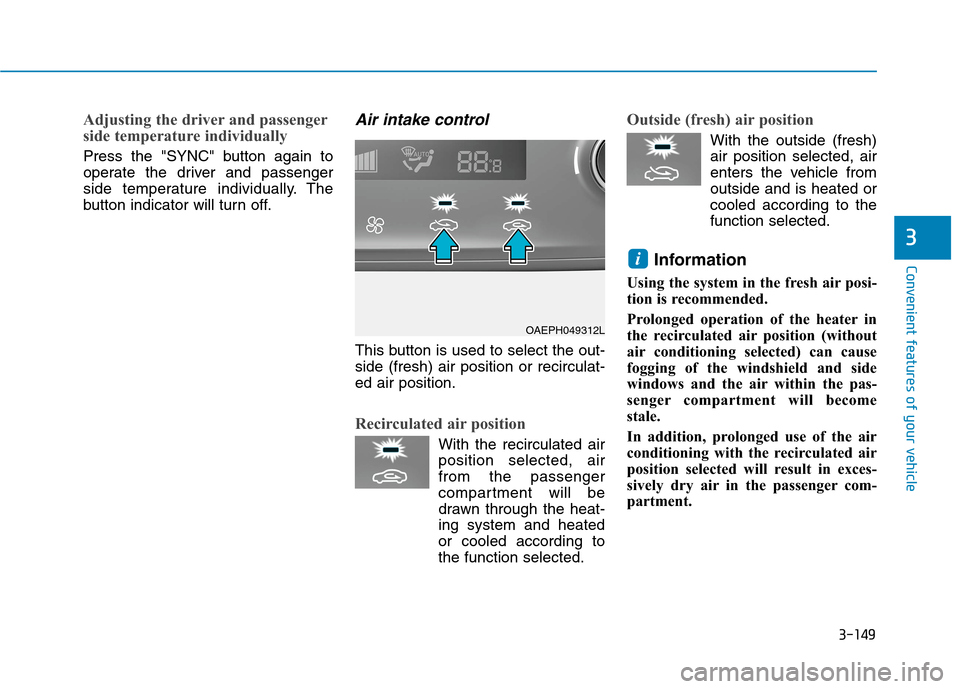

Adjusting the driver and passenger
side temperature individually
Press the "SYNC" button again to
operate the driver and passenger
side temperature individually. The
button indicator will turn off.
Air intake control
This button is used to select the out-
side (fresh) air position or recirculat-
ed air position.
Recirculated air position
With the recirculated air
position selected, air
from the passenger
compartment will be
drawn through the heat-
ing system and heated
or cooled according to
the function selected.
Outside (fresh) air position
With the outside (fresh)
air position selected, air
enters the vehicle from
outside and is heated or
cooled according to the
function selected.
Information
Using the system in the fresh air posi-
tion is recommended.
Prolonged operation of the heater in
the recirculated air position (without
air conditioning selected) can cause
fogging of the windshield and side
windows and the air within the pas-
senger compartment will become
stale.
In addition, prolonged use of the air
conditioning with the recirculated air
position selected will result in exces-
sively dry air in the passenger com-
partment.
i
OAEPH049312L

3-150
Convenient features of your vehicle

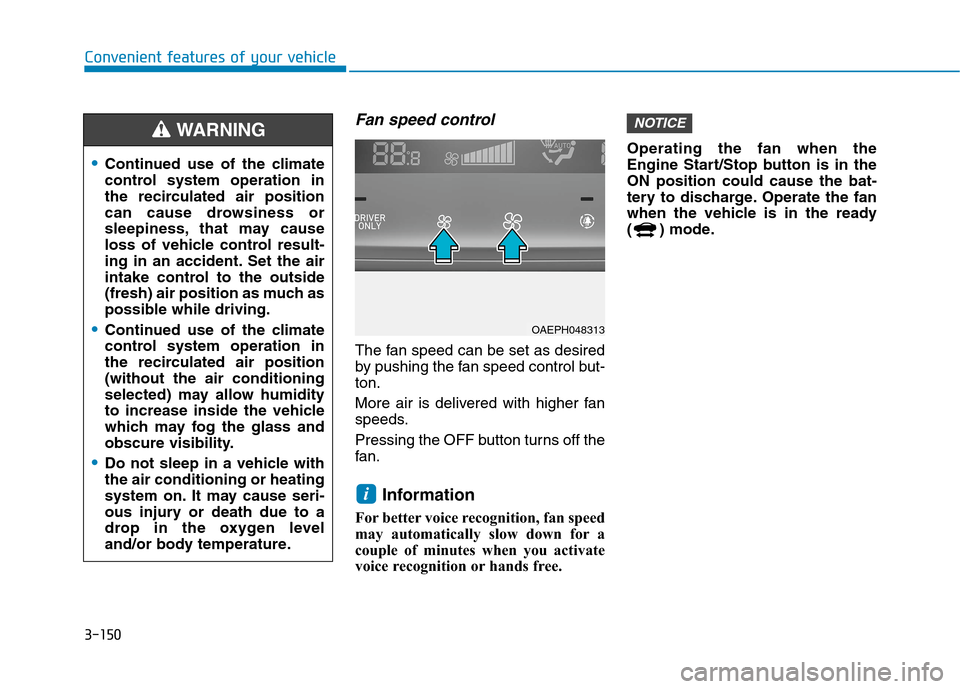

Fan speed control
The fan speed can be set as desired
by pushing the fan speed control but-
ton.
More air is delivered with higher fan
speeds.
Pressing the OFF button turns off the
fan.
Information
For better voice recognition, fan speed
may automatically slow down for a
couple of minutes when you activate
voice recognition or hands free.Operating the fan when the
Engine Start/Stop button is in the
ON position could cause the bat-
tery to discharge. Operate the fan
when the vehicle is in the ready
( ) mode.
NOTICE
i
Continued use of the climate
control system operation in
the recirculated air position
can cause drowsiness or
sleepiness, that may cause
loss of vehicle control result-
ing in an accident. Set the air
intake control to the outside
(fresh) air position as much as
possible while driving.
Continued use of the climate
control system operation in
the recirculated air position
(without the air conditioning
selected) may allow humidity
to increase inside the vehicle
which may fog the glass and
obscure visibility.
Do not sleep in a vehicle with
the air conditioning or heating
system on. It may cause seri-
ous injury or death due to a
drop in the oxygen level
and/or body temperature.
WARNING
OAEPH048313

3-151
Convenient features of your vehicle
3

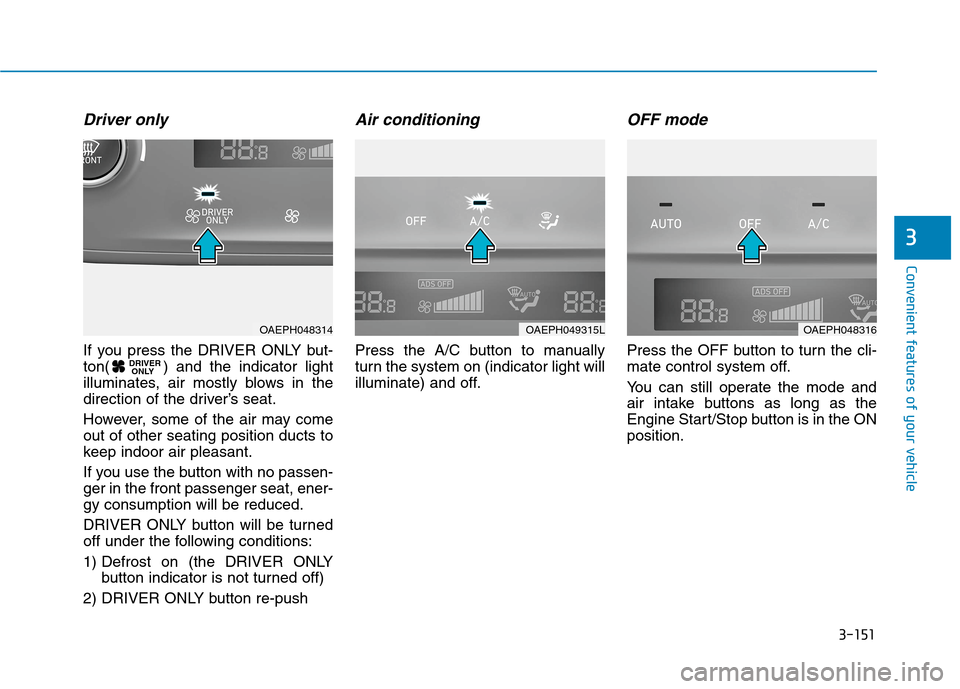

Driver only
If you press the DRIVER ONLY but-
ton( ) and the indicator light
illuminates, air mostly blows in the
direction of the driver’s seat.
However, some of the air may come
out of other seating position ducts to
keep indoor air pleasant.
If you use the button with no passen-
ger in the front passenger seat, ener-
gy consumption will be reduced.
DRIVER ONLY button will be turned
off under the following conditions:
1) Defrost on (the DRIVER ONLY
button indicator is not turned off)
2) DRIVER ONLY button re-push
Air conditioning
Press the A/C button to manually
turn the system on (indicator light will
illuminate) and off.
OFF mode
Press the OFF button to turn the cli-
mate control system off.
You can still operate the mode and
air intake buttons as long as the
Engine Start/Stop button is in the ON
position.DRIVER
ONLY
OAEPH049315LOAEPH048314OAEPH048316
