2020 HYUNDAI I10 TPMS reset

Hazard warning flasher ...................................................................................... 7-3
In case of an emergency whilst driving ............................................................ 7-3
If the engine stalls whilst driving .................................................................... 7-3
If the engine stalls at a crossroad or crossing ............................................... 7-3
If you have a flat tyre whilst driving ............................................................... 7-4
If the engine will not start .................................................................................. 7-5
If the engine doesn’t turn over or turns over slowly ..................................... 7-5
If the engine turns over normally but doesn’t start ...................................... 7-5
Jump starting ...................................................................................................... 7-6
If the engine overheats ...................................................................................... 7-9
Tyre Pressure Monitoring System (TPMS) ........................................................7-10
TPMS reset procedure .....................................................................................7-11
Tyre pressure monitoring system .................................................................. 7-12
Low tyre pressure telltale ............................................................................... 7-14
Low tyre pressure position telltale and tyre pressure telltale ..................... 7-14
TPMS (Tyre Pressure Monitoring System) malfunction indicator ............... 7-15
Changing a tyre with TPMS ...........................................................................7-16
If you have a flat tyre (with spare tyre) .............................................................7-18
Jack and tools ................................................................................................7-18
Changing tyres................................................................................................7-19
Jack label ....................................................................................................... 7-23
EC Declaration of conformity for Jack......................................................... 7-24
If you have a flat tyre (with tyre mobility kit) .................................................. 7-25
Introduction ................................................................................................... 7-25
Notes on the safe use of the tyre Mobility Kit ............................................. 7-26
Components of the Tyre Mobility Kit ............................................................7-27
Using the Tyre Mobility Kit ............................................................................ 7-28
Distributing the sealant ................................................................................. 7-30
Checking the tyre inflation pressure ............................................................ 7-30
7. Emergency situations
7

7-11
07

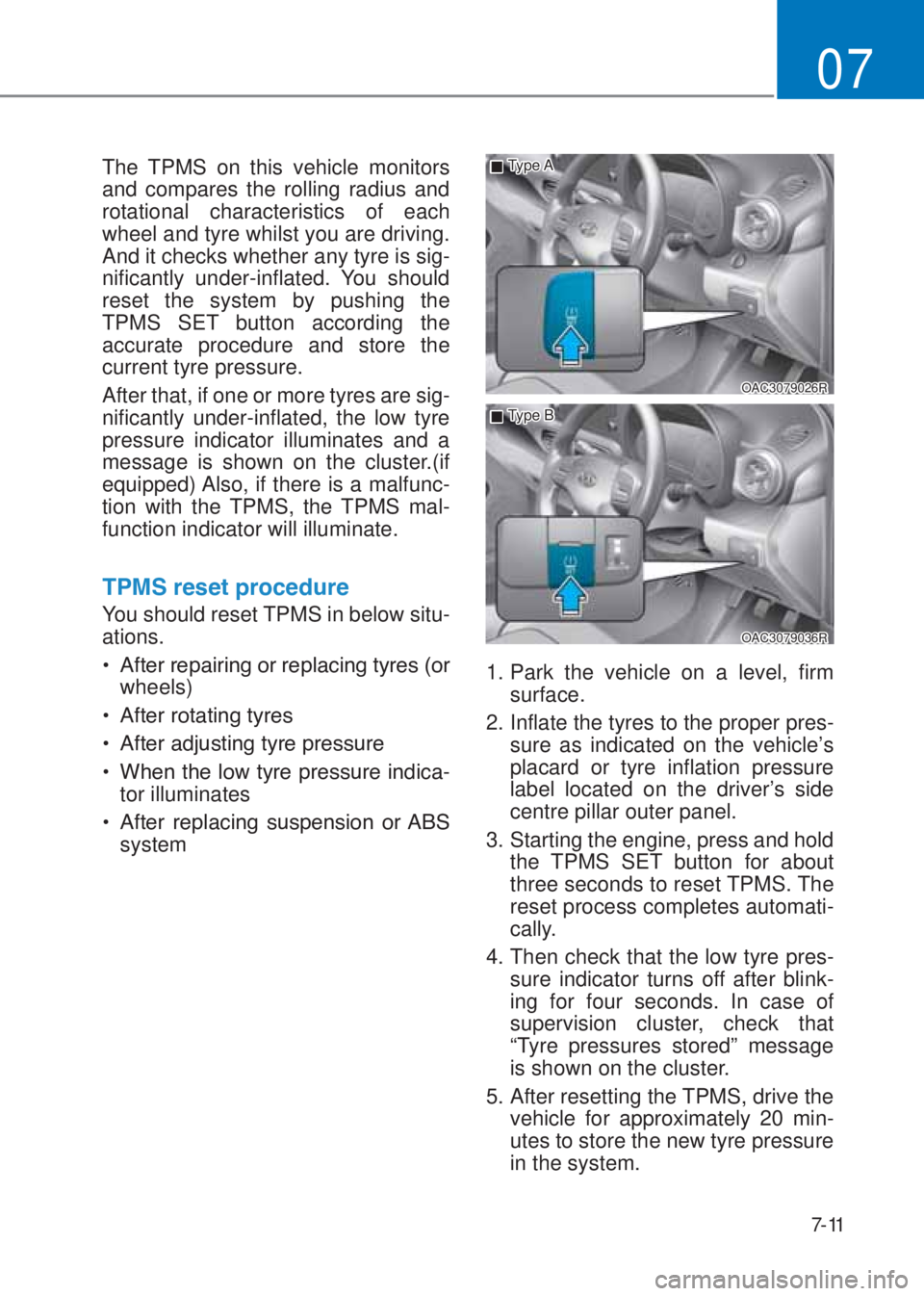

The TPMS on this vehicle monitors
and compares the rolling radius and
rotational characteristics of each
wheel and tyre whilst you are driving.
And it checks whether any tyre is sig-
nificantly under-inflated. You should
reset the system by pushing the
TPMS SET button according the
accurate procedure and store the
current tyre pressure.
After that, if one or more tyres are sig-
nificantly under-inflated, the low tyre
pressure indicator illuminates and a
message is shown on the cluster.(if
equipped) Also, if there is a malfunc-
tion with the TPMS, the TPMS mal-
function indicator will illuminate.
7306UHVHWSURFHGXUH
You should reset TPMS in below situ-
ations.

7-12
Emergency situations
Ú If the low tyre pressure indicator
turns on repeat step 3.
When resetting TPMS, the current
tyre pressure is stored as a stan-
dard tyre pressure.
CAUTION

7-14
Emergency situations
/RZW\UHSUHVVXUH
WHOOWDOH
/RZW\UHSUHVVXUHSRVLWLRQWHOO-
WDOHDQGW\UHSUHVVXUHWHOOWDOH
OAC3079037R
When the tyre pressure monitoring
system warning indicators are illumi-
nated and warning message dis-
played on the cluster LCD display,
one or more of your tyres is signifi-
cantly under-inflated. The Low Tyre
Pressure Position Telltale will indi-
cate which tyre is significantly
under-inflated.If either telltale illuminates, immedi-
ately reduce your speed, avoid hard
cornering and anticipate increased
stopping distances. You should stop
and check your tyres as soon as pos-
sible. Inflate the tyres to the proper
pressure as indicated on the vehicle’s
placard or tyre inflation pressure label
located on the driver’s side centre pil-
lar outer panel. Then, reset TPMS
according TPMS reset procedure.
If you cannot reach a service station
or if the tyre cannot hold the newly
added air, replace the low pressure
tyre with the spare tyre.
The Low Tyre Pressure Telltale will
remain on and the TPMS Malfunction
Indicator may blink for one minute
and then remain illuminated until you
have the low pressure tyre repaired
and replaced on the vehicle.
