2020 Hyundai Elantra washer fluid

7-28
Maintenance
W
WA
AS
SH
H E
ER
R
F
F L
LU
U I
ID
D

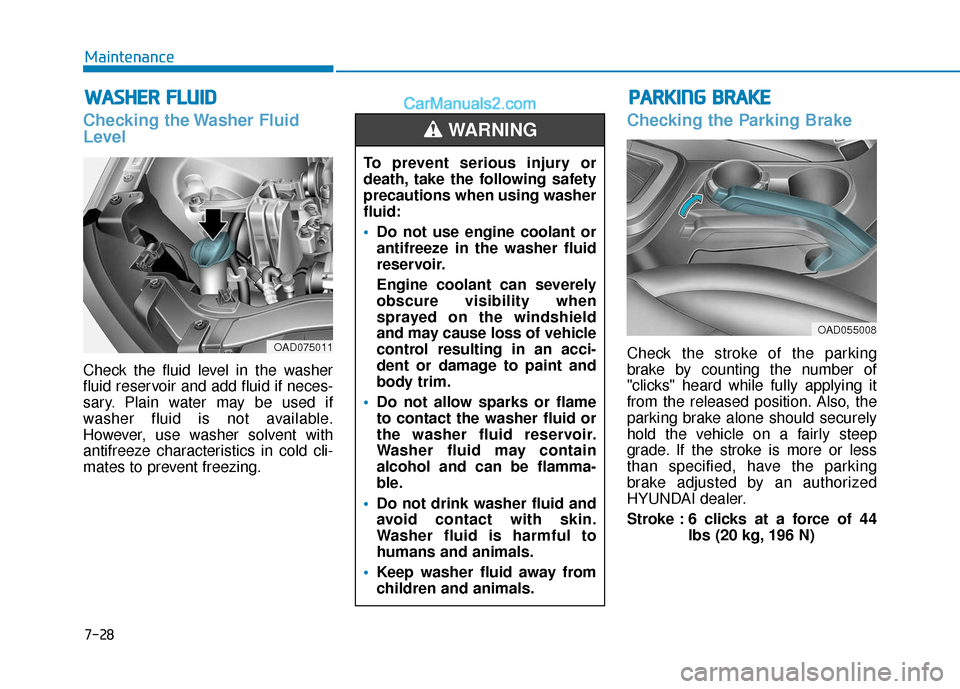

Checking the Washer Fluid
Level
Check the fluid level in the washer
fluid reservoir and add fluid if neces-
sary. Plain water may be used if
washer fluid is not available.
However, use washer solvent with
antifreeze characteristics in cold cli-
mates to prevent freezing.
Checking the Parking Brake
Check the stroke of the parking
brake by counting the number of
"clicks" heard while fully applying it
from the released position. Also, the
parking brake alone should securely
hold the vehicle on a fairly steep
grade. If the stroke is more or less
than specified, have the parking
brake adjusted by an authorized
HYUNDAI dealer.
Stroke : 6 clicks at a force of 44
lbs (20 kg, 196 N)
To prevent serious injury or
death, take the following safety
precautions when using washer
fluid:

Do not use engine coolant or
antifreeze in the washer fluid
reservoir.
Engine coolant can severely
obscure visibility when
sprayed on the windshield
and may cause loss of vehicle
control resulting in an acci-
dent or damage to paint and
body trim.
Do not allow sparks or flame
to contact the washer fluid or
the washer fluid reservoir.
Washer fluid may contain
alcohol and can be flamma-
ble.
Do not drink washer fluid and
avoid contact with skin.
Washer fluid is harmful to
humans and animals.
Keep washer fluid away from
children and animals.
WARNING
OAD075011
P
PA
A R
RK
K I
IN
N G
G
B
B R
RA
A K
KE
E
OAD055008

7-33
7
Maintenance
W
WI
IP
P E
ER
R
B
B L
LA
A D
DE
ES
S
Blade Inspection
Contamination of either the wind-
shield or the wiper blades with for-
eign matter can reduce the effective-
ness of the windshield wiper func-
tionality. Common sources of con-
tamination are insects, tree sap, and
hot wax treatments used by some
commercial car washes. If the blades
are not wiping properly, clean both
the window and the blades with a
clean cloth dampened with washer
fluid. To prevent damage to the wiper
blades, arms or other compo-
nents, do not:
Use gasoline, kerosene, paint
thinner, or other solvents on or
near them.
Attempt to move the wipers manually.
Use non-specified wiper blades.
Information
Commercial hot waxes applied by
automatic car washes have been
known to make the windshield diffi-
cult to clean.
Blade Replacement
When the wipers no longer clean
adequately, the blades may be worn
or cracked, and require replacement.
To prevent damage to the wiper
arms or other components, do not
attempt to move the wipers manu-
ally.
The use of a non-specified wiper
blade could result in wiper mal-
function and failure.
NOTICE
NOTICE
i
NOTICE
OLMB073019

I-6
Exterior overviewFront ........................................................................\
.....1-2
Rear ........................................................................\
......1-3
Flat tire Jack and tools .............................................................6-15
Jack label ....................................................................6-21\
Spare tires ...................................................................6-15
Tire Mobility Kit ........................................................6-22
Floor mat anchor(s).......................................................3-148
Fluid Brake/clutch fluid .......................................................7-27
Washer fluid ...............................................................7-28
Forward Collision-Avoidance Assist (FCA) system Detect vehicle .............................................................5-73
Detect vehicle and pedestrian.....................................5-86
Front lamps ...................................................................3-106\
Front seat adjustment ........................................................2-6
Fuel filler door ................................................................3-49
Fuel gauge .......................................................................3\
-57
Fuel requirements .............................................................F-7
Fuse/relay panel description Engine compartment fuse panel .................................7-62
Instrument panel fuse panel .......................................7-59 Fuses ........................................................................\
.......7-53
Blade type fuse ...........................................................7-56
Cartridge type fuse .....................................................7-56
Engine compartment panel fuse replacement ............7-57
Fuse switch .................................................................7-55
Fuse/relay panel description .......................................7-59
Instrument panel fuse replacement.............................7-54
Main fuse ....................................................................7-57\
Multi fuse ...................................................................7-58
Gauges........................................................................\
.....3-56
Glove box......................................................................3-\
140
Hazard warning flasher .....................................................6-2
Hazardous driving conditions .......................................5-134
Head restraints ................................................................2-15
Headlamp delay function ..............................................3-105
Headlamp position ........................................................3-100
Headlight bulb replacement ............................................7-64
Heater Automatic climate control system............................3-123
Manual climate control system ................................3-114
Height adjustment ...........................................................2-25
High Beam Assist (HBA) .............................................3-101
High beam operation.....................................................3-101
Index
F
G
H

I-13
Vanity mirror lamp........................................................3-108
Vehicle break-in process ...................................................F-9
Vehicle certification label ...............................................8-10
Vehicle data collection and event data recorders ...........F-10
Vehicle identification number (VIN) ..............................8-10
Vehicle load limit ..........................................................5-141Tire loading information label..................................5-142
Vehicle modifications .......................................................F-9
Vehicle stability management (VSM).............................5-48
Volume and weight ...........................................................8-6
Warnings and indicator lights .........................................3-61
Washer fluid ....................................................................7-28\
Welcome system ...........................................................3-108
Wheel alignment and tire balance ..................................7-42
Wheel replacement .........................................................7-43
Windows ........................................................................\
.3-34 Auto down window ....................................................3-36
Auto up/down window ...............................................3-36
Automatic reverse ......................................................3-37
Power window lock switch ........................................3-38
To reset the power windows.......................................3-36
Windshield defrosting and defogging ...........................3-134
Windshield washers.......................................................3-111 Windshield wipers.........................................................3-110
Winter driving ...............................................................5-137
Snow tires .................................................................5-137
Tire chains ................................................................5-137
Wiper blades replacement ...............................................7-33
Wipers and washers ......................................................3-110 Windshield washers ..................................................3-111
Windshield wipers ....................................................3-110
Wireless cellular phone charging system......................3-145
I
Index
V
W
