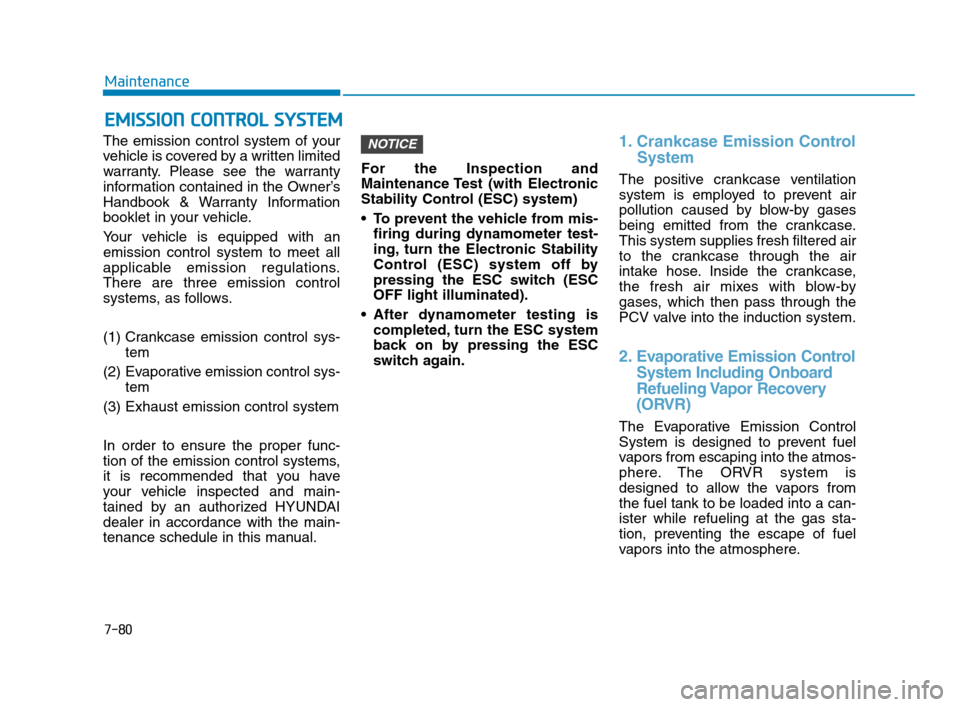

7-80
Maintenance
The emission control system of your
vehicle is covered by a written limited
warranty. Please see the warranty
information contained in the Owner’s
Handbook & Warranty Information
booklet in your vehicle.
Your vehicle is equipped with an
emission control system to meet all
applicable emission regulations.
There are three emission control
systems, as follows.
(1) Crankcase emission control sys-
tem
(2) Evaporative emission control sys-
tem
(3) Exhaust emission control system
In order to ensure the proper func-
tion of the emission control systems,
it is recommended that you have
your vehicle inspected and main-
tained by an authorized HYUNDAI
dealer in accordance with the main-
tenance schedule in this manual.For the Inspection and
Maintenance Test (with Electronic
Stability Control (ESC) system)
To prevent the vehicle from mis-
firing during dynamometer test-
ing, turn the Electronic Stability
Control (ESC) system off by
pressing the ESC switch (ESC
OFF light illuminated).
After dynamometer testing is
completed, turn the ESC system
back on by pressing the ESC
switch again.
1. Crankcase Emission Control
System
The positive crankcase ventilation
system is employed to prevent air
pollution caused by blow-by gases
being emitted from the crankcase.
This system supplies fresh filtered air
to the crankcase through the air
intake hose. Inside the crankcase,
the fresh air mixes with blow-by
gases, which then pass through the
PCV valve into the induction system.
2. Evaporative Emission Control
System Including Onboard
Refueling Vapor Recovery
(ORVR)
The Evaporative Emission Control
System is designed to prevent fuel
vapors from escaping into the atmos-
phere. The ORVR system is
designed to allow the vapors from
the fuel tank to be loaded into a can-
ister while refueling at the gas sta-
tion, preventing the escape of fuel
vapors into the atmosphere.
NOTICE
E EM
MI
IS
SS
SI
IO
ON
N
C
CO
ON
NT
TR
RO
OL
L
S
SY
YS
ST
TE
EM
M
HCa HMA 7.qxp 4/9/2019 2:50 PM Page 80
B BU
UL
LB
B
W
WA
AT
TT
TA
AG
GE
E
88
Specifications, Consumer information and Reporting safety defects
Light Bulb Bulb Type Wattage
FrontHeadlampHigh/LowType A HB2 60/55
Type BHB3 60
LED LED
Position lampType A PY28/8W 8
Type B LED LED
Side markerType A W5W 5
Type B LED LED
Turn signal lampType A PY28/8W 28
Type B PY21W 21
Daytime running light(DRL) LED LED
Fog lamp HB4 51
Side repeater N/A N/A
RearRear combination lampTail/StopType A P28/8W 28/8
Type B LED LED
TailType A P28/8W 8
Type B LED LED
Turn signal PY27W 27
Back upW16W16
License plate lamp W5W 5
High mounted stop lamp W16W 16
InteriorOverhead console lamp WEDGE 10
Room lamp FESTOON 10
Vanity lamp FESTOON 5
8-3
