2020 HONDA PILOT bluetooth

Contents

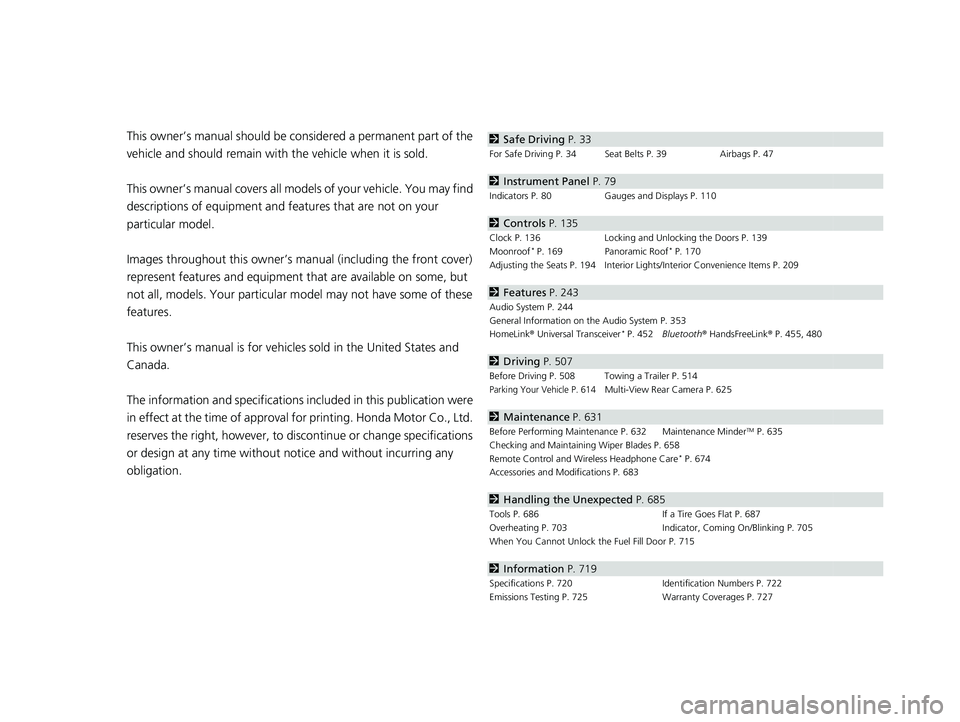

This owner’s manual should be considered a permanent part of the
vehicle and should remain with the vehicle when it is sold.
This owner’s manual covers all models of your vehicle. You may find
descriptions of equipment and features that are not on your
particular model.
Images throughout this owner’s manu al (including the front cover)
represent features and equipment that are available on some, but
not all, models. Your particular mo del may not have some of these
features.
This owner’s manual is for vehicles sold in the United States and
Canada.
The information and specifications in cluded in this publication were
in effect at the time of approval for printing. Honda Motor Co., Ltd.
reserves the right, however, to discontinue or change specifications
or design at any time without notice and without incurring any
obligation.2 Safe Driving P. 33
For Safe Driving P. 34 Seat Belts P. 39 Airbags P. 47
2Instrument Panel P. 79
Indicators P. 80 Gauges and Displays P. 110
2Controls P. 135
Clock P. 136 Locking and Unlocking the Doors P. 139
Moonroof* P. 169 Panoramic Roof* P. 170
Adjusting the Seats P. 194 Interior Ligh ts/Interior Convenience Items P. 209
2Features P. 243
Audio System P. 244
General Information on the Audio System P. 353
HomeLink ® Universal Transceiver
* P. 452 Bluetooth ® HandsFreeLink ® P. 455, 480
2 Driving P. 507
Before Driving P. 508 Towing a Trailer P. 514
Parking Your Vehicle P. 614Multi-View Rear Camera P. 625
2Maintenance P. 631
Before Performing Maintenance P. 632 Maintenance MinderTM P. 635
Checking and Maintaining Wiper Blades P. 658
Remote Control and Wireless Headphone Care
* P. 674
Accessories and Modifications P. 683
2 Handling the Unexpected P. 685
Tools P. 686 If a Tire Goes Flat P. 687
Overheating P. 703 Indicator, Coming On/Blinking P. 705
When You Cannot Unlock the Fuel Fill Door P. 715
2 Information P. 719
Specifications P. 720 Identification Numbers P. 722
Emissions Testing P. 725 Warranty Coverages P. 727
20 PILOT-31TG76401.book 2 ページ ２０１９年７月２４日　水曜日　午後３時３２分

5

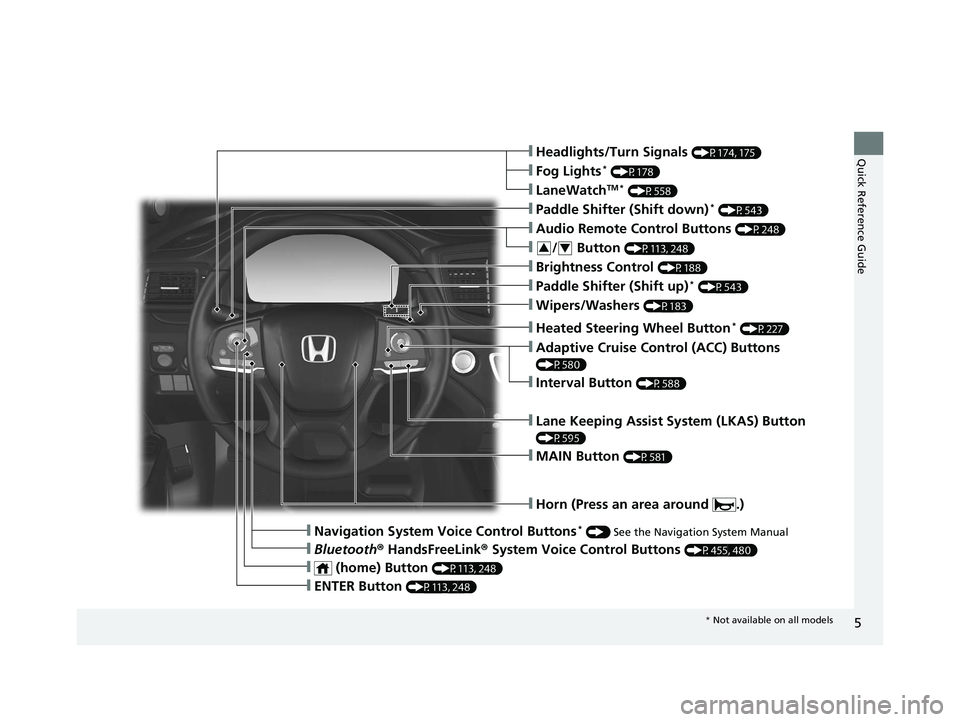

Quick Reference Guide❙Headlights/Turn Signals (P174, 175)
❙Fog Lights* (P178)
❙LaneWatchTM * (P558)
❙Paddle Shifter (Shift down)* (P543)
❙Wipers/Washers (P183)
❙Paddle Shifter (Shift up)* (P543)
❙Brightness Control (P188)
❙Lane Keeping Assist System (LKAS) Button
(P595)
❙Horn (Press an area around .)
❙Navigation System Voice Control Buttons* () See the Navigation System Manual
❙Bluetooth ® HandsFreeLink ® System Voice Control Buttons (P455, 480)
❙Heated Steering Wheel Button* (P227)
❙ENTER Button (P113, 248)
❙Interval Button (P588)
❙Adaptive Cruise Control (ACC) Buttons
(P580)
❙ (home) Button (P113, 248)
❙Audio Remote Control Buttons (P248)
❙MAIN Button (P581)
❙/ Button (P113, 248)34
* Not available on all models
20 PILOT-31TG76401.book 5 ページ ２０１９年７月２４日　水曜日　午後３時３２分

21
Quick Reference Guide
Audio Remote Controls
(P248)
●
(+ / (- Bar
Press to adjust the volume up/down.
● SOURCE Button
Press to change the audio mode:
FM1/FM2/AM/USB/iPod/
Bluetooth ® Audio/AUX
● / Buttons
Radio: Press to change the preset station. Press and hold to select the next or
previous strong station.
USB device/ Bluetooth® Audio:
Press to skip to the beginning of
the next song or return to the
beginning of the current song.
Press and hold to change a folder.
Models with color audio system
( + / (- Bar
SOURCE
Button / Buttons
●(
+ / (- Bar
Press to adjust the volume up/down.
● / / / /ENTER Buttons
Press or to select Now Playing on
the home screen of the driver
information interface, and then press the
ENTER button.
Press or to cycle through the audio
mode as follows:
Android Auto/Apple CarPlay/SiriusXM ®
*/
Rear Entertainment*/AUX Input/AM/
Bluetooth ® Audio/Social Playlist/FM/My
Honda Music/USB/iPod/CD
*
Models with Display Audio
ENTER Button
/ / / Buttons34
(+ / (- Bar
34
34
34
Radio: Press / to change the
preset station.
CD
*/USB device/My Honda Music/
Bluetooth ® Audio:
Press / to skip to the
beginning of the next song or
return to the beginning of the
current song.
* Not available on all models
20 PILOT-31TG76401.book 21 ページ ２０１９年７月２４日　水曜日　午後３時３２分

119
uuGauges and Displays uDriver Information Interface
Continued
Instrument Panel
The indicators on the display show the
amount of torque being transferred to the
right front, left front, right rear, and left rear
wheels.
2 Intelligent Variable Torque Management
(i-VTM4TM) AWD System* P. 560
Shows the current phone information.
2Bluetooth® HandsFreeLink® P. 455
■AWD Torque*
■Phone*
* Not available on all models
20 PILOT-31TG76401.book 119 ページ ２０１９年７月２４日　水曜日　午後３時３２分

uuGauges and Displays uDriver Information Interface
122
Instrument Panel
You can show or hide the meter contents.
Select the content you wish to show or hide,
then press the ENTER button.
u Repeat it if you want to show or hide
more than one app.
■Show/Hide Apps1Show/Hide Apps
You cannot hide apps with the icon on the right
side.
Selecting Default All in Vehicle Customization
does not restore these settings to their original state.
You can also add the Android Auto, Apple
CarPlay , Sirius XM
*, My Honda Music , USB , AM ,
FM , Bluetooth Audio , Social Playlist , AUX Input ,
CD
* and Rear Entertainment* apps.
Models with Display Audio
Shown
Press ENTER
Hidden
* Not available on all models
20 PILOT-31TG76401.book 122 ページ ２０１９年７月２４日　水曜日　午後３時３２分

243
Features
This chapter describes how to operate technology features.
Audio SystemAbout Your Audio System ................ 244
USB Ports ......................................... 245
Auxiliary Input Jack .......................... 246
Audio System Theft Protection ......... 247
Audio Remote Controls .................... 248
Audio System Basic Operation ..... 251, 269
Audio Error Messages
CD Player*....................................... 348
iPod/USB Flash Drive ........................ 350
Android/Apps .................................. 352
Models with Display Audio
General Information on the Audio System SiriusXM ® Radio Service
*................. 353
Recommended CDs*....................... 354
Compatible iPod, iPad, iPhone, and USB Flash Drives .................................... 356
Honda App License Agreement ........ 358
Legal Information on Apple CarPlay/ Android Auto ................................. 370
About Open Source Licenses ............ 372
License Information
*........................ 373 Blu-ray/DVD Rear Entertainment
System
*........................................... 378
Customized Features ................ 426, 433
HomeLink ® Universal Transceiver
*.. 452
Bluetooth ® HandsFreeLink® ..... 455, 480
CabinTalk
TM *...................................... 506
* Not available on all models
20 PILOT-31TG76401.book 243 ページ ２０１９年７月２４日　水曜日　午後３時３２分

244
Features
Audio System
About Your Audio System
The audio system features AM/FM radio and SiriusXM ® Radio* service. It can also
play audio CDs*, WMA/MP3/AAC files*, USB flash drives, and iPod, iPhone, iPad*
and Bluetooth ® devices.
You can operate the audi o system from the buttons
* and knobs on the panel, the
remote controls on the steering wheel, or the icons on the touchscreen interface*.
1About Your Audio System
SiriusXM ® Radio is available on a subscription basis
only. For more information on SiriusXM ® Radio,
contact a dealer.
*
2 General Information on the Audio System
P. 353
SiriusXM ® Radio is available in the United States and
Canada, except Ha waii, Alaska, and Puerto Rico.
*
SiriusXM® is a registered trademark of SiriusXM
Radio, Inc.*
Video CDs and 3-inch (8 -cm) mini CDs are not
supported.
iPod, iPad, iPhone and iT unes are trademarks of
Apple Inc.
State or local laws may pr ohibit the operation of
handheld electronic devi ces while operating a
vehicle.
After you set the power m ode to VEHICLE OFF, you
can use the audio system for up to 30 minutes per
driving cycle, or until opening the driver's door.
However, whether you can continue using the audio
system depends on the batter y condition. Repeatedly
using this feature ma y drain the battery.
Models with Blu-rayTM player
Models with Display AudioRemote Controls iPod
USB Flash Drive
*1
*2
*1 : Models with color audio system
*2 : Models with Display Audio
* Not available on all models
20 PILOT-31TG76401.book 244 ページ ２０１９年７月２４日　水曜日　午後３時３２分

248
uuAudio System uAudio Remote Controls
Features
Audio Remote Controls
Allow you to operate the au dio system while driving.
SOURCE Button
Cycles through the audio modes as follows:
FM1FM2 AM USB/iPod Bluetooth®
Audio AUX
(+/(- (Volume) Bar
Press
(+: To increase the volume.
Press
(-: To decrease the volume.
/ Buttons
• When listening to the radio
Press : To select the next preset radio station.
Press : To select the previous preset radio station.
Press and hold : To select the next strong station.
Press and hold : To select the previous strong station.
• When listening to an iPod, USB flash drive, or Bluetooth ® Audio
Press : To skip to the next song.
Press : To go back to the beginning of the current or previous song.
• When listening to a USB flash drive, or Bluetooth® Audio
Press and hold : To skip to the next folder.
Press and hold : To go back to the previous folder.
1Audio Remote Controls
Some modes appear only when an appropriate
device or medium is used.
Depending on the Bluetooth® device you connect,
some functions may not be available.Models with color audio system
/
Buttons
SOURCE Button
(+/(-
Bar
20 PILOT-31TG76401.book 248 ページ ２０１９年７月２４日　水曜日　午後３時３２分
