2020 HONDA HR-V key

440
uuWhen Driving uShifting
Driving
Shifting
Change the shift positi on in accordance with your driving needs.
■Shift lever positions
Continuously variable transmission models without paddle shifters
1Shifting
You cannot turn the ignition switch to LOCK
(0 and
remove the key unless the shift lever is in ( P.
The vehicle may move forward very slightly even in
(N while the engine is cold.
Depress the brake pe dal firmly and, when necessary,
apply the parking brake.
When shifting positions in extremely low
temperatures (-22°F/-30°C), there may be a short
delay before the shift posit ion is displayed. Always
confirm you are in the corr ect shift position before
driving.
Park
Used when parking or starting the
engine
Reverse
Used when reversing
Neutral
Transmission is not locked
Drive
Used for normal driving
Drive (S)
Used:
●For better acceleration●To increase engine braking●When going up or down hills
Release Button
Low
●Used to further increase engine
braking
●Used when going up or down hills
20 HR-V HDMC HDMG-31T7A6400.book 440 ページ ２０１９年８月８日　木曜日　午後３時５２分

568
Maintenance
Remote Transmitter Care
Replacing the Button Battery
If the indicator does not come on when the button is pressed, replace the battery.
1.Unscrew the cover with a small Phillips-
head screwdriver.
2. Open the remote transmitter.
u Wrap the small flat-tip screwdriver with a
cloth to prevent scratching the
transmitter.
3. Remove the button battery with the small
flat-tip screwdriver.
4. Make sure to replace the battery with the
correct polarity.
■Keys with Remote Transmitter*
1 Replacing the Button Battery
NOTICE
An improperly disposed of battery can damage the
environment. Always conf irm local regulations for
battery disposal.
Replacement batteries are commercially available or
at a dealer.
3WARNING
CHEMICAL BURN HAZARD
The battery that powers the remote
transmitter can cause severe internal burns
and can even lead to death if swallowed.
Keep new and used batteries away from
children.
If you suspect that a child has swallowed
the battery, seek medical attention
immediately.ScrewBattery type: CR1620
Battery
* Not available on all models
20 HR-V HDMC HDMG-31T7A6400.book 568 ページ ２０１９年８月８日　木曜日　午後３時５２分

569
uuRemote Transmitter Care uReplacing the Button Battery
Maintenance
1. Remove the built-in key.
2. Remove the upper half of the cover by
carefully prying on the edge with a coin.
u Remove carefully to avoid losing the
buttons.
u Wrap a coin with a cloth to prevent
scratching the smart entry remote.
3. Make sure to replace the battery with the
correct polarity.
■Smart Entry Remote*
Battery type: CR2032
Battery
* Not available on all models
20 HR-V HDMC HDMG-31T7A6400.book 569 ページ ２０１９年８月８日　木曜日　午後３時５２分

596
Handling the Unexpected
Shift Lever Does Not Move
Follow the procedure below if you cannot move the shift lever out of the (P
position.
1.Set the parking brake.
2. Remove the key from the ignition switch.
2. Remove the built-in key from the smart
entry remote.
3. Wrap a cloth around the tip of a small flat-
tip screwdriver. Put it into the shift lock
release slot as shown in the image, and
remove the cover.
4. Insert the key into the sh ift lock release slot.
5. While pushing the key down, press the shift
lever release button, and place the shift
lever into
(N.
u The lock is now released. Have the shift
lever checked by a dealer as soon as
possible.
■Releasing the Lock
SlotCover
Models without smart entry system
Models with smart entry system
All models
Release Button
Shift Lock
Release Slot
20 HR-V HDMC HDMG-31T7A6400.book 596 ページ ２０１９年８月８日　木曜日　午後３時５２分

607
uuFuses uFuse Locations
Handling the Unexpected
■Fuse box B
Remove the cover by putting the flat-tip
screwdriver into the side slot as shown.
Fuse Label
Cover
■Circuit protected and fuse rating
Circuit ProtectedAmps
1
EPS70 A
IG Main30 A*1
50 A*2
Fuse Box Main 250 A
ABS/VSA Motor40 A
Fuse Box Main 130 A
Fuse Box Main 3*40 A
2 Rear Defogger 30 A
Left Electric Parking Brake 30 A IG Main2
*1
–*230 A
30 A
Heater Motor 40 A
Right Electric Parking Brake 30 A ABS/VSA FSR 30 A
*1:Models with smart entry system
*2:Models without smart entry system
*3:Canadian models
Circuit ProtectedAmps
3––
4– –
5AWD*(20 A)
6–(10 A)
7Rear Accessory Power Socket*3(20 A)
8– –
9Interior Light7.5 A
10 Accessory Power Socket
(Console) (20 A)
11−−
12*1−−
12*2ACC Key Lock (7.5 A)
13Heated Door Mirror*(10 A)
14 A/C Blower SW*(7.5 A)
15*1––
15*2Wiper30 A
* Not available on all models
20 HR-V HDMC HDMG-31T7A6400.book 607 ページ ２０１９年８月８日　木曜日　午後３時５２分

628
Index
D
Daytime Running Lights........................... 175
Dead Battery ............................................. 594
Defrosting the Windshield and Windows .......................................... 215, 219
Devices that Emit Radio Waves ................ 617
Dimming Headlights ............................................... 171
Rearview Mirror ............................... 187, 188
Dipstick (Engine Oil) ................................. 532
Directional Signals (Turn Signal) .............. 170
Display Setup .................................... 240, 272
Door Mirrors ............................................. 189
Doors ......................................................... 136
Auto Door Locking .................................. 152
Auto Door Unlocking ............................... 152
Door and Tailgate Open Indicator ...................................... 38, 39, 89
Keys ........................................................ 136
Locking/Unlocking the Doors from the Inside ............................................... 148
Locking/Unlocking the Doors from
the Outside ............................................ 139
Lockout Prevention System ...................... 147
DOT Tire Quality Grading ........................ 559
Driving ....................................................... 423
Braking .................................................... 503
Continuously Variable Transmission ......... 439
Cruise Control ......................................... 447
Shifting Position............................... 440, 442
Starting the Engine .......................... 432, 435 Dust and Pollen Filter
............................... 570
E
ECO Assist® System ....................................... 9
ECON Button ............................................ 446
ECON Mode Indicator ................................ 93
Elapsed Time ............................................. 121
Electric Parking Brake Indicator.................................................... 82
Electric Parking Brake System Indicator............................................ 82, 602
Electric Power Steering (EPS) System
Indicator............................................ 90, 601
Electronic Stability Control (ESC) ............. 450
Emergency ................................................ 609
Emissions Testing (Readiness Codes) ....... 619
Engine
Coolant ................................................... 536
Jump Starting .......................................... 594
Number................................................... 616
Oil ........................................................... 531
Starting ........................................... 432, 435
Switch Buzzer.......................................... 165
Engine Coolant ......................................... 536
Adding to the Radiator ............................ 537
Adding to the Reserve Tank..................... 536
High Temperature Indicator ....................... 88
Low Temperature Indicator........................ 88
Overheating ............................................ 597 Engine Oil
................................................. 531
Adding ................................................... 533
Checking ................................................ 532
Displaying Oil Life ........................... 521, 525
Low Oil Pressure Indicator ................. 85, 599
Recommended Engine Oil ....................... 531
Exhaust Gas Hazard (Carbon Monoxide) ................................................ 77
Exterior Care (Cleaning) .......................... 573
Exterior Mirrors ........................................ 189
F
Features.................................................... 227
Filters Dust and Pollen....................................... 570
Oil .......................................................... 534
Flat Tire ..................................................... 582
Floor Mats ................................................ 572
Fluids Brake ...................................................... 539
Continuously Vari able Transmission
(CVT) .................................................... 538
Engine Coolant ....................................... 536
Windshield Washer ................................. 540
FM/AM Radio ................................... 241, 278
Fog Light Indicator .................................... 92
Folding Down the Rear Seats .................. 194
Folding the Rear Seat Up ........................ 195
Foot Brake ................................................ 505
Front Airbags (SRS) .................................... 53
20 HR-V HDMC HDMG-31T7A6400.book 628 ページ ２０１９年８月８日　木曜日　午後３時５２分

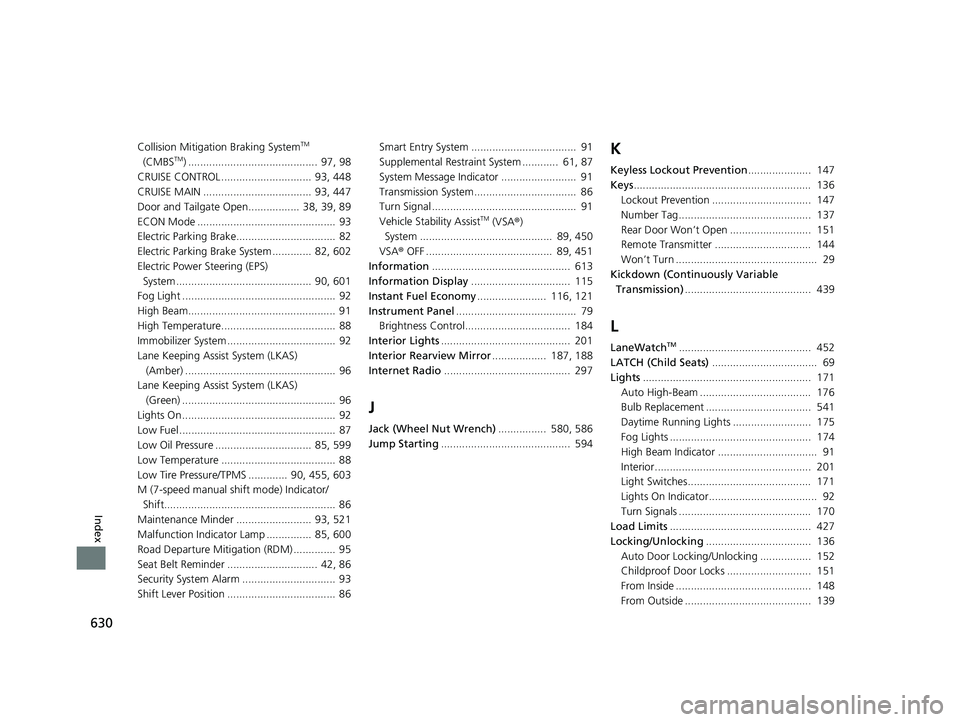

630
Index
Collision Mitigation Braking SystemTM
(CMBSTM) ........................................... 97, 98
CRUISE CONTROL .............................. 93, 448
CRUISE MAIN .................................... 93, 447
Door and Tailgate Open................. 38, 39, 89
ECON Mode .............................................. 93
Electric Parking Brake................................. 82
Electric Parking Brake System ............. 82, 602
Electric Power Steering (EPS) System ............................................. 90, 601
Fog Light ................................................... 92
High Beam................................................. 91
High Temperature...................................... 88
Immobilizer System .................................... 92
Lane Keeping Assist System (LKAS) (Amber) .................................................. 96
Lane Keeping Assist System (LKAS)
(Green) ................................................... 96
Lights On ................................................... 92
Low Fuel .................................................... 87
Low Oil Pressure ................................ 85, 599
Low Temperature ...................................... 88
Low Tire Pressure/TPMS ............. 90, 455, 603
M (7-speed manual shift mode) Indicator/ Shift......................................................... 86
Maintenance Minder ......................... 93, 521
Malfunction Indicator Lamp ............... 85, 600
Road Departure Mitigation (RDM) .............. 95
Seat Belt Reminder .............................. 42, 86
Security System Alarm ............................... 93
Shift Lever Position .................................... 86 Smart Entry System ................................... 91
Supplemental Restraint System ............ 61, 87
System Message Indicator ......................... 91
Transmission System.................................. 86
Turn Signal ................................................ 91
Vehicle Stability Assist
TM (VSA
®)
System ............................................ 89, 450
VSA ® OFF .......................................... 89, 451
Information .............................................. 613
Information Display ................................. 115
Instant Fuel Economy ....................... 116, 121
Instrument Panel ........................................ 79
Brightness Control................................... 184
Interior Lights ........................................... 201
Interior Rearview Mirror .................. 187, 188
Internet Radio .......................................... 297
J
Jack (Wheel Nut Wrench) ................ 580, 586
Jump Starting ........................................... 594
K
Keyless Lockout Prevention ..................... 147
Keys ........................................................... 136
Lockout Prevention ................................. 147
Number Tag............................................ 137
Rear Door Won’t Open ........................... 151
Remote Transmitter ................................ 144
Won’t Turn ............................................... 29
Kickdown (Continuously Variable Transmission) .......................................... 439
L
LaneWatchTM............................................ 452
LATCH (Child Seats) ................................... 69
Lights ........................................................ 171
Auto High-Beam ..................................... 176
Bulb Replacement ................................... 541
Daytime Running Lights .......................... 175
Fog Lights ............................................... 174
High Beam Indicator ................................. 91
Interior.................................................... 201
Light Switches......................................... 171
Lights On Indicator.................................... 92
Turn Signals ............................................ 170
Load Limits ............................................... 427
Locking/Unlocking ................................... 136
Auto Door Locking/Unlocking ................. 152
Childproof Door Locks ............................ 151
From Inside ............................................. 148
From Outside .......................................... 139
20 HR-V HDMC HDMG-31T7A6400.book 630 ページ ２０１９年８月８日　木曜日　午後３時５２分

631
Index
Keys........................................................ 136
Lockout Prevention System ..................... 147
Using a Key............................................. 146
Lockout Prevention System ..................... 147
Low Battery Charge ................................. 599
Low Fuel Indicator ..................................... 87
Low Oil Pressure Indicator ................. 85, 599
Lower Anchors ........................................... 69
Lubricant Specifications Chart ................ 615
Luggage (Maximum Load Limit) ............. 427
M
Maintenance............................................ 517
Battery .................................................... 566
Brake Fluid .............................................. 539
Cleaning ................................................. 571
Coolant .................................................. 536
Heating and Cooling Sy stem/Climate Control
System .................................................. 570
Maintenance Minder............................... 521
Oil .......................................................... 532
Precautions ............................................. 519
Radiator .................................................. 537
Remote Transmitter ................................ 568
Replacing Light Bulbs .............................. 541
Safety ..................................................... 519
Service Items ................................... 523, 527
Tires........................................................ 555
Transmission Fluid ................................... 538
Under the Hood ...................................... 529 Malfunction Indicator Lamp
.............. 85, 600
Map Lights ................................................ 202
Maximum Load Limit ............................... 427
Meters, Gauges ......................................... 113
Mirrors ....................................................... 187
Adjusting ................................................. 187
Door........................................................ 189
Exterior .................................................... 189
Interior Rearview ............................. 187, 188
Modifications (and Accessories) .............. 576
Moonroof .................................................. 164
MP3 ........................................... 243, 249, 299
Multi-Information Display ....................... 118
Multi-View Rear Camera .......................... 511
N
Numbers (Identification).......................... 616
O
Odometer.......................................... 116, 120
Off-Highway Driving Guidelines ............. 430
Oil (Engine) ............................................... 531
Adding .................................................... 533
Checking ................................................. 532
Displaying Oil Life .................................... 521
Displaying the Maintenance Minder Information ........................................... 525
Low Oil Pressure Indicator .................. 85, 599
Recommended Engine Oil ........................ 531 Viscosity .................................................. 531
Open Source Licenses ............................... 322
Opening and Closing the Moonroof ....... 164
Opening/Closing Hood....................................................... 530
Moonroof ............................................... 164
Power Windows ...................................... 162
Tailgate ................................................... 156
Outside Temperature Display .......... 114, 117
Overheating .............................................. 597
P
Paddle Shifters (7-Speed Manual Shift
Mode) ........................................ 23, 444, 445
Pandora ®................................................... 297
Panic Mode ............................................... 161
Parking ...................................................... 510
Parking Brake ........................................... 503
Passenger Front Airb ag Off Indicator....... 62
Passing Indicators ..................................... 171
Playing Bluetooth ® Audio ................ 252, 302
Power Windows ....................................... 162
Precautions While Driving
Driving Guidelines for Your Utility Vehicle .................................................. 438
Rain ........................................................ 438
Pregnant Women ....................................... 48
Puncture (Tire) .......................................... 582
20 HR-V HDMC HDMG-31T7A6400.book 631 ページ ２０１９年８月８日　木曜日　午後３時５２分
