2020 HONDA HR-V stop start

89
uuIndicators u
Continued
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage*
Vehicle
Stability
Assist
TM (VSA®)
System
Indicator
• Comes on for a few seconds when
you turn the ignition switch to ON
(w*1, then goes off.
• Blinks when VSA ® is active.
• Comes on if there is a problem
with the VSA ® system or hill start
assist system.
• Stays on constantly - Have your vehicle
checked by a dealer.
2 Vehicle Stability AssistTM (VSA ®), aka
Electronic Stability Control (ESC),
System P. 450
Vehicle
Stability
Assist
TM (VSA®)
OFF Indicator
•Comes on for a few seconds when
you turn the ignition switch to ON
(w*1, then goes off.
• Comes on when you deactivate
VSA ®.2VSA ® On and Off P. 451—
Door and
Tailgate Open
Indicator
*
•Comes on for a few seconds if you
turn the ignition switch to ON
(w*1, then goes off.
• Comes on if any door or the
tailgate is not completely closed.
• The beeper sounds and the
indicator comes on if any door or
the tailgate is opened while
driving.
•Goes off when all doors and the tailgate
are closed.
—
* Not available on all models
20 HR-V HDMC HDMG-31T7A6400.book 89 ページ ２０１９年８月８日　木曜日　午後３時５２分

90
uuIndicators u
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage*
Electric Power
Steering (EPS)
System
Indicator•Comes on when you turn the
ignition switch to ON
(w*1, and
goes off when the engine starts.
• Comes on if there is a problem
with the EPS system.
• Stays on constantly or does not come
on at all - Have your vehicle checked by
a dealer.
2 If the Electric Power Steering (EPS)
System Indicator Comes On P. 601
Low Tire
Pressure/TPMS
Indicator
•Comes on for a few seconds when
you turn the ignition switch to ON
(w*1, then goes off.
• May come on briefly if the ignition
switch is turned to ON
(w*1 and
the vehicle is no t moved within 45
seconds, to indicate the calibration
process is not yet complete.
• Comes on and stays on when:
- One or more tires’ pressures are
determined to be significantly
low.
- The system has not been
calibrated.
• Comes on while driving - Stop in a safe
place, check tire pressures, and inflate
the tire(s) if necessary.
• Stays on after the ti res are inflated to
the recommended pressures - The
system needs to be calibrated.
2 TPMS Calibration P. 455
•Blinks for about one minute, and
then stays on if there is a problem
with the TPMS, or when a
compact spare tire is temporarily
installed.• Blinks and remains on - Have your
vehicle checked by a dealer. If the vehicle
is fitted with a compact spare, get your
regular tire repaired or replaced and put
back on your vehicle as soon as you can.
U.S.
models
only
* Not available on all models
20 HR-V HDMC HDMG-31T7A6400.book 90 ページ ２０１９年８月８日　木曜日　午後３時５２分

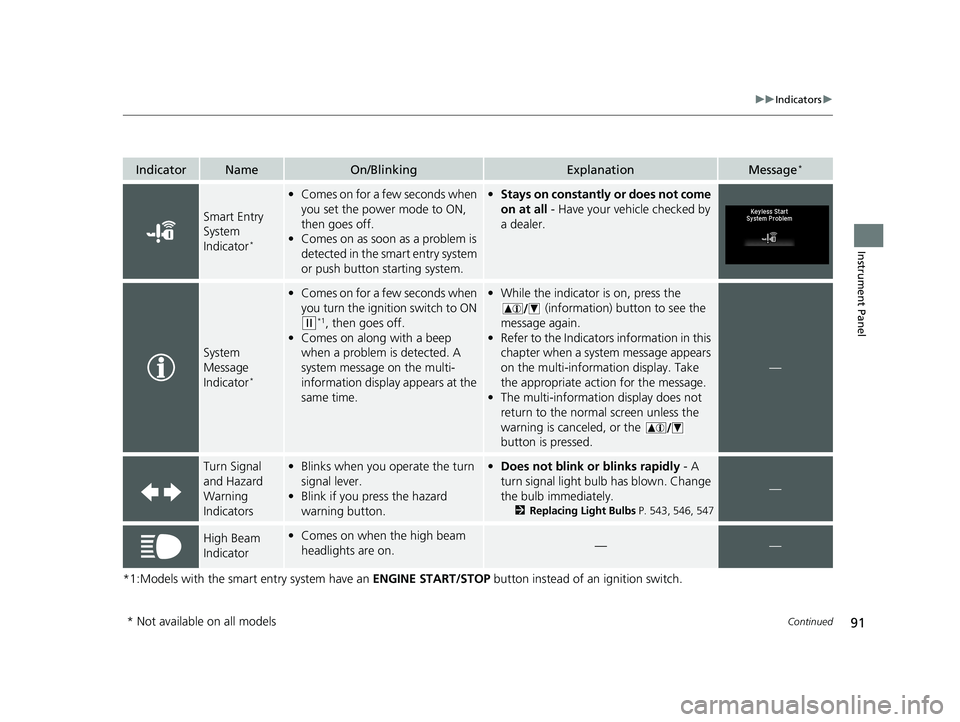

91
uuIndicators u
Continued
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage*
Smart Entry
System
Indicator
*
•Comes on for a few seconds when
you set the power mode to ON,
then goes off.
• Comes on as soon as a problem is
detected in the smart entry system
or push button starting system.•Stays on constantly or does not come
on at all - Have your vehicle checked by
a dealer.
System
Message
Indicator
*
• Comes on for a few seconds when
you turn the ignition switch to ON
(w*1, then goes off.
• Comes on along with a beep
when a problem is detected. A
system message on the multi-
information display appears at the
same time.
•While the indicator is on, press the
(information) button to see the
message again.
• Refer to the Indicators information in this
chapter when a system message appears
on the multi-information display. Take
the appropriate action for the message.
• The multi-information display does not
return to the normal screen unless the
warning is canceled, or the
button is pressed.
—
Turn Signal
and Hazard
Warning
Indicators•Blinks when you operate the turn
signal lever.
• Blink if you press the hazard
warning button.•Does not blink or blinks rapidly - A
turn signal light bulb has blown. Change
the bulb immediately.
2 Replacing Light Bulbs P. 543, 546, 547
—
High Beam
Indicator•Comes on when the high beam
headlights are on.——
* Not available on all models
20 HR-V HDMC HDMG-31T7A6400.book 91 ページ ２０１９年８月８日　木曜日　午後３時５２分

92
uuIndicators u
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage*
Lights On
Indicator
•Comes on whenever the light
switch is on, or in AUTO* when
the exterior lights are on.
• If you remove the key from the ignition
switch*, or set the power mode* to
VEHICLE OFF (LOCK) while the exterior
lights are on, a chime sounds when the
driver’s door is opened.
Fog Light
Indicator*
• Comes on when the fog lights are
on.——
Immobilizer
System
Indicator
•Comes on briefly when you turn
the ignition switch to ON
(w*1,
then goes off.
• Comes on if the immobilizer
system cannot recognize the key
information.
• Blinks -
You cannot start the engine. Turn the
ignition switch to LOCK
(0, pull the key
out, and then insert the key and turn it to
ON
(w again.
You cannot start the engine. Set the
power mode to VEHICLE OFF (LOCK),
then select the ON mode again.
• Repeatedly blinks - The system may be
malfunctioning. Have your vehicle
checked by a dealer.
• Do not attempt to alter this system or add
other devices to it. Electrical problems
can occur.
—
Models without smart entry system
Models with smart entry system
* Not available on all models
20 HR-V HDMC HDMG-31T7A6400.book 92 ページ ２０１９年８月８日　木曜日　午後３時５２分

93
uuIndicators u
Continued
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage*
ECON Mode
Indicator
•Comes on for a few seconds when
you turn the ignition switch to ON
(w*1, then goes off.
• Comes on when you press the
ECON button.2 ECON Button P. 446
Security
System Alarm
Indicator
•Blinks when the security system
alarm has been set.
2 Security System Alarm P. 159—
CRUISE MAIN
Indicator*• Comes on when you press the
CRUISE button.2 Cruise Control* P. 447—
CRUISE
CONTROL
Indicator
*
• Comes on if you have set a speed
for cruise control.
2 Cruise Control* P. 447—
Maintenance
Minder
Indicator
*
•Comes on when the scheduled
maintenance is due soon.
2 Maintenance MinderTM P. 521—
Indicator
Indicator
* Not available on all models
20 HR-V HDMC HDMG-31T7A6400.book 93 ページ ２０１９年８月８日　木曜日　午後３時５２分

94
uuIndicators u
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage*
All-Wheel
Drive (AWD)
System
Indicator
*
• Comes on for a few seconds when
you turn the ignition switch to ON
(w*1, then goes off.
• Comes on if there is a problem
with the AWD.
• Blinks when the AWD system is
overheated. The system is inactive.
• Stays on constantly - the engine drives
only the front wheels in this state. Have
your vehicle checked by a dealer.
• Blinks while driving - the engine drives
only the front wheels in this state. Stop in
a safe place, shift to
(P, and idle the
engine until the indicator goes off. If the
indicator does not stop blinking, take
your vehicle to a dealer.
2 Real Time AWD with Intelligent
Control SystemTM* P. 454
* Not available on all models
20 HR-V HDMC HDMG-31T7A6400.book 94 ページ ２０１９年８月８日　木曜日　午後３時５２分

95
uuIndicators u
Continued
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage*
Road
Departure
Mitigation
(RDM)
Indicator
*
•Comes on for a few seconds when
you turn the ignition switch to ON
(w*1, then goes off.
• Comes on if there is a problem
with the RDM system.
•Stays on constantly - Have your vehicle
checked by a dealer.
• Comes on when the RDM system
shuts itself off.•Stays on - The temperature inside the
camera is too high.
Use the climate contro l system to cool
down the camera.
The system activates when the
temperature inside the camera cools
down.
2 Front Sensor Camera P. 500
•Stays on - The area around the camera is
blocked by dirt, mud, etc. Stop your
vehicle in a safe place, and wipe it off
with a soft cloth.
• Have your vehicle checked by a dealer if
the indicator and message come back on
after you cleaned the area around the
camera.
2 Front Sensor Camera P. 500
•Comes on if anything covers the
radar sensor cover and prevents
the sensor from detecting a
vehicle in front.
• May come on when driving in bad
weather (rain, snow, fog, etc.)•When the radar sensor gets dirty, stop your
vehicle in a safe place, and wipe off dirt using
a soft cloth. Indicator may take some time to
go off after the radar sensor is cleaned.
•Have your vehicle checked by a dealer if
the indicator does not go off even after
you clean the sensor cover.
2 Radar Sensor P. 502
* Not available on all models
20 HR-V HDMC HDMG-31T7A6400.book 95 ページ ２０１９年８月８日　木曜日　午後３時５２分

96
uuIndicators u
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage*
Adaptive
Cruise Control
(ACC )
Indicator
(Amber)
*
• Comes on for a few seconds when
you turn the ignition switch to ON
(w*1, then goes off.
• Comes on if there is a problem
with ACC.
• Comes on while driving - Have your
vehicle checked by a dealer.
Adaptive
Cruise Control
( ACC )
Indicator
(Green)
*
• Comes on when you press the
MAIN button.
2Adaptive Cruise Control (ACC) P. 473—
Lane Keeping
Assist System
(LKAS )
Indicator
(Amber)
*
• Comes on for a few seconds when
you turn the ignition switch to ON
(w*1, then goes off.
• Comes on if there is a problem
with the LKAS.
• Stays on constantly - Have your vehicle
checked by a dealer.
Lane Keeping
Assist System
( LKAS )
Indicator
(Green)
*
• Comes on when you press the
MAIN button.
2Lane Keeping Assist System (LKAS)
P. 486—
* Not available on all models
