uuWhen Driving uContinuously Variable Transmission*
416
Driving
If there is a strong impact with something under the vehicle, stop in a safe location.
Check the underside of the vehicle for damage or any fluid leaks.
Continuously Variable Transmission*
The engine runs at a higher id le speed and creeping increases.
Keep the brake pedal firmly depressed when stopped.
Quickly depressing the accelerator pedal while driving uphill may cause the
transmission to drop to a lower ratio, unexpectedly increasing vehicle speed.
Depress the accelerator pedal carefully, es pecially on slippery roads and curves.
■Other Precautions
■Creeping
■Kickdown
1Precautions While Driving
NOTICE
The following can dama ge the under spoiler:•Parking the vehicle by a parking block
•Parallel parking along the road shoulder
•Driving towards the bottom of a hill•Driving up or down to a different surface level
(such as a road shoulder)
•Driving on a rutted or bumpy road•Driving on a road with potholes.
* Not available on all models
20 FIT-31T5A6500.book 416 ページ ２０１９年９月２６日　木曜日　午後４時４１分

489
Maintenance
This chapter discusses basic maintenance.
Before Performing MaintenanceInspection and Maintenance ............ 490
Safety When Performing Maintenance .... 491Parts and Fluids Used in Maintenance Service ........................................... 492
Maintenance Minder
TM..................... 493
Maintenance Under the Hood
Maintenance Items Under the Hood .... 501Opening the Hood ........................... 502
Recommended Engine Oil ................ 503
Oil Check ......................................... 504
Adding Engine Oil ............................ 505
Changing the Engine Oil and Oil Filter..... 506Engine Coolant ................................ 508 Transmission Fluid ............................ 510
Brake/Clutch
* Fluid .......................... 511
Refilling Window Wa sher Fluid......... 512
Replacing Light Bulbs ....................... 513
Checking and Maintaining Wiper Blades ............................................................ 520
Checking and Maintaining Tires Checking Tires ................................. 524
Tire and Loading Information Label .. 526
Tire Labeling .................................... 526
DOT Tire Quality Grading (U.S. Vehicles) ...... 528Wear Indicators................................ 530
Tire Service Life ................................ 530
Tire and Wheel Replacement............ 531 Tire Rotation .................................... 532
Winter Tires ..................................... 533
Battery ............................................... 534
Remote Transmitter Care Replacing the Button Battery ........... 536
Heating and Cooling System
*/Climate
Control System* Maintenance ....... 538
Cleaning Interior Care .................................... 539
Exterior Care.................................... 541
Accessories and Modifications Accessories ...................................... 544
Modifications................................... 544
* Not available on all models
20 FIT-31T5A6500.book 489 ページ ２０１９年９月２６日　木曜日　午後４時４１分

495
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Continued
Maintenance
■Maintenance Service Items
Maintenance Minder Message
Maintenance
Minder Indicator
Sub Items Main Item
1Maintenance Service Items
•Independent of the Maintenance Minder
information, replace the brake fluid every 3 years.
•Adjust the valves during services A, B, 1, 2, or 3 if
they are noisy.
*1: If a message SERVICE does not appear more than 12 months after the display is reset, change the
engine oil every year.
# : See information on maintenance and emissions warranty.
CODEMaintenance Main Items
A
●Replace engine oil*1
B●Replace engine oil*1 and oil filter●Inspect front and rear brakes●Check parking brake adjustment●Inspect tie rod ends, steering gearbox, and boots●Inspect suspension components●Inspect driveshaft boots●Inspect brake hoses and li nes (Including ABS/(VSA®))●Inspect all fluid levels and condition of fluids●Inspect exhaust system#
●Inspect fuel lines and connections#
*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and
from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
●Inspect drive belt
3
●Replace transmission fluid
4●Replace spark plugs●Inspect valve clearance
5
●Replace engine coolant
20 FIT-31T5A6500.book 495 ページ ２０１９年９月２６日　木曜日　午後４時４１分

499
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Continued
Maintenance
■Maintenance Service Items1Maintenance Service Items
•Independent of the Maintenance Minder
information, replace the brake fluid every 3 years.
•Adjust the valves during services A, B, 1, 2, or 3 if
they are noisy.Maintenance Minder
Message
System Message
Indicator
Sub Items
Main Item
*1: If a message Maintenance does not appear more than 12 months after the display is reset, change
the engine oil every year.
# : See information on maintenance and emissions warranty.
CODEMaintenance Main Items
A
●Replace engine oil*1
B●Replace engine oil*1 and oil filter●Inspect front and rear brakes●Check parking brake adjustment●Inspect tie rod ends, steering gearbox, and boots●Inspect suspension components●Inspect driveshaft boots●Inspect brake hoses and li nes (Including ABS/(VSA®))●Inspect all fluid levels and condition of fluids●Inspect exhaust system#
●Inspect fuel lines and connections#
*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and
from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
●Inspect drive belt
3
●Replace transmission fluid
4●Replace spark plugs●Inspect valve clearance
5
●Replace engine coolant
20 FIT-31T5A6500.book 499 ページ ２０１９年９月２６日　木曜日　午後４時４１分

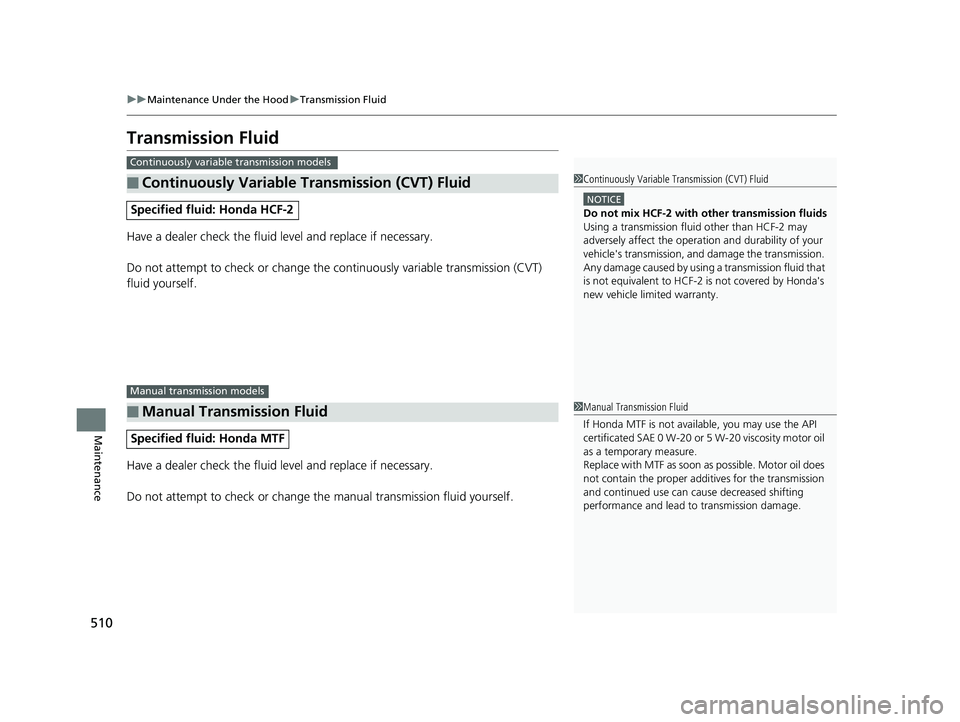

510
uuMaintenance Under the Hood uTransmission Fluid
Maintenance
Transmission Fluid
Have a dealer check the fluid level and replace if necessary.
Do not attempt to check or change the continuously variable transmission (CVT)
fluid yourself.
Have a dealer check the fluid level and replace if necessary.
Do not attempt to check or change the manual transmission fluid yourself.
■Continuously Variable Transmission (CVT) Fluid
Specified fluid: Honda HCF-2
■Manual Transmission Fluid
Specified fluid: Honda MTF
Continuously variable transmission models
1Continuously Variable Transmission (CVT) Fluid
NOTICE
Do not mix HCF-2 with other transmission fluids
Using a transmission fluid other than HCF-2 may
adversely affect the operati on and durability of your
vehicle's transmission, and damage the transmission.
Any damage caused by usi ng a transmission fluid that
is not equivalent to HCF-2 is not covered by Honda's
new vehicle limited warranty.
Manual transmission models
1 Manual Transmission Fluid
If Honda MTF is not availa ble, you may use the API
certificated SAE 0 W-20 or 5 W-20 viscosity motor oil
as a temporary measure.
Replace with MTF as soon as possible. Motor oil does
not contain the proper addi tives for the transmission
and continued use can cause decreased shifting
performance and lead to transmission damage.
20 FIT-31T5A6500.book 510 ページ ２０１９年９月２６日　木曜日　午後４時４１分

511
uuMaintenance Under the Hood uBrake/Clutch* Fluid
Maintenance
Brake/Clutch* Fluid
Use the same fluid for bo th the brakes and clutch.
The fluid level should be between the MIN
and MAX marks on the side of the reservoir.
The brake fluid reservoir is also used for your
vehicle’s clutch fluid. As long as you keep the
brake fluid level as ins tructed above, there is
no need for checking the clutch fluid level.
Specified fluid: Honda He avy Duty Brake Fluid DOT 3
■Checking the Brake Fluid
1Brake/Clutch* Fluid
NOTICE
Brake fluid marked DOT 5 is not compatible with your
vehicle’s braking system and can cause extensive
damage.
If the specified brake fluid is not available, you should
use only DOT 3 or DOT 4 fluid from a sealed
container as a temporary replacement.
Using any non-Honda brake fluid can cause corrosion
and decrease the longevity of the system. Have the
brake system flushed and re filled with Honda Heavy
Duty Brake Fluid DOT 3 as soon as possible.
If the brake fluid level is at or below the MIN mark,
have a dealer inspect the vehicle for leaks or worn
brake pads as soon as possible.
MIN
MAX
Manual transmission models
* Not available on all models
20 FIT-31T5A6500.book 511 ページ ２０１９年９月２６日　木曜日　午後４時４１分

564
uuIndicator, Coming On/Blinking uIf the Brake System Indicator (Red) Comes On
Handling the Unexpected
If the Brake System Indicator (Red) Comes On
■Reasons for the indicator to come on
• The brake fluid is low.
• There is a malfunction in the brake system.
■What to do when the indicator comes on while driving
Depress the brake pedal lightly to check pedal pressure.
• If normal, check the brake fluid level the next time you stop.
• If abnormal, take immediate action. If necessary, downshift the
transmission to slow the vehicle using engine braking.
If the Electric Power Steeri ng (EPS) System Indicator
Comes On
■Reasons for the indicator to come on
• Comes on when there is a problem with the EPS system.
• If you depress the accelerator pedal repeatedly to increase the engine
speed while the engine is idling, the indicator comes on, and
sometimes the steering wheel becomes harder to operate.
■What to do when the indicator comes on
Stop the vehicle in a safe place and restart the engine.
If the indicator comes on and stays on, immediately have your vehicle
inspected by a dealer.
1 If the Brake System Indicator (Red) Comes On
Have your vehicle re paired immediately.
It is dangerous to drive with low brake fluid. If there
is no resistance from the brake pedal, stop
immediately in a safe plac e. If necessary downshift
the gears.
If the brake system indicator and ABS indicator come
on simultaneously, the elec tronic brake distribution
system is not working. Th is can result in vehicle
instability under sudden braking.
Have your vehicle inspecte d by a dealer immediately.U.S.
Canada
20 FIT-31T5A6500.book 564 ページ ２０１９年９月２６日　木曜日　午後４時４１分

590
Index
Driving....................................................... 399
Adaptive Cruise Control (ACC) ................ 433
Braking .................................................... 469
Continuously Variable Transmission ......... 416
Cruise Control ......................................... 428
Shifting Gear ........................... 417, 419, 423
Starting the Engine .......................... 409, 411
Dust and Pollen Filter ............................... 538
E
ECON Button............................................. 427
ECON Mode Indicator ................................. 85
Elapsed Time ............................................. 109
Electric Power Steering (EPS) System Indicator ............................................ 82, 564
Electronic Stability Control (ESC) ............. 459
Emergency ................................................. 571
Emissions Testing (Readiness Codes) ....... 581
Engine Coolant ................................................... 508
Jump Starting .......................................... 557
Number ................................................... 578
Oil ........................................................... 503
Starting ........................................... 409, 411
Switch Buzzer .......................................... 154
Engine Coolant ......................................... 508
Adding to the Radiator ............................ 509
Adding to the Reserve Tank ..................... 508
High Temperature Indicator ....................... 81
Low Temperature Indicator ........................ 81 Overheating ............................................ 560
Engine Oil ................................................. 503
Adding .................................................... 505
Checking................................................. 504
Displaying Oil Life ............................ 493, 497
Low Oil Pressure Indicator ................. 77, 562
Recommended Engine Oil ....................... 503
EPS (Electric Power Steering)
System .............................................. 82, 564
Exhaust Gas Hazard (Carbon Monoxide) ................................. 73
Exterior Care (Cleaning) ........................... 541
Exterior Mirrors ........................................ 173
F
Features.................................................... 205
Filters
Dust and Pollen ....................................... 538
Oil ........................................................... 506
Flat Tire ..................................................... 547
Floor Mats ................................................. 540
Fluids Brake ...................................................... 511
Continuously Variable Transmission ......... 510
Engine Coolant ....................................... 508
Manual Transmission ............................... 510
Windshield Washer ................................. 512
FM/AM Radio ............................................ 219
Fog Light Indicator ..................................... 85
Folding Down the Rear Seats .................. 179Foot Brake
................................................ 470
Front Airbags (SRS) .................................... 49
Front Seats ................................................ 174
Adjusting ................................................ 174
Front Sensor Camera ............................... 431
Fuel ..................................................... 23, 484
Economy................................................. 487
Gauge .................................................... 106
Instant Fuel Economy .............................. 110
Low Fuel Indicator..................................... 80
Range ..................................................... 109
Recommendation.................................... 484
Refueling .......................................... 23, 484
Fuel Economy ........................................... 487
Fuel Fill Cap ........................................ 23, 486
Message ................................................. 563
Fuel Fill Door ...................................... 23, 485
Fuses ......................................................... 566
Inspecting and Changing ........................ 570
Locations ................................................ 566
G
Gasoline (Fuel)
Economy................................................. 487
Gauge .................................................... 106
Information............................................. 484
Instant Fuel Economy .............................. 110
Low Fuel Indicator..................................... 80
Refueling ................................................ 484
Gauges ...................................................... 103
20 FIT-31T5A6500.book 590 ページ ２０１９年９月２６日　木曜日　午後４時４１分
