2020 HONDA CLARITY PLUG-IN check engine

557Continued
Handling the Unexpected
Fuses
Fuse Locations
If any electrical devices are not working, set
the power mode to VEHICLE OFF (LOCK),
and check to see if any applicable fuse is
blown.
There are three fuse boxes in the engine
compartment.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
■Fuse box A
Located near the windshield washer
reservoir. Push the tabs to open the box.
■Engine Compartment Fuse
Box
Tab
■Circuit protected and fuse rating
Circuit ProtectedAmps
1BATTERY175 A
2
EPS70 A
ESB40 A
IG MAIN (SMART)30 A
ABS/VSA MOTOR40 A
WIPER MOTOR 130 A
ABS/VSA FSR40 A
−30 A
3
ENG EWP30 A
SUB FUSE BOX 2-130 A
SUB FUSE BOX 3-230 A
IG MAIN 230 A
4 IG COIL 15 A
5H/L LO MAIN15 A
6EVTC 20 A
7DTWP10 A
8 DBW 15 A
9VBU10 A
10 STOP LIGHT 7.5 A
11IGP15 A
12 FUSE BOX MAIN 1 60 A
FUSE BOX MAIN 2 40 A
FUSE BOX MAIN 3 50 A
H/L HI MAIN 30 A
SMALL MAIN 20 A
SUB FUSE BOX 4 (30 A) −30 A
WIPER MOTOR 2 30 A −30 A
−30 A
13HEATER MOTOR40 A
14 REAR DEFROSTER 40 A
15−−
16 BATT SNSR 7.5 A
17ES EWP15 A
18 A/C MAIN/DRL 10 A
19ES VLV7.5 A
20 HORN 10 A
21BACK UP10 A
22 AUDIO 15 A
23IGPS (LAF)10 A
24 R H/L LO 7.5 A
25L H/L LO7.5 A
26 IGPS 10 A
Circuit ProtectedAmps
20 CLARITY PHEV-31TRW6200.book 557 ページ ２０１９年９月２４日　火曜日　午後１２時９分

564
uuFusesuInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1.Set the power mode to VEHICLE OFF
(LOCK). Turn headlight s and all accessories
off.
2. Check the fuses on the battery in the
engine compartment.
u If the fuse is blown, have it replaced by
an authorized Honda Clarity Plug-In
Hybrid dealer.
3. Remove the fuse box cover.
4. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remove the screw, and
replace it with a new one.
5. Inspect the small fuses in the engine
compartment and the vehicle interior.
u If there is a blown fuse, remove it with
the fuse puller, and replace it with a new
one.1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace the fuse with a spare fuse of the same
specified amperage.
Confirm the specified amperage using the charts on
P. 557 to 563.
There is a fuse puller on the back of the cover of the
engine compartment fuse box A.
12-Volt Battery
Blown Fuse
Fuse Puller
20 CLARITY PHEV-31TRW6200.book 564 ページ ２０１９年９月２４日　火曜日　午後１２時９分

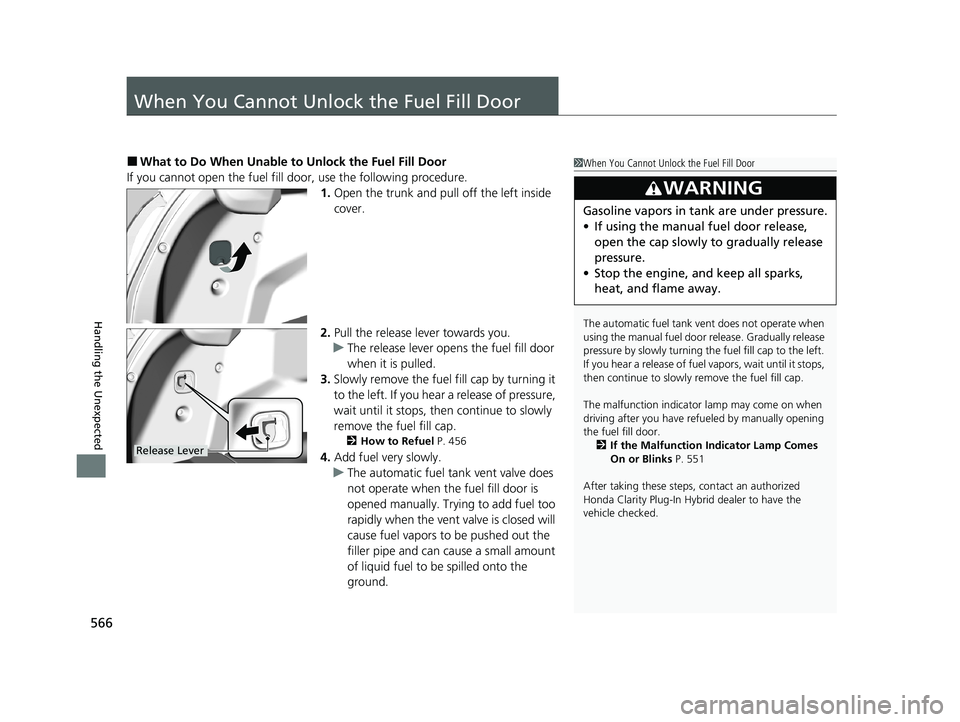

566
Handling the Unexpected
When You Cannot Unlock the Fuel Fill Door
■What to Do When Unable to Unlock the Fuel Fill Door
If you cannot open the fuel fill door, use the following procedure. 1.Open the trunk and pull off the left inside
cover.
2. Pull the release lever towards you.
u The release lever opens the fuel fill door
when it is pulled.
3. Slowly remove the fuel fill cap by turning it
to the left. If you hear a release of pressure,
wait until it stops, then continue to slowly
remove the fuel fill cap.
2 How to Refuel P. 456
4.Add fuel very slowly.
u The automatic fuel tank vent valve does
not operate when the fuel fill door is
opened manually. Trying to add fuel too
rapidly when the vent valve is closed will
cause fuel vapors to be pushed out the
filler pipe and can cause a small amount
of liquid fuel to be spilled onto the
ground.
1 When You Cannot Unlo ck the Fuel Fill Door
The automatic fuel tank ve nt does not operate when
using the manual fuel door release. Gradually release
pressure by slowly turning th e fuel fill cap to the left.
If you hear a release of fuel vapors, wait until it stops,
then continue to slowly remove the fuel fill cap.
The malfunction indicator lamp may come on when
driving after you have refueled by manually opening
the fuel fill door.
2 If the Malfunction Indicator Lamp Comes
On or Blinks P. 551
After taking these steps, contact an authorized
Honda Clarity Plug-In Hybrid dealer to have the
vehicle checked.
3WARNING
Gasoline vapors in tank are under pressure.
• If using the manual fuel door release,
open the cap slowly to gradually release
pressure.
• Stop the engine, and keep all sparks,
heat, and flame away.
Release Lever
20 CLARITY PHEV-31TRW6200.book 566 ページ ２０１９年９月２４日　火曜日　午後１２時９分

584
Index
Collision Mitigation Braking SystemTM
(CMBSTM) .................................................. 443
Console Compartment ............................. 186
Control Box ............................................... 465
Controls ..................................................... 135
Coolant (Engine) ....................................... 492
Adding to the Radiator ............................ 493
Adding to the Reserve Tank ..................... 492
Overheating............................................. 546
Coolant (High Voltage Battery and Inverter) ................................................... 494
Creeping (Transmission) ........................... 383
Cup Holders ............................................... 187
Customer Service Information ................. 580
Customized Features ........................ 133, 306
D
Daytime Running Lights ........................... 165
Dead Battery (12-Volt) ............................. 543
Deceleration Paddle Selector ................... 392
Deceleration Paddle Sele ctor Indicator ....... 91
Defrosting the Windshield and Windows .................................................. 197
Devices that Emit Radio Waves ................ 573
Dimming Headlights ............................................... 162
Rearview Mirror ....................................... 173
Dipstick (Engine Oil) ................................. 487
Directional Signals (Turn Signal) .............. 161
Display Button .......................................... 211 Door Mirrors
............................................. 174
Doors ......................................................... 137
Auto Door Locking .................................. 149
Auto Door Unlocking .............................. 149
Door Open Message.................................. 46
Keys ........................................................ 137
Locking/Unlocking the Doors from the Inside .............................................. 25, 146
Locking/Unlocking the Doors from the Outside ................................................. 139
Lockout Prevention System ...................... 145
DOT Tire Quality Grading ........................ 506
Drive Cycle Score/Lifetime Points ............ 131
Driver Information Interface ................... 124
Driver’s Knee Airbag .................................. 61
Driving ...................................................... 371
Braking ................................................... 435
Shifting Gear ........................................... 384
Transmission ........................................... 383
Turning on the Power.............................. 378
Driving Position Memory System ............ 170
Dust and Pollen Filter ............................... 516
E
Eco Assist® System ...................................... 20
Eco Drive Display ...................................... 130
ECON Mode .............................................. 390
Elapsed Time ............................................. 127
Electric Power Steering (EPS) System
Indicator.................................................... 94 Electronic Stability Control (ESC)
............ 426
Emergency ................................................ 565
Emissions Testing (Readiness Codes) ...... 575
Energy Flow Screen .................................. 215
Engine
Coolant .................................................. 492
Oil .......................................................... 486
Engine Coolant ........................................ 492
Adding to the Radiator ........................... 493
Adding to the Reserve Tank .................... 492
Overheating ............................................ 546
Engine Oil ................................................. 486
Adding ................................................... 488
Checking ................................................ 487
Recommended Engine Oil ....................... 486
EPS (Electric Power Steering) System ........ 94
EV Indicator ................................................ 89
Exhaust Gas Hazard (Carbon Monoxide) .. 82
Exterior Care (Cleaning) .......................... 519
Exterior Mirrors ........................................ 174
F
Features.................................................... 203
Filters Dust and Pollen....................................... 516
Oil .......................................................... 489
Flat Tire ..................................................... 526
Floor Mats ................................................ 518
Fluids
Brake ...................................................... 496
20 CLARITY PHEV-31TRW6200.book 584 ページ ２０１９年９月２４日　火曜日　午後１２時９分

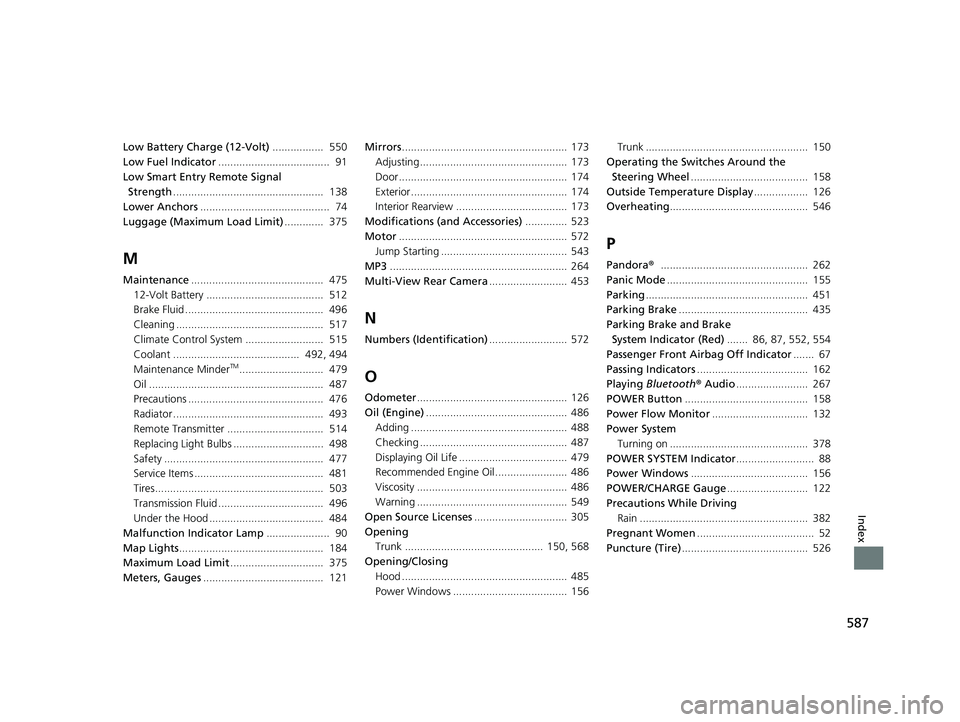

587
Index
Low Battery Charge (12-Volt)................. 550
Low Fuel Indicator ..................................... 91
Low Smart Entry Remote Signal Strength .................................................. 138
Lower Anchors ........................................... 74
Luggage (Maximum Load Limit) ............. 375
M
Maintenance............................................ 475
12-Volt Battery ....................................... 512
Brake Fluid .............................................. 496
Cleaning ................................................. 517
Climate Control System .......................... 515
Coolant .......................................... 492, 494
Maintenance Minder
TM............................ 479
Oil .......................................................... 487
Precautions ............................................. 476
Radiator .................................................. 493
Remote Transmitter ................................ 514
Replacing Light Bulbs .............................. 498
Safety ..................................................... 477
Service Items ........................................... 481
Tires........................................................ 503
Transmission Fluid ................................... 496
Under the Hood ...................................... 484
Malfunction Indicator Lamp ..................... 90
Map Lights ................................................ 184
Maximum Load Limit ............................... 375
Meters, Gauges ........................................ 121 Mirrors
....................................................... 173
Adjusting ................................................. 173
Door ........................................................ 174
Exterior .................................................... 174
Interior Rearview ..................................... 173
Modifications (and Accessories) .............. 523
Motor ........................................................ 572
Jump Starting .......................................... 543
MP3 ........................................................... 264
Multi-View Rear Camera .......................... 453
N
Numbers (Identification).......................... 572
O
Odometer.................................................. 126
Oil (Engine) ............................................... 486
Adding .................................................... 488
Checking ................................................. 487
Displaying Oil Life .................................... 479
Recommended Engine Oil ........................ 486
Viscosity .................................................. 486
Warning .................................................. 549
Open Source Licenses ............................... 305
Opening Trunk .............................................. 150, 568
Opening/Closing
Hood ....................................................... 485
Power Windows ...................................... 156 Trunk ...................................................... 150
Operating the Switches Around the
Steering Wheel ....................................... 158
Outside Temperature Display .................. 126
Overheating .............................................. 546
P
Pandora®................................................. 262
Panic Mode ............................................... 155
Parking ...................................................... 451
Parking Brake ........................................... 435
Parking Brake and Brake
System Indicator (Red) ....... 86, 87, 552, 554
Passenger Front Airb ag Off Indicator....... 67
Passing Indicators ..................................... 162
Playing Bluetooth ® Audio ........................ 267
POWER Button ......................................... 158
Power Flow Monitor ................................ 132
Power System Turning on .............................................. 378
POWER SYSTEM Indicator .......................... 88
Power Windows ....................................... 156
POWER/CHARGE Gauge ........................... 122
Precautions While Driving Rain ........................................................ 382
Pregnant Women ....................................... 52
Puncture (Tire) .......................................... 526
20 CLARITY PHEV-31TRW6200.book 587 ページ ２０１９年９月２４日　火曜日　午後１２時９分
