uuCharging uCharge the High Voltage battery using a Level 1 or 2 charger
464
Driving

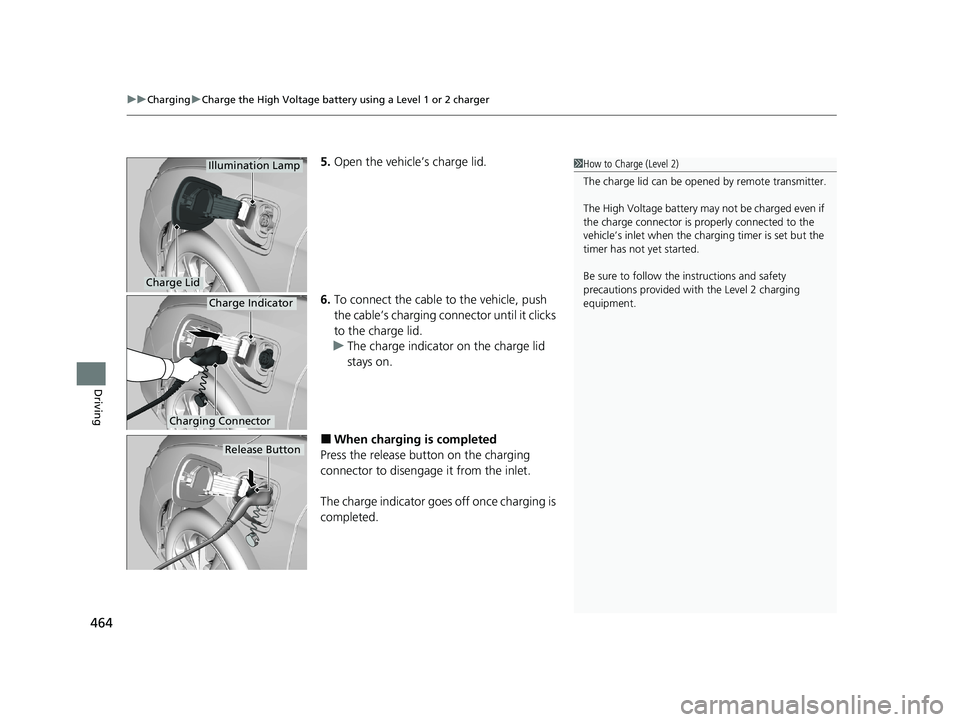

5. Open the vehicle’s charge lid.
6. To connect the cable to the vehicle, push
the cable’s charging connector until it clicks
to the charge lid.
u The charge indicator on the charge lid
stays on.
■When charging is completed
Press the release button on the charging
connector to disengage it from the inlet.
The charge indicator goes off once charging is
completed.
Charge Lid
Illumination Lamp1 How to Charge (Level 2)
The charge lid can be open ed by remote transmitter.
The High Voltage battery may not be charged even if
the charge connector is properly connected to the
vehicle’s inlet when the charging timer is set but the
timer has not yet started.
Be sure to follow the instructions and safety
precautions provided with the Level 2 charging
equipment.
Charging Connector
Charge Indicator
Release Button
20 CLARITY PHEV-31TRW6200.book 464 ページ ２０１９年９月２４日　火曜日　午後１２時９分

467
uuCharging uControl Box
Continued
Driving
If charging does not start, even if the POWER indicator comes on, and the charging
connector is plugged in, perform one of the following solutions.
■What to do when you cannot start charging
CauseSolution
The timer has been set, but the start time is in
the future.Start charging using the smart entry remote.
Press and hold the charge lid release button on the smart entry remote. u The charge indicator on the charge lid comes on when charging starts.
Change the customized setting of the charge timer to O FF using the driver
information interface. u The timer setting wi ll be canceled.
2Using a Timer P. 471
The 12-volt battery is weak.Check the 12-volt battery condition. If necessary, charge the battery.
The power mode is ON.Set the power mode to ACCESS ORY or VEHICLE OFF (LOCK).
The charging connector is not properly
attached to the vehicle’s inlet. Disengage the connector from the inlet.
Align and insert the connector into the inlet until you hear a click.
20 CLARITY PHEV-31TRW6200.book 467 ページ ２０１９年９月２４日　火曜日　午後１２時９分

525
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
If a Tire Goes FlatTemporarily Repairi ng a Flat Tire....... 526
Handling of the Jack ......................... 538
Power System Won’t Start Checking the Procedure ................... 539
If the Smart Entry Remote Battery is Weak .......................................... 541
Emergency Power System Off........... 542
Jump Starting .................................... 543
Overheating How to Handle Overheating ............. 546
Indicator, Coming On/Blinking
If the Low Oil Pressure Warning Appears .. 549
If the 12-Volt Battery Charging System Indicator Comes On ....................... 550
If the Malfunction Indicator Lamp Comes
On or Blinks ..................................... 551
If the Brake System Indicator (Red) Comes On or Blinks ....................................... 552
If the Electric Power Steering (EPS) System Indicator Comes On ........................... 553
If the Brake System Indicator (Red) Comes On or Blinks at the Same Time
When the Brake System Indicator
(Amber) Comes On ...................... 554
If the Low Tire Pressure/TPMS Indicator
Comes On or Blinks ....................... 555
If the Transmission System Indicator Blinks
along with the Warning Message .... 556
Fuses Fuse Locations ................................. 557
Inspecting and Changing Fuses ........ 564
Emergency Towing ........................... 565
When You Cannot Unlock the Fuel Fill
Door ................................................. 566
When You Cannot Open the Charge
Lid ................................................. 567
When You Cannot Open the Trunk .. 568
20 CLARITY PHEV-31TRW6200.book 525 ページ ２０１９年９月２４日　火曜日　午後１２時９分

539Continued
Handling the Unexpected
Power System Won’t Start
Checking the Procedure
When the READY indicator does not come on and the Ready To Drive message
does not appear on the driver informatio n interface, check the following items and
take appropriate action.
ChecklistConditionWhat to Do
Check if the related
indicator or driver
information interface
messages come on.The Remove Charger Connector message appearsRemoving a charge connector. Set the power
mode to ACCESSORY, then to ON.
The Low Battery Charge . Power Reduced. message appearsCharge the High Voltage battery.
2Charging P. 458
The Temperature Is Too Cold For Vehicle To Operate
message appears.2 Driver Information Interface Warning and
Information Messages P. 103
The To Start, Hold Remote Near Start Button message
appears.
u Make sure the smart entry remote is in its operating range.
2 POWER Button Operating Range P. 158
2If the Smart Entry Remote Battery is Weak
P. 541
The POWER SYSTEM indicator comes on.Have your vehicle checked by an authorized
Honda Clarity Plug-In Hybrid dealer.
The transmission system indicator blinks and Transmission
Problem Apply Parking Brake When Parked message
appears.The power system can be activated as a
temporary measure.
2 If the Transmission System Indicator Blinks
along with the Warning Message P. 556
Check the brightness
of the interior lights. The interior lights are dim or do not come on at
all. Have the 12-volt battery checked by an
authorized Honda Clarity Plug-In Hybrid dealer.
The interior lights come on normally. Check all fuses, or have your vehicle checked by
an authorized Honda Clarity Plug-In Hybrid
dealer.
2 Inspecting and Changing Fuses P. 564
1Checking the Procedure
If you must start the vehi cle immediately, use an
assisting vehicle or booster battery to jump start it.
2 Jump Starting P. 543
20 CLARITY PHEV-31TRW6200.book 539 ページ ２０１９年９月２４日　火曜日　午後１２時９分

541
uuPower System Won’t Start uIf the Smart Entry Remote Battery is Weak
Handling the Unexpected
If the Smart Entry Remote Battery is Weak
If the beeper sounds, the To Start, Hold Remote Near Start Button message
appears on the driver info rmation interface, and the POWER button flashes, the
READY indicator does not come on.
Turn on the power system as follows: 1.Touch the center of the POWER button
with the H logo on the smart entry remote
while the indi cator on the POWER button is
flashing. The buttons on the smart entry
remote should be facing you.
u The POWER button flashes for about 30
seconds.
2. Depress the brake pedal and press the
POWER button within 10 seconds after the
beeper sounds and the POWER button
changes from flashing to on.
u If you do not depress the pedal, the
mode will change to ACCESSORY.
20 CLARITY PHEV-31TRW6200.book 541 ページ ２０１９年９月２４日　火曜日　午後１２時９分
