2020 HONDA CLARITY PLUG-IN navigation system

50
uuOther SettingsuDevice
System Setup
Device
Hu (Back)uSettingsuDevice
Select an option.
The following options are available:
•About: Displays the device information.
2About P. 51
•Travel History: Allows the system to record information for suggested routes,
previous routes and destinations, and Trip Log features.
•Clear Travel History: Deletes the recorded information.
•Update Map: Displays the description screen of map update.
2Obtaining a Navigation Update P. 134

54
Navigation
Entering a Destination
Hu
This section describes how to enter a destination for route guidance.
Select an option.
The following options are available:
•Enter Search: Sets a destination by entering a category, name, address, or city
name.
2Using the Search Bar P. 56
•Searching near: Selects the city to search near.
2Changing the Search Area P. 57
•Go Home: Sets your home address as the destination.
2Going Home P. 8
•HONDA: Sets a nearby Honda dealer as the destination.
2HONDA P. 60
•Places: Launches HondaLinkTM to search for places.
For more details, see the Owner's Manual.
•Address: Sets a destination by entering an address.
2Address P. 61
•Categories: Sets a destination by selecting a category.
2Categories P. 66
1Entering a Destination
The Display Audio system can only provide route guidance
from one navigation system at a time. When setting a
destination on one system, any active route guidance with
the other system is canceled, and the system you are
currently using will direct you to your destination.
To use HondaLinkTM, you must connect your
smartphone to the system.
For more details about smartphone connection and
how to use HondaLink
TM, see the Owner's Manual.
If you press the (DISP) button on the steering
wheel and select Navigation Menu while on the
map screen, the following items are available. Use
the steering wheel buttons to select the items.
•Go Home•Nearby Charge Station•Recent Destination•Calculation Mode•Saved Places•Stop•Add New Address
(DISP) Button
Shortcut

Continued57
uuEntering a Destinationu
Navigation
HuuSearching near
By default, your system finds locations closest to your current location. You can find
a location near another city or location.
Select an option.
The following options are available:
•Where I Am Now: Searches near your current location.
•My Active Route: Searches along your current route.
•My Destination: Searches near your current destination.
•A Different City: Searches near the city you enter.
•Recent Destination: Searches near a recent destination.
•Saved Place: Searches near a saved place.
■Changing the Search Area1Changing the Search Area
My Active Route and My Destination can be set
when the route is active.

61
uuEntering a DestinationuAddress
Continued
Navigation
Address
HuuAddress
Enter an address to use as the destination. The country you are currently in is
displayed.
Select an option.
The following options are available:
•Spell City: Selects your destination city.
2Selecting the City P. 64
•Enter Postal Code: Selects your destination postal code.
2Selecting the Postal Code P. 65
•Search All: Sets an address to use as the destination.
2Search All P. 63
•State or Country: Selects the state or country.
2Selecting the State/Country P. 62
1Address
Using Voice Command
You can say the entire address at once using voice
commands.
From the Voice Portal screen, say “Navigation.”
Say “Find Address” on the voice command
screen, then say the entire address. (e.g., “1-2-3-4
Main Street, Los Angeles, California”).
Say “Change Country” if you want to change the
country.
The system interprets the address.
Say “Yes” or a line number of a screen if the
destination list appears (e.g., “1”).
Say “Navigate” or “Yes” to set the route.
2Using Voice Commands P. 5
2Voice Control Operation P. 11

Continued63
uuEntering a DestinationuAddress
Navigation
HuuAddressuSearch All
1.Enter the house number. Select
Done.
2.Enter the street name. Select
Done.
uA list of matching hits is
automatically displayed after
you enter several letters, with
the closest match at the top of
the list.
3.Select your destination from the
list.
uIf the select city screen is
displayed, select a city.
4.Select Go! to set the route to your
destination.
2Calculating the Route P. 74
■Search All1Search All
The order of the steps may change depending on the
map data loaded on your system.

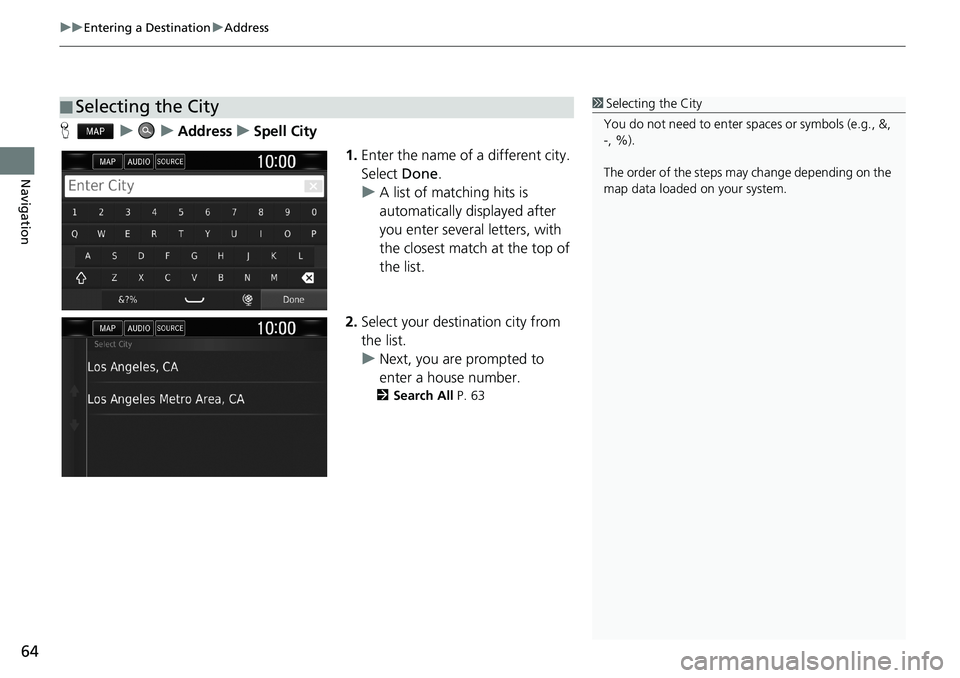

uuEntering a DestinationuAddress
64
Navigation
HuuAddressuSpell City
1.Enter the name of a different city.
Select Done.
uA list of matching hits is
automatically displayed after
you enter several letters, with
the closest match at the top of
the list.
2.Select your destination city from
the list.
uNext, you are prompted to
enter a house number.
2Search All P. 63
■Selecting the City1Selecting the City
You do not need to enter spaces or symbols (e.g., &,
-, %).
The order of the steps may change depending on the
map data loaded on your system.

65
uuEntering a DestinationuAddress
Navigation
HuuAddressuEnter Postal Code
1.Enter the postal code. Select
Done.
2.Select your destination postal code
from the list.
3.Enter the house number. Select
Done.
4.Enter the street name. Select
Done.
5.Select your destination street from
the list.
2Calculating the Route P. 74
■Selecting the Postal Code1Selecting the Postal Code
The order of the steps may change depending on the
map data loaded on your system.

74
Navigation
Calculating the Route
This section describes how to calculate your route.
Select Go!.
uThe system calculates and displays
the route line on the map screen.
The following options are available:
•Routes: Displays different routes.
2Viewing and Selecting the Routes P. 75
• : Displays the destination on the map.
2Viewing the Destination Map P. 76
1Calculating the Route
If the system has many guidance points on the route
to the destination, it may stop calculation.
In this case, the route guidance will start when you
select OK.
