2020 HONDA CLARITY FUEL CELL coolant

19
Quick Reference Guide

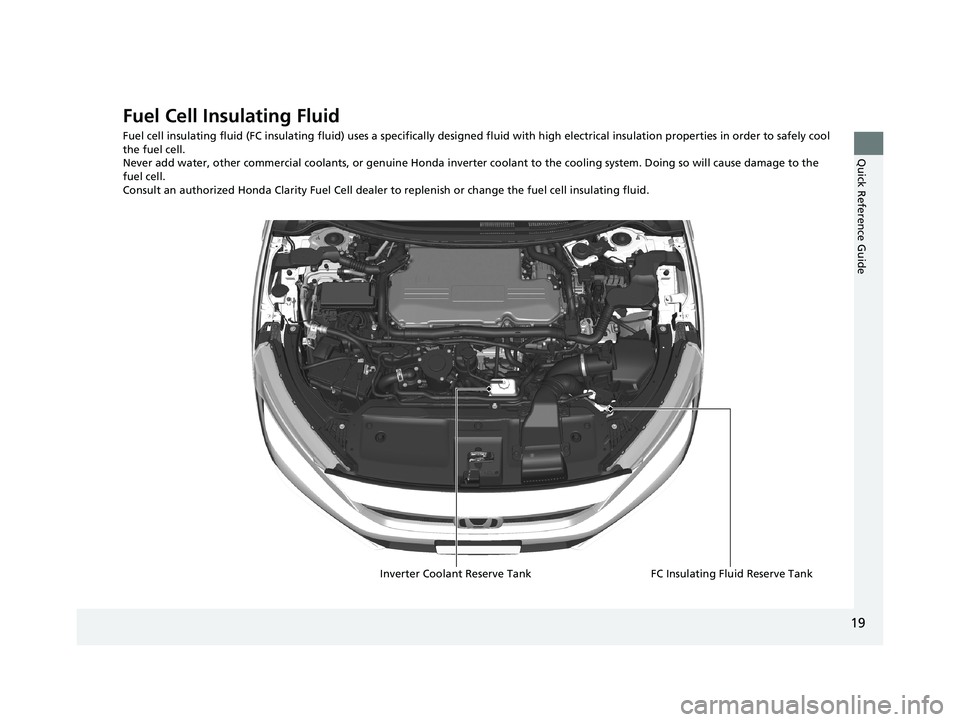

Fuel Cell Insulating Fluid
Fuel cell insulating fluid (FC insulating fluid) uses a specifically designed fluid with high electrical insulation properties in order to safely cool
the fuel cell.
Never add water, other commercial coolants, or genuine Honda inverter coolant to the cooling system. Doing so will cause damage to the
fuel cell.
Consult an authorized Honda Clarity Fuel Cell dealer to replenish or change the fuel cell insulating fluid.
FC Insulating Fluid Reserve Tank
Inverter Coolant Reserve Tank
20 CLARITY FCV CSS-31TRT6300.book 19 ページ ２０１９年９月１０日　火曜日　午前１１時 ３分

37
Quick Reference Guide

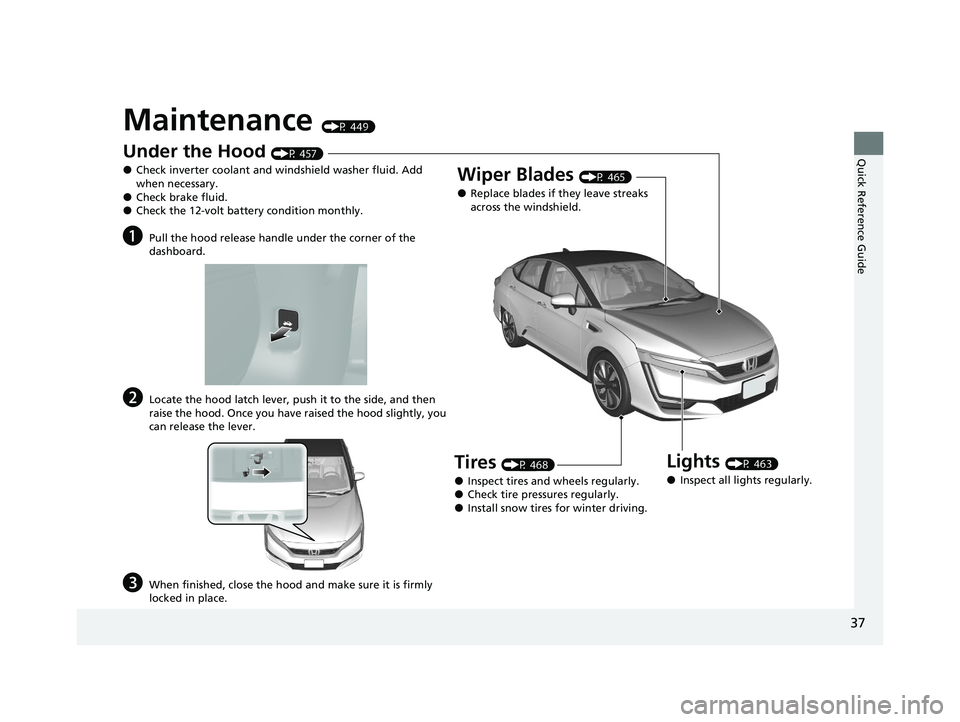

Maintenance (P 449)
Under the Hood (P 457)
●Check inverter coolant and windshield washer fluid. Add
when necessary.
●Check brake fluid.●Check the 12-volt battery condition monthly.
aPull the hood release handle under the corner of the
dashboard.
bLocate the hood latch lever, push it to the side, and then
raise the hood. Once you have raised the hood slightly, you
can release the lever.
cWhen finished, close the hood and make sure it is firmly
locked in place.
Lights (P 463)
●Inspect all lights regularly.
Wiper Blades (P 465)
●Replace blades if they leave streaks
across the windshield.
Tires (P 468)
●Inspect tires and wheels regularly.●Check tire pressures regularly.●Install snow tires for winter driving.
20 CLARITY FCV CSS-31TRT6300.book 37 ページ ２０１９年９月１０日　火曜日　午前１１時 ３分

83
Safe Driving
Safety Labels
Label Locations
These labels are in the locations shown. They warn you of potential hazards that can cause serious injury or death. Read these labels
carefully.
If a label comes off or becomes hard to read (except for the U. S. dashboard label which may be removed by the owner), contact a n
authorized Honda Clarity Fuel Cell dealer for a replacement.
Dashboard Sun Visors
Inverter Coolant
Reserve Tank Cap
FCVCU
Air Conditioner System PCU
20 CLARITY FCV CSS-31TRT6300.book 83 ページ ２０１９年９月１０日　火曜日　午前１１時３分

290
uuGeneral Information on the Audio System uHonda App License Agreement
Features
E. Information Collection and Storage
1. Information Collection , Use, Transmission and Storage of Data.
Consent to Use of Data: You ag ree that HONDA and PROVIDERS may
collect and use your information gathered in any manner as part of product support services related to the SOFTWARE or related services.
HONDA may share such information with third parties, including, without limitation, PROV IDERS, third party software and service s
suppliers, their affiliates and/or their design ated agents, solely to improve their products or to provide services or technologies to you.
HONDA, third party software and systems supp liers, their affiliates and/or their designated agent may disclose this information to others,
but not in a form that pe rsonally identifies you.
2. Information Storage.
Depending on the type of multimedia system you have in your VEHICLE, certain information may be stored for ease
of use of the SOFTWARE including, without limitation, search hi story, location history in certain applications, previous and saved
destinations, map locations within certain applications, and device numbers and contact information.
(a) Vehicle Health Information.
Your VEHICLE may remotely trans mit information regarding the status and health of your VEHICLE
(“VEHICLE INFORMATION”) to HONDA without notification to you. VEHICLE INFORMATION may contain VEHICLE maintenance and
malfunction status that is derived from VEHICLE diagnostic data and includes, but is not limited to, status of powered doors and windows,
battery life data, battery charging data, VEHICLE speed, coolant temperat ure, air compressor revolution, output power, warning codes,
diagnostic trouble codes, fuel injection volu me, and engine rotations per minute. VEHICL E HEALTH INFORMATION may be used by HON DA
for research and development, to deliver HO NDA SERVICES and information to you, and to contact you, and is retained only for a period
of time necessary to fulfill these goals.
(b) VEHICLE Geolocation Data (non-navigation/map based).
If you opt-in to geolocation-based SERVICES, your vehicle’s geolocation data
(latitude and longitude) will be automatically sent from your VEHICLE to HONDA and PROVIDERS.
(c) You understand that the inputting or uploading of information to your VEHICLE’s multimedia system or the SOFTWARE or SERVICES is
at your own risk and that HONDA is not resp onsible for unauthorized access to or use of any personal or other information. All information
uploaded to the SOFTWARE and SERVICES may be stored on your VEHI CLES’s multimedia system and you understand that the security and
safety of your VEHICLE’s multimedia system is your sole responsibility.
20 CLARITY FCV CSS-31TRT6300.book 290 ページ ２０１９年９月１０日　火曜日　午前１１ 時３分

449
Maintenance
This chapter discusses basic maintenance.
Before Performing MaintenanceInspection and Maintenance ............ 450
Safety When Performing Maintenance ..451
Parts and Fluids Used in Maintenance Service ........................................... 452
Maintenance Minder
TM..................... 453
Maintenance Under the Hood Maintenance Items Under the Hood .. 457
Opening the Hood ........................... 458
Inverter Coolant ............................... 459
Transmission Fluid ............................ 461
Brake Fluid ....................................... 461 Refilling Window Washer Fluid......... 462
Replacing Light Bulbs ....................... 463
Checking and Maintaining Wiper
Blades .......................................... 465
Checking and Maintaining Tires
Checking Tires ................................. 468
Tire and Loading Information Label .. 469
Tire Labeling .................................... 469
DOT Tire Quality Grading (U.S. Vehicles).. 471
Wear Indicators................................ 473
Tire Service Life ................................ 473
Tire and Wheel Replacement............ 474 Tire Rotation .................................... 475
Winter Tires ..................................... 476
12-Volt Battery ................................. 477
Remote Transmitter Care Replacing the Button Battery ........... 479
Climate Control System Maintenance.. 480
CleaningInterior Care .................................... 481
Exterior Care.................................... 483
Accessories and Modifications ........ 487
20 CLARITY FCV CSS-31TRT6300.book 449 ページ ２０１９年９月１０日　火曜日　午前１１ 時３分

457
Maintenance
Maintenance Under the Hood

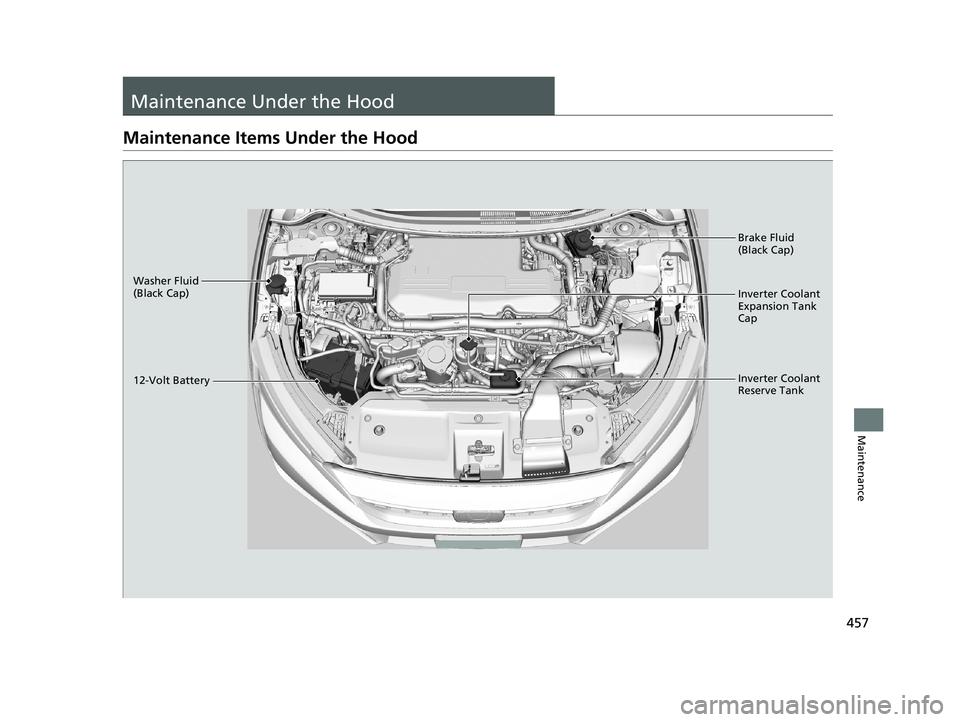

Maintenance Items Under the Hood
Washer Fluid
(Black Cap)
12-Volt BatteryBrake Fluid
(Black Cap)
Inverter Coolant
Expansion Tank
Cap
Inverter Coolant
Reserve Tank
20 CLARITY FCV CSS-31TRT6300.book 457 ページ ２０１９年９月１０日　火曜日　午前１１
時３分

459
uuMaintenance Under the Hood uInverter Coolant
Continued
Maintenance
Inverter Coolant
This coolant is premixed with 50% an tifreeze and 50% water. Do not add any
straight antifreeze or water.
We recommend you check the inverter cool ant level every time you refuel. Check
the reserve tank. Add the in verter coolant accordingly.
1. Make sure the motor and radiator are cool.
2. Check the amount of coolant in the reserve
tank.
u If the coolant level is below the MIN
mark, add the specified coolant until it
reaches the MAX mark.
3. Inspect the cooling system for leaks.
Specified coolant: Ho nda Long Life Antifreeze/Coolant Type 2
■Reserve Tank
1Inverter Coolant
NOTICE
Genuine Honda inverter coolant is a 50/50 mixture of
antifreeze and water that can withstand freezing at
temperatures as low as a bout –31°F (–35°C). If your
vehicle is consistently subjected to temperatures
below this, the concentration of antifreeze in the
coolant should be increased. Consult an authorized
Honda Clarity Fuel Ce ll dealer for details.
If Honda antifreeze /coolant is not available, you may
use another major brand of non-silicate coolant as a
temporary replacement. Check that it is a high quality
coolant recommended fo r aluminum motors.
Continued use of any non-Honda coolant can result
in corrosion, causing the cooling system to
malfunction or fail. Have the cooling system flushed
and refilled with Honda anti freeze/coolant as soon as
possible.
3WARNING
Removing the expansion tank cap while the
motor is hot can cause the coolant to spray
out, seriously scalding you.
Always let the motor and radiator cool
down before removing the expansion tank
cap.
MAX
Reserve
TankMIN
20 CLARITY FCV CSS-31TRT6300.book 459 ページ ２０１９年９月１０日　火曜日　午前１１ 時３分

uuMaintenance Under the Hood uInverter Coolant
460
Maintenance

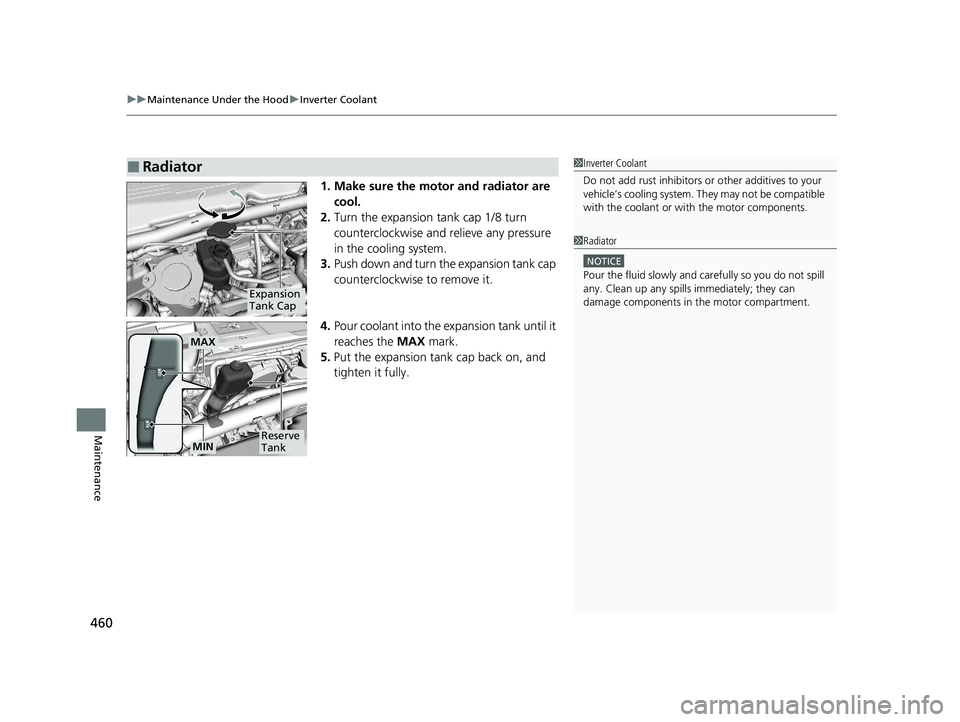

1. Make sure the motor and radiator are
