2020 HONDA CLARITY FUEL CELL reset

455

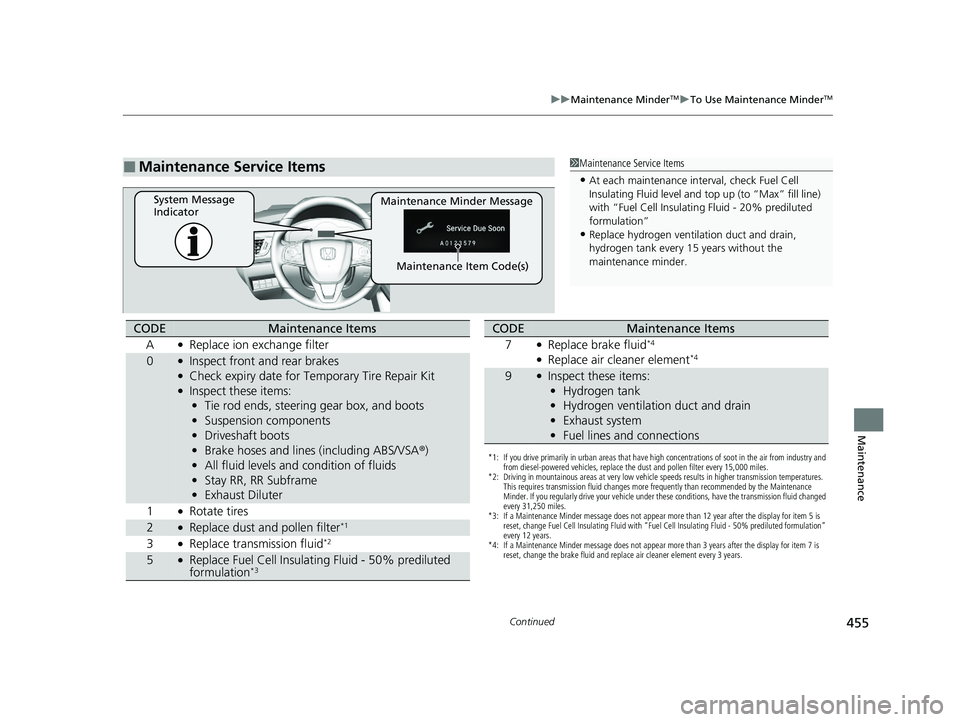

uuMaintenance MinderTMuTo Use Maintenance MinderTM
Continued
Maintenance
■Maintenance Service Items1Maintenance Service Items
•At each maintenance interval, check Fuel Cell
Insulating Fluid level and top up (to “Max” fill line)
with “Fuel Cell Insulating Fluid - 20% prediluted
formulation”
•Replace hydrogen ventil ation duct and drain,
hydrogen tank every 15 years without the
maintenance minder.
Maintenance Minder Message
System Message
Indicator
Maintenance Item Code(s)
CODEMaintenance Items
A
●Replace ion exchange filter
0●Inspect front and rear brakes●Check expiry date for Temporary Tire Repair Kit●Inspect these items: • Tie rod ends, steering gear box, and boots
• Suspension components
• Driveshaft boots
• Brake hoses and lines (including ABS/VSA ®)
• All fluid levels and condition of fluids
• Stay RR, RR Subframe
• Exhaust Diluter
1
●Rotate tires
2●Replace dust and pollen filter*1
3●Replace transmission fluid*2
5●Replace Fuel Cell Insulati ng Fluid - 50% prediluted
formulation*3
*1: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and
from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles.
*2: Driving in mountainous areas at very low vehicle speeds results in higher transmission temperatures. This requires transmission fluid changes more frequently than recommended by the Maintenance
Minder. If you regularly drive your vehicle under these conditions, have the transmission fluid changed
every 31,250 miles.
*3: If a Maintenance Minder message does not appear more than 12 year after the display for item 5 is reset, change Fuel Cell Insulating Fluid with “Fuel Cell Insulating Fluid - 50% prediluted formulation”
every 12 years.
*4: If a Maintenance Minder message does not appear more than 3 years after the display for item 7 is reset, change the brake fluid and replace air cleaner element every 3 years.
CODEMaintenance Items
7
●Replace brake fluid*4
●Replace air cleaner element*4
9●Inspect these items: • Hydrogen tank
• Hydrogen ventilation duct and drain
• Exhaust system
• Fuel lines and connections
20 CLARITY FCV CSS-31TRT6300.book 455 ページ ２０１９年９月１０日　火曜日　午前１１ 時３分

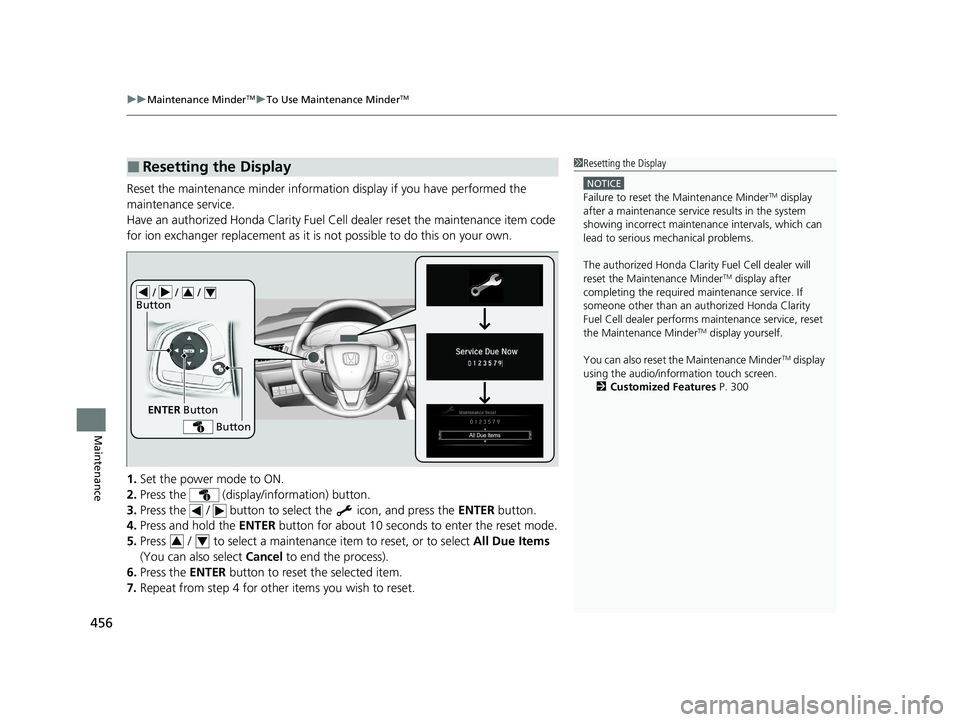

uuMaintenance MinderTMuTo Use Maintenance MinderTM
456
Maintenance
Reset the maintenance minder informati on display if you have performed the
maintenance service.
Have an authorized Honda Clarity Fuel Ce ll dealer reset the maintenance item code
for ion exchanger replacement as it is not possible to do this on your own.
1. Set the power mode to ON.
2. Press the (display/information) button.
3. Press the / button to sele ct the icon, and press the ENTER button.
4. Press and hold the ENTER button for about 10 seconds to enter the reset mode.
5. Press / to select a maintenance item to reset, or to select All Due Items
(You can also select Cancel to end the process).
6. Press the ENTER button to reset the selected item.
7. Repeat from step 4 for other items you wish to reset.
■Resetting the Display1Resetting the Display
NOTICE
Failure to reset the Maintenance MinderTM display
after a maintenance servic e results in the system
showing incorrect maintena nce intervals, which can
lead to serious mechanical problems.
The authorized Honda Clarity Fuel Cell dealer will
reset the Maintenance Minder
TM display after
completing the required ma intenance service. If
someone other than an authorized Honda Clarity
Fuel Cell dealer performs maintenance service, reset
the Maintenance Minder
TM display yourself.
You can also reset the Maintenance Minder
TM display
using the audio/information touch screen.
2 Customized Features P. 300
/ / /
Button34
ENTER Button
Button
34
20 CLARITY FCV CSS-31TRT6300.book 456 ページ ２０１９年９月１０日　火曜日　午前１１ 時３分

465Continued
Maintenance

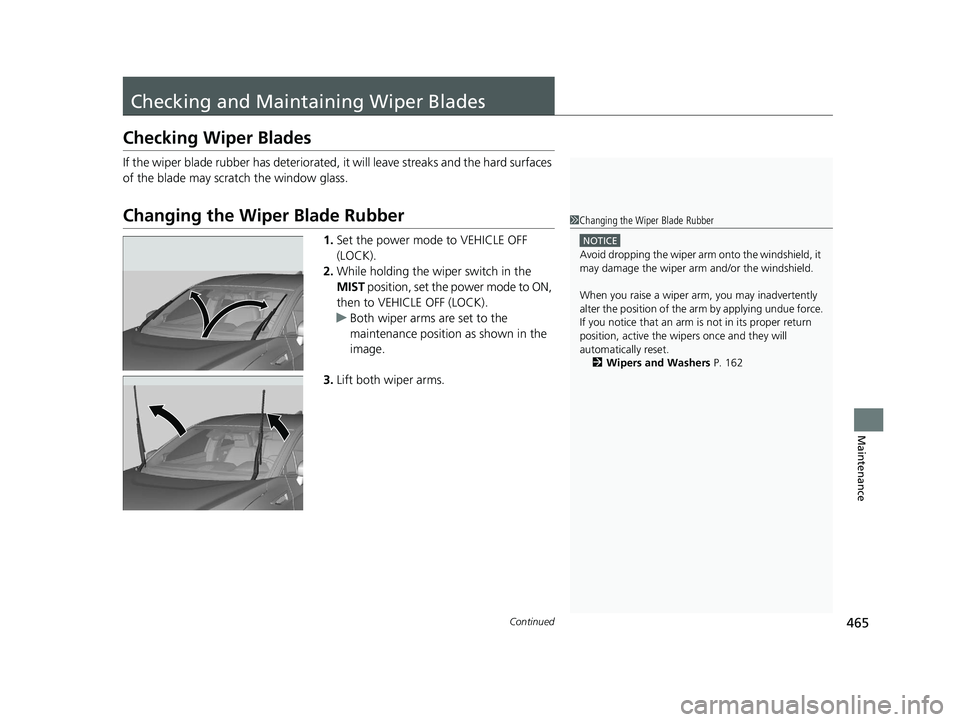

Checking and Maintaining Wiper Blades
Checking Wiper Blades
If the wiper blade rubber has deteriorated, it will leave streaks and the hard surfaces
of the blade may scratch the window glass.
Changing the Wiper Blade Rubber
1. Set the power mode to VEHICLE OFF
(LOCK).
2. While holding the wiper switch in the
MIST position, set the power mode to ON,
then to VEHICLE OFF (LOCK).
u Both wiper arms are set to the
maintenance position as shown in the
image.
3. Lift both wiper arms.
1Changing the Wiper Blade Rubber
NOTICE
Avoid dropping the wiper arm onto the windshield, it
may damage the wiper arm and/or the windshield.
When you raise a wiper arm, you may inadvertently
alter the position of the arm by applying undue force.
If you notice that an arm is not in its proper return
position, active the wipers once and they will
automatically reset. 2 Wipers and Washers P. 162
20 CLARITY FCV CSS-31TRT6300.book 465 ページ ２０１９年９月１０日　火曜日　午前１１ 時３分

477
Maintenance
12-Volt Battery
Checking the 12-Volt Battery
Check the battery condition monthly. Look at
the test indicator window and check the
terminals for corrosion.
The battery condition is monitored by the
sensor on the negative terminal. If there is a
problem with the sensor, the warning
message on the driver information interface
will let you know. Have your vehicle checked
by an authorized Honda Clarity Fuel Cell
dealer.
If your vehicle’s battery is disconnected or goes dead:
• The audio system is disabled.
2 Reactivating the audio system P. 200
•The clock resets.
2 Clock P. 132
112-Volt Battery
WARNING: Battery post, terminals,
and related accessories contain lead
and lead compounds.
Wash your hands after handling.
The test indicator’s color information is on the
battery.
When you find corrosion, cl ean the battery terminals
by applying a baking powder and water solution.
Clean the terminals with a damp towel. Cloth/towel
dry the battery. Coat the terminals with grease to
help prevent future corrosion.
3WARNING
The battery gives off explosive hydrogen
gas during normal operation.
A spark or flame can cause the battery to
explode with enough force to kill or
seriously hurt you.
When conducting any battery
maintenance, wear prot ective clothing and
a face shield, or have a skilled technician do
it.
Test Indicator Window
20 CLARITY FCV CSS-31TRT6300.book 477 ページ ２０１９年９月１０日　火曜日　午前１１ 時３分

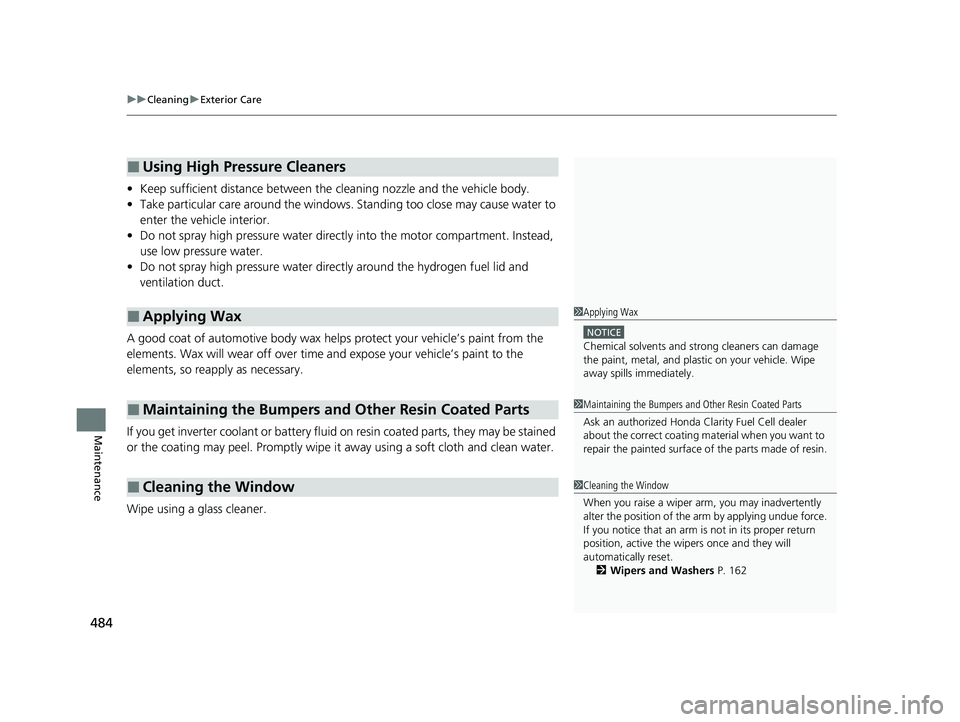

uuCleaning uExterior Care
484
Maintenance
• Keep sufficient distance between the cleaning nozzl e and the vehicle body.
• Take particular care around the windows. Standing too close may cause water to
enter the vehicle interior.
• Do not spray high pressure water directly into the motor co mpartment. Instead,
use low pressure water.
• Do not spray high pressure water direct ly around the hydrogen fuel lid and
ventilation duct.
A good coat of automotive body wax helps protect your vehicle’s paint from the
elements. Wax will wear off over time and expose your vehicle’s paint to the
elements, so reapply as necessary.
If you get inverter coolant or battery fluid on resin coated parts, they may be stained
or the coating may peel. Promptly wipe it away using a soft cloth and clean water.
Wipe using a glass cleaner.
■Using High Pressure Cleaners
■Applying Wax
■Maintaining the Bumpers and Other Resin Coated Parts
■Cleaning the Window
1 Applying Wax
NOTICE
Chemical solvents and st rong cleaners can damage
the paint, metal, and plasti c on your vehicle. Wipe
away spills immediately.
1 Maintaining the Bumpers an d Other Resin Coated Parts
Ask an authorized Honda Cl arity Fuel Cell dealer
about the correct coating ma terial when you want to
repair the painted surface of the parts made of resin.
1Cleaning the Window
When you raise a wiper arm, you may inadvertently
alter the position of the arm by applying undue force.
If you notice that an arm is not in its proper return
position, active the wipers once and they will
automatically reset.
2 Wipers and Washers P. 162
20 CLARITY FCV CSS-31TRT6300.book 484 ページ ２０１９年９月１０日　火曜日　午前１１ 時３分

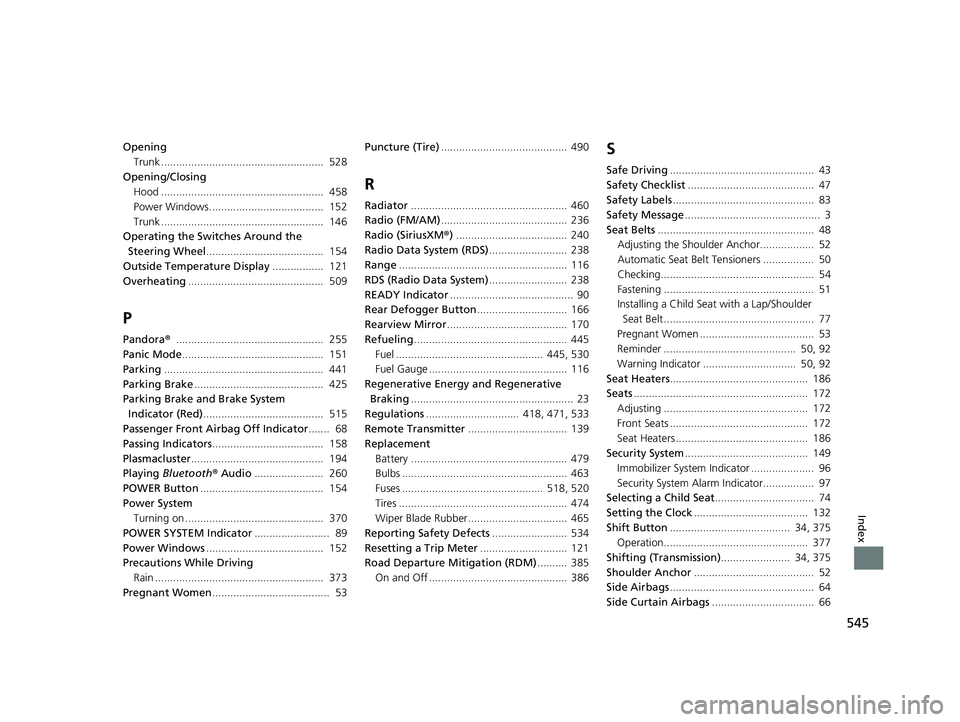

545
Index
OpeningTrunk ...................................................... 528
Opening/Closing Hood ...................................................... 458
Power Windows...................................... 152
Trunk ...................................................... 146
Operating the Switches Around the Steering Wheel ....................................... 154
Outside Temperature Display ................. 121
Overheating ............................................. 509
P
Pandora®................................................. 255
Panic Mode ............................................... 151
Parking ..................................................... 441
Parking Brake ........................................... 425
Parking Brake and Brake System
Indicator (Red) ........................................ 515
Passenger Front Airb ag Off Indicator....... 68
Passing Indicators ..................................... 158
Plasmacluster ............................................ 194
Playing Bluetooth ® Audio ....................... 260
POWER Button ......................................... 154
Power System Turning on .............................................. 370
POWER SYSTEM Indicator ......................... 89
Power Windows ....................................... 152
Precautions While Driving Rain ........................................................ 373
Pregnant Women ....................................... 53 Puncture (Tire)
.......................................... 490
R
Radiator.................................................... 460
Radio (FM/AM) .......................................... 236
Radio (SiriusXM ®) ..................................... 240
Radio Data System (RDS) .......................... 238
Range ........................................................ 116
RDS (Radio Data System) .......................... 238
READY Indicator ......................................... 90
Rear Defogger Button .............................. 166
Rearview Mirror ........................................ 170
Refueling ................................................... 445
Fuel ................................................. 445, 530
Fuel Gauge .............................................. 116
Regenerative Energy and Regenerative Braking ...................................................... 23
Regulations ............................... 418, 471, 533
Remote Transmitter ................................. 139
Replacement
Battery .................................................... 479
Bulbs ....................................................... 463
Fuses ............................................... 518, 520
Tires ........................................................ 474
Wiper Blade Rubber ................................. 465
Reporting Safety Defects ......................... 534
Resetting a Trip Meter ............................. 121
Road Departure Mitigation (RDM) .......... 385
On and Off .............................................. 386
S
Safe Driving ................................................ 43
Safety Checklist .......................................... 47
Safety Labels ............................................... 83
Safety Message ............................................. 3
Seat Belts .................................................... 48
Adjusting the Shoulder Anchor.................. 52
Automatic Seat Belt Tensioners ................. 50
Checking................................................... 54
Fastening .................................................. 51
Installing a Child Seat with a Lap/Shoulder
Seat Belt .................................................. 77
Pregnant Women ...................................... 53
Reminder ............................................ 50, 92
Warning Indicator ............................... 50, 92
Seat Heaters .............................................. 186
Seats .......................................................... 172
Adjusting ................................................ 172
Front Seats .............................................. 172
Seat Heaters ............................................ 186
Security System ......................................... 149
Immobilizer System Indicator ..................... 96
Security System Alarm Indicator................. 97
Selecting a Child Seat ................................. 74
Setting the Clock ...................................... 132
Shift Button ........................................ 34, 375
Operation................................................ 377
Shifting (Transmission) ....................... 34, 375
Shoulder Anchor ........................................ 52
Side Airbags ................................................ 64
Side Curtain Airbags .................................. 66
20 CLARITY FCV CSS-31TRT6300.book 545 ページ ２０１９年９月１０日　火曜日　午前１１ 時３分
