2020 HONDA CLARITY FUEL CELL trunk

527
Handling the Unexpected
When You Cannot Unlock the Hydrogen Fuel Lid
If you cannot unlock the hydrogen fuel lid, use the following procedure.
1.Open the trunk and remove the cover.
2. Pull the release lever toward you.
u The release lever opens the hydrogen
fuel lid when it is pulled.
■What to Do When Unable to Unlock the Hydrogen Fuel Lid1When You Cannot Unlock the Hydrogen Fuel Lid
After taking these steps, contact an authorized
Honda Clarity Fuel Cell dealer to have your vehicle
checked.
Cover
Release Lever
20 CLARITY FCV CSS-31TRT6300.book 527 ページ ２０１９年９月１０日　火曜日　午前１１ 時３分

528
Handling the Unexpected

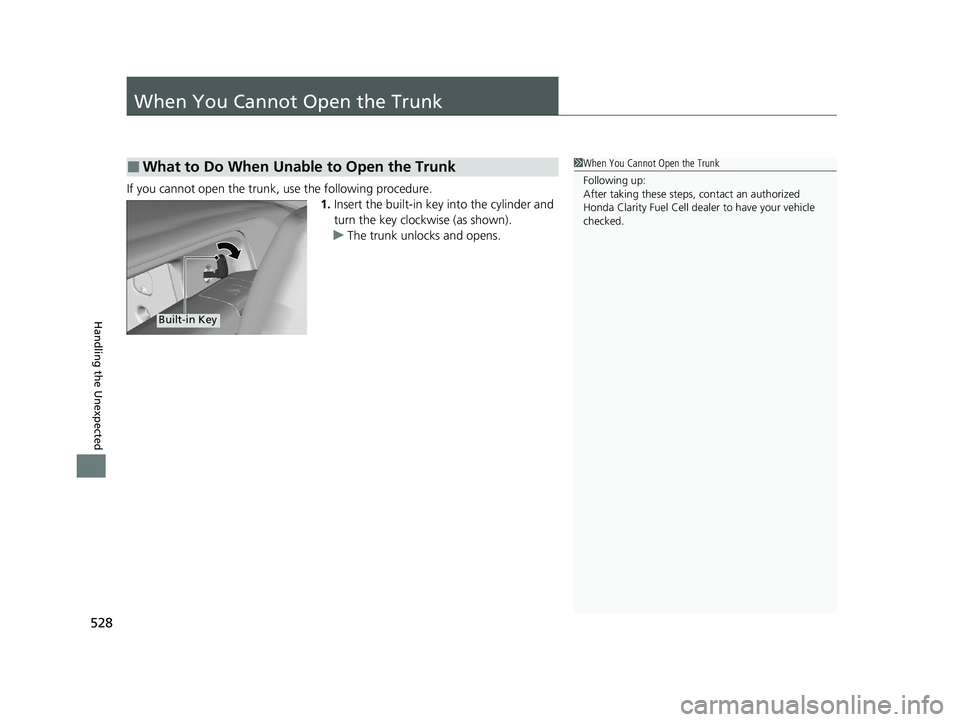

When You Cannot Open the Trunk
If you cannot open the trunk, use the following procedure.1.Insert the built-in key into the cylinder and
turn the key clockwise (as shown).
u The trunk unlocks and opens.
■What to Do When Unable to Open the Trunk1When You Cannot Open the Trunk
Following up:
After taking these steps, contact an authorized
Honda Clarity Fuel Cell dealer to have your vehicle
checked.
Built-in Key
20 CLARITY FCV CSS-31TRT6300.book 528 ページ ２０１９年９月１０日　火曜日　午前１１ 時３分

530
Information
Specifications
■Vehicle Specifications
■ Air Conditioning
ModelCLARITY FUEL CELL
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle Weight
Rating See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Front)See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Rear)See the certification label on the driver’s
doorjamb
Refrigerant TypeHFO-1234yf (R-1234yf)
Charge Quantity 13.9 – 15.7 oz (395 – 445 g)
Lubricant TypeSE-A2 (POE)
Quantity 7.63 – 9.46 cu-in (125 – 155 cc)
■ Fuel
*1: A measured value when refueled at a hydrogen station with 70
MPa (10,153 psig) of supply pressure compliant with the SAE
(J2601) fueling protocol.
■Washer Fluid
Fuel requirementCompressed hydrogen gas
Hydrogen supply
pressure 70 MPa (10,153 psig) (at 59°F [15°C])
Hydrogen filling
amount*1Approximately 11 lbs (5 kg) (at 70 MPa
[10,153 psig])
Hydrogen tanks
capacity 37.3 US gal (141.3 L) (at 70 MPa
[10,153 psig])
Tank Capacity1.43 US qt (1.35 L)
■
Light Bulbs
Headlights (Low Beam)LED
Headlights (High Beam) LED
Front Turn Signal LightsLED
Front Side Marker Lights LED
Parking/Daytime Running LightsLED
Taillights/Rear Side Marker Lights LED
Brake LightsLED
Taillights LED
Back-Up LightsLED
Rear Turn Signal Lights LED
High-Mount Brake LightLED
Rear License Plate Light LED
Interior LightsFront and Rear Map LightsLEDFront and Rear Ambient LightsLEDVanity Mirror Lights1.4 WCenter Console LightLEDGlove Box LightLEDFront Foot LightsLEDTrunk LightLED
20 CLARITY FCV CSS-31TRT6300.book 530 ページ ２０１９年９月１０日　火曜日　午前１１ 時３分

545
Index
OpeningTrunk ...................................................... 528
Opening/Closing Hood ...................................................... 458
Power Windows...................................... 152
Trunk ...................................................... 146
Operating the Switches Around the Steering Wheel ....................................... 154
Outside Temperature Display ................. 121
Overheating ............................................. 509
P
Pandora®................................................. 255
Panic Mode ............................................... 151
Parking ..................................................... 441
Parking Brake ........................................... 425
Parking Brake and Brake System
Indicator (Red) ........................................ 515
Passenger Front Airb ag Off Indicator....... 68
Passing Indicators ..................................... 158
Plasmacluster ............................................ 194
Playing Bluetooth ® Audio ....................... 260
POWER Button ......................................... 154
Power System Turning on .............................................. 370
POWER SYSTEM Indicator ......................... 89
Power Windows ....................................... 152
Precautions While Driving Rain ........................................................ 373
Pregnant Women ....................................... 53 Puncture (Tire)
.......................................... 490
R
Radiator.................................................... 460
Radio (FM/AM) .......................................... 236
Radio (SiriusXM ®) ..................................... 240
Radio Data System (RDS) .......................... 238
Range ........................................................ 116
RDS (Radio Data System) .......................... 238
READY Indicator ......................................... 90
Rear Defogger Button .............................. 166
Rearview Mirror ........................................ 170
Refueling ................................................... 445
Fuel ................................................. 445, 530
Fuel Gauge .............................................. 116
Regenerative Energy and Regenerative Braking ...................................................... 23
Regulations ............................... 418, 471, 533
Remote Transmitter ................................. 139
Replacement
Battery .................................................... 479
Bulbs ....................................................... 463
Fuses ............................................... 518, 520
Tires ........................................................ 474
Wiper Blade Rubber ................................. 465
Reporting Safety Defects ......................... 534
Resetting a Trip Meter ............................. 121
Road Departure Mitigation (RDM) .......... 385
On and Off .............................................. 386
S
Safe Driving ................................................ 43
Safety Checklist .......................................... 47
Safety Labels ............................................... 83
Safety Message ............................................. 3
Seat Belts .................................................... 48
Adjusting the Shoulder Anchor.................. 52
Automatic Seat Belt Tensioners ................. 50
Checking................................................... 54
Fastening .................................................. 51
Installing a Child Seat with a Lap/Shoulder
Seat Belt .................................................. 77
Pregnant Women ...................................... 53
Reminder ............................................ 50, 92
Warning Indicator ............................... 50, 92
Seat Heaters .............................................. 186
Seats .......................................................... 172
Adjusting ................................................ 172
Front Seats .............................................. 172
Seat Heaters ............................................ 186
Security System ......................................... 149
Immobilizer System Indicator ..................... 96
Security System Alarm Indicator................. 97
Selecting a Child Seat ................................. 74
Setting the Clock ...................................... 132
Shift Button ........................................ 34, 375
Operation................................................ 377
Shifting (Transmission) ....................... 34, 375
Shoulder Anchor ........................................ 52
Side Airbags ................................................ 64
Side Curtain Airbags .................................. 66
20 CLARITY FCV CSS-31TRT6300.book 545 ページ ２０１９年９月１０日　火曜日　午前１１ 時３分

546
Index
Siri® Eyes Free ............................................ 269
SiriusXM ® Radio ........................................ 240
Smart Entry System ................................... 135
Snow Tires ................................................. 476
Song By Voice
TM (SBV) .............................. 251
Spare Tire (Optional) ................................ 531
Specifications ............................................ 530
Specified Fuel .................................... 445, 530
SPORT Mode ............................................. 381
SPORT Mode Indicator ....................... 97, 381
SRS Airbags (Airbags) ................................. 58
Steering Wheel Adjusting ................................................. 169
Stopping .................................................... 441
Summer Tires ............................................ 476
Supplemental Restraint System (SRS) ........ 58
Switches (Around the Steering
Wheel) ............................................. 6, 7, 154
Synchronization Mode ............................. 193
System Message Indicator .......................... 95
T
Temperature Sensor................................. 196
Temporary Tire Repair Kit ........................ 491
Time (Setting) ........................................... 132
Tire Pressure Monitoring System
(TPMS) ...................................................... 416
Indicator ............................................ 94, 516
Tires ........................................................... 468
Air Pressure ..................................... 469, 531 Chains..................................................... 476
Checking and Maintaining ...................... 468
Flat Tire (Puncture) .................................. 490
Inspection ............................................... 468
Labeling .................................................. 469
Regulations ............................................. 471
Rotation .................................................. 475
Spare (Optional) ...................................... 531
Summer .................................................. 476
Temporary Tire Re
pair Kit ........................ 491
Wear Indicators ....................................... 473
Winter..................................................... 476
Towing a Trailer ....................................... 369
Towing Your Vehicle ................................ 369
Emergency .............................................. 526
TPMS (Tire Pressure Monitoring System) .................................................... 416
Transmission ............................... 34, 374, 375
Creeping ................................................. 374
Fluid ........................................................ 461
Gear Position Indicator ...................... 91, 377
Number................................................... 532
Operating the Shift Button ................ 34, 377
Shifting ................................................... 375
Trip Meter ................................................. 121
Troubleshooting ....................................... 489
Blown Fuse...................................... 518, 520
Brake Pedal Vibrates .................................. 39
Buzzer Sounds When Opening Door.......... 39
Emergency Towing .................................. 526
Flat Tire/Puncture .................................... 490 Noise When Braking ................................. 41
Overheating ............................................ 509
Power System Won’t Start ...................... 503
Rear Door Won’t Open ..................... 39, 144
Warning Indicators.................................... 86
Trunk ........................................................ 146
Lid .......................................................... 146
Light Bulbs .............................................. 530
Unable to Open ...................................... 528
Turn Signals .............................................. 157
Indicators (Instru ment Panel) ..................... 96
Turn-by-Turn Directions .................. 122, 129
Turning on the Power ............................. 370
Does Not Activate ................................... 503
Jump Starting ......................................... 506
U
Under-Floor Storage Area ....................... 185
Unlocking the Doors ................................ 135
Unlocking the Fron t Doors from the
Inside ................................................. 28, 142
USB Flash Drives ............................... 257, 283
USB Ports .................................................. 199
Using the Smart Entr y with Push Button
Start System ............................................ 135
V
Vanity Mirrors .............................................. 9
Vehicle Identification Number ................ 532
20 CLARITY FCV CSS-31TRT6300.book 546 ページ ２０１９年９月１０日　火曜日　午前１１ 時３分
