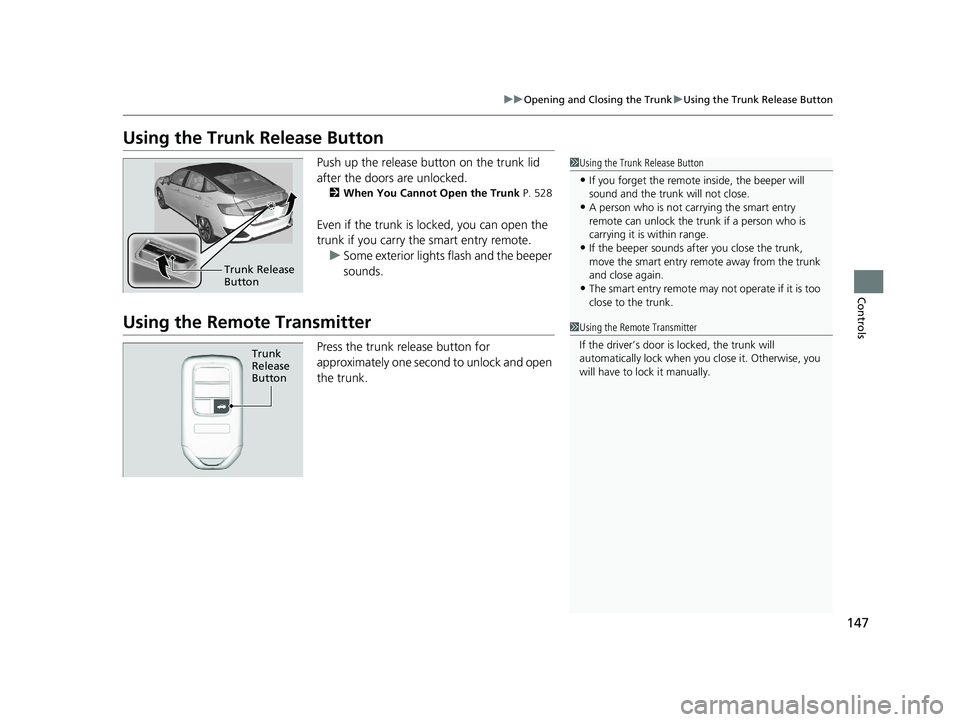

2020 HONDA CLARITY FUEL CELL trunk release

147
uuOpening and Closing the Trunk uUsing the Trunk Release Button
Controls
Using the Trunk Release Button
Push up the release bu tton on the trunk lid
after the doors are unlocked.
2 When You Cannot Open the Trunk P. 528
Even if the trunk is locked, you can open the
trunk if you carry the smart entry remote.
u Some exterior lights flash and the beeper
sounds.
Using the Remote Transmitter
Press the trunk release button for
approximately one second to unlock and open
the trunk.
1Using the Trunk Release Button
•If you forget the remote inside, the beeper will
sound and the trunk will not close.
•A person who is not carrying the smart entry
remote can unlock the tr unk if a person who is
carrying it is within range.
•If the beeper sounds after you close the trunk,
move the smart entry remote away from the trunk
and close again.
•The smart entry remote may not operate if it is too
close to the trunk.
Trunk Release
Button
1 Using the Remote Transmitter
If the driver’s door is locked, the trunk will
automatically lock when yo u close it. Otherwise, you
will have to lock it manually.
Trunk
Release
Button
20 CLARITY FCV CSS-31TRT6300.book 147 ページ ２０１９年９月１０日　火曜日　午前１１ 時３分

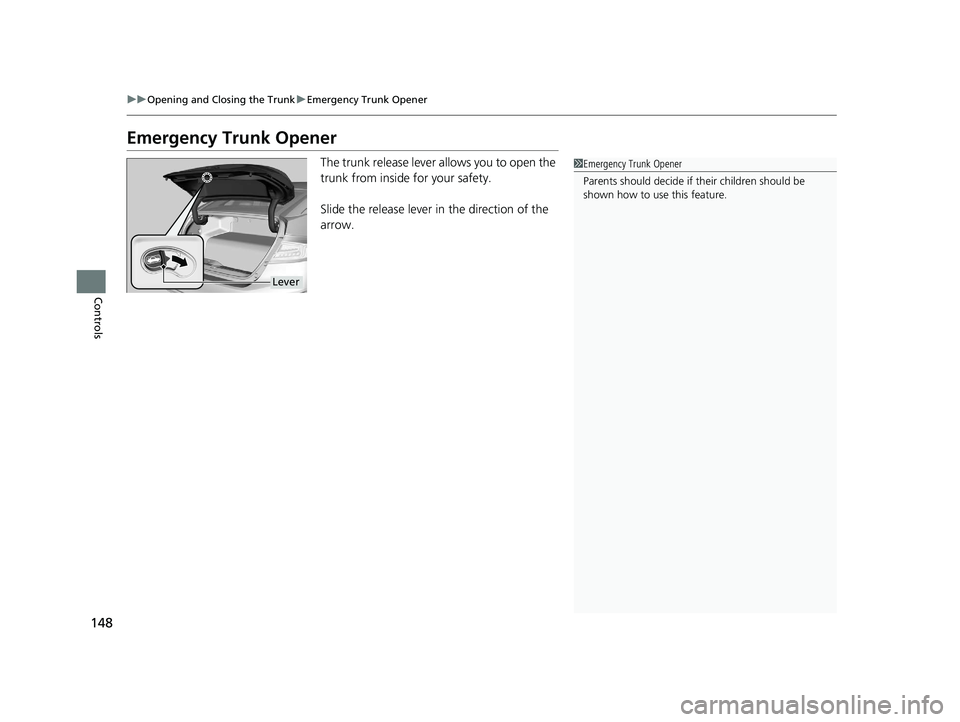

148
uuOpening and Closing the Trunk uEmergency Trunk Opener
Controls
Emergency Trunk Opener
The trunk release lever allows you to open the
trunk from inside for your safety.
Slide the release lever in the direction of the
arrow.1Emergency Trunk Opener
Parents should deci de if their children should be
shown how to use this feature.
Lever
20 CLARITY FCV CSS-31TRT6300.book 148 ページ ２０１９年９月１０日　火曜日　午前１１ 時３分

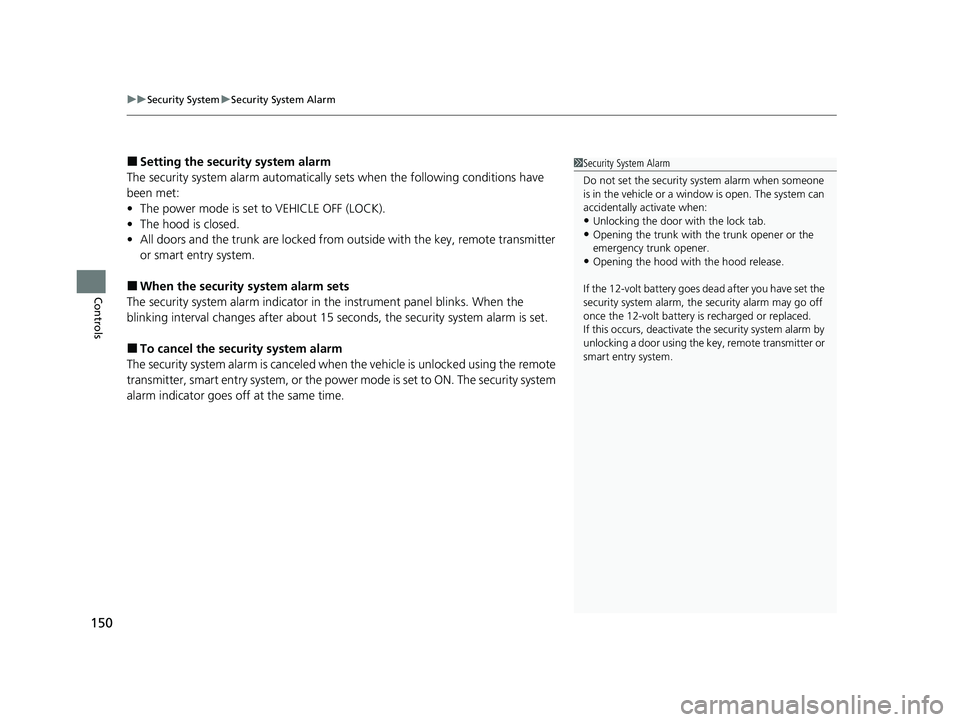

uuSecurity System uSecurity System Alarm
150
Controls
■Setting the security system alarm
The security system alarm automatically sets when the following conditions have
been met:
• The power mode is set to VEHICLE OFF (LOCK).
• The hood is closed.
• All doors and the trunk are locked from outside with the key, remote transmitter
or smart entry system.
■When the security system alarm sets
The security system alarm indicator in the instrument panel blinks. When the
blinking interval changes after about 15 seconds, the security system alarm is set.
■To cancel the security system alarm
The security system alarm is canceled when the vehicle is unlocked using the remote
transmitter, smart entry system, or the power mode is set to ON. The security system
alarm indicator goes off at the same time.
1 Security System Alarm
Do not set the security system alarm when someone
is in the vehicle or a window is open. The system can
accidentally activate when:
•Unlocking the door with the lock tab.•Opening the trunk with the trunk opener or the
emergency trunk opener.
•Opening the hood with the hood release.
If the 12-volt battery goes dead after you have set the
security system alarm, the security alarm may go off
once the 12-volt battery is recharged or replaced.
If this occurs, deactivate the security system alarm by
unlocking a door using the ke y, remote transmitter or
smart entry system.
20 CLARITY FCV CSS-31TRT6300.book 150 ページ ２０１９年９月１０日　火曜日　午前１１ 時３分

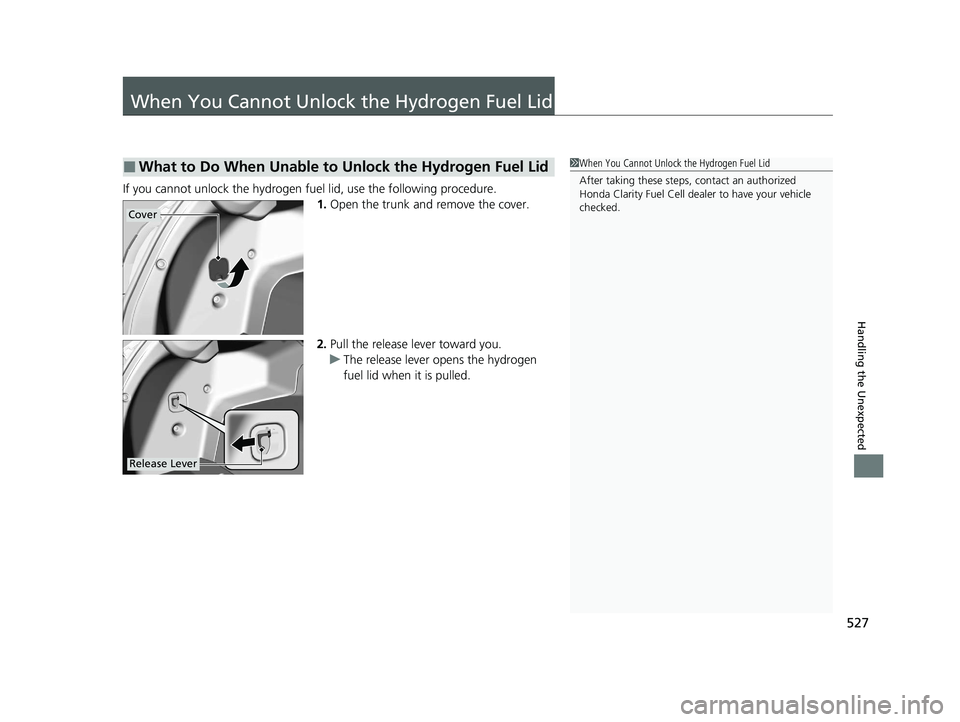

527
Handling the Unexpected
When You Cannot Unlock the Hydrogen Fuel Lid
If you cannot unlock the hydrogen fuel lid, use the following procedure.
1.Open the trunk and remove the cover.
2. Pull the release lever toward you.
u The release lever opens the hydrogen
fuel lid when it is pulled.
■What to Do When Unable to Unlock the Hydrogen Fuel Lid1When You Cannot Unlock the Hydrogen Fuel Lid
After taking these steps, contact an authorized
Honda Clarity Fuel Cell dealer to have your vehicle
checked.
Cover
Release Lever
20 CLARITY FCV CSS-31TRT6300.book 527 ページ ２０１９年９月１０日　火曜日　午前１１ 時３分
