uuHonda Sensing ®u Collision Mitigation Braking SystemTM (CMBSTM)
Driving
• When there is a group of people in front of your vehicle walking together side by
side.
• Surrounding conditions or belongings of the pedestrian alter the pedestrian’s
shape, preventing the system from recogn izing that the person is a pedestrian.
• When the pedestrian is shorter than about 3.3 feet (1 meter) or taller than about
6.6 feet (2 meters) in height.
• When a pedestrian blends in with the background.
• When a pedestrian is bent over or squa tting, or when their hands are raised or
they are running.
• When several pedestrians are walking ahead in a group.
• When the camera cannot correctly identify that a pedestrian is present due to an
unusual shape (holding luggage, body position, size).
■Automatic shutoff
The CMBSTM may automatically shut itself off and the CMBSTM indicator comes and
stays on when:
• The temperature inside the system is high.
• You drive off-road or on a mountain road, or curved and wi nding road for an
extended period.
• An abnormal tire condition is detected (wrong tire size, flat tire, etc.).
• The camera behind the rearview mirror, or the area around the camera, including
the windshield, gets dirty.
Once the conditions that caused the CMBS
TM to shut off improve or are addressed
(e.g., cleaning), the system comes back on.
Limitations applicable to pedestrian detection only
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 494 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

Continued635
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Handling the Unexpected
4. Plug in the compressor to the accessory
power socket.
u Be careful not to pinch the cord in a
door or window.
5. Start the engine.
u Keep the engine running while injecting
sealant and air.
2 Carbon Monoxide Gas P. 74
6.Turn the selector knob to REPAIR*1,
SEALANT/AIR*2, PRODUIT ANTIFUITE/
AIR*2.
*1: U.S. models
*2: Canadian models
1 Injecting Sealant and Air
NOTICE
Do not operate the temporary tire repair kit
compressor for more than 15 minutes. The
compressor can overheat and become permanently
damaged.
Until the sealant injection is complete, the pressure
shown on the pressure gauge will appear higher than
actual. After the sealant injection is complete the
pressure will drop and then begin to rise again as the
tire is inflated with air. This is normal. To accurately
measure the air pressure usin g the gauge, turn the air
compressor off only after the sealant injection is
complete.
3WARNING
Running the engine with the vehicle in an
enclosed or even partly enclosed area can
cause a rapid build-up of toxic carbon
monoxide.
Breathing this colorless, odorless gas can
cause unconsciousness and even death.
Only run the engine to power the air
compressor with th e vehicle outdoors.
U.S.
Canada
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 635 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

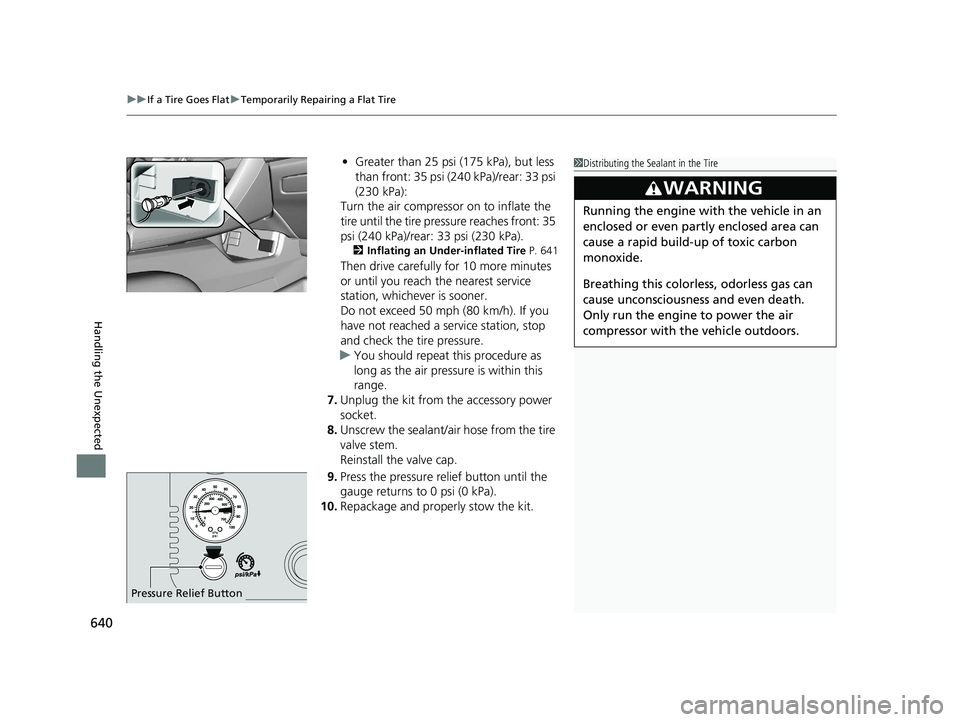

uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
640
Handling the Unexpected
• Greater than 25 psi (175 kPa), but less
than front: 35 psi (240 kPa)/rear: 33 psi
(230 kPa):
Turn the air compressor on to inflate the
tire until the tire pres sure reaches front: 35
psi (240 kPa)/rear: 33 psi (230 kPa).
2Inflating an Under-inflated Tire P. 641
Then drive carefully for 10 more minutes
or until you reach the nearest service
station, whichever is sooner.
Do not exceed 50 mph (80 km/h). If you
have not reached a service station, stop
and check the tire pressure.
u You should repeat this procedure as
long as the air pressure is within this
range.
7. Unplug the kit from the accessory power
socket.
8. Unscrew the sealant/air hose from the tire
valve stem.
Reinstall the valve cap.
9. Press the pressure relief button until the
gauge returns to 0 psi (0 kPa).
10. Repackage and properly stow the kit.
1Distributing the Sealant in the Tire
3WARNING
Running the engine with the vehicle in an
enclosed or even partly enclosed area can
cause a rapid build-up of toxic carbon
monoxide.
Breathing this colorless, odorless gas can
cause unconsciousness and even death.
Only run the engine to power the air
compressor with th e vehicle outdoors.
Pressure Relief Button
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 640 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
642
Handling the Unexpected
7. Plug in the kit to the accessory power
socket.
u Be careful not to pinch the cord in a
door or window.
8. Start the engine.
u Keep the engine runn ing while injecting
air.
2 Carbon Monoxide Gas P. 74
9.Turn the selector knob to AIR*1, AIR
ONLY*2, AIR SEULEMENT*2.
10. Press the inflator swit ch to turn on the kit.
u The compressor starts to inject air into
the tire.
11. Inflate the tire to the specified air pressure.
*1: U.S. models
*2: Canadian models
1Inflating an Under-inflated Tire
3WARNING
Running the engine with the vehicle in an
enclosed or even partly enclosed area can
cause a rapid build-up of toxic carbon
monoxide.
Breathing this colorless, odorless gas can
cause unconsciousness and even death.
Only run the engine to power the air
compressor with th e vehicle outdoors.
CanadaU.S.
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 642 ページ ２０１９年１１月１１日
　月曜日　午後２時５０分

uuIf a Tire Goes Flat uChanging a Flat Tire
648
Handling the Unexpected
1. Place the jack under the jacking point
closest to the tire to be changed.
2. Turn the end bracket cl ockwise as shown in
the image until the top of the jack contacts
the jacking point.
u Make sure that the jacking point tab is
resting in the jack notch.
3. Raise the vehicle, using the jack handle bar
and the jack handle, until the tire is off the
ground.
■How to Set Up the Jack1How to Set Up the Jack
Do not use the jack with people or luggage in the
vehicle.
Use the jack provided in your vehicle.
Other jacks may not support the weight (“load”) or
may not fit the jacking point.
The following instructions must be followed to use
the jack safely:
•Do not use while the engine is running.
•Use only where the ground is firm and level.•Use only at the jacking points.
•Do not get in the vehicl e while using the jack.
•Do not put anything on top of or underneath the
jack.
3WARNING
The vehicle can easily roll off the jack,
seriously injuring anyone underneath.
Follow the directions for changing a tire
exactly, and no person should place any
portion of their body under a vehicle that is
supported by a jack.
Jacking Points
Jacking Point
Jack
Handle
Bar Wheel Nut
Wrench as Jack Handle
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 648 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

Continued653
uuHandling of the jack*uHow to Set Up the Jack
Handling the Unexpected
3. Place a wheel block or rock in front and rear
of the wheel diagonal to the flat tire.
4. Place the jack under the jacking point
closest to the tire to be changed.
5. Turn the end bracket cl ockwise as shown in
the image until the top of the jack contacts
the jacking point.
u Make sure that the jacking point tab is
resting in the jack notch.1How to Set Up the Jack
Do not use the jack with people or luggage in the
vehicle.
Use the jack provided in your vehicle.
Other jacks may not support the weight (“load”) or
may not fit the jacking point.
The following instructions must be followed to use
the jack safely:
•Do not use while the engine is running.•Use only where the ground is firm and level.
•Use only at the jacking points.
•Do not get in the vehicl e while using the jack.•Do not put anything on top of or underneath the
jack.
Jacking Points
Jacking Point
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 653 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

695
Index
Continuously Variable TransmissionCreeping................................................. 456
Fluid ....................................................... 587
Kickdown ............................................... 456
Operating the Shift Lever .................. 22, 458
Shift Lever Does Not Move ...................... 661
Shifting ................................................... 457
Controls .................................................... 139
Coolant (Engine) ...................................... 585
Adding the Coolant ................................ 586
Overheating ............................................ 662
Creeping (Continuously Variable Transmission) .......................................... 456
Cup Holders .............................................. 201
Customer Service Information ................ 691
Customized Features ....................... 130, 346
D
Daytime Running Lights .......................... 176
Dead Battery ............................................ 658
Defaulting All the Settings ...................... 375
Defrosting the Windshield and Windows ................................................. 217
Devices that Emit Radio Waves ............... 683
Dimming Headlights .............................................. 173
Rearview Mirror ...................................... 186
Dipstick (Engine Oil) ................................ 579
Directional Signals (Turn Signal) ............. 172
Display Button .......................................... 248 Display Setup
............................................ 235
Display/Information Button ..................... 121
Door Mirrors ............................................. 188
Doors ......................................................... 141
Auto Door Locking .................................. 155
Auto Door Unlocking ............................... 155
Keys ........................................................ 141
Locking/Unlocking the Doors from the
Inside..................................................... 152
Locking/Unlocking the Doors from the Outside.................................................. 143
DOT Tire Quality Grading ........................ 608
Drive Mode Switch ................................... 469
Driver Information Interface ................... 120
Driving ....................................................... 439
Braking .................................................... 545
Continuously Variable Transmission ......... 456
Shifting Gear ........................................... 464
Shifting Position ...................................... 457
Starting the Engine .......................... 447, 450
Dust and Pollen Filter ............................... 620
E
Eco Assist System.......................................... 9
ECON Mode .............................................. 468
Elapsed Time ............................................. 124
Electric Power Steering (EPS) System ........ 85
Indicator ............................................ 85, 668
Electronic Stability Control (ESC) ............. 471
Emergency ................................................ 675 Emergency Engine Stop
........................... 657
Emissions Testing (Readiness Codes) ....... 685
Engine Coolant ................................................... 585
Jump Starting .......................................... 658
Oil ........................................................... 578
Starting ........................................... 447, 450
Switch Buzzer.......................................... 167
Engine Coolant ......................................... 585
Adding the Coolant................................. 586
Overheating ............................................ 662
Temperature Gauge ................................ 118
Engine Oil ................................................. 578
Adding .................................................... 581
Checking................................................. 579
Displaying Oil Life .................................... 570
Low Oil Pressure Indicator ................. 80, 664
Recommended Engine Oil ....................... 578
ENGINE START/STOP Button .................... 168
EPS (Electric Power Steering) System ...... 668
Exhaust Gas Hazard (Carbon Monoxide) .. 74
Exterior Care (Cleaning) ........................... 624
Exterior Mirrors ........................................ 188F
Features.................................................... 221
Filters Dust and Pollen ....................................... 620
Oil ........................................................... 582
Flat Tire ..................................................... 631
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 695 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分
