2020 HONDA CIVIC HATCHBACK navigation

4
Quick Reference Guide
Quick Reference Guide
Visual Index
❚Ignition Switch* (P167)
❚ENGINE START/STOP Button*1 (P168)
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
*2: Pre-instal led on U.S. models only.
❚System Indicators (P78)
❚Gauges (P118)
❚Collision Mitigation Braking SystemTM
(CMBSTM) OFF Button (P491)
❚ (Vehicle Stability Assist ® (VSA ®)
System OFF) Button
(P472)
❚Road Departure Mitigation (RDM)
Button
(P539)
❚Navigation System*
() See the Navigation System Manual
❚Audio System (P229, 247)
❚Hazard Warning Button
❚Rear Defogger (P184)
❚Heated Door Mirror Button* (P184)
❚Climate Control System (P213)
❚Front Seat Heater Buttons* (P211)
❚Steering Wheel Adjustments (P185)
❚Driver Information Interface (P120)
❚USB Extension Cable*2 (P223)
❚USB Port (P223)
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 4 ページ ２０１９年１１月１１日　月曜日　午後２時５０分

5
Quick Reference Guide❚Headlights/Turn Signals (P172)
❚ (TRIP) Knob (P123)
❚Brightness Control (P183)
❚LaneWatchTM * (P476)
❚Fog Lights* (P176)
❚ (Display/Information) Button (P121)
❚Navigation System Voice Control Buttons*
(P272) () See the Navigation System Manual
❚Bluetooth® HandsFreeLink ® System
Voice Control Buttons
(P379, 406)
❚ENTER Button (P130, 226)
❚ / / / Buttons (P130, 226)34
❚Lane Keeping Assist System (LKAS) Button
(P529)
❚Paddle Shifter (Shift down)* (P462)
❚Paddle Shifter (Shift up)* (P462)
❚Wipers/Washers (P180)
❚Horn (Press an area around .)
❚Adaptive Cruise Control (ACC) Buttons*
(P514)
❚Interval Button (P508)
❚MAIN Button (P485, 498, 515, 531)
❚Adaptive Cruise Control (ACC) with Low
Speed Follow Buttons* (P497)
* Not available on all models
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 5 ページ ２０１９年１１月１１日　月曜日　午後２時５０分

12
Quick Reference Guide
Controls (P 139)
Clock (P 140)
aPress and hold the MENU/CLOCK
button.
bRotate to change hour, then press .
cRotate to change minute, then
press .
dSelect Set, then press .
These indications are used to show how to
operate the selector knob.
•Rotate to select.
•Press to enter.
Models with color audio system
aPress the (Home) button, then
select Settings .
bSelect Clock, then Clock Adjustment .
cTouch the respective / icon to
adjust the hours or minutes up or
down.
dSelect OK.
The clock is automatically updated through
the audio system.
Models with Display Audio
34
Models with navigation system
ENGINE START/STOP
Button
* (P 168)
●Press the button to ch ange the vehicle’s
power mode.
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 12 ページ ２０１９年１１月１１日　 月曜日　午後２時５０分

15
Quick Reference Guide
Climate Control System (P213)
●Press the AUTO button to activate th e climate control system.●Press the button to tu rn the system on or off.●Press the button to defrost the windshield.
The climate control system is voice operable. (P272)
Models with navigation system
Models with color audio system
Fan Control Dial
(Windshield De froster) ButtonTemperature Control Dial
Air flows from floor and
windshield defroster vents.
Air flows from floor vents.
Air flows from floor and
dashboard vents.
Air flows from dashboard
vents.
(Recirculation) Button
(MODE Control) Button
(ON/OFF) ButtonAUTO Button
A/C (Air Conditioning) Button
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 15 ページ ２０１９年１１月１１日　 月曜日　午後２時５０分

21
Quick Reference Guide
(P 247)
For navigation system operation () See the Navigation System Manual
Models with Display Audio
Audio/Information Screen
Driver Information Interface
(Instrument Panel) Icon
(Day/Night) Button
*
(Home) Button
(Map) Button*
(Audio) Button
(Phone) Button
VOL / AUDIO (Volume/
Power Audio) Knob
(Back) Button
* Not available on all models
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 21 ページ ２０１９年１１月１１日　 月曜日　午後２時５０分

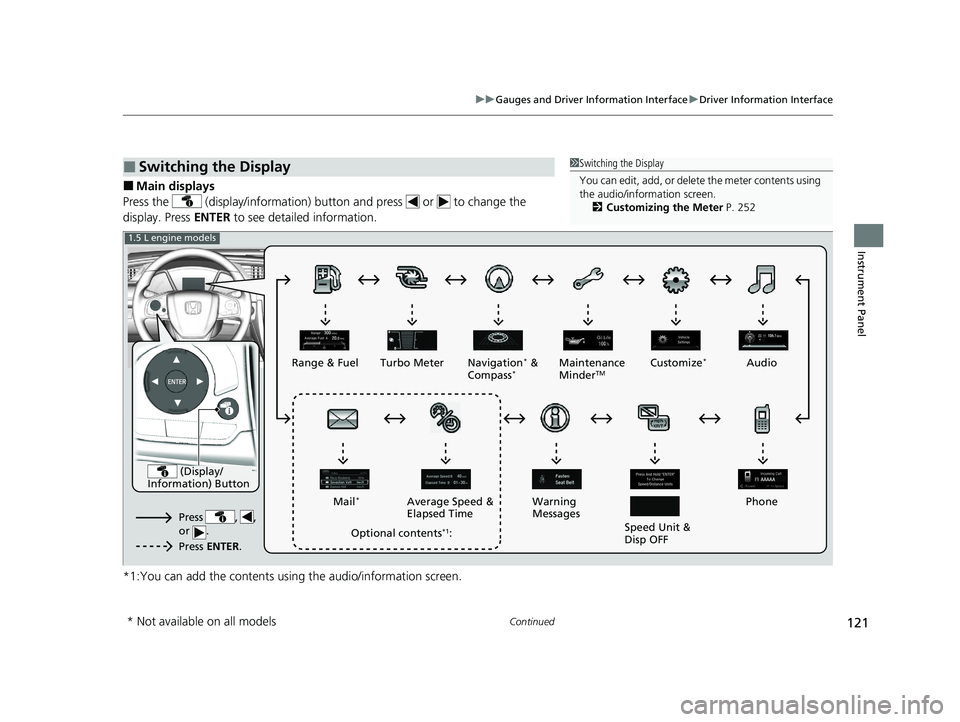

121
uuGauges and Driver Information Interface uDriver Information Interface
Continued
Instrument Panel
■Main displays
Press the (display/information) button and press or to change the
display. Press ENTER to see detailed information.
*1:You can add the contents using the audio/information screen.
■Switching the Display1 Switching the Display
You can edit, add, or delete the meter contents using
the audio/information screen.
2 Customizing the Meter P. 252
(Display/
Information) Button
Press , ,
or .
Press ENTER .
Range & Fuel Turbo Meter Navigation* &
Compass*Maintenance
MinderTMCustomize*Audio
Phone
Speed Unit &
Disp OFF
Warning
Messages
Average Speed &
Elapsed Time
Mail
*
Optional contents*1:
1.5 L engine models
* Not available on all models
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 121 ページ ２０１９年１１月１１日
　月曜日　午後２時５０分

122
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel
*1:You can add the contents usin g the audio/information screen.
Accelerator
Position/Braking
Pressure MeterTurbo Meter Rev Indicators G-Meter Stopwatch Range &
Fuel
Phone
Speed Unit &
Disp OFF
Warning
Messages
Average Speed
& Elapsed Time
Mail
Optional contents
*1:
2.0 L engine models
Navigation*
& Compass*
Audio Maintenance MinderTMPress , ,
or .
Press ENTER .
(Display/
Information) Button
* Not available on all models
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 122 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

uuGauges and Driver Information Interface uDriver Information Interface
126
Instrument Panel
■Compass*
Shows the compass screen.
■Turn-by-Turn Directions
When driving guidance is provided by the navigation system* or Android Auto, turn-
by-turn directions to your destination appear.
2 Refer to the Navigation System Manual
2 Android Auto P. 312
Shows the current audio information.
2Audio System Basic Operation P. 229, 247
Shows the current mail information.
2Bluetooth ® HandsFreeLink ® P. 406
Shows the current phone information.
2 Bluetooth ® HandsFreeLink ® P. 379, 406
■Navigation*
■Audio
■Mail*
■Phone
1 Navigation*
You can select whether the turn-by-turn display
comes on or not during the route guidance.
2 Customized Features P. 346
* Not available on all models
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 126 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分
