2020 HONDA CIVIC HATCHBACK climate control

275
uuAudio System Basic Operation uVoice Control Operation
Features
When On Screen Commands is selected,
the explanation scr een is displayed.
The system accepts th ese commands on the
Music Search screen.
■Using Song By Voice
Song By VoiceTM is a feature that allows you
to select music from yo ur iPod or USB device
using Voice Commands. To activate this
mode, you must push the talk switch and
say: “ Music Search ”.
■Song By Voice Commands
• What am I listening to?
• Who am I listening to?
• Who is this?
• What’s playing?
• Who’s playing?
• What album is this?
*1: Models with navigation system
■On Screen Commands
■Music Search Commands
■Play Commands
• Play artist
• Play track/song
• Play album
• Play genre/category
• Play playlist
• Play composer
■List Commands
• List artist
• List album
• List genre/category
• List playlist
• List composer
• What time is it?
• What is today’s date?
■General Commands*1
•Climate control on*2
•Climate control off*2
•Fan speed <1-7>
• Temperature max heat
• Temperature max cool
• Temperature <57-87> degrees
*3
•Temperature <15-29> degrees*4
•Defrost On*2
•Defrost Off*2
•Air Conditioner On*2
•Air Conditioner Off*2
•More
• Climate Control Automatic
• Vent
• Dash and floor
• Fan speed Up
• Fan speed Down
• Floor vents
• Floor and Defrost
• Temperature up
• Temperature down
*2: These commands toggle the function on and
off, so the command may not match your
intended action.
*3: U.S. models
*4: Canadian models
■Climate Control Commands*1
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 275 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

368
uuCustomized Features u
Features
*1:Default SettingSetup
Group Customizable Features Description Selectable Settings
System Others Climate Screen Timeout
Changes the length of time the climate control
display stays on when you press the
CLIMATE
button. Never/
5 Seconds /10
Seconds
*1/ 20
Seconds
Detail Information Displays the details of the head unit and
operating system information.
Default Cancels /Resets all cust
omized items in the
System group as default. Yes
/No
Vehicle
TPMS Calibration*Cancels/Calibrates the TPMS.Cancel /Calibrate
Driver
Assist
System
Setup
Forward Collision Warning
DistanceChanges the distance at which CMBSTM alerts.Long /Normal*1/Short
ACC Forward Vehicle
Detect Beep
Causes the system to beep when the system
detects a vehicle, or when the vehicle goes out of
the ACC range
*/ACC with Low Speed Follow
range*.
On /Off*1
Lane Keeping Assist
Suspend BeepCauses the system to beep when LKAS is
suspended.On /Off*1
Road Departure Mitigation
SettingChanges the setting for the road departure
mitigation system.Normal*1/Wide /
Warning Only
Rev Match System*Turns the Rev Match System feature on and off.On*1/ Off
* Not available on all models
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 368 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

447Continued
Driving
When Driving
Starting the Engine
1.Make sure the parkin g brake is applied.
u The parking brake and brake system
indicator (red) comes on for 15 seconds
when you pull up the electric parking
brake switch.
2. Check that the transmission is in
(P, then
depress the brake pedal.
u Although it is possible to start the vehicle
in
(N, it is safer to start it in (P.
2. Check that the shift lever is in
(N. Then
depress the brake pedal with your right
foot, and the clutch pedal with your left
foot.
u The clutch pedal must be fully depressed
to start the engine.
Models without smart entry system
1Starting the Engine
Keep your foot firmly on the brake pedal when
starting the engine.
The engine is harder to st art in cold weather and in
thinner air found at altit udes above 8,000 feet (2,400
meters).
When starting the engine in cold weather, turn off all
electrical accessories such as the lights, climate
control system, and rear de fogger in order to reduce
battery drain.
If you live in a region where winter is extremely cold,
an engine block heater will improve starting and
warming of the engine. Cons ult a dealer for details.
If the exhaust system sounds abnormal or you can
smell exhaust gas inside the vehicle, have your vehicle
checked by a dealer. There may be a problem with
the engine or exhaust system.
Electric Parking Brake Switch
Brake PedalContinuously variable transmission models
Brake Pedal
Clutch Pedal
Manual transmission models
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 447 ページ ２０１９年１１月１１日
　月曜日　午後２時５０分

450
uuWhen Driving uStarting the Engine
Driving
Starting the Engine
1. Make sure the parking brake is applied.
u The parking brake and brake system
indicator (red) comes on for 15 seconds
when you pull up the electric parking
brake switch.
2. Check that the tr ansmission is in
(P, then
depress the brake pedal.
u Although it is possible to start the vehicle
in
(N, it is safer to start it in (P.
2. Check that the shift lever is in
(N. Then
depress the brake pedal with your right
foot, and the clutch pedal with your left
foot.
u The clutch pedal must be fully depressed
to start the engine.
Models with smart entry system
1Starting the Engine
Keep your foot firmly on the brake pedal when
starting the engine.
The engine is harder to st art in cold weather and in
thinner air found at altit udes above 8,000 feet (2,400
meters).
When starting the engine in cold weather, turn off all
electrical accessories such as the lights, climate
control system, and rear de fogger in order to reduce
battery drain.
If you live in a region where winter is extremely cold,
an engine block heater will improve starting and
warming of the engine. Cons ult a dealer for details.
If the exhaust system sounds abnormal or you can
smell exhaust gas inside the vehicle, have your vehicle
checked by a dealer. There may be a problem with
the engine or exhaust system.
The immobilizer system pr otects your vehicle from
theft.
If an improperly c oded device is used, the engine’s
fuel system is disabled. 2 Immobilizer System P. 159
Electric Parking Brake Switch
Brake PedalContinuously variable transmission models
Brake Pedal
Clutch Pedal
Manual transmission models
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 450 ページ ２０１９年１１月１１日
　月曜日　午後２時５０分

Continued453
uuWhen Driving uStarting the Engine
Driving
■To stop the engine1Remote Engine Start*
•You have already used the remote twice to start
the engine.
•Another registered smart entry remote is in the
vehicle.
•There is any antenna failure.
•The door is unlocked with the built-in key.
•The engine oil pressure is low.•The engine coolant temper ature is extremely high.
•The security system alarm is not set.
While the engine is running, the vehicle will
automatically activate climate control with a preset
temperature of 72°F (22°C).
When it is warm outside:
•The climate control system is activated in
recirculation mode.
When it is cold outside:
•The defroster is activated at a moderately warm
temperature.
•The rear defogger and door mirror heaters* are
activated.
•The seat heaters are activated*.
2 Front Seat Heaters* P. 211
Press and hold the
button for one
second.
Go within the range,
and try again.
The exterior lights flash once if the engine stops successfully.
The exterior lights will not flash when the remote is out of
the smart entry system range.
The engine will not stop.
* Not available on all models
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 453 ページ ２０１９年１１月１１日
　月曜日　午後２時５０分

468
uuWhen Driving uECON Mode*
Driving
ECON Mode*
The ECON button turns the ECON mode on and off.
The ECON mode helps you improve your fuel economy by adjusting the
performance of the engine, transmi ssion, climate control system.
1ECON Mode*
While in the ECON mode, the climate control system
has greater temperat ure fluctuations.
* Not available on all models
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 468 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

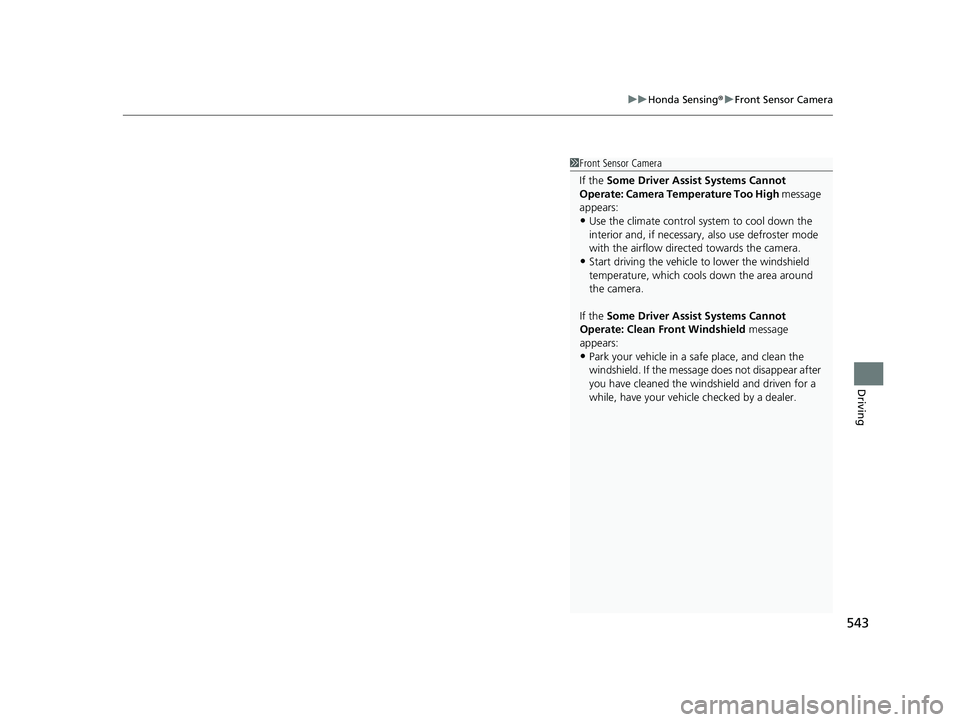

543
uuHonda Sensing ®u Front Sensor Camera
Driving
1Front Sensor Camera
If the Some Driver Assist Systems Cannot
Operate: Camera Temperature Too High message
appears:
•Use the climate control system to cool down the
interior and, if necessary, also use defroster mode
with the airflow directed towards the camera.
•Start driving the vehicle to lower the windshield
temperature, which cool s down the area around
the camera.
If the Some Driver Assist Systems Cannot
Operate: Clean Front Windshield message
appears:
•Park your vehicle in a sa fe place, and clean the
windshield. If the message does not disappear after
you have cleaned the winds hield and driven for a
while, have your vehicle checked by a dealer.
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 543 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

565
Maintenance
This chapter discusses basic maintenance.
Before Performing MaintenanceInspection and Maintenance ............ 566
Safety When Performing Maintenance .... 567Parts and Fluids Used in Maintenance Service ........................................... 568
Maintenance Minder
TM..................... 569
Maintenance Under the Hood
Maintenance Items Un der the Hood .... 575Opening the Hood ........................... 577
Recommended Engine Oil ................ 578
Oil Check ......................................... 579
Adding Engine Oil ............................ 581
Changing the Engine Oil and Oil Filter..... 582
Engine Coolant ................................ 585
Transmission Fluid ............................ 587
Brake/Clutch
* Fluid .......................... 588
Refilling Window Washer Fluid......... 589
Replacing Light Bulbs ....................... 590
Checking and Maintaining Wiper
Blades .......................................... 600
Checking and Maintaining Tires
Checking Tires ................................. 605
Tire and Loading Information Label ..... 606Tire Labeling .................................... 606DOT Tire Quality Grading (U.S. Vehicles) ...... 608Wear Indicators................................ 610 Tire Service Life ................................ 610
Tire and Wheel Replacement ........... 611
Tire Rotation .................................... 612
Winter Tires ..................................... 613
Cold Weather Driving ...................... 615
Battery ............................................... 616
Remote Transmitter Care Replacing the Button Battery ........... 618
Climate Control System Maintenance .. 620Cleaning
Interior Care .................................... 621
Exterior Care.................................... 624
Accessories and Modifications ........ 627
* Not available on all models
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 565 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分
