GMC Sierra/Sierra Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-13337776) - 2020 - CRC - 4/10/19
356 Vehicle Care
Caution
Continuing to drive with worn-out
brake pads could result in costly
brake repair.
Some driving conditions or climates
can cause a brake squeal when the
brakes are first applied or lightly
applied. This does not mean
something is wrong with the brakes.
Properly torqued wheel nuts are
necessary to help prevent brake
pulsation. When tires are rotated,
inspect brake pads for wear and
evenly tighten wheel nuts in the
proper sequence to torque
specifications in Capacities and
Specifications 0459.
Brake linings should always be
replaced as complete axle sets.
Brake Pedal Travel
See your dealer if the brake pedal
does not return to normal height,
or if there is a rapid increase in
pedal travel. This could be a sign
that brake service may be required.
Replacing Brake System Parts
Always replace brake system parts
with new, approved replacement
parts. If this is not done, the brakes
may not work properly. The braking
performance expected can change
in many other ways if the wrong
replacement brake parts are
installed or parts are improperly
installed.
Brake Pad Life System
When to Change Brake Pads
This vehicle has a system that
estimates the remaining life of the
front and rear brake pads. Brake
pad life is displayed in the Driver
Information Center (DIC), along with
a percentage for each axle. The
system must be reset every time the
brake pads are changed.
When the system has determined
that the brake pads need to be
replaced, a message will display,
which may include mileage
remaining. Brake pads should always be
replaced as complete axle sets.
How to Reset the Brake Pad
Life System
The system will automatically detect
when significantly worn brake pads
are replaced. When the ignition is
turned on after new pads and wear
sensors are installed, a message
will display. Follow the prompts to
reset the system.
The brake pad life system can also
be manually reset:
1. Display Brake Pad Life on the DIC. See Driver Information
Center (DIC) (Base Level)
0 148 or
Driver Information Center (DIC)
(Midlevel and Uplevel) 0149.
2. Press the thumbwheel or the trip odometer reset stem if the
vehicle does not have DIC
buttons. Select front or rear
pads as appropriate.
3. Select YES on the confirmation message, or press the trip
odometer reset stem on a base

GMC Sierra/Sierra Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-13337776) - 2020 - CRC - 4/10/19
Vehicle Care 393
.The battery of the TPMS sensor
is low.
If the tire fill alert does not operate
due to TPMS interference, move the
vehicle about 1 m (3 ft) back or
forward and try again. If the tire fill
alert feature is not working, use a
tire pressure gauge.
TPMS Sensor Matching
Process
Each TPMS sensor has a unique
identification code. The identification
code needs to be matched to a new
tire/wheel position after rotating the
vehicle’s tires or replacing one or
more of the TPMS sensors. Also,
the TPMS sensor matching process
should be performed after replacing
a spare tire with a road tire
containing the TPMS sensor. The
malfunction light and the DIC
message should go off at the next
ignition cycle. The sensors are
matched to the tire/wheel positions,
using a TPMS relearn tool, in the
following order: driver side front tire,
passenger side front tire, passenger
side rear tire, and driver side rear. See your dealer for service or to
purchase a relearn tool. A TPMS
relearn tool can also be purchased.
See Tire Pressure Monitor Sensor
Activation Tool at
www.gmtoolsandequipment.com or
call 1-800-GM TOOLS
(1-800-468-6657).
There are two minutes to match the
first tire/wheel position, and
five minutes overall to match all four
tire/wheel positions. If it takes
longer, the matching process stops
and must be restarted.
The TPMS sensor matching
process is:
1. Set the parking brake.
2. Turn the ignition on without starting the vehicle.
3. Uplevel DIC Only: Make sure the Tire Pressure info page
option is turned on. The info
pages on the DIC can be
turned on and off through the Options menu. See
Driver
Information Center (DIC) (Base
Level) 0148 or
Driver Information Center (DIC)
(Midlevel and Uplevel) 0149.
4. If the vehicle has an uplevel DIC, use the DIC controls on
the right side of the steering
wheel to scroll to the Tire
Pressure screen under the DIC
info page.
If the vehicle has a base level
DIC, use the trip odometer
reset stem to scroll to the Tire
Pressure screen.
5. If the vehicle has an uplevel DIC, press and hold the
thumbwheel located in the
center of the DIC controls on
the right side of the steering
wheel.
If the vehicle has a base level
DIC, press and hold the trip
odometer reset stem for about
five seconds. A message
asking if the process should
begin should appear. Select

GMC Sierra/Sierra Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-13337776) - 2020 - CRC - 4/10/19
394 Vehicle Care
yes and press the trip
odometer reset stem to confirm
the selection.
The horn sounds twice to
signal the receiver is in relearn
mode and the TIRE
LEARNING ACTIVE message
displays on the DIC screen.
6. Start with the driver side front tire.
7. Place the relearn tool against the tire sidewall, near the valve
stem. Then press the button to
activate the TPMS sensor.
A horn chirp confirms that the
sensor identification code has
been matched to this tire and
wheel position.
8. Proceed to the passenger side front tire, and repeat the
procedure in Step 7.
9. Proceed to the passenger side rear tire, and repeat the
procedure in Step 7.
10. Proceed to the driver side rear tire, and repeat the procedure
in Step 7. The horn sounds two times to indicate the sensor
identification code has been
matched to the driver side rear
tire, and the TPMS sensor
matching process is no longer
active. The TIRE LEARNING
ACTIVE message on the DIC
display screen goes off.
11. Turn the vehicle off.
12. Set all four tires to the recommended air pressure
level as indicated on the Tire
and Loading Information label.
Trailer Tire Pressure
Monitoring Operation
If equipped, the Trailer Tire
Pressure Monitoring System
(TTPMS) is designed to monitor the
pressure of the trailer tires and warn
the driver when a low pressure
condition exists. TTPMS sensors for
four tires are provided. The system
can accommodate a trailer with up
to six tires if additional sensors are
purchased from the dealer. Also, the
system can be paired with up to five
individual trailers. Prior to use, the vehicle must learn
the sensors by following the
learning process. See
Trailering App
0 310.Contact your trailer service center or
tire service center to have the
pressure sensors installed inside
the trailer tires. The technician
should insert the sensor stem
through the hole in the trailer wheel.
When the sensor is correctly
positioned, the nut on the sensor
stem should be tightened to 8 Y
(6 lb ft). When mounting the trailer
tire onto the trailer wheel be careful
not to damage the sensor.

GMC Sierra/Sierra Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-13337776) - 2020 - CRC - 4/10/19
404 Vehicle Care
Caution
The wrong wheel can also cause
problems with bearing life, brake
cooling, speedometer or
odometer calibration, headlamp
aim, bumper height, vehicle
ground clearance, and tire or tire
chain clearance to the body and
chassis.
Whenever a wheel, wheel bolt,
or wheel nut is replaced on a dual
wheel setup, check the wheel nut
torque after 160,1 600, and
10 000 km (100,1,000, and
6,000 mi) of driving. For proper
torque, see “Wheel Nut Torque”
under Capacities and Specifications
0 459.
See If a Tire Goes Flat 0405 for
more information. Used Replacement Wheels{Warning
Replacing a wheel with a used
one is dangerous. How it has
been used or how far it has been
driven may be unknown. It could
fail suddenly and cause a crash.
When replacing wheels, use a
new GM original equipment
wheel.
Tire Chains
{Warning
If the vehicle has LT275/65R18,
275/60R20, LT275/65R20, or 275/
50R22 size tires, do not use tire
chains. If the vehicle is a 1500
Series with LT265/70R17 size
tires, do not use tire chains. They
can damage the vehicle because
there is not enough clearance.
Tire chains used on a vehicle
(Continued)
Warning (Continued)
without the proper amount of
clearance can cause damage to
the brakes, suspension, or other
vehicle parts. The area damaged
by the tire chains could cause you
to lose control of the vehicle, and
you or others may be injured in a
crash.
Use another type of traction
device only if its manufacturer
recommends it for use on the
vehicle's tire size combination
and road conditions. Follow that
manufacturer's instructions. To
help avoid damage to the vehicle,
drive slowly, readjust, or remove
the device if it is contacting the
vehicle, and do not spin the
vehicle's wheels.
If you do find traction devices that
will fit, install them on the rear
tires.

GMC Sierra/Sierra Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-13337776) - 2020 - CRC - 4/4/19
Service and Maintenance 457

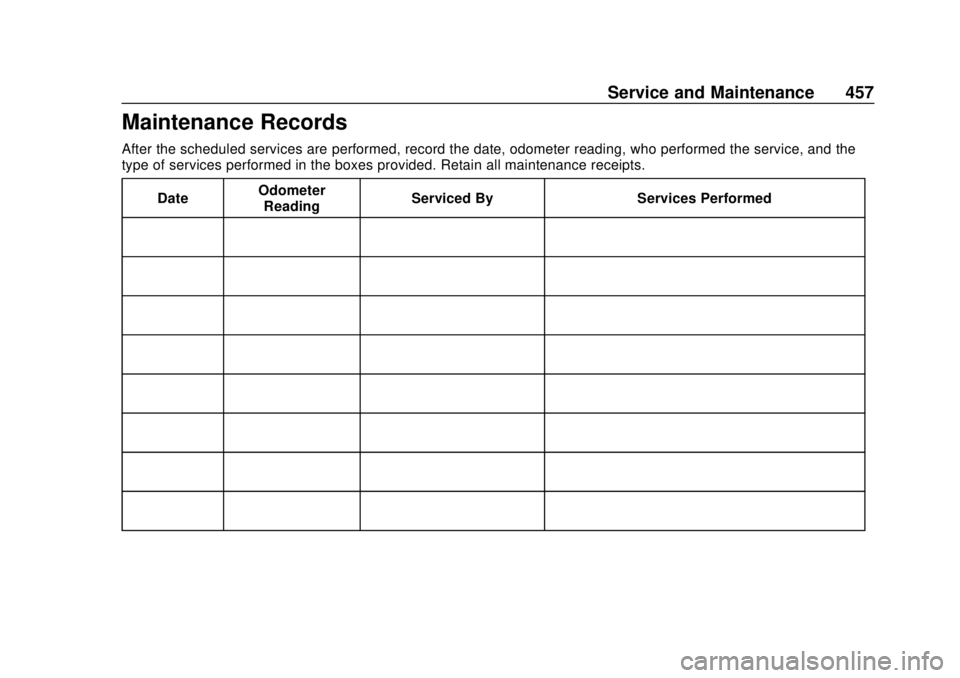

Maintenance Records
After the scheduled services are performed, record the date, odometer reading, who performed the service, and the
type of services performed in the boxes provided. Retain all maintenance receipts.Date Odometer
Reading Serviced By Services Performed

GMC Sierra/Sierra Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-13337776) - 2020 - CRC - 4/4/19
Customer Information 467
Center at 1-800-323-9935. Text
Telephone (TTY) users, call
1-800-833-9935.
General Motors of Canada also has
a Mobility program. See www.gm.ca
or call 1-800-GM-DRIVE
(800-463-7483) for details. TTY
users call 1-800-263-3830.
Roadside Assistance
Program
For U.S.-purchased vehicles, call
1-888-881-3302; (Text Telephone
(TTY): 1-888-889-2438).
For Canadian-purchased vehicles,
call 1-800-268-6800.
Service is available 24 hours a day,
365 days a year.
Calling for Assistance
When calling Roadside Assistance,
have the following information
ready:
.Your name, home address, and
home telephone number
. Telephone number of your
location .
Location of the vehicle
. Model, year, color, and license
plate number of the vehicle
. Odometer reading, Vehicle
Identification Number (VIN), and
delivery date of the vehicle
. Description of the problem
Coverage
Services are provided for the
duration of the vehicle's powertrain
warranty.
In the U.S., anyone driving the
vehicle is covered. In Canada, a
person driving the vehicle without
permission from the owner is not
covered.
Roadside Assistance is not a part of
the New Vehicle Limited Warranty.
General Motors North America and
GMC reserve the right to make any
changes or discontinue the
Roadside Assistance program at
any time without notification.
General Motors North America and
GMC reserve the right to limit
services or payment to an owner or driver if they decide the claims are
made too often, or the same type of
claim is made many times.
Services Provided
.
Emergency Fuel Delivery:
Delivery of enough fuel for the
vehicle to get to the nearest
service station.
. Lock-Out Service: Service to
unlock the vehicle if you are
locked out. A remote unlock may
be available if you have OnStar.
For security reasons, the driver
must present identification
before this service is given.
. Emergency Tow from a Public
Road or Highway: Tow to the
nearest GMC dealer for warranty
service, or if the vehicle was in a
crash and cannot be driven.
Assistance is not given when the
vehicle is stuck in the sand,
mud, or snow.
. Flat Tire Change: Service to
change a flat tire with the spare
tire. The spare tire, if equipped,
must be in good condition and
properly inflated. It is the owner's

GMC Sierra/Sierra Denali Owner Manual (GMNA-Localizing-U.S./Canada/-
Mexico-13337776) - 2020 - CRC - 4/4/19
492 Index
Extender, Seat Belt . . . . . . . . . . . . . . 71
Exterior Cargo Lamps . . . . . . . . . . 171
Exterior Lamp Controls . . . . . . . . . 165
Exterior Lamps Off Reminder . . . 167
Exterior Lighting BatterySaver . . . . . . . . . . . . . . . . . . . . . . . . . 174
F
FanEngine . . . . . . . . . . . . . . . . . . . . . . . . 353
Filter, Engine Air Cleaner . . . . . . . . . . . 344
Flash-to-Pass . . . . . . . . . . . . . . . . . . . 168
Flashers, Hazard Warning . . . . . . 169
Flat Tire . . . . . . . . . . . . . . . . . . . . . . . . 405 Changing . . . . . . . . . . . . . . . . . . . . . 407
FlexFuel
E85 . . . . . . . . . . . . . . . . . . . . . . . . . . . 282
Floor Console Storage . . . . . . . . . . 115
Floor Mats . . . . . . . . . . . . . . . . . . . . . . 438
Fluid Automatic Transmission . . . . . . 343
Brakes . . . . . . . . . . . . . . . . . . . . . . . . 357
Four-Wheel DriveTransfer Case . . . . . . . . . . . . . . . 227
Power Steering . . . . . . . . . . . . . . . 354
Washer . . . . . . . . . . . . . . . . . . . . . . . 354
Fog Lamps . . . . . . . . . . . . . . . . . . . . . 170 Folding Mirrors . . . . . . . . . . . . . . . . . . 43
Forward Collision Alert
(FCA) System . . . . . . . . . . . . . . . . . 268
Four-Wheel Drive . . . . . . . . . . 227, 361
Four-Wheel-Drive Light . . . . . . . . . 142
Frequency Statement Radio . . . . . . . . . . . . . . . . . . . . . . . . . 472
Front Axle . . . . . . . . . . . . . . . . . . . . . . 361
Front Fog Lamp Light . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Front Pedestrian Braking
(FPB) System . . . . . . . . . . . . . . . . . 272
Front Seats Adjustment . . . . . . . . . . . . . . . . . . . . . 55
Heated and Ventilated . . . . . . . . . . 61
Fuel
Additives . . . . . . . . . . . . . . . . . . . . . 282
Economy, Driving for Better . . . 186
Filling a Portable FuelContainer . . . . . . . . . . . . . . . . . . . 286
Filling the Tank . . . . . . . . . . 283, 285
Foreign Countries . . . . . . . . . . . . 281
Gauge . . . . . . . . . . . . . . . . . . . . . . . . 132
Low Fuel Warning Light . . . . . . . 146
Management, Active . . . . . . . . . . 219
Prohibited Fuels . . . . . . . . . . . . . . 281
Recommended . . . . . . . . . . 280, 281
Top Tier . . . . . . . . . . . . . . . . . . . . . . 280 Full-Size Spare Tire . . . . . . . . . . . . 418
Fuses
Engine Compartment FuseBlock . . . . . . . . . . . . . . . . . . . . . . . . 371
Fuses and Circuit Breakers . . . 370
Instrument Panel Fuse Block . . . . . . . . . . . . . . . . . . . 374, 376G
Garage Door Opener . . . . . . . . . . . 161
Programming . . . . . . . . . . . . . . . . . 161
Gas Strut(s) . . . . . . . . . . . . . . . . . . . . 365
Gauges
Engine CoolantTemperature . . . . . . . . . . . . . . . . 134
Engine Oil Pressure . . . . . . . . . . 133
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . 132
Odometer . . . . . . . . . . . . . . . . . . . . . 132
Speedometer . . . . . . . . . . . . . . . . . 131
Tachometer . . . . . . . . . . . . . . . . . . . 132
Trip Odometer . . . . . . . . . . . . . . . . 132
Voltmeter . . . . . . . . . . . . . . . . . . . . . 135
Warning Lights and Indicators . . . . . . . . . . . . . . . . . . . 126
General Information Service and Maintenance . . . . . 440
Towing . . . . . . . . . . . . . . . . . . . . . . . . 287
Vehicle Care . . . . . . . . . . . . . . . . . . 328

GMC Sierra/Sierra Denali Owner Manual (GMNA-Localizing-U.S./Canada/-
Mexico-13337776) - 2020 - CRC - 4/4/19
Index 495
Maintenance Schedule (cont'd)Recommended Fluids and
Lubricants . . . . . . . . . . . . . . . . . . . 453
Transfer Case . . . . . . . . . . . . . . . . 227
Malfunction Indicator Lamp . . . . . 138
Manual Mirrors . . . . . . . . . . . . . . . . . . 41
Manual Mode . . . . . . . . . . . . . . . . . . . 224
Manual Windows . . . . . . . . . . . . . . . . 49
Memory Seats . . . . . . . . . . . . . . . . . . . 59
Messages Engine Power . . . . . . . . . . . . . . . . 156
Vehicle . . . . . . . . . . . . . . . . . . . . . . . 156
Vehicle Speed . . . . . . . . . . . . . . . . 156
Mirror
Rear Camera . . . . . . . . . . . . . . . . . . . 46
Mirrors Automatic Dimming . . . . . . . . . . . . . 44
Automatic DimmingRearview . . . . . . . . . . . . . . . . . . . . . . 46
Blind Spot . . . . . . . . . . . . . . . . . . . . . . 44
Convex . . . . . . . . . . . . . . . . . . . . . . . . . 40
Folding . . . . . . . . . . . . . . . . . . . . . . . . . 43
Heated . . . . . . . . . . . . . . . . . . . . . . . . . 44
Manual . . . . . . . . . . . . . . . . . . . . . . . . . 41
Manual Rearview . . . . . . . . . . . . . . . 46
Power . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Tilt in Reverse . . . . . . . . . . . . . . . . . . 45
Trailer Tow . . . . . . . . . . . . . . . . . . . . . . 41 Mirrors, Interior Rearview . . . . . . . . 46
Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . 238
Driver Control . . . . . . . . . . . . . . . . . 238
Monitor System, Tire Pressure . . . . . . . . . . . . . . . . . . . . . . 389
N
NavigationConnected Services . . . . . . . . . . 485
New Vehicle Break-In . . . . . . . . . . . 208
Noise Control System . . . . . . . . . . 362
O
Odometer . . . . . . . . . . . . . . . . . . . . . . . 132 Trip . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
Off-Road . . . . . . . . . . . . . . . . . . . . . . . 191 Driving . . . . . . . . . . . . . . . . . . . . . . . . 191
Recovery . . . . . . . . . . . . . . . . . . . . . 190
Oil Engine . . . . . . . . . . . . . . . . . . . . . . . . 339
Engine Oil Life System . . . . . . . 341
Engine Oil Pressure Gauge . . . 133
Pressure Light . . . . . . . . . . . . . . . . 146
Older Children, Restraints . . . . . . . 85
Online Owner Center . . . . . . . . . . . 466
OnStar . . . . . . . . . . . . . . . . . . . . . . . . . 476
OnStar Additional Information . . . . . . . . . . . . . . . . . . . . 479
OnStar Emergency . . . . . . . . . . . . . 478 OnStar Overview . . . . . . . . . . . . . . . 477
OnStar Security . . . . . . . . . . . . . . . . 479
Operating Mode
Overheated EngineProtection . . . . . . . . . . . . . . . . . . . 352
Operation Fog Lamps . . . . . . . . . . . . . . . . . . . 170
Outlets Power . . . . . . . . . . . . . . . . . . . . . . . . 122
Overheated Engine Protection Operating Mode . . . . 352
Overheating, Engine . . . . . . . . . . . . 351
Overview Instrument Panel . . . . . . . . . . . . . . . . 5
P
ParkShifting Out of . . . . . . . . . . . . . . . . 218
Park Assist . . . . . . . . . . . . . . . . . . . . . 257
Parking Brake and P (Park)
Mechanism Check . . . . . . . . . . 364
Extended . . . . . . . . . . . . . . . . . . . . . 219
Over Things That Burn . . . . . . . 219
Parking or Backing Assistance Systems . . . . . . . . . . 257
Passenger Airbag Status Indicator . . . . . . . . . . . . . . . . . . . . . . 137
