Dry your vehicle with a chamois or soft
terry cloth towel to eliminate water
spotting.
• Immediately remove fuel spillages, bird
droppings, insect deposits and road tar.
These may cause damage to your
vehicle ’s paintwork or trim over time.
We recommend Motorcraft Bug and
Tar Remover.
• Remove any exterior accessories, for
example antennas, before entering a
car wash.
• When filling with AdBlue®, remove any
residue on painted surfaces
immediately.
Note: Suntan lotions and insect repellents
can damage painted surfaces. If these
substances come in contact with your
vehicle, wash the affected area as soon as
possible.
Cleaning the Headlamps
Note: Do not scrape the headlamp lenses
or use abrasives, alcoholic solvents or
chemical solvents to clean them.
Note: Do not wipe the headlamps when
they are dry.
Exterior Chrome Parts
• Apply a high quality-cleaning product
to bumpers and other chrome parts.
Follow the manufacturer ’s instructions.
We recommend Motorcraft Custom
Bright Metal Cleaner.
• Do not apply the cleaning product to
hot surfaces. Do not leave the cleaning
product on chrome surfaces longer
than the time recommended.
• Using non-recommended cleaners can
result in severe and permanent
cosmetic damage.
Note: Never use abrasive materials, for
example steel wool or plastic pads as they
can scratch the chrome surface. Note:
Do not use chrome cleaner, metal
cleaner or polish on wheels or wheel covers.
Exterior Plastic Parts
For routine cleaning we recommend
Motorcraft Detail Wash. If tar or grease
spots are present, we recommend
Motorcraft Bug and Tar Remover.
Stripes or Graphics (If Equipped)
Hand washing your vehicle is preferred
however, pressure washing may be used
under the following conditions:
• Do not use water pressure higher than
2,000 psi (14,000 kPa)
.
• Do not use water hotter than
179°F
(82°C).
• Use a spray with a
40° wide spray
angle pattern.
• Keep the nozzle at a
12 in (305 mm)
distance and 90° angle to your
vehicle's surface.
Note: Holding the pressure washer nozzle
at an angle to the vehicle's surface may
damage graphics and cause the edges to
peel away from the vehicle's surface.
Underbody
Regularly clean the underside of your
vehicle using water. Keep body and door
drain holes free of debris or foreign
material.
Under Hood
For removing black rubber marks from
under the hood we recommend Motorcraft
Wheel and Tire Cleaner or Motorcraft Bug
and Tar Remover.
283
Ranger (TFG) Canada/United States of America, Vehicles Built From: 18-11-2019, LB3J 19A321 AB enUSA, Edition date: 202002, Second-Printing Vehicle Care

Materials
Specification
Name
WSS-M14P19-A
Motorcraft® Premium Windshield Wash Concen-
trate with Bitterant(U.S.)
Motorcraft® Premium Quality Windshield Washer
Fluid / Liquide lave-glace de haute qualité Motor-
craft®(Canada)
ZC-32-B2(U.S.)
CXC-37-A/B/D/F(Canada)
BULB SPECIFICATION CHART Power (Watts)
Specification
Bulb
55
H11LL
Headlamp low beam.
60
HB3LL
Headlamp high beam.
LED
LED
Headlamps. 1
21/5
W21/5W
Front park/direction indicator bulb
(Clear).
28/8
7444NA
Front park/direction indicator bulb
(Amber).
3.78
194
Front side marker bulb.
55
H11
Front fog lamp bulb.
LED
LED
Front fog lamps. 1
21/5
W21/5W
Rear brake/park bulb.
21
WY21W
Rear direction indicator bulb.
LED
LED
Rear direction/park/stop lamp. 1
LED
LED
Reverse lamp. 1
21
W21W
Reverse lamp bulb - type 1.
26.9
3157K
Rear direction/park/stop lamp
bulb.
334
Ranger (TFG) Canada/United States of America, Vehicles Built From: 18-11-2019, LB3J 19A321 AB enUSA, Edition date: 202002, Second-Printing Capacities and Specifications

4
4WD
See: Four-Wheel Drive...................................... 162
9
911 Assist...........................................................49
A
A/C See: Climate Control........................................... 117
About This Manual
...........................................7
ABS See: Brakes............................................................. 171
ABS driving hints See: Hints on Driving With Anti-Lock
Brakes.................................................................. 171
Accessories...................................................408 Peace of Mind.................................................... 408
Accessories See: Replacement Parts
Recommendation............................................ 13
ACC See: Using Adaptive Cruise Control............189
Adjusting the Headlamps.........................275 Vertical Aim Adjustment................................. 275
Adjusting the Steering Wheel....................72
Airbag Disposal..............................................48
Air Conditioning See: Climate Control........................................... 117
Air Filter See: Changing the Engine Air Filter............280
Alarm See: Anti-Theft Alarm........................................ 70
Ambient Lighting
............................................82
Adjusting the Brightness................................... 82
Changing the Color.............................................. 82
Switching Ambient Lighting Off..................... 82
Switching Ambient Lighting On...................... 82
Anti-Theft Alarm............................................70 Alarm System........................................................ 70
Arming the Alarm.................................................. 71
Disarming the Alarm............................................ 71
Triggering the Alarm............................................. 71
Appendices....................................................432 Apps..................................................................392
Using Apps on an Android Device...............393
Using Apps on an iOS Device........................ 392
Using Mobile Navigation on an Android Device................................................................ 393
At a Glance
.........................................................17
Audible Warnings and Indicators.............95 Headlamps On Warning Chime...................... 95
Key in Ignition Warning Chime........................ 95
Keyless Warning Alert........................................ 95
Parking Brake On Warning Chime.................95
Audio Control
...................................................72
Type One.................................................................. 72
Type Two.................................................................. 73
You can operate the following functions with the control:............................................... 73
Audio Input Jack
...........................................352
Audio System................................................342
General Information......................................... 342
Audio Unit - Vehicles With: AM/FM/USB/ Bluetooth.....................................................342
Accessing the Clock Settings........................ 342
Accessing the Media Source Menu.............342
Accessing the Menu.......................................... 343
Accessing the Phone Features..................... 343
Accessing the Sound Settings...................... 343
Adjusting the Volume....................................... 343
Changing Radio Stations................................ 343
Listening to the Radio...................................... 343
Muting the Audio............................................... 343
Switching the Audio Unit On and Off........343
Using Seek, Fast Forward and Reverse............................................................. 344
Using the Display Control............................... 343
Using the Number Block................................. 344
Audio Unit - Vehicles With: SYNC 3
......................................................................346
Adjusting the Volume....................................... 347
Changing Radio Stations................................ 347
Playing or Pausing Media................................ 347
Switching the Audio Unit On and Off.........347
Using Seek, Fast Forward and Reverse.............................................................. 347
Audio Unit - Vehicles With: SYNC.........344 Accessing the Apps Menu.............................. 344
Accessing the Clock Settings........................ 344
Accessing the Information Menu................344
Accessing the Media Source Menu.............344
463
Ranger (TFG) Canada/United States of America, Vehicles Built From: 18-11-2019, LB3J 19A321 AB enUSA, Edition date: 202002, Second-Printing Index

Accessing the Phone Features.....................
345
Accessing the Settings Menu........................ 345
Accessing the Sound Settings...................... 345
Adjusting the Volume....................................... 345
Changing Radio Stations................................ 345
Listening to the Radio...................................... 345
Playing or Pausing Media............................... 345
Switching Repeat Mode On and Off..........346
Switching Shuffle Mode On and Off..........346
Switching the Audio Unit On and Off........345
Switching the Display On and Off...............345
Using a Cell Phone............................................ 346
Using Seek, Fast Forward and Reverse............................................................. 346
Using the Display Control............................... 346
Using the Number Block................................. 346
Autolamps........................................................78 Windshield Wiper Activated
Headlamps........................................................ 78
Automatic Climate Control.......................118
Setting the Blower Motor Speed................... 118
Setting the Temperature.................................. 118
Switching Auto Mode On and Off.................118
Switching Defrost On and Off........................ 119
Switching Maximum Air Conditioning On and Off................................................................ 119
Switching Maximum Defrost On and Off........................................................................\
119
Switching Recirculated Air On and Off........................................................................\
119
Switching the Air Conditioning On and Off........................................................................\
119
Switching the Climate Control On and Off........................................................................\
119
Switching the Heated Seats On and Off........................................................................\
119
Automatic High Beam Control.................80 Automatic High Beam Indicator...................... 81
Switching the System On and Off................80
Automatic Transmission
...........................158
Automatic Transmission Adaptive
Learning.............................................................. 161
Brake-Shift Interlock......................................... 160
If Your Vehicle Gets Stuck In Mud or Snow................................................................... 161
Progressive Range Selection......................... 160
SelectShift™ Automatic Transmission................................................... 159Transmission Selector Lever
Positions........................................................... 158
Automatic Transmission Fluid Check.............................................................270
Auto-Start-Stop...........................................145 Disabling Auto-Start-Stop............................. 146
Enabling Auto-Start-Stop............................... 145
Autowipers........................................................75 Autowipers Settings............................................ 76
Auxiliary Power Points
................................135
AC Power Point.................................................... 135
DC Power Point................................................... 135
B
Battery See: Changing the 12V Battery...................... 272
Battery Charging See: Charging the 12V Battery....................... 272
Blind Spot Information System.............202 Blind Spot Information System with Trailer
Tow..................................................................... 203
Switching the System On and Off..............205
System Errors...................................................... 205
Using the Blind Spot Information System.............................................................. 202
BLIS See: Blind Spot Information System..........202
Bonnet Lock See: Opening and Closing the Hood..........262
Booster Seats..................................................28 Types of Booster Seats...................................... 28
Brake Fluid Check........................................270 Brake Fluid Service Interval............................. 271
Brakes.................................................................171 General Information............................................ 171
Breaking-In.....................................................229
Bulb Specification Chart...........................334
C
Cabin Air Filter
................................................122
Canceling the Set Speed..........................180
Capacities and Specifications
.................327
Air Conditioning System.................................. 327
Alternative Engine Oil for Extremely Cold Climates........................................................... 330
Automatic Transmission................................. 327
464
Ranger (TFG) Canada/United States of America, Vehicles Built From: 18-11-2019, LB3J 19A321 AB enUSA, Edition date: 202002, Second-Printing Index

Engine Coolant...................................................
328
Engine Oil.............................................................. 329
Front Axle.............................................................. 332
Fuel Tank.............................................................. 330
Grease.................................................................... 330
Hydraulic Brake System................................... 331
Locks........................................................................\
331
Rear Axle............................................................... 333
Transfer Case....................................................... 332
Washer Reservoir............................................... 333
Cargo Lamps....................................................82
Car Wash See: Cleaning the Exterior.............................. 282
Catalytic Converter......................................155 On-Board Diagnostics (OBD-II)................... 156
Readiness for Inspection and Maintenance (I/M) Testing.................................................... 157
Center Console...............................................137
Changing a Bulb
...........................................276
Approach Lamp and Side Direction
Indicator............................................................ 278
Central High Mounted Brake Lamp............280
Front Fog Lamps................................................ 278
Front Side Marker Bulb..................................... 277
License Plate Lamp.......................................... 280
Rear Lamps.......................................................... 278
Replacing LED Fog Lamp Bulbs................... 278
Replacing the Headlamp Bulbs ................... 276
Changing a Fuse..........................................259 Fuses...................................................................... 259
Changing a Road Wheel.............................311 Dissimilar Spare Wheel and Tire Assembly
Information........................................................ 311
Installing a Road Wheel................................... 319
Jacking and Lifting Points................................ 317
Removing a Road Wheel................................. 318
Spare Wheel......................................................... 316
Stowing the Flat Tire......................................... 319
Stowing the Tool Kit - SuperCrew................321
Stowing the Vehicle Jack and Tool Kit - SuperCab......................................................... 320
Stowing the Vehicle Jack - SuperCrew...................................................... 320
Tire Change Procedure..................................... 312
Vehicle Jack........................................................... 313
Changing the 12V Battery..........................272 Remove and Reinstall the Battery...............273
Changing the Engine Air Filter................280 Changing the Vehicle Wi-Fi Hotspot
Name or Password
....................................341
Changing the Wiper Blades.....................274
Changing the Windshield Wiper
Blades................................................................ 274
Charging the 12V Battery...........................272 Battery Management System....................... 272
Checking MyKey System Status..............60 MyKey Distance.................................................... 60
Number of Admin Keys....................................... 61
Number of MyKeys............................................... 61
Checking the Wiper Blades
......................274
Child Restraint and Seatbelt Maintenance.................................................38
Child Restraint Positioning
.........................30
Child Safety.......................................................19
General Information............................................. 19
Child Safety Locks...........................................31 Left-Hand Side...................................................... 32
Right-Hand Side................................................... 32
Cleaning Leather Seats.............................286
Cleaning Products.......................................282 Materials............................................................... 282
Cleaning the Engine
...................................284
Cleaning the Exterior..................................282 Cleaning the Headlamps................................ 283
Exterior Chrome Parts...................................... 283
Exterior Plastic Parts........................................ 283
Stripes or Graphics............................................ 283
Underbody........................................................... 283
Under Hood......................................................... 283
Cleaning the Instrument Panel and Instrument Cluster Lens
........................285
Cleaning the Interior...................................285
Mirrors.................................................................... 285
Cleaning the Wheels..................................287
Cleaning the Windows and Wiper Blades...........................................................284
Clearing All MyKeys......................................60
Climate............................................................382 Accessing Rear Climate Controls................384
Accessing the Climate Control Menu.........382
Directing the Airflow......................................... 382
Rear Climate Control Lock Indicator..........384
Setting the Blower Motor Speed.................383
Setting the Temperature................................ 383
Switching Auto Mode On and Off...............383

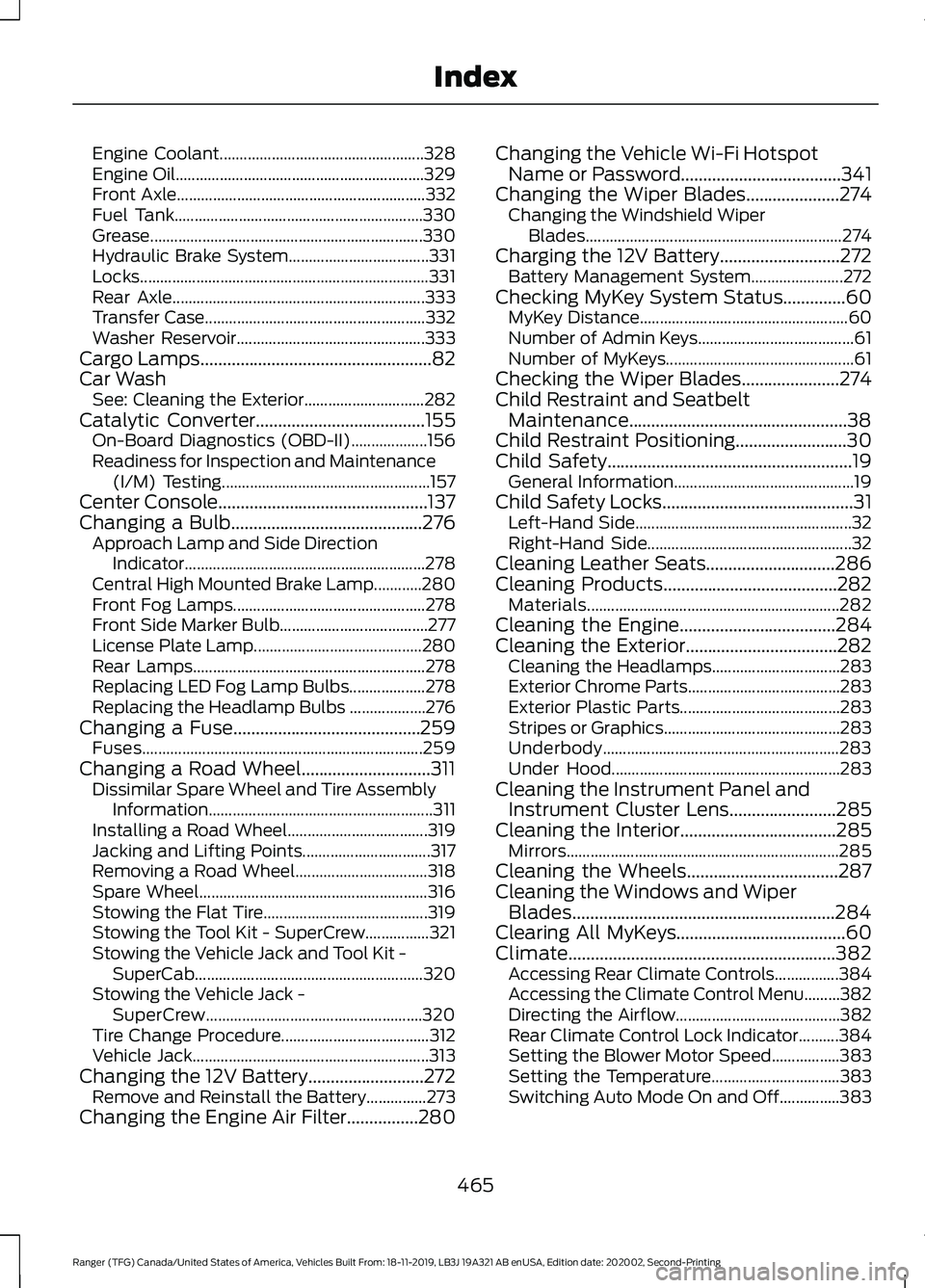

465
Ranger (TFG) Canada/United States of America, Vehicles Built From: 18-11-2019, LB3J 19A321 AB enUSA, Edition date: 202002, Second-Printing Index

Event Data Recording
See: Data Recording.............................................. 9
Exterior Mirrors................................................86 Blind Spot Information System...................... 87
Fold Away Exterior Mirrors................................ 86
Heated Exterior Mirrors...................................... 87
Power Exterior Mirrors........................................ 86
Power-Folding Mirrors........................................ 87
Puddle Lamps....................................................... 87
Signal Indicator Mirrors...................................... 87
F
Fastening the Seatbelts..............................34 Seatbelt Locking Modes.................................... 35
Using Seatbelts During Pregnancy................34
Flat Tire See: Changing a Road Wheel.......................... 311
Floor Mats.......................................................232
Fog Lamps - Front See: Front Fog Lamps......................................... 81
Ford Protect...................................................410 Ford Protect Extended Service Plan
(CANADA ONLY)............................................ 411
Ford Protect Extended Service Plans (U.S. Only).................................................................. 410
Four-Wheel Drive.........................................162
Principle of Operation....................................... 162
Front Fog Lamps.............................................81
Front Parking Aid
..........................................183
Obstacle Distance Indicator........................... 184
Front Passenger Sensing System............43
Fuel and Refueling........................................147
Fuel Consumption........................................152 Advertised Capacity........................................... 152
Calculating Fuel Economy.............................. 153
Filling the Fuel Tank........................................... 153
Fuel Filler Funnel Location........................148
Fuel Filter
..........................................................271
Fuel Quality.....................................................147 Choosing the Right Fuel................................... 147
Fuel Shutoff
...................................................234
Fuse Box Locations.....................................246 Engine Compartment Fuse Box................... 246
High Current Fuse Box...................................... 247
Passenger Compartment Fuse Box............247
Pre-fuse Box........................................................ 246
Fuses................................................................246 Fuse Specification Chart
...........................247
Engine Compartment Fuse Box................... 247
Passenger Compartment Fuse Box...........256
G
Garage Door Opener
.....................................131
Garage Door Opener See: Universal Garage Door Opener.............131
Gauges...............................................................89 Engine Coolant Temperature Gauge............90
Fuel Gauge............................................................. 90
Information Display............................................. 89
Left Information Display..................................... 91
Type 1 and 2............................................................ 89
Type 3........................................................................\
91
Gearbox See: Transmission.............................................. 158
General Information on Radio Frequencies....................................................51
Intelligent Access.................................................. 51
General Maintenance Information.........412 Multi-Point Inspection...................................... 414
Owner Checks and Services........................... 413
Protecting Your Investment............................ 412
Why Maintain Your Vehicle?........................... 412
Why Maintain Your Vehicle at Your Dealership?...................................................... 412
Getting Assistance Outside the U.S. and Canada.........................................................242
Getting the Services You Need...............239 Away From Home.............................................. 239
Glove Compartment....................................137 Glove Box with Lock........................................... 137
H
Handbrake See: Parking Brake.............................................. 172
Hazard Flashers
............................................234
Headlamp Adjusting See: Adjusting the Headlamps..................... 275
Headlamp Removal See: Removing a Headlamp.......................... 276
Headrest See: Head Restraints......................................... 124
Head Restraints
.............................................124
Adjusting the Head Restraint......................... 125
468
Ranger (TFG) Canada/United States of America, Vehicles Built From: 18-11-2019, LB3J 19A321 AB enUSA, Edition date: 202002, Second-Printing Index

J
Jump Starting the Vehicle........................235
Connecting the Jumper Cables.................... 235
Jump Starting...................................................... 236
Preparing Your Vehicle..................................... 235
Removing the Jumper Cables....................... 236
K
Keyless Entry...................................................66 SECURICODE™ KEYLESS ENTRY
KEYPAD.............................................................. 66
Keyless Starting............................................140
Ignition Modes..................................................... 140
Keys and Remote Controls..........................51
L
Lane Keeping System..................................197 Switching the System On and Off...............198
Lighting Control
...............................................77
Flashing the Headlamp High Beam..............78
Headlamp High Beam......................................... 77
Lighting...............................................................77 General Information............................................. 77
Load Carriers See: Roof Racks and Load Carriers..............218
Load Carrying.................................................214
Load Limit........................................................214 Special Loading Instructions for Owners of
Pick-up Trucks and Utility-type
Vehicles............................................................. 218
Vehicle Loading - with and without a Trailer.................................................................. 214
Load Retaining Fixtures..............................218 Tie Down Points.................................................. 218
Locking and Unlocking.................................63 Activating Intelligent Access........................... 64
Autolock.................................................................. 65
Locking and Unlocking the Doors with the Key Blade............................................................ 63
Mislock..................................................................... 65
Opening a Rear Door from the Inside...........64
Power Door Locks................................................ 63
Remote Control.................................................... 63
Smart Unlocks for Integrated Keyhead Transmitter........................................................ 65Lug Nuts
See: Changing a Road Wheel.......................... 311
M
Maintenance..................................................261 General Information.......................................... 261
Manual Climate Control
..............................117
Directing the Airflow........................................... 117
Setting the Blower Motor Speed.................... 117
Setting the Temperature................................... 117
Switching Maximum Air Conditioning On and Off................................................................ 118
Switching Maximum Defrost On and Off........................................................................\
118
Switching Recirculated Air On and Off........................................................................\
118
Switching the Air Conditioning On and Off........................................................................\
. 117
Switching the Climate Control On and Off........................................................................\
. 117
Manual Seats
.................................................126
Adjusting the Recliner....................................... 126
Adjusting the Seat Height................................ 127
Moving the Seat Backward and Forward............................................................. 126
Manual Tailgate
..............................................68
Lowering the Tailgate......................................... 68
Media Hub......................................................354
Message Center See: Information Displays................................. 96
Mirrors See: Windows and Mirrors................................ 83
Mobile Communications Equipment.......15
Motorcraft Parts...........................................324
MyKey – Troubleshooting............................61
MyKey ™
.............................................................58
Principle of Operation........................................ 58
N
Navigation......................................................387 Changing the Format of the Map................388
cityseeker............................................................. 390
Michelin Travel Guide........................................ 391
Navigation Map Accuracy and Updates............................................................ 392
Route Guidance................................................. 389
470
Ranger (TFG) Canada/United States of America, Vehicles Built From: 18-11-2019, LB3J 19A321 AB enUSA, Edition date: 202002, Second-Printing Index

Obstacle Distance Indicator..........................
186
Rear Camera Delay............................................ 187
Using the Rear View Camera System.........185
Rear View Camera See: Rear View Camera................................... 184
Recommended Towing Weights.............221 Towing Capacities.............................................. 222
Trailer Hitch Identification.............................. 222
Trailer Nose Weight........................................... 223
Refueling.........................................................150
Refueling System Overview........................... 150
Refueling System Warning.............................. 152
Refueling Your Vehicle...................................... 150
Remote Control
...............................................51
Car Finder................................................................ 55
Integrated Keyhead Transmitter...................... 51
Intelligent Access Key......................................... 52
Remote Start......................................................... 56
Replacing the Battery......................................... 53
Sounding a Panic Alarm.................................... 55
Remote Start..................................................123 Automatic Settings............................................ 123
Heated and Cooled Features.......................... 123
Last Settings......................................................... 123
Removing a Headlamp..............................276
Removing the Tailgate.................................68
Repairing Minor Paint Damage
...............287
Replacement Parts Recommendation........................................13
Collision Repairs.................................................... 14
Scheduled Maintenance and Mechanical Repairs.................................................................. 14
Warranty on Replacement Parts..................... 14
Replacing a Lost Key or Remote Control.............................................................57
Reporting Safety Defects (Canada Only)..............................................................244
Reporting Safety Defects (U.S. Only)..............................................................244
Roadside Assistance
..................................233
Vehicles Sold in Canada: Getting Roadside
Assistance....................................................... 234
Vehicles Sold in the United States: Getting Roadside Assistance................................... 233
Vehicles Sold in the United States: Using Roadside Assistance................................... 233
Roadside Emergencies..............................233
Roof Racks and Load Carriers.................218 Running-In
See: Breaking-In................................................. 229
Running Out of Fuel
....................................148
Adding Fuel From a Portable Fuel
Container.......................................................... 149
Filling a Portable Fuel Container.................. 148
S
Safety Canopy ™
............................................46
Safety Precautions.......................................147
Satellite Radio
..............................................348
Satellite Radio Electronic Serial Number
(ESN)................................................................ 349
Satellite Radio Reception Factors..............348
SiriusXM Satellite Radio Service.................349
Troubleshooting................................................. 349
Scheduled Maintenance Record
............421
Scheduled Maintenance............................412
Seatbelt Extensions......................................38
Seatbelt Height Adjustment......................36
Seatbelt Reminder........................................36 Seatbelt Status..................................................... 37
Seatbelts...........................................................33 Principle of Operation......................................... 33
Seats..................................................................124
Security..............................................................70
Settings...........................................................393 Audio...................................................................... 393
Automatic Updates.......................................... 394
Bluetooth.............................................................. 393
Charge Settings.................................................. 394
Clock....................................................................... 393
Display................................................................... 394
Driver Assist......................................................... 393
Emergency Assistance.................................... 394
FordPass............................................................... 394
General.................................................................. 394
Message Center................................................. 394
Mobile Apps......................................................... 394
Multi Contour Seats.......................................... 394
Navigation............................................................ 394
Personal Profiles................................................ 394
Phone..................................................................... 393
Seats...................................................................... 394
Sound..................................................................... 393
Valet Mode........................................................... 394
Vehicle................................................................... 393
472
Ranger (TFG) Canada/United States of America, Vehicles Built From: 18-11-2019, LB3J 19A321 AB enUSA, Edition date: 202002, Second-Printing Index
