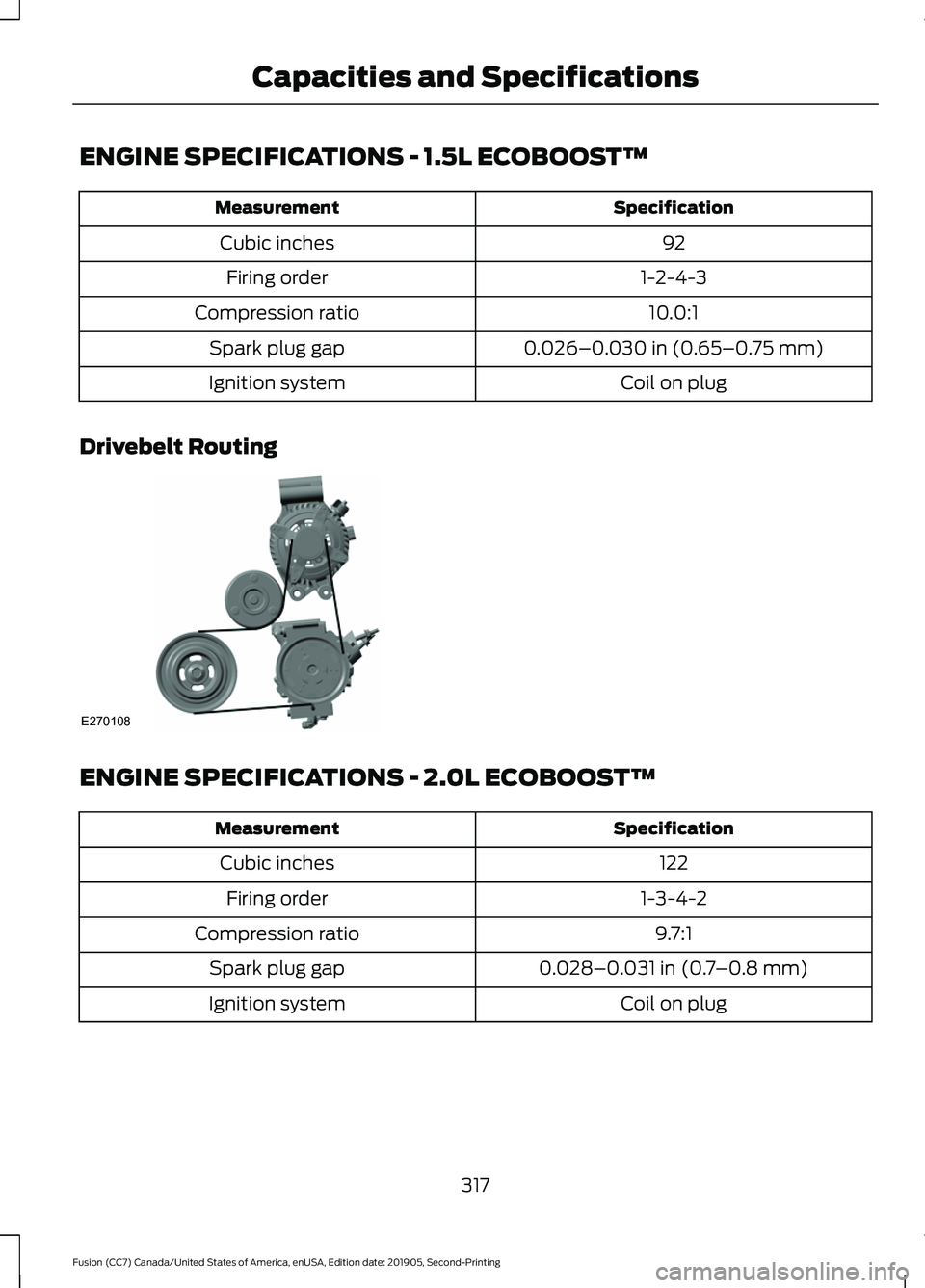

ENGINE SPECIFICATIONS - 1.5L ECOBOOST™
Specification
Measurement
92
Cubic inches
1-2-4-3
Firing order
10.0:1
Compression ratio
0.026–0.030 in (0.65–0.75 mm)
Spark plug gap
Coil on plug
Ignition system
Drivebelt Routing ENGINE SPECIFICATIONS - 2.0L ECOBOOST™
Specification
Measurement
122
Cubic inches
1-3-4-2
Firing order
9.7:1
Compression ratio
0.028–0.031 in (0.7–0.8 mm)
Spark plug gap
Coil on plug
Ignition system
317
Fusion (CC7) Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Capacities and SpecificationsE270108

Drivebelt Routing A. Long drivebelt is on first pulley groove
closest to engine
B. Short drivebelt is on second pulley groove farthest from engine
ENGINE SPECIFICATIONS - 2.5L Specification
Measurement
152
Cubic inches
1-3-4-2
Firing order
9.7:1
Compression ratio
0.049-0.053 in. (1.25-1.35 mm)
Spark plug gap
Coil on plug
Ignition system
Drivebelt Routing A. Long drivebelt is on first pulley groove
closest to engine
B. Short drivebelt is on second pulley groove farthest from engine
318
Fusion (CC7) Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Capacities and SpecificationsE161383
A
B E161383
A
B

ENGINE SPECIFICATIONS - 2.7L ECOBOOST™
Specification
Measurement
164
Cubic inches
1-4-2-5-3-6
Firing order
10.0:1
Compression ratio
0.028–0.031 in (0.7–0.8 mm)
Spark plug gap
Coil in plug
Ignition system
Drivebelt Routing MOTORCRAFT PARTS - 1.5L ECOBOOST™
Motorcraft Part number
Component
FA-1912A
Air filter element
FL-910S
Oil filter
BAGM-48H6-760
Battery
SP-539
Spark plugs
FP-71A
Cabin air filter
WW-2601 (driver side)
Windshield wiper blade
319
Fusion (CC7) Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Capacities and SpecificationsE268019
