2020 FORD FUSION/HYBRID seat memory

Steering Wheel
Adjusting the Steering Wheel
....................71
Audio Control ...................................................
71
Voice Control ...................................................
72
Cruise Control - Vehicles With: Cruise Control ...........................................................
72
Cruise Control - Vehicles With: Adaptive Cruise Control With Stop and Go ........
72
Information Display Control ......................
72
Heated Steering Wheel ...............................
72
Horn ....................................................................
73
Wipers and Washers
Windshield Wipers ........................................
74
Autowipers .......................................................
74
Windshield Washers .....................................
75
Lighting
General Information .....................................
76
Lighting Control .............................................
76
Autolamps ........................................................
77
Instrument Lighting Dimmer .....................
77
Headlamp Exit Delay ....................................
77
Daytime Running Lamps - Vehicles With: Configurable Daytime Running Lamps
........................................................................\
...
78
Daytime Running Lamps - Vehicles With: Daytime Running Lamps (DRL) ..........
78
Front Fog Lamps ...........................................
78
Direction Indicators .......................................
79
Interior Lamps ................................................
79
Ambient Lighting ..........................................
80
Automatic High Beam Control
What Is Automatic High Beam Control ........................................................................\
...
81
Switching Automatic High Beam Control On and Off ....................................................
81
Automatic High Beam Control Indicators ........................................................................\
...
81 Overriding Automatic High Beam Control
........................................................................\
...
81
Windows and Mirrors
Power Windows .............................................
83
Global Opening and Closing .....................
84
Exterior Mirrors ...............................................
84
Interior Mirror ..................................................
86
Sun Visors ........................................................
86
Moonroof .........................................................
86
Instrument Cluster
Gauges ..............................................................
88
Warning Lamps and Indicators .................
91
Audible Warnings and Indicators ............
95
Information Displays
General Information ....................................
96
Information Messages ...............................
105
Climate Control
Automatic Climate Control - Vehicles With: Touchscreen Display, Vehicles
Without: Sony Audio System ...............
119
Automatic Climate Control - Vehicles With: Sony Audio System/
Touchscreen Display ..............................
120
Automatic Climate Control - Vehicles With: SYNC .................................................
122
Hints on Controlling the Interior Climate ........................................................................\
.
123
Heated Rear Window .................................
124
Heated Exterior Mirrors ..............................
125
Cabin Air Filter ...............................................
125
Remote Start .................................................
125
Seats
Sitting in the Correct Position .................
126
Head Restraints ............................................
126
Power Seats ...................................................
128
Memory Function ........................................
130
2
Fusion Energi (CC7) Hybrid Electric Vehicle (HEV)/Plug-In Hybrid Electric Vehicle (PHEV), Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Table of Contents

Remote Start
Action
Message
A reminder to turn the key on to drive your vehicle after a
remote start.
To Drive: Turn Key to On
A reminder to apply the brake and push the gearshift button
to drive your vehicle after a remote start.
To Drive: Press Brake
and Start Button
Seats Action
Message
A reminder that memory seats are not available while driving.
Memory Recall Not
Permitted While Driving
Shows where you have saved your memory setting.
Memory {0} Saved
Starting System Action
Message
A reminder to apply the brake when starting your vehicle.
To START Press Brake
The starter has exceeds its cranking time in attempting to
start your vehicle.
Cranking Time Exceeded
The starter is attempting to start your vehicle.
Engine Start Pending
Please Wait
The system cancelled the pending start.
Pending Start Cancelled
116
Fusion Energi (CC7) Hybrid Electric Vehicle (HEV)/Plug-In Hybrid Electric Vehicle (PHEV), Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Information Displays

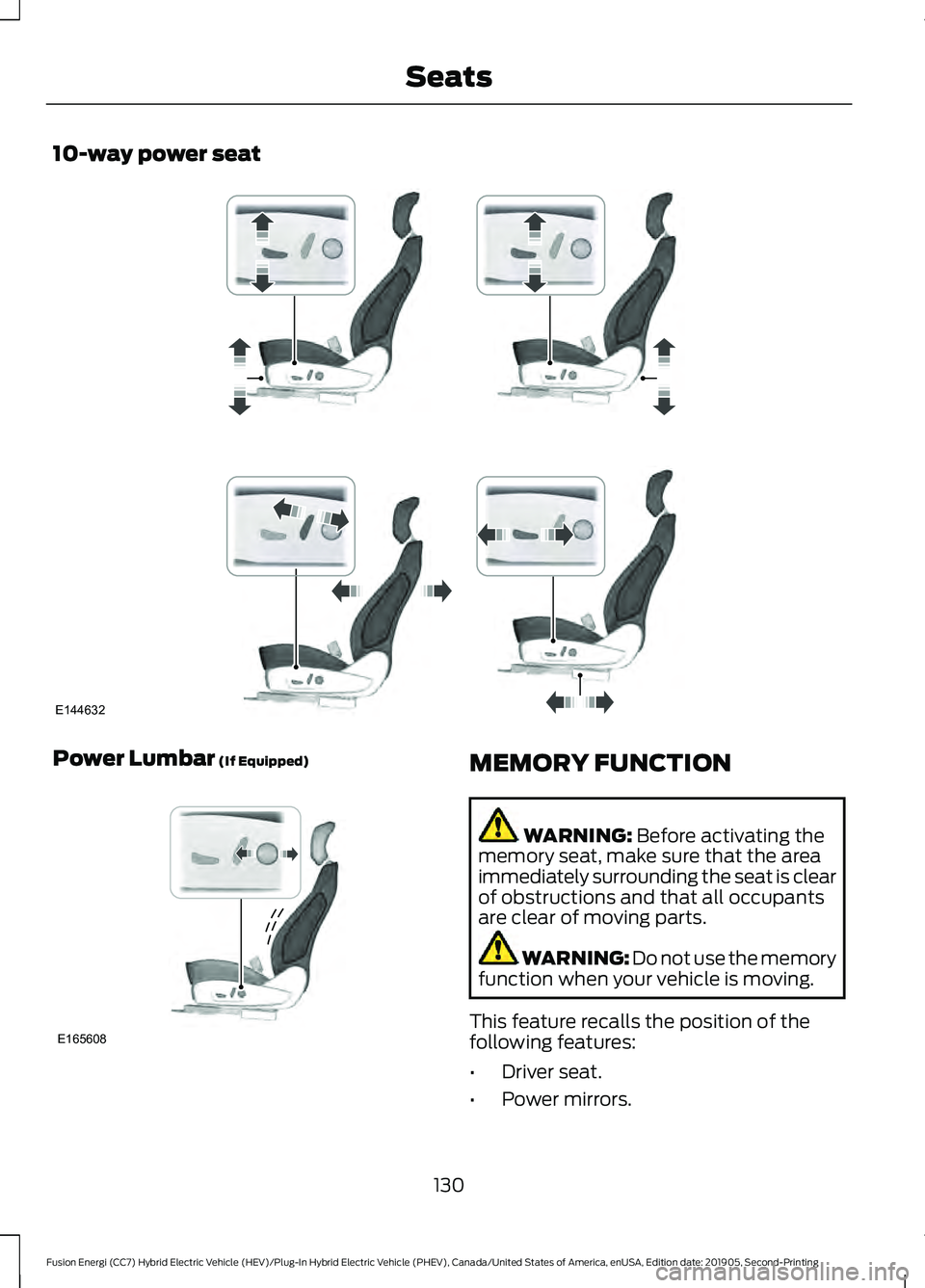

10-way power seat
Power Lumbar (If Equipped)
MEMORY FUNCTION
WARNING:
Before activating the
memory seat, make sure that the area
immediately surrounding the seat is clear
of obstructions and that all occupants
are clear of moving parts. WARNING:
Do not use the memory
function when your vehicle is moving.
This feature recalls the position of the
following features:
• Driver seat.
• Power mirrors.
130
Fusion Energi (CC7) Hybrid Electric Vehicle (HEV)/Plug-In Hybrid Electric Vehicle (PHEV), Canada/United States of America, enUSA, Edition date: 201905, Second-Printing SeatsE144632 E165608

The memory control is on the driver door.
Saving a PreSet Position
1. Adjust the memory features to the
position you prefer.
2. Press the SET button until you hear a single tone.
3. Press the preset button you prefer until
you hear a single tone.
You can save up to two preset memory
positions. You can save a memory preset
at any time.
Recalling a PreSet Position
Press and release the preset button
associated with the driving position you
prefer. The memory features move to the
position stored for that preset.
Note: You can only recall a preset memory
position when you switch the ignition off, or
when the transmission is in park (P) or
neutral (N) if the ignition is on and the
vehicle is not moving.
You can also recall a preset memory
position by:
• Pressing the unlock button on your
intelligent access key fob if it is linked
to a preset position.
• Unlocking the intelligent driver door
handle if a linked key fob is present.
Note: Using a linked key fob to recall your
memory position when the ignition is off
moves the seat to the Easy Entry position. Note:
Pressing any active memory feature
control or any memory button during a
memory recall cancels the operation.
Linking a PreSet Position to your
Remote Control or Intelligent
Access Key Fob
Your vehicle can save the preset memory
positions for up to two remote controls or
intelligent access keys.
After you save the memory preset
positions you prefer:
1. Press and hold the preset button you prefer for about three seconds until you
hear a single tone.
2. Within three seconds, press the lock button on the remote control you are
linking.
To unlink a remote control, follow the
same procedure – except in step 2, press
the unlock button on the remote control.
Note: If more than one linked remote
control or intelligent access key is in range,
the memory function moves to the settings
of the first key to initiate a memory recall.
Easy Entry and Exit Feature
If you enable the easy entry and exit
feature, it moves the driver seat position
rearward up to 2 in (5 cm) when you switch
the ignition off.
The driver seat returns to the previous
position when you switch the ignition on.
You can enable or disable this feature
through the information display. See
General Information (page 96).
REAR SEATS
Note: Your vehicle may have split
seatbacks that you must fold individually.
Note: Make sure the center safety belt is
unbuckled before folding the seatback.
131
