2020 FORD F-350 key fob

Note:
The system may not function if the
key is close to metal objects or electronic
devices, for example keys or a cell phone.
Note: If the system does not function, use
the key blade to lock and unlock your
vehicle. See Remote Control (page 53).
Unlocking Using Intelligent Access With your intelligent access key within
3 ft
(1 m) of your vehicle, touch the unlock
sensor on the back of the door handle for
a brief period and then pull on the door
handle to unlock, being careful to not
touch the lock sensor at the same time or
pulling the door handle too quickly. The
intelligent access system requires a brief
delay to authenticate your intelligent
access key fob.
Locking Using Intelligent Access With your intelligent access key within
3 ft
(1 m) of your vehicle, touch the outer door
handle lock sensor for approximately one
second to lock, being careful to not touch
the unlock sensor on the back of the door
handle at the same time. After locking, you
can immediately pull on the door handle
to confirm locking occurred without
inadvertently unlocking.
Note: Do not use the outside door handle
as a roof cargo strap. At the Electronic Tailgate (If Equipped)
Press the exterior tailgate release button
inside of the tailgate handle. The tailgate
unlocks and opens. See
Tailgate Lock
(page 70).
Smart Unlock
(If Equipped)
This feature helps to prevent you from
locking your intelligent access key inside
your vehicle ’s passenger compartment or
rear cargo area.
If you leave your key in the ignition, when
you open the driver door and lock your
vehicle with the power door lock control,
the doors lock then unlock.
You can still lock your vehicle with the key
in the ignition by:
• Using the manual lock on the inside of
the door.
• Locking the driver door with a key.
• Using the keyless entry keypad.
• Using the lock button on the remote
control.
Smart Unlocks for Intelligent
Access Keys
(If Equipped)
This feature helps to prevent you from
locking your intelligent access key inside
your vehicle ’s passenger compartment or
rear cargo area.
66
Super Duty (TFE), enUSA, Edition date: 201909, Third-Printing- Doors and LocksE248555 E248556 E187693

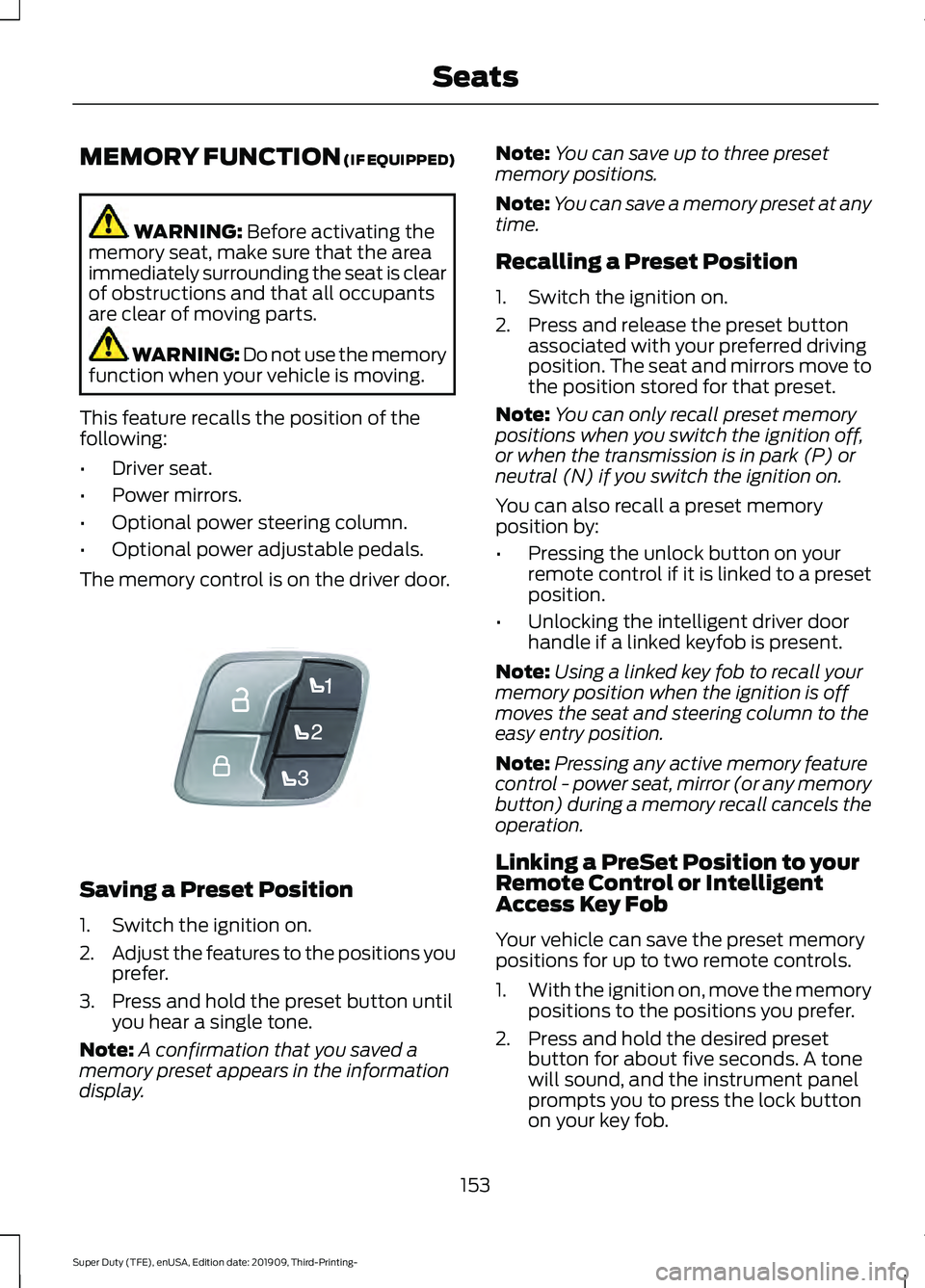

MEMORY FUNCTION (IF EQUIPPED)
WARNING:
Before activating the
memory seat, make sure that the area
immediately surrounding the seat is clear
of obstructions and that all occupants
are clear of moving parts. WARNING:
Do not use the memory
function when your vehicle is moving.
This feature recalls the position of the
following:
• Driver seat.
• Power mirrors.
• Optional power steering column.
• Optional power adjustable pedals.
The memory control is on the driver door. Saving a Preset Position
1. Switch the ignition on.
2.
Adjust the features to the positions you
prefer.
3. Press and hold the preset button until you hear a single tone.
Note: A confirmation that you saved a
memory preset appears in the information
display. Note:
You can save up to three preset
memory positions.
Note: You can save a memory preset at any
time.
Recalling a Preset Position
1. Switch the ignition on.
2. Press and release the preset button associated with your preferred driving
position. The seat and mirrors move to
the position stored for that preset.
Note: You can only recall preset memory
positions when you switch the ignition off,
or when the transmission is in park (P) or
neutral (N) if you switch the ignition on.
You can also recall a preset memory
position by:
• Pressing the unlock button on your
remote control if it is linked to a preset
position.
• Unlocking the intelligent driver door
handle if a linked keyfob is present.
Note: Using a linked key fob to recall your
memory position when the ignition is off
moves the seat and steering column to the
easy entry position.
Note: Pressing any active memory feature
control - power seat, mirror (or any memory
button) during a memory recall cancels the
operation.
Linking a PreSet Position to your
Remote Control or Intelligent
Access Key Fob
Your vehicle can save the preset memory
positions for up to two remote controls.
1. With the ignition on, move the memory
positions to the positions you prefer.
2. Press and hold the desired preset button for about five seconds. A tone
will sound, and the instrument panel
prompts you to press the lock button
on your key fob.
153
Super Duty (TFE), enUSA, Edition date: 201909, Third-Printing- SeatsE307868

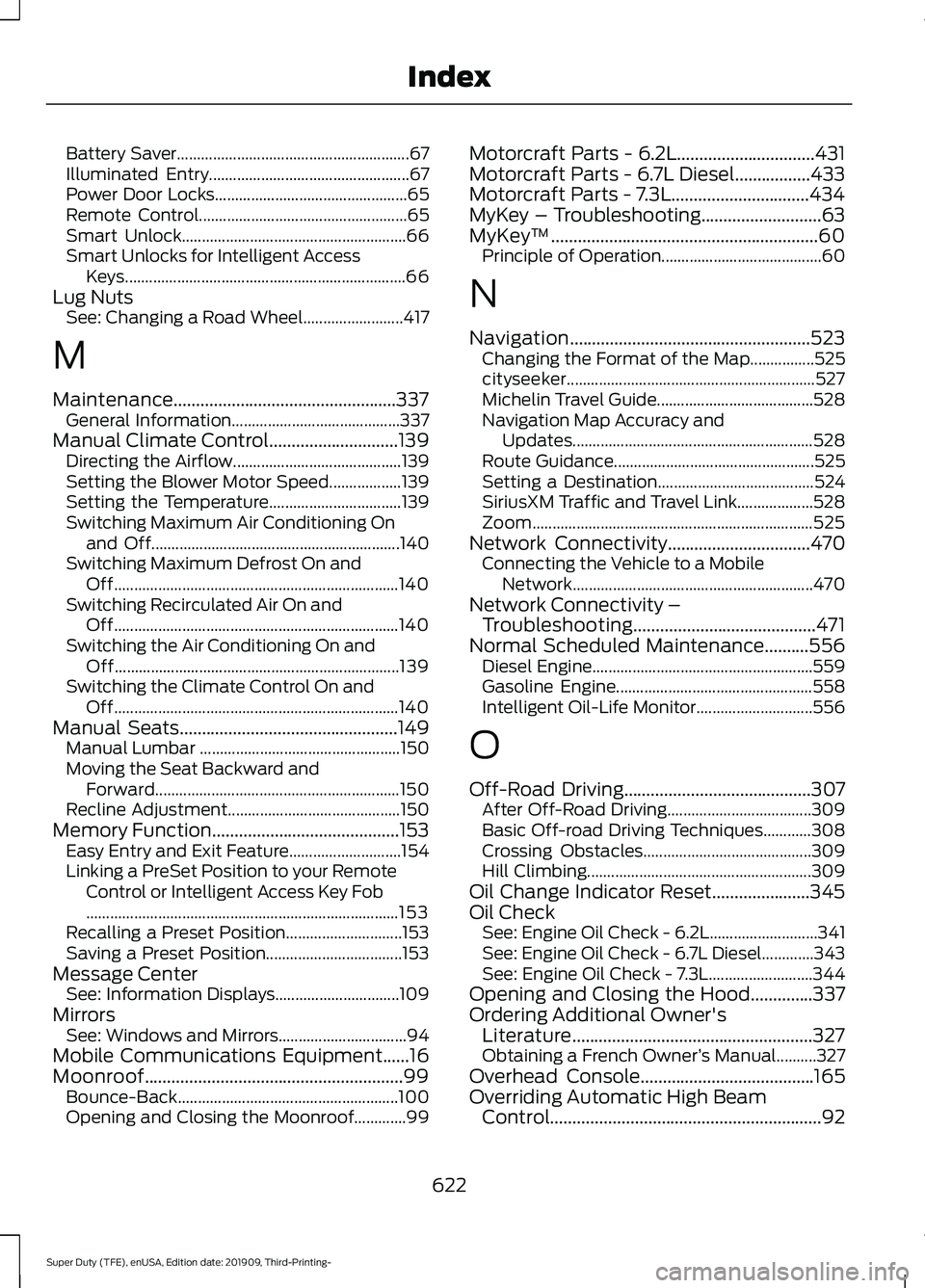

Battery Saver..........................................................
67
Illuminated Entry.................................................. 67
Power Door Locks................................................ 65
Remote Control.................................................... 65
Smart Unlock........................................................ 66
Smart Unlocks for Intelligent Access Keys...................................................................... 66
Lug Nuts See: Changing a Road Wheel......................... 417
M
Maintenance..................................................337 General Information.......................................... 337
Manual Climate Control.............................139
Directing the Airflow.......................................... 139
Setting the Blower Motor Speed.................. 139
Setting the Temperature................................. 139
Switching Maximum Air Conditioning On and Off.............................................................. 140
Switching Maximum Defrost On and Off....................................................................... 140
Switching Recirculated Air On and Off....................................................................... 140
Switching the Air Conditioning On and Off....................................................................... 139
Switching the Climate Control On and Off....................................................................... 140
Manual Seats
.................................................149
Manual Lumbar .................................................. 150
Moving the Seat Backward and Forward............................................................. 150
Recline Adjustment........................................... 150
Memory Function..........................................153 Easy Entry and Exit Feature............................ 154
Linking a PreSet Position to your Remote Control or Intelligent Access Key Fob
........................................................................\
...... 153
Recalling a Preset Position............................. 153
Saving a Preset Position.................................. 153
Message Center See: Information Displays............................... 109
Mirrors See: Windows and Mirrors................................ 94
Mobile Communications Equipment
......16
Moonroof..........................................................99
Bounce-Back....................................................... 100
Opening and Closing the Moonroof.............99 Motorcraft Parts - 6.2L...............................431
Motorcraft Parts - 6.7L Diesel
.................433
Motorcraft Parts - 7.3L...............................434
MyKey – Troubleshooting...........................63
MyKey ™
............................................................60
Principle of Operation........................................ 60
N
Navigation
......................................................523
Changing the Format of the Map................525
cityseeker.............................................................. 527
Michelin Travel Guide....................................... 528
Navigation Map Accuracy and Updates............................................................ 528
Route Guidance.................................................. 525
Setting a Destination....................................... 524
SiriusXM Traffic and Travel Link................... 528
Zoom...................................................................... 525
Network Connectivity
................................470
Connecting the Vehicle to a Mobile
Network............................................................ 470
Network Connectivity – Troubleshooting.........................................
471
Normal Scheduled Maintenance..........556 Diesel Engine....................................................... 559
Gasoline Engine................................................. 558
Intelligent Oil-Life Monitor............................. 556
O
Off-Road Driving
..........................................307
After Off-Road Driving.................................... 309
Basic Off-road Driving Techniques............308
Crossing Obstacles.......................................... 309
Hill Climbing........................................................ 309
Oil Change Indicator Reset......................345
Oil Check See: Engine Oil Check - 6.2L........................... 341
See: Engine Oil Check - 6.7L Diesel.............343
See: Engine Oil Check - 7.3L.......................... 344
Opening and Closing the Hood..............337
Ordering Additional Owner's Literature......................................................327
Obtaining a French Owner ’s Manual..........327
Overhead Console.......................................165
Overriding Automatic High Beam Control.............................................................92
622
Super Duty (TFE), enUSA, Edition date: 201909, Third-Printing- Index
