2020 FIAT TALENTO dimensions

Combi 5 seats
137)
Seat not authorised to install a child restraint of this type.
ISOFIX system fastened child seat
Seat where installing an ISOFIX of child seat is allowed.
The rear seats have an anchorage that allows an ISOFIX universal child seat to be installed facing backwards. The
anchorages are available in the luggage compartment and are visible.
An ISOFIX child seat's dimensions are indicated by letter:
A, B and B1: for seats facing forwards in group 1 (from 9 to 18 kg);
C: seats facing backwards in group 1 (from 9 to 18 kg);
D and E: seats facing backwards in group 0 or 0+ (less than 13 kg);
F and G: cots from group 0 (less than 10 kg).
203T36642
117

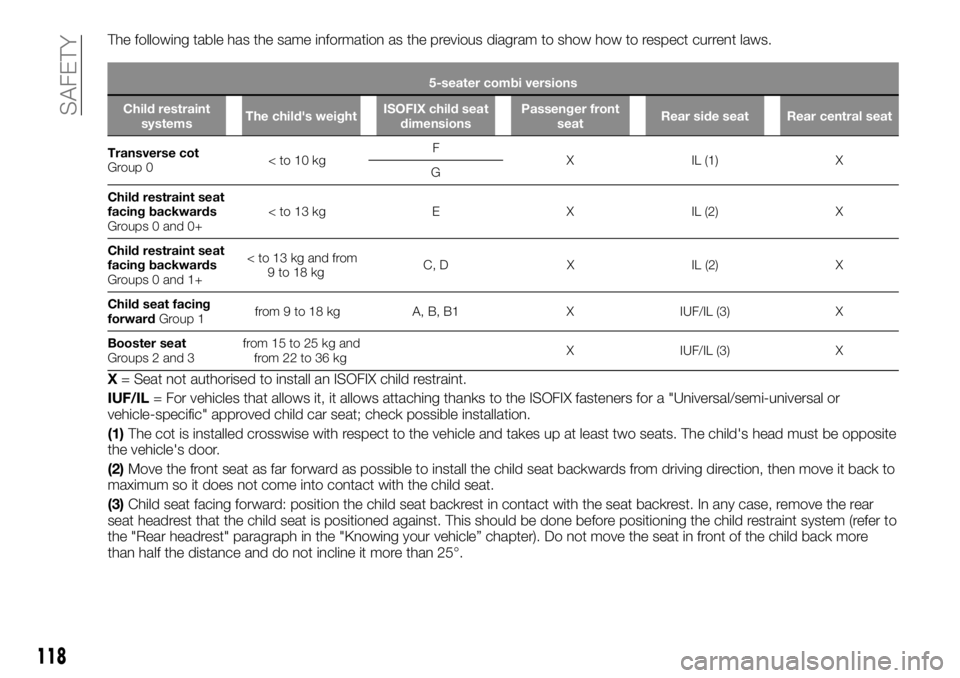

The following table has the same information as the previous diagram to show how to respect current laws.
5-seater combi versions
Child restraint
systemsThe child's weightISOFIX child seat
dimensionsPassenger front
seatRear side seat Rear central seat
Transverse cot
Group 0 X IL (1) X
G
Child restraint seat
facing backwards
Groups 0 and 0+ Child restraint seat
facing backwards
Groups 0 and 1+ 9to18kgC, D X IL (2) X
Child seat facing
forwardGroup 1from 9 to 18 kg A, B, B1 X IUF/IL (3) X
Booster seat
Groups 2 and 3from 15 to 25 kg and
from 22 to 36 kgX IUF/IL (3) X
X= Seat not authorised to install an ISOFIX child restraint.
IUF/IL= For vehicles that allows it, it allows attaching thanks to the ISOFIX fasteners for a "Universal/semi-universal or
vehicle-specific" approved child car seat; check possible installation.
(1)The cot is installed crosswise with respect to the vehicle and takes up at least two seats. The child's head must be opposite
the vehicle's door.
(2)Move the front seat as far forward as possible to install the child seat backwards from driving direction, then move it back to
maximum so it does not come into contact with the child seat.
(3)Child seat facing forward: position the child seat backrest in contact with the seat backrest. In any case, remove the rear
seat headrest that the child seat is positioned against. This should be done before positioning the child restraint system (refer to
the "Rear headrest" paragraph in the "Knowing your vehicle” chapter). Do not move the seat in front of the child back more
than half the distance and do not incline it more than 25°.
118
SAFETY

Combi 6 seats
Seat not authorised to install a child restraint of this type.
ISOFIX system fastened child seat
Seat where installing an ISOFIX of child seat is allowed.
The rear seats have an anchorage that allows an ISOFIX universal child seat to be installed facing backwards. The
anchorages are available in the luggage compartment and are visible.
An ISOFIX child seat's dimensions are indicated by letter:
A, B and B1: for seats facing forwards in group 1 (from 9 to 18 kg);
C: seats facing backwards in group 1 (from 9 to 18 kg);
D and E: seats facing backwards in group 0 or 0+ (less than 13 kg);
F and G: cots from group 0 (less than 10 kg).
204T36640
119

The following table has the same information as the previous diagram to show how to respect current laws.
6-seater combi versions
Child restraint
systemsThe child's weightISOFIX child seat
dimensionsPassenger front seat Rear seat
central
passengerside
passenger- Central
Transverse cot
Group 0 o10kgF
XXXX
G
Child restraint
seat facing
backwardsGroups
0 and 0+ Child restraint
seat facing
backwardsGroups
0 and 1+ 9to18kgC
XXXX
D
Child seat facing
forwardGroup 1from 9 to 18 kg A, B, B1 X X IUF/IL (3) X
Booster seat
Groups 2 and 3from 15 to 25 kg
and from 22 to
36 kgX X IUF/IL (3) X
X: seat not authorised to install a child restraint of this type.
IUF/IL: this seat has ISOFIX fasteners for attaching a "Universal/semi-universal or vehicle-specific" approved child restraint
system; check that installation is possible.
(1): the cot is installed crosswise with respect to the vehicle and takes up at least two seats. The child's head must be opposite
the vehicle's door.
(2): move the front seat as far forward as possible to install the child seat backwards from driving direction, then move it back
to maximum so it does not come into contact with the child seat.
(3): child seat facing forward: position the child seat backrest in contact with the seat backrest. In any case, remove the rear
seat headrest that the child seat is positioned against. This should be done before positioning the child seat (please see the
paragraph "Rear headrest" in chapter "Knowing your vehicle"). Do not move the seat in front of the child back more than half
the distance and do not incline it more than 25°.
120
SAFETY

Combi/bus 8 seats
Seat not authorised to install a child restraint of this type.
ISOFIX system fastened child seat
Seat where installing an ISOFIX of child seat is allowed.
The rear seats have an anchorage that allows an ISOFIX universal child seat to be installed facing backwards. The
anchorages are available in the luggage compartment and are visible.
An ISOFIX child seat's dimensions are indicated by letter:
A, B and B1: for seats facing forwards in group 1 (from 9 to 18 kg);
C: seats facing backwards in group 1 (from 9 to 18 kg);
D and E: seats facing backwards in group 0 or 0+ (less than 13 kg);
F and G: cots from group 0 (less than 10 kg).
205T36641
121

The following table has the same information as the previous diagram to show how to respect current laws.
Combi/bus version 8 seats
Child restraint
systemsThe child's
weightISOFIX child seat
dimensionsPassenger front
seatRear seat
side 2nd
rowcentre
2nd rowside 3rd
rowcentre 3rd
row
Transverse cot
Group 0 o10kgF
X IL (1) X X X
G
Child restraint
seat facing
backwards
Groups 0 and 0+ Child restraint
seat facing
backwards
Groups 0 and 1+ from9to18kgC, D X IL (2) X X X
Child seat facing
forwardGroup 1from 9 to 18 kg A, B, B1 X IUF/IL (3) X X X
Booster seat
Groups 2 and 3from 15 to 25 kg
and from 22 to
36 kgX IUF/IL (3) X X X
X: seat not authorised to install a child restraint of this type.
IUF/IL: this seat has ISOFIX fasteners for attaching a "Universal/semi-universal or vehicle-specific" approved child restraint
system; check that installation is possible.
(1): the cot is installed crosswise with respect to the vehicle and takes up at least two seats. The child's head must be opposite
the vehicle's door.
(2): move the front seat as far forward as possible to install the child seat backwards from driving direction, then move it back
to maximum so it does not come into contact with the child seat.
(3): child seat facing forward: position the child seat backrest in contact with the seat backrest. In any case, remove the rear
seat headrest that the child seat is positioned against. This should be done before positioning the child seat (please see the
paragraph "Rear headrest" in chapter "Knowing your vehicle"). Do not move the seat in front of the child back more than half
the distance and do not incline it more than 25°.
122
SAFETY

Combi/bus 9 seats
Seat not authorised to install a child restraint of this type.
ISOFIX system fastened child seat
Seat where installing an ISOFIX of child seat is allowed.
The rear seats have an anchorage that allows an ISOFIX universal child seat to be installed facing backwards. The
anchorages are available in the luggage compartment and are visible.
An ISOFIX child restraint system's dimensions are indicated by a letter:
A, B and B1: for seats facing forwards in group 1 (from 9 to 18 kg);
C: seats facing backwards in group 1 (from 9 to 18 kg);
D and E: seats facing backwards in group 0 or 0+ (less than 13 kg);
F and G: cots from group 0 (less than 10 kg).
206T36639
123

The following table has the same information as the previous diagram to show how to respect current laws.
Combi/bus version 9 seats
Child restraint
systemsThe child's
weightISOFIX child
seat
dimensionsPassenger front seat Rear seat
central
pass.side
pass.side 2nd
rowcentre
second
rowside
3rd rowcentre
3rd row
Transverse cot
Group 0 o10kgF
XXXXXX
G
Child restraint seat
facing backwards
Groups 0 and 0+ Child restraint seat
facing backwards
Groups 0 and 1+ and from 9 to
18 kgC
XXXXXX
D
Child seat facing
forwardGroup 1from 9 to
18 kgA, B, B1 X X IUF/IL (3) X X X
Booster seatGroups
2 and 3from 15 to
25 kg and
from 22 to
36 kgX X IUF/IL (3) X X X
X: seat not authorised to install a child restraint of this type.
IUF/IL: this seat has ISOFIX fasteners for attaching a "Universal/semi-universal or vehicle-specific" approved child restraint
system; check that installation is possible.
(1): the cot is installed crosswise with respect to the vehicle and takes up at least two seats. The child's head must be opposite
the vehicle's door.
(2): move the front seat as far forward as possible to install the child seat backwards from driving direction, then move it back
to maximum so it does not come into contact with the child seat.
(3): child seat facing forward: position the child seat backrest in contact with the seat backrest. In any case, remove the rear
seat headrest that the child seat is positioned against. This should be done before positioning the child seat (please see the
paragraph "Rear headrest" in chapter "Knowing your vehicle"). Do not move the seat in front of the child back more than half
the distance and do not incline it more than 25°.
124
