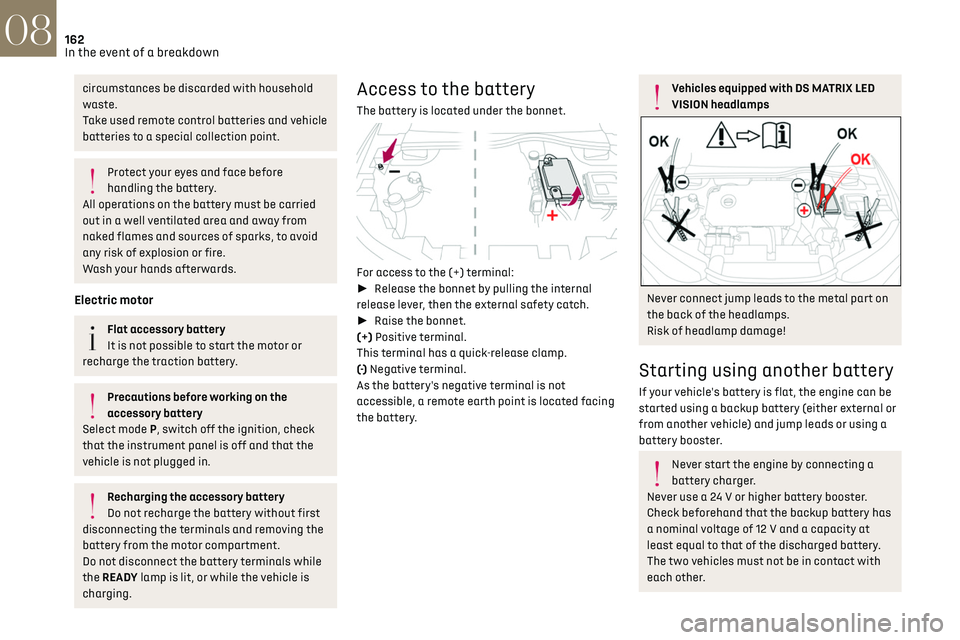

162In the event of a breakdown08
circumstances be discarded with household
waste.
Take used remote control batteries and vehicle
batteries to a special collection point.
Protect your eyes and face before
handling the battery.
All operations on the battery must be carried
out in a well ventilated area and away from
naked flames and sources of sparks, to avoid
any risk of explosion or fire.
Wash your hands afterwards.
Electric motor
Flat accessory battery
It is not possible to start the motor or
recharge the traction battery.
Precautions before working on the
accessory battery
Select mode P, switch off the ignition, check
that the instrument panel is off and that the
vehicle is not plugged in.
Recharging the accessory battery
Do not recharge the battery without first
disconnecting the terminals and removing the
battery from the motor compartment.
Do not disconnect the battery terminals while
the READY lamp is lit, or while the vehicle is
charging.
Access to the battery
The battery is located under the bonnet.

For access to the (+) terminal:
►  Release the bonnet by pulling the internal
release lever, then the external safety catch.
►  Raise the bonnet.
(+) Positive terminal.
This terminal has a quick-release clamp.
(-) Negative terminal.
As the battery's negative terminal is not
accessible, a remote earth point is located facing
the battery.
Vehicles equipped with DS MATRIX LED
VISION headlamps
Never connect jump leads to the metal part on
the back of the headlamps.
Risk of headlamp damage!
Starting using another battery
If your vehicle's battery is flat, the engine can be
started using a backup battery (either external or
from another vehicle) and jump leads or using a
battery booster.
Never start the engine by connecting a
battery charger.
Never use a 24 V or higher battery booster.
Check beforehand that the backup battery has
a nominal voltage of 12 V and a capacity at
least equal to that of the discharged battery.
The two vehicles must not be in contact with
each other.

164In the event of a breakdown08
► At the end of the charging operation, switch
off charger B before disconnecting the cables
from battery A.

24v 12v
If this label is present, use only a 12 V
charger to avoid causing irreversible
damage to the electrical components related
to the Stop & Start system.
Never try to charge a frozen battery - risk
of explosion!
If the battery has frozen, have it checked by
a dealer or by a qualified workshop who will
verify that the internal components have not
been damaged and that the case has not
cracked, which would mean a risk of toxic and
corrosive acid leaking.
Some functions, including Stop & Start,
are not available if the battery is not
sufficiently charged.
Disconnecting the battery
In order to maintain an adequate state of charge
for starting the engine, it is recommended that
the battery be disconnected if the vehicle is taken
out of service for a long period. Before disconnecting the battery:
► 
Close all openings (doors, boot, windows,
roof).
►  Switch off all electrical consumers (audio
system, wipers, lighting, etc.).
►  Switch off the ignition and wait for 4 minutes.
At the battery, it is only necessary to disconnect
the (+) terminal.
Quick-release terminal clamp
Disconnecting the (+) terminal

►  Depending on equipment, lift the plastic cover
on the (+) terminal.
►  Raise lever A fully to release clamp B.
►  Remove clamp B by lifting it off.
Reconnecting the (+) terminal

► Raise lever A fully.
►  Refit the open clamp B on the (+) terminal.
►  Push clamp B fully down.
►  Lower lever A to lock clamp B.
►  Depending on equipment, lower the plastic
cover on the (+) terminal.
Do not force the lever as locking will be
impossible if the clamp is not positioned
correctly; start the procedure again.
After reconnection
After reconnecting the battery, turn on the
ignition and wait 1 minute before starting the
engine, to enable the electronic systems to
initialise.
If minor problems nevertheless persist following
this operation, contact a dealer or a qualified
workshop.
Referring to the relevant section, reset certain
equipment:
– Electronic key.
– Electric windows.
– Date and time.
– Preset radio stations.
After reconnection of the battery, the
“Collision risk detection system fault”
message is displayed on the instrument panel
when the ignition is switched on. This
operation is perfectly normal. The message
will disappear while driving.
The Stop & Start system may not be
operational during the trip following the
first engine start.
In this case, the system will only be
available again after a continuous period of
immobilisation of the vehicle, a period which
depends on the exterior temperature and the
Towing constraints
Type of vehicle
(engine / gearbox)gearbox Font wheels on the ground Rear wheels on the ground Flatbed
4 wheels on the ground with
towbar
Internal combustion /
Manual


Internal combustion /
Automatic

181Touch screen BLUETOOTH audio system10
► Press the "Radio Settings" button then select
"Update list". The radio reception is cut off while
searching for available stations (approximately
30 seconds).
Media
Playback of my USB memory stick starts only
after a very long wait (around 2 to 3 minutes).
Some files supplied with the memory stick may
greatly slow down access to reading the memory
stick (multiplication by 10 of the cataloguing
time).
►  Delete the files supplied with the memory
stick and limit the number of sub-folders in the
file structure on the memory stick.
Some characters in information about the
currently playing media are not displayed
correctly.
The audio system is unable to process certain
types of character.
►  Use standard characters to name tracks and
folders.
Playback of streaming files does not start.
The connected device does not automatically
launch playback.
►  Start playback from the device.
Track names and playing times are not displayed
on the audio streaming screen.
The Bluetooth profile does not allow the transfer
of this information.
Telephone
I cannot connect my Bluetooth telephone. The telephone's Bluetooth function may be
switched off or the telephone may not be visible.
► 
Check that the telephone has Bluetooth
switched on.
►  Check in the telephone settings that it is
"visible to all".
The Bluetooth telephone is not compatible with
the system.
►  Check the compatibility of the telephone on
the Brand's website (services).
The volume of the telephone connected in
Bluetooth mode is inaudible.
The volume depends on both the system and the
telephone.
Ambient noise affects the quality of the telephone
call.
►  Increase the volume of the audio system, to
maximum if required, and increase the volume of
the telephone if necessary.
►  Reduce ambient noise (close windows, reduce
ventilation, slow down, etc.).
The contacts are not listed in alphabetical order.
Some telephones offer display options. Depending
on the settings chosen, contacts can be
transferred in a specific order.
►  Modify the telephone directory display
settings.
Settings
When the treble and bass settings are changed,
the ambience is deselected.
When the ambience is changed, the treble and
bass settings are reset. Selecting an ambience imposes the treble and
bass settings, and vice versa.
► 
Modify the treble and bass or ambience
settings to obtain the desired musical ambience.
There is a difference in sound quality between
audio sources.
To allow for optimal listening quality, the sound
settings can be tailored to different audio
sources, which can generate audible differences
when changing source.
►  Check that the sound settings are appropriate
to the sources listened to. Adjust the sound
functions to the middle position.
When the engine is off, the system switches off
after several minutes of use.
When the engine is switched off, the system's
operating time depends on the state of charge of
the battery.
The switch-off is normal: the system
automatically goes into energy economy mode
and switches off to maintain an adequate charge
in the battery.
►  Start the vehicle’s engine to increase the
charge of the battery.

194
DS CONNECT RADIO11
stick (multiplication by 10 of the cataloguing
time).
► Delete the files supplied with the memory
stick and limit the number of sub-folders in the
file structure on the memory stick.
Some characters in information about the
currently playing media are not displayed
correctly.
The audio system is unable to process certain
types of character.
►  Use standard characters to name tracks and
folders.
Playback of streaming files does not start.
The connected device does not automatically
launch playback.
►  Start playback from the device.
Track names and playing times are not displayed
on the audio streaming screen.
The Bluetooth profile does not allow the transfer
of this information.
Telephone
I cannot connect my Bluetooth telephone.
The telephone's Bluetooth function may be
switched off or the telephone may not be visible.
►  Check that the telephone has Bluetooth
switched on.
►  Check in the telephone settings that it is
"visible to all".
The Bluetooth telephone is not compatible with
the system.
►  Check the compatibility of the telephone on
the Brand's website (services). Android Auto and CarPlay do not work.
Android Auto and CarPlay may not activate if the
USB cables are of poor quality.
► 
Use genuine USB cables to ensure
compatibility.
The volume of the telephone connected in
Bluetooth mode is inaudible.
The volume depends on both the system and the
telephone.
►  Increase the volume of the audio system, to
maximum if required, and increase the volume of
the telephone if necessary.
Ambient noise affects the quality of the telephone
call.
►  Reduce ambient noise (close windows, reduce
ventilation, slow down, etc.).
The contacts are not listed in alphabetical order.
Some telephones offer display options. Depending
on the settings chosen, contacts can be
transferred in a specific order.
►  Modify the telephone directory display
settings.Settings
When the treble and bass settings are changed,
the ambience is deselected.
When the ambience is changed, the treble and
bass settings are reset.
Selecting an ambience imposes the treble and
bass settings, and vice versa.
►  Modify the treble and bass or ambience
settings to obtain the desired musical ambience. When the balance settings are changed, the
distribution is deselected.
When the distribution setting is changed, the
balance settings are deselected.
Selecting a distribution setting imposes the
balance settings, and vice versa.
► 
Modify the balance setting or the distribution
setting to obtain the desired sound quality.
There is a difference in sound quality between
audio sources.
To allow for optimal listening quality, the sound
settings can be tailored to different audio
sources, which can generate audible differences
when changing source.
►  Check that the sound settings are appropriate
to the sources listened to. Adjust the sound
functions to the middle position.
When the engine is off, the system switches off
after several minutes of use.
When the engine is switched off, the system's
operating time depends on the state of charge of
the battery.
The switch-off is normal: the system
automatically goes into energy economy mode
and switches off to maintain an adequate charge
in the battery.
►  Start the vehicle’s engine to increase the
charge of the battery.

222
Alphabetical index
G
Gauge, fuel 129
Gearbox, automatic
86–89, 91–93, 143
Gearbox, manual

86, 91–93, 143
Gear lever, manual gearbox

86
Gear shift indicator ~ Gear efficiency
indicator

91
Glove box

49
G.P.S.

203
H
Hazard warning lamps 63, 148
headlamp adjustment
56
Headlamp adjustment

56
Headlamps, automatic dipping

57–58
Headlamps, automatic illumination

55–56
Headlamps, dipped beam

156–157
Headlamps, halogen

56, 156–157
Headlamps, main beam

156
Head restraints, front

39
Head restraints, rear

42–43
Head-up display

10–11
Heating

43
Heating, programmable

26, 48
Hi-Fi system

50
High voltage

130
Hill start assist

90–91
Histogramme, fuel consumption

25–26
Horn

64
Horn for pedestrians

64, 80
I
Ignition 83, 213
Ignition on
83
Immobiliser, electronic

81
Indicator, AdBlue® range

18
Indicator, coolant temperature

18
Indicators, direction

55, 156
Inflating tyres

143
Inflating tyres and accessories
(using the kit)

150, 152
Infrared camera

95
Instrument panel

9, 21–22, 95
Internet browser

204, 207
ISOFIX mountings

75
J
Jack 149–150, 152, 211
Jump starting
162
K
Key 27, 29, 31–32
Key, electronic
29–30
Keyless Entry and Starting

28–30, 82
Key not recognised

83
Key with remote control

27, 81
Kit, hands-free

178, 190, 212
Kit, puncture repair

149
Kit, temporary puncture repair

148–150, 152
L
Labels, identification 172
Lamp, boot
53
Lamps, parking

55
Lamps, rear

157
Lane assist

103, 106–108, 110
Lane departure warning active

110, 114
Leather (care)

147
LEDs - Light-emitting diodes

55, 155–157
Level, AdBlue®

142
Level, brake fluid

141
Level, Diesel additive

143
Level, engine coolant

18, 141
Level, engine oil

141
Levels and checks

140–142
Level, screenwash fluid

60, 142
Light-emitting diodes - LEDs

55, 155–157
Lighting dimmer

21
Lighting, exterior

54
Lighting, guide-me home

56–57
Lighting, interior

51–52
Lighting, welcome

56–57
Loading

53, 137–138
Load reduction mode

139
Locating your vehicle

28
Locking

27, 29, 31
Locking from the inside

30
Locking the doors

31
Low fuel level

129
Lumbar

39–40
M
