2020 CITROEN DISPATCH SPACETOURER brake

3
.
.
Driving recommendations 138
Starting/switching off the engine 1 40
Parking brake

1
44
Hill start assist

1
44
5-speed manual gearbox
1

45
6-speed manual gearbox
1

45
Gear efficiency indicator

1
46
Automatic gearbox

1
46
Electronic gearbox
1

50
Stop & Start

1
52
Tyre under-inflation detection

1
54
Driving and manoeuvring aids -
General recommendations
1

56
Head-up display

1
58
Memorising speeds

1
59
Speed Limit recognition
and recommendation
1

60
Speed limiter
1

62
Cruise control - particular
recommendations


164
Cruise control

1
65
Adaptive Cruise Control

1
67
Active Safety Brake with Distance Alert and
Intelligent emergency braking assistance
1

71
Lane departure warning system

1
74
Fatigue detection system

1
75
Blind Spot Detection

1
76
Parking sensors
1

78
Reversing camera, interior mirror

1
80
Top Rear Vision

1
80Compatibility of fuels 1
85
Refuelling 185
Diesel misfuel prevention

1
87
Snow chains

1
87
Towing device

1
88
Energy economy mode
1

89
Roof bars/Roof rack
1

89
Bonnet


19 0
Engine


191
Checking levels

1
91
Checks
19

4
AdBlue
® (BlueHDi) 1 96
Advice on care 1 99
Warning triangle
2

00
Running out of fuel (Diesel)

2
00
Tool box

2
01
Temporary puncture repair kit
2

02
Spare wheel
20

6
Changing a bulb
2

11
Changing a fuse
2

17
12

V battery
2
19
Towing


222Engine technical data and towed loads

2
24
Dimensions

228
Identification markings
2
31
Driving
Practical information
In the event of a breakdown Technical data
Alphabetical index
Access to additional videos
bit.ly/helpPSA
Audio equipment and telematics
Bluetooth audio system
CITROËN Connect Radio
CITROËN Connect Nav
.
Contents

7
As a passenger, avoid connecting your
multimedia devices (film, music, video game,
etc.) to contribute towards reducing the
consumption of electrical energy, and so of
fuel.
Disconnect all portable devices before leaving
the vehicle.
Eco- driving
Optimise the use of your
gearbox
With a manual gearbox, move off gently and
change up without waiting. While accelerating,
change up early.
With an electronic gearbox, favour automatic
mode, without pressing the accelerator pedal
heavily or suddenly.
With an automatic gearbox, favour automatic
mode, without pressing the accelerator pedal
heavily or suddenly.
Drive smoothly
Maintain a safe distance between vehicles,
use engine braking rather than the brake
pedal and press the accelerator gradually.
These practices contribute towards a
reduction in fuel consumption and CO
2
emissions and also help to reduce the
background traffic noise.
If your vehicle has the steering-mounted
"CRUISE" control, make use of cruise control
at speeds above 25

mph (40

km/h) when the
traffic is flowing well.
Be proficient in the use of
electrical equipment
Before moving off, if the passenger
compartment is too warm, ventilate it by
opening the windows and air vents before
using the air conditioning.
Above 31
mph (50 km/h), close the windows
and leave the air vents open.
Consider using equipment that can help
keep the temperature in the passenger Switch off the headlamps and front foglamps
when the visibility conditions do not require
their use.
Avoid running the engine before moving off,
particularly in winter
; your vehicle will warm
up much faster while driving. compartment down (sunroof blind and window
blinds, etc.).
Unless it has automatic regulation, switch off
the air conditioning as soon as the desired
temperature has been reached.
Switch off the demisting and defrosting
controls, if these are not automatically
managed.
Switch off the heated seat as soon as
possible.
Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO
2 emissions.
The gear efficiency indicator invites you to
engage the most suitable gear: as soon as the
indication is displayed in the instrument panel,
follow it straight away.
With an electronic gearbox, this indicator
appears only in manual mode.
With an automatic gearbox, this indicator
appears only in manual mode.
.
Eco-driving

11
Persistent warning lamp
When the engine is running or the vehicle is
being driven, the illumination of a red or orange
warning lamp indicates a fault that needs
further investigation, using any associated
message and the description of the warning
lamp in the documentation.
Where a warning lamp remains lit
The references (1) (2) and (3) in the warning
and indicator lamp description indicate whether
you should contact a qualified professional
in addition to the immediate recommended
actions. (1 )
: You must stop as soon as it is safe to
do so and switch off the ignition.
(2): Contact a CITROËN dealer or a qualified
workshop.
(3) : Go to a CITROËN dealer or a qualified
workshop.
STOP Fixed, associated with
another warning lamp,
accompanied by the
display of a message
and an audible signal. Indicates a serious fault with the
engine, braking system, power
steering, automatic gearbox or a
major electrical fault.
Carry out (1) and then (2).
Engine oil
pressure Fixed.
There is a fault with the engine
lubrication system. Carry out (1) and then (2).
Brakes Fixed. The brake fluid level has dropped
significantly. Carry out (1), then top up with brake fluid that complies
with the manufacturer's recommendations. If the
problem persists, carry out (2).
List of warning and indicator lamps
Warning
/ indicator lamp State Cause Actions / Observations
Red warning/indicator lamps
1
Instruments

12
+Brakes
Fixed, associated with
the ABS warning lamp. The electronic brake force distribution
(EBFD) system has a fault. Carry out (1) and then (2).
Parking brake Fixed. The parking brake is applied or not
properly released.
or Maximum
engine coolant
temperature
Fixed (warning
lamp or LED), and
needle in the red
zone (depending on
ve r s i o n). The temperature of the cooling
system is too high.
Carry out (1), then wait until the engine has cooled
down before topping up the coolant, if necessary. If
the problem persists, carry out (2).
Warning


/ indicator lamp
State Cause Actions

/ Observations
Battery charge Fixed. The battery charging circuit has a
fault (dirty or loose terminals, slack or
cut alternator belt, etc.). Clean and retighten the terminals. If the warning lamp
does not go off when the engine is started, carry
out


(2).
Seat belts
not fastened/
unfastened Fixed or flashing,
accompanied by an
increasing audible
signal. A seat belt has not been fastened or
has been unfastened (depending on
ve r s i o n).
Door open Fixed, associated with
a message identifying
the access.
An audible signal
supplements the alert
if the speed is higher
than 6 mph (10
km/h).A door, the boot, the tailgate or
the tailgate screen is still open
(depending on version).
Close the access.
If your vehicle is equipped with a right-hand hinged
door, its opening will not
be indicated by this warning
lamp.
Instruments

17
Warning / indicator lamp State Cause Actions / Observations
Collision Risk
Aler t
/ Active
Safety Brake Flashing.
The system is operating. The vehicle brakes briefly so as to reduce the speed of
frontal collision with the vehicle ahead.
Fixed, accompanied
by a message and an
audible signal. The system has a fault.
Carry out (3).
Collision Risk
Aler t
/ Active
Safety Brake Fixed, accompanied
by the display of a
message. The system has been deactivated,
via the vehicle configuration menu.
Dynamic
stability control
(DSC) and anti-
slip regulation
(ASR) Flashing.
The DSC/ASR adjustment is
activated if there is a loss of grip or
trajectory.
Fixed. The DSC/ASR system has a fault. Carry out (3).
Dynamic
stability control
(DSC)/Anti- slip
regulation (ASR) Fixed.
The system is deactivated. The DSC/ASR system is reactivated automatically
when the vehicle is started, and from around 31 mph
(50


km/h).
Below 31 mph (50
km/h), you can reactivate it
manually.
(1 ) : You must stop as soon as it is safe to
do so and switch off the ignition. (2): Contact a CITROËN dealer or a qualified
workshop.(3)
: Go to a CITROËN dealer or a qualified
workshop.
1
Instruments

20

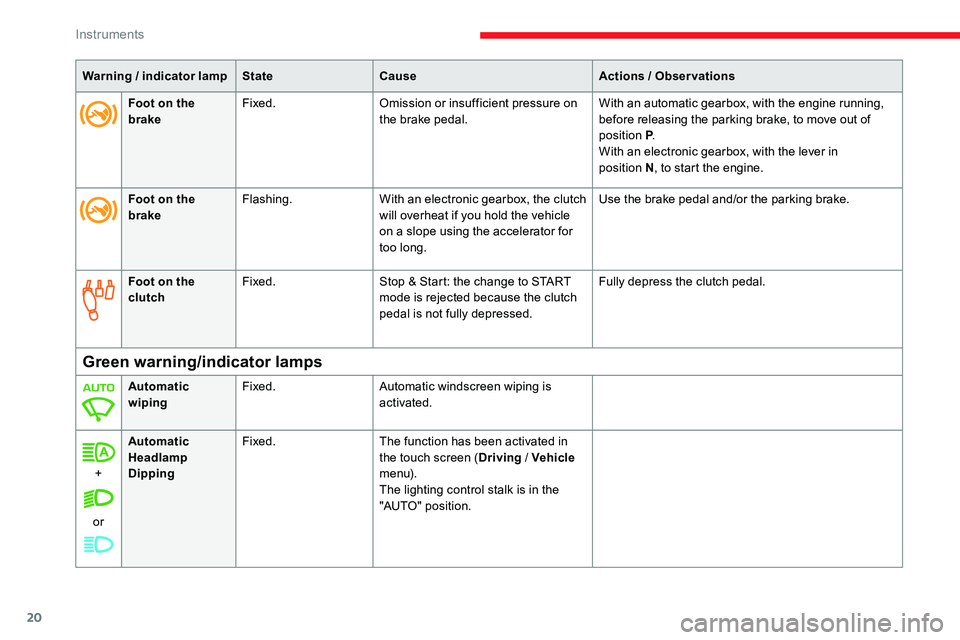

Warning / indicator lamp State Cause Actions / Observations
Foot on the
clutch Fixed.
Stop & Start: the change to START
mode is rejected because the clutch
pedal is not fully depressed. Fully depress the clutch pedal.
Green warning/indicator lamps
Automatic
wiping
Fixed.
Automatic windscreen wiping is
activated.
+
or Automatic
Headlamp
Dipping
Fixed.
The function has been activated in
the touch screen (Driving


/ Vehicle
m e n u).
The lighting control stalk is in the
"AUTO" position.
Foot on the
brake
Fixed.
Omission or insufficient pressure on
the brake pedal. With an automatic gearbox, with the engine running,
before releasing the parking brake, to move out of
position P
.
With an electronic gearbox, with the lever in
position

N
, to start the engine.
Foot on the
brake Flashing.
With an electronic gearbox, the clutch
will overheat if you hold the vehicle
on a slope using the accelerator for
too long. Use the brake pedal and/or the parking brake.
Instruments

22
Warning / indicator lamp State Cause Actions / Observations
Black/white warning lamps
Foot on the
brakeFixed.
Omission or insufficient pressure on
the brake pedal. With an automatic gearbox, with the engine running,
before releasing the parking brake, to move out of
position P
.
With an electronic gearbox, with the lever in
position


N, to start the engine.
Foot on the
brake Flashing.
With an electronic gearbox, the clutch
will overheat if you hold the vehicle
on a slope using the accelerator for
too long. Use the brake pedal and/or the parking brake.
Blue warning/indicator lamps
Main beam
headlamps
Fixed.
The main beams are on.
Instruments

41
Without Keyless Entry and
Starting
With Keyless Entry and Starting
F Switch on the ignition by pressing the "START/STOP " button.
F

W
ith a manual gearbox , place the
gear lever in neutral then fully depress
the clutch pedal.
F

Wi
th an automatic gearbox, from
mode P , fully depress the brake pedal.
F

W
ith an electronic gearbox, from
mode N , fully depress the brake pedal.
If the fault persists after reinitialisation, contact
a CITROËN dealer or a qualified workshop
without delay.
F

S

witch off the ignition.
F

R

eturn the key to position 2 (Ignition on) .
F

I

mmediately press the closed padlock
button for a few seconds.
F

S

witch off the ignition and remove the key
from the switch.
The remote control is now fully operational
again. F

I
nsert the mechanical key (integral with
the remote control) in the lock to open the
vehicle.
F
P
lace the electronic key against the back-up
reader on the steering column and hold it
there until the ignition is switched on.
Central locking / unlocking
Manual
F Press this button to operate the central
locking of the vehicle (doors, tailgate or
side-hinged doors) from inside the vehicle.
The indicator lamp in the button comes on.
F

P
ressing the button again unlocks the
vehicle completely. The indicator lamp in
the button goes off.
The indicator lamp also goes off when
unlocking one or more doors.
The central locking does not take place if
one of the doors is open.
2
Access
