Settings for passengers in the
2nd rowSettings for passengers in the
third row
Ventilation with ignition on
function
F Turn the top dial to open or close the rear
vent.
F

T
urn the lower dial to decrease (to the left)
or increase (to the right) the air flow. F

P
ress on the vent's shutter.
F
A
djust the air flow of both vents using the
dial with four positions (off, low, medium,
h i g h).
F

D
irect the vent by turning the shutter.
With the ignition on, you can use the ventilation
system and access the Air conditioning menu
to control the air flow and air distribution in the
passenger compartment.
This function is available for a
few minutes,
depending on the state of charge of the battery
of your vehicle. This function does not activate the air
conditioning.
You can make use of the residual heat in the
engine to warm the passenger compartment
using the temperature setting buttons.
Recirculation of interior air
The intake of exterior air helps avoid and
eliminate misting of the windscreen and side
windows.
Recirculation of the interior air isolates the
passenger compartment from exterior odours
and fumes.
When required, this function can also be
used to speed up the heating or cooling of
the passenger compartment.
F

P
ress button 4 to recirculate the interior air
or to permit the intake of outside air.
When the indicator lamp is on, the air
recirculation function is activated, the intake of
exterior air is inhibited.
Avoid the prolonged use of interior
air recirculation – Risk of misting and
deterioration of air quality!
Ease of use and comfort

77

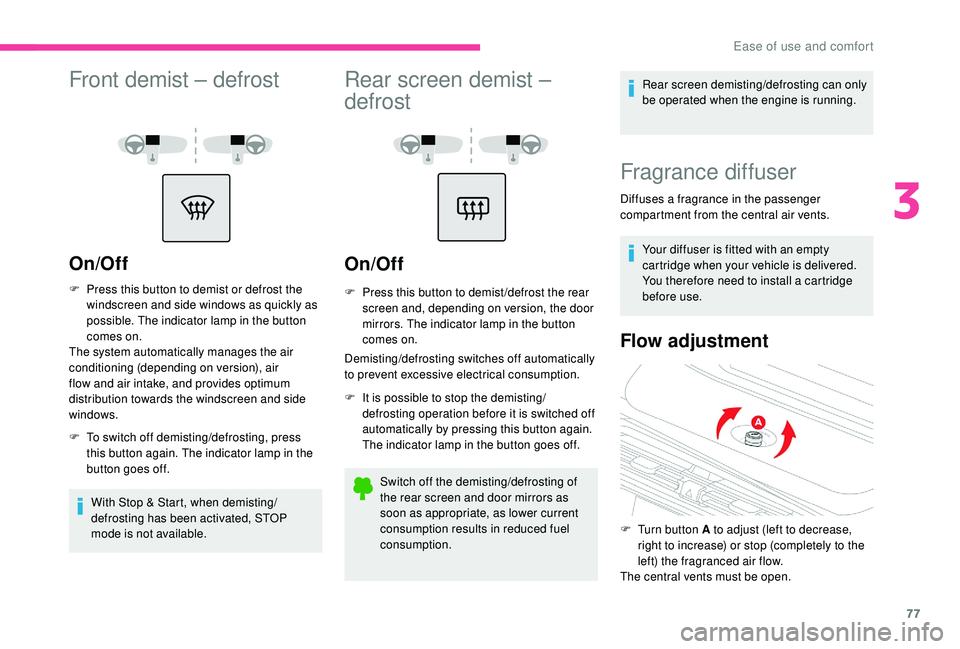

Front demist – defrost
On/Off
F Press this button to demist or defrost the windscreen and side windows as quickly as
possible. The indicator lamp in the button
comes on.
The system automatically manages the air
conditioning (depending on version), air
flow and air intake, and provides optimum
distribution towards the windscreen and side
windows.
F

T
o switch off demisting/defrosting, press
this button again. The indicator lamp in the
button goes off.
With Stop & Start, when demisting/
defrosting has been activated, STOP
mode is not available.
Rear screen demist –
defrost
On/Off
F Press this button to demist /defrost the rear screen and, depending on version, the door
mirrors. The indicator lamp in the button
comes on.
Demisting/defrosting switches off automatically
to prevent excessive electrical consumption.
F

I
t is possible to stop the demisting/
defrosting operation before it is switched off
automatically by pressing this button again.
The indicator lamp in the button goes off.
Switch off the demisting/defrosting of
the rear screen and door mirrors as
soon as appropriate, as lower current
consumption results in reduced fuel
consumption. Rear screen demisting/defrosting can only
be operated when the engine is running.
Fragrance diffuser
Diffuses a fragrance in the passenger
c ompartment from the central air vents.
Your diffuser is fitted with an empty
cartridge when your vehicle is delivered.
You therefore need to install a
cartridge
before use.
Flow adjustment
F Turn button A to adjust (left to decrease, right to increase) or stop (completely to the
left) the fragranced air flow.
The central vents must be open.
3
Ease of use and comfort

80
Do not attach or hang heavy objects on
the slide rail of the sun visor blinds.
Glove box
Depending on the equipment, it may include
a CD player.
F

T
o open the glove box, raise the handle.
It is illuminated when the lid is opened.
It is cooled by a
ventilation nozzle that can be
closed manually.
It is directly linked to your vehicle's air
conditioning system and is supplied with
fresh air whatever the setting required in the
passenger compartment.
The cooling of your glove box only functions
when the engine is running and the air
conditioning is on.
Portable console
The portable console is a removable storage
space fixed to the low centre console.
It includes a
sliding flap, an open storage
compartment and two cup holders.
Taking out the portable console
Sun visor supports
The window blinds are extended via the sun
visor supports.
Fold the support downwards to avoid glare from
ahead.
In case of glare through the door windows,
release the support from its central fixing and
turn it to the side.
The supports are fitted with a
locking system
on their central fixing when rolling up the
window blind. To remove or replace the
support, it must be positioned vertically.
If it is not fixed to its support, the portable
console must be stored in the boot. It
could turn into a
projectile in the event of
sudden braking or serious impact.
F

P
ull the unlocking control located at the
front of the console.
F

W
ith one hand, lift the front part of the
console.
F

W
ith the other hand, take the rear part to
free the portable console.
Ease of use and comfort

81
AC 230V
50Hz120W
Putting the portable console
back in place
Central storage 230 V/50 Hz socket
Connect only one device at a time to
t he socket (no extension or multi-way
connector).
Connect only devices with class II
insulation (shown on the device).
Do not use a
device with a metal case
(electric shaver,etc.).
As a
safety measure, when electrical
consumption is high and when required by
the vehicle's electrical system (particular
weather conditions, electrical overload,
etc.), the current supply to the socket will be
cut off; the green indicator lamp goes off.
12 V socket
F To connect a 12 V accessory (max. power:
120 W), lift the cover and connect a suitable
adaptor.
Do not exceed the maximum power rating
of the socket (other wise this could cause
damage to your portable device).
F

Pe

r form the steps in reversed order. Check
that the console is properly locked.
F

P

ull the handle and lower the lid to open the
central storage.
It is illuminated when opened. Deactivate the lighting by pressing the button
at the top.
Depending on equipment, this may include:
-

1


x 230

V socket,
-

1


x 12

V socket,
-

1


x USB port,
-

1


x JACK socket.
A 230

V/50

Hz socket (max. power: 120

W) is
fitted in the central storage.
To use the socket:
F

ope

n the central storage,
F

c

heck that the indicator lamp is on green,
F

c

onnect your multimedia or other electrical
device (telephone charger, laptop computer,
CD-DVD player, baby food warmer, etc.).
This socket works with the engine running, as
well as in STOP mode with Stop & Start.
In the event of a

fault with the socket, the green
indicator lamp flashes.
Have it checked by a

CITROËN dealer or
a


qualified workshop.
3
Ease of use and comfort

88
Front – rear map reading
lamps
F With the ignition on, operate the corresponding switch.
Take care not to put anything in contact
with the courtesy lamps.
In "permanent lighting" mode, the lighting
time varies according to the circumstances:
-
w
hen the ignition is off, approximately
ten minutes,
-

i
n energy economy mode,
approximately thirty seconds,
-
w

ith the engine running, unlimited.
Interior ambient lighting
The dimmed passenger compartment lighting
improves visibility in the vehicle when the light
i s p o o r.
Switching onFootwell lighting
The soft lighting provided by the footwell lamps
improves visibility in the vehicle when the light
i s p o o r.
Switching on
Its operation is the same as the courtesy
lamps. The lamps come on when one of the
doors is opened.
At night, the dashboard, centre console and
courtesy lamps come on automatically once
the sidelamps are lit.
The interior ambient lighting switches off
automatically when the sidelamps are switched
of f.
The interior ambient lighting can be activated or
deactivated in the Driving
menu by selecting
the " Vehicle settings " tab, then "Comfort"
and " Mood lighting ".
Ease of use and comfort

90
Lighting control stalk
In some weather conditions (e.g. low
temperature or humidity), the presence
of misting on the internal sur face of the
glass of the headlamps and rear lamps is
normal; it disappears after the lamps have
been on for a few minutes.
If one or more lamps fails, a message
asks you to check the lamp or lamps
concerned.
Driving abroad
Halogen headlamps
If planning to use your vehicle in a
country
that drives on the other side of the road,
the dipped beam headlamps must be
adjusted to avoid dazzling on-coming
drivers. Contact a
CITROËN dealer or
qualified workshop.
Xenon headlamps
The design of the dipped beam headlamps
allows, without modification, driving in
a
country that drives on the other side
of the road to the country in which your
vehicle was sold.
Main lighting
Without AUTO lighting
With AUTO lighting
Selection of main lighting mode
Turn the ring to align the desired symbol with
the marking. Lighting off (ignition off)/Daytime
running lamps (engine running). Automatic illumination of headlamps.
Daytime running lamps/Dipped
beam/Main beam.
Sidelamps.
Dipped or main beam headlamps.
Headlamp dipping
Pull the stalk towards you to switch between
dipped and main beam headlamps or to
activate automatic headlamp dipping.
In the lighting off and sidelamps modes, the
driver can switch on the main beam headlamps
temporarily ("headlamp flash"), for as long as
the stalk is kept pulled.
Displays
Illumination of the corresponding indicator
lamp in the instrument panel confirms that the
lighting selected is switched on.
Lighting and visibility

94
Switching on
When the courtesy lamp is in this
position, the spotlamps come on
automatically:-

w
hen you use the remote control to locate
the vehicle.
Switching off
They go off automatically after 30 seconds.
Exterior welcome lighting
The remote switching on of the lighting makes
your approach to the vehicle easier in poor
light. It is activated when the lighting control
stalk is in the " AUTO" position and the level of
light detected by the sunshine sensor is low.
Switching on
F Press the open padlock on the remote control or one of
the front door handles with the
"Keyless Entry and Starting"
system.
The dipped beam headlamps and the
sidelamps come on; your vehicle is also
unlocked.
Switching off
The exterior welcome lighting switches off
automatically after a set time, when the ignition
is switched on or on locking the vehicle.
Programming
Door mirror spotlamps
They come on automatically when the engine
is started, when the lighting control stalk is in
position " 0" or " AUTO ".
To make your approach to the vehicle easier,
these illuminate:
-

t
he zones facing the driver's and
passenger's doors,
-

t
he zones for ward of the door mirrors and
rear ward of the front doors.
-

w
hen you unlock the vehicle,
-

when removing the electronic key from the reader,- when opening a door, The activation, deactivation and choice of
welcome lighting duration are done in the
Driving
menu of the touch screen.
Select " Welcome lighting " on the "Vehicle
settings " tab.
Use the arrows or the slider to adjust the
lighting duration.
Automatic headlamp
dipping
System which automatically changes between
dipped and main beam according to the
exterior light level and the traffic conditions,
using a
camera located at the top of the
windscreen.
This system is a
driving aid.
The driver remains responsible for the
vehicle's lighting, its correct use for the
prevailing conditions of light, visibility,
traffic and obser vation of driving and
vehicle regulations.
The system will be operational as soon as
you have exceeded 16
mph (25 km/h).
If the speed drops below 9
mph (15 km/h),
the system no longer operates.
Lighting and visibility

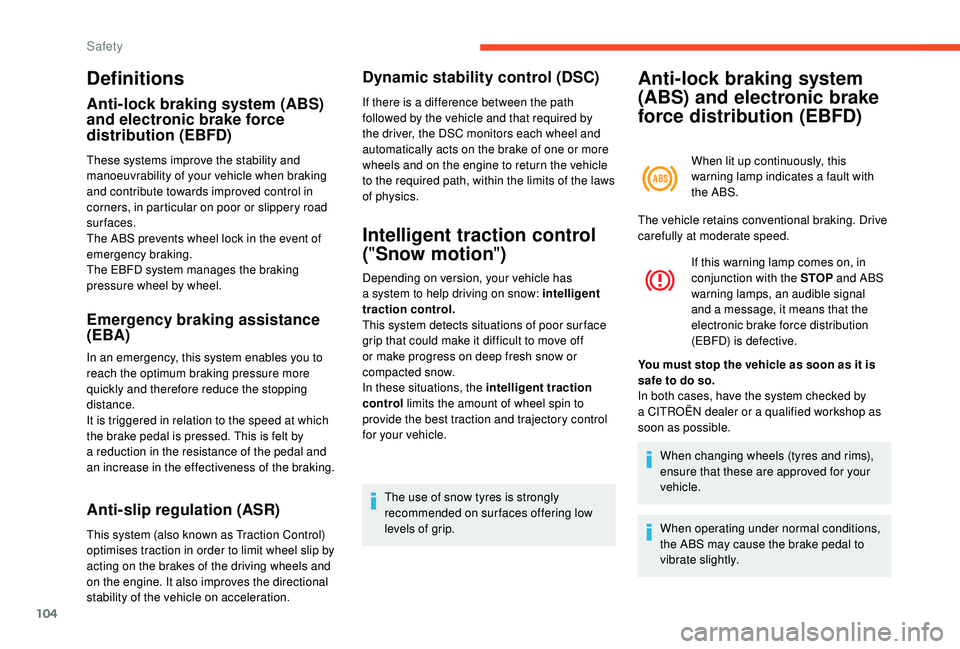

104
Definitions
Anti-lock braking system (ABS)
and electronic brake force
distribution (EBFD)
These systems improve the stability and
manoeuvrability of your vehicle when braking
and contribute towards improved control in
corners, in particular on poor or slippery road
surfaces.
The ABS prevents wheel lock in the event of
emergency braking.
The EBFD system manages the braking
pressure wheel by wheel.
Emergency braking assistance
(EBA)
In an emergency, this system enables you to
reach the optimum braking pressure more
quickly and therefore reduce the stopping
distance.
It is triggered in relation to the speed at which
the brake pedal is pressed. This is felt by
a reduction in the resistance of the pedal and
an increase in the effectiveness of the braking.
Anti-slip regulation (ASR)
This system (also known as Traction Control)
optimises traction in order to limit wheel slip by
acting on the brakes of the driving wheels and
on the engine. It also improves the directional
stability of the vehicle on acceleration.
Dynamic stability control (DSC)
If there is a difference between the path
f ollowed by the vehicle and that required by
the driver, the DSC monitors each wheel and
automatically acts on the brake of one or more
wheels and on the engine to return the vehicle
to the required path, within the limits of the laws
of physics.
Intelligent traction control
( " Snow motion ")
Depending on version, your vehicle has
a
system to help driving on snow: intelligent
traction control.
This system detects situations of poor sur face
grip that could make it difficult to move off
or make progress on deep fresh snow or
compacted snow.
In these situations, the intelligent traction
control limits the amount of wheel spin to
provide the best traction and trajectory control
for your vehicle.
The use of snow tyres is strongly
recommended on sur faces offering low
levels of grip.
Anti-lock braking system
(ABS) and electronic brake
force distribution (EBFD)
When lit up continuously, this
warning lamp indicates a fault with
the ABS.
If this warning lamp comes on, in
conjunction with the STOP and ABS
warning lamps, an audible signal
and a
message, it means that the
electronic brake force distribution
(EBFD) is defective.
The vehicle retains conventional braking. Drive
carefully at moderate speed.
You must stop the vehicle as soon as it is
safe to do so.
In both cases, have the system checked by
a

CITROËN dealer or a qualified workshop as
soon as possible.
When changing wheels (tyres and rims),
ensure that these are approved for your
vehicle.
When operating under normal conditions,
the ABS may cause the brake pedal to
vibrate slightly.
Safety
