Page 285 of 374

CHEVROLET LOW CAB FORWARD 2020 Owners Manual Chevrolet Low Cab Forward 5.2L Diesel Engine 4500 HD/XD/5500 HD/XD
Owner Manual (GMNA-Localizing-U.S.-13337621) - 2020 - crc - 12/5/18
284 Vehicle Care
No. Description Rating8 A/C 10A
Relay locations

Page 327 of 374

Chevrolet Low Cab Forward 5.2L Diesel Engine 4500 HD/XD/5500 HD/XD
Owner Manual (GMNA-Localizing-U.S.-13337621) - 2020 - crc - 12/5/18
326 Service and Maintenance

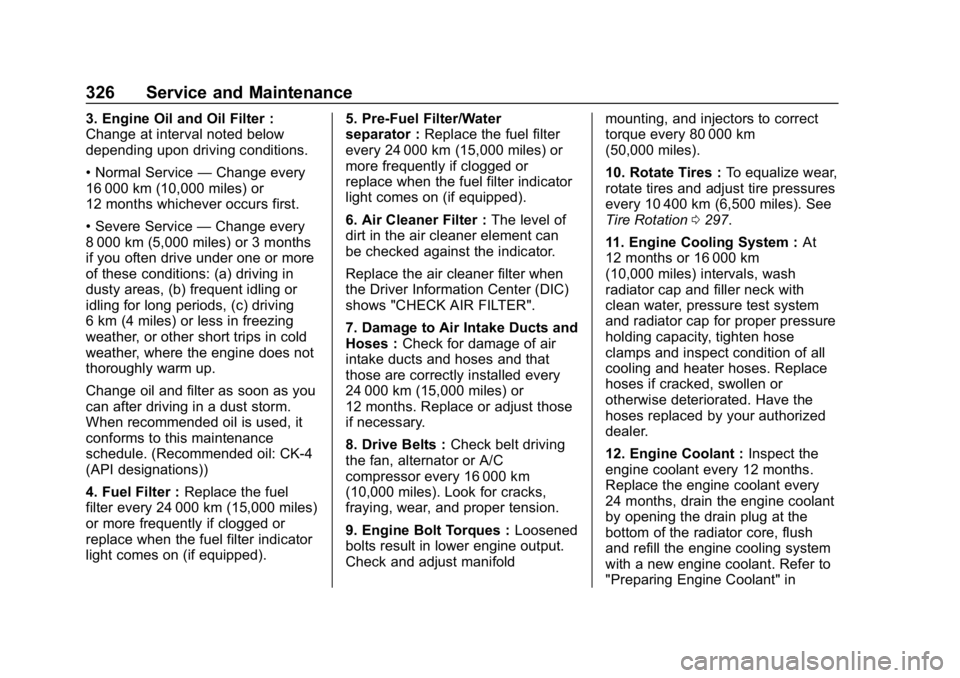

3. Engine Oil and Oil Filter :
Change at interval noted below
depending upon driving conditions.
•Normal Service —Change every
16 000 km (10,000 miles) or
12 months whichever occurs first.
• Severe Service —Change every
8 000 km (5,000 miles) or 3 months
if you often drive under one or more
of these conditions: (a) driving in
dusty areas, (b) frequent idling or
idling for long periods, (c) driving
6 km (4 miles) or less in freezing
weather, or other short trips in cold
weather, where the engine does not
thoroughly warm up.
Change oil and filter as soon as you
can after driving in a dust storm.
When recommended oil is used, it
conforms to this maintenance
schedule. (Recommended oil: CK-4
(API designations))
4. Fuel Filter : Replace the fuel
filter every 24 000 km (15,000 miles)
or more frequently if clogged or
replace when the fuel filter indicator
light comes on (if equipped). 5. Pre-Fuel Filter/Water
separator :
Replace the fuel filter
every 24 000 km (15,000 miles) or
more frequently if clogged or
replace when the fuel filter indicator
light comes on (if equipped).
6. Air Cleaner Filter : The level of
dirt in the air cleaner element can
be checked against the indicator.
Replace the air cleaner filter when
the Driver Information Center (DIC)
shows "CHECK AIR FILTER".
7. Damage to Air Intake Ducts and
Hoses : Check for damage of air
intake ducts and hoses and that
those are correctly installed every
24 000 km (15,000 miles) or
12 months. Replace or adjust those
if necessary.
8. Drive Belts : Check belt driving
the fan, alternator or A/C
compressor every 16 000 km
(10,000 miles). Look for cracks,
fraying, wear, and proper tension.
9. Engine Bolt Torques : Loosened
bolts result in lower engine output.
Check and adjust manifold mounting, and injectors to correct
torque every 80 000 km
(50,000 miles).
10. Rotate Tires :
To equalize wear,
rotate tires and adjust tire pressures
every 10 400 km (6,500 miles). See
Tire Rotation 0297.
11. Engine Cooling System : At
12 months or 16 000 km
(10,000 miles) intervals, wash
radiator cap and filler neck with
clean water, pressure test system
and radiator cap for proper pressure
holding capacity, tighten hose
clamps and inspect condition of all
cooling and heater hoses. Replace
hoses if cracked, swollen or
otherwise deteriorated. Have the
hoses replaced by your authorized
dealer.
12. Engine Coolant : Inspect the
engine coolant every 12 months.
Replace the engine coolant every
24 months, drain the engine coolant
by opening the drain plug at the
bottom of the radiator core, flush
and refill the engine cooling system
with a new engine coolant. Refer to
"Preparing Engine Coolant" in

Page 368 of 374

Chevrolet Low Cab Forward 5.2L Diesel Engine 4500 HD/XD/5500 HD/XD
Owner Manual (GMNA-Localizing-U.S.-13337621) - 2020 - crc - 12/5/18
Index 367
D
Damage Repair, Collision . . . . . . . 359
Danger, Warning, and Caution . . . . 3
Daytime Running Lamps (DRL)Indicator Light . . . . . . . . . . . . . . . . . . 69
Devices Auxiliary . . . . . . . . . . . . . . . . . . . . . . 107
Diesel Engine Engine Alarm andAutomatic Shutdown . . . . . . . . 164
Diesel Exhaust Fluid . . . . . . . . . . . . 180
Diesel Exhaust Fluid (DEF) Gauge . . . . . . . . . . . . . . . . . . . . . . . . . 60
Diesel Exhaust Fluid (DEF)
Warning Light . . . . . . . . . . . . . . . . . . 68
Diesel Particulate Filter . . . . . . . . . 171
Distracted Driving . . . . . . . . . . . . . . . 130
Dome Lamps . . . . . . . . . . . . . . . . . . . . 84
Door Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Power Locks . . . . . . . . . . . . . . . . . . . . 21
Drive Belt Routing, Engine . . . . . . 355
Driver Behavior . . . . . . . . . . . . . . . . . 129
Driver Information Center (DIC) . . . . . . . . . . . . . . . . . . . 70
Driving Better Fuel Economy . . . . . . . . . 129
Emergencies . . . . . . . . . . . . 145, 155 Driving (cont'd)
Hill and Mountain Roads . . . . . . 141
If the Vehicle is Stuck . . . . . . . . . 144
Wet Roads . . . . . . . . . . . . . . . . . . . 140
Winter . . . . . . . . . . . . . . . . . . . . . . . . 142
E
Electrical Equipment,
Add-On . . . . . . . . . . . . . . . . . . . . . . . 227
Electrical System
Overload . . . . . . . . . . . . . . . . . . . . . 277
Emergencies . . . . . . . . . . . . . . 145, 155
Engine Air Cleaner/Filter . . . . . . . . . . . . . 243
Alarm and Automatic
Shutdown . . . . . . . . . . . . . . . . . . . 164
Check Light (Malfunction Indicator) . . . . . . . . . . . . . . . . . . . . . . 61
Checks Before Operating . . . . . 166
Compartment Overview . . . . . . . 234
Coolant . . . . . . . . . . . . . . . . . . . . . . . 243
Coolant Temperature Gauge . . . . 60
Cover . . . . . . . . . . . . . . . . . . . . . . . . . 235
Drive Belt Routing . . . . . . . . . . . . 355
Exhaust . . . . . . . . . . . . . . . . . . . . . . 168
Heater . . . . . . . . . . . . . . . . . . . . . . . . 163
High Idle System . . . . . . . . . . . . . 165
Oil Pressure Light . . . . . . . . . . . . . . 67 Engine (cont'd)
Overheating . . . . . . . . . . . . . . . . . . 249
Reduced Power Light . . . . . . . . . . . 69
Running While Parked . . . . . . . . 170
Shutdown Warning Light . . . . . . . . 68
Engine Oil Level Indicator Light . . . . . . . . . . . . 67
Engines Diesel Fuel . . . . . . . . . . . . . . . . . . . 218
Exhaust Brake . . . . . . . . . . . . . . . . . . 213
Exhaust Brake Light . . . . . . . . . . . . . 65
Exhaust Fluid Diesel . . . . . . . . . . . . . . . . . . . . . . . . 180
Extender, Seat Belt . . . . . . . . . . . . . . 37
Exterior Lamp Controls . . . . . . . . . . 80
F
Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171 Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . 260
Filter, Engine Air Cleaner . . . . . . . . . . . 243
Fixed Mast Antenna . . . . . . . . . . . . . 90
Flash-to-Pass . . . . . . . . . . . . . . . . . . . . 81
Flashers, Hazard Warning . . . . . . . 82
Flat Tire . . . . . . . . . . . . . . . . . . . . . . . . 300
Fluid Automatic Transmission . . . . . . 241
Brakes . . . . . . . . . . . . . . . . . . . . . . . . 258

Page 369 of 374

Chevrolet Low Cab Forward 5.2L Diesel Engine 4500 HD/XD/5500 HD/XD
Owner Manual (GMNA-Localizing-U.S.-13337621) - 2020 - crc - 12/5/18
368 Index
Fluid (cont'd)Power Steering . . . . . . . . . . . . . . . 252
Washer . . . . . . . . . . . . . . . . . . . . . . . 252
Frequency Statement
Radio . . . . . . . . . . . . . . . . . . . . . . . . . 362
Front Seat Position Seats Adjustment . . . . . . . . . . . . . . . . . . . . . 26
Fuel Biodiesel . . . . . . . . . . . . . . . . . . . . . 219
Cold Weather Operation . . . . . . 221
Diesel Engines . . . . . . . . . . . . . . . 218
Economy, Driving for Better . . . 129
Filling the Tank . . . . . . . . . . . . . . . 225
Filter . . . . . . . . . . . . . . . . . . . . . . . . . . 260
Gauge . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Running out of Fuel . . . . . . . . . . . 224
Water in Fuel . . . . . . . . . . . . . . . . . 221
Fuel for Diesel Engines . . . . . . . . . 218
G
Gauges
Diesel Exhaust Fluid (DEF) . . . . . 60
Engine Coolant Temperature . . . 60
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Odometer . . . . . . . . . . . . . . . . . . . . . . . 58
Speedometer . . . . . . . . . . . . . . . . . . . 58
Tachometer . . . . . . . . . . . . . . . . . . . . . 59
Trip Odometer . . . . . . . . . . . . . . . . . . 58 Gauges (cont'd)
Warning Lights and
Indicators . . . . . . . . . . . . . . . . . . . . . 56
General Information
Vehicle Care . . . . . . . . . . . . . . . . . . 230
Getting In and Out of the Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . 17
Glove Box . . . . . . . . . . . . . . . . . . . . . . . 43
GM Mobility Reimbursement Program . . . . . . . . . . . . . . . . . . . . . . . 358
H
Hazard Warning Flashers . . . . . . . . 82
HeadlampsAiming . . . . . . . . . . . . . . . . . . . . . . . . 267
Bulb Replacement . . . . . . . 267, 270
Daytime Running Lamps(DRL) Indicator Light . . . . . . . . . . 69
Flash-to-Pass . . . . . . . . . . . . . . . . . . . 81
High-Beam On Light . . . . . . . . . . . . 69
High/Low Beam Changer . . . . . . . 81
Heated Mirrors . . . . . . . . . . . . . . . . . . . 22
Heater Engine . . . . . . . . . . . . . . . . . . . . . . . . 163
Heating . . . . . . . . . . . . . . . . . . . . . . . . . 121
High Idle System . . . . . . . . . . . . . . . 165
High-Beam On Light . . . . . . . . . . . . . 69
Hill and Mountain Roads . . . . . . . . 141 Hooks
Shopping Bag . . . . . . . . . . . . . . . . . . 45
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
HVAC . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
I
Idle Shutdown . . . . . . . . . . . . . . . . . . 164
Idle Shutdown Light . . . . . . . . . . . . . 68
Ignition Positions . . . . . . . . . . . . . . . 157
Information Publication Ordering . . . . . . . . . . 362
Information on Loading the
Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . 46
Instrument Cluster . . . . . . . . . . . . . . . 57
Instrument Panel Storage Area . . . . . . . . . . . . . . . . . . . 43
Instrument Panel
Overview . . . . . . . . . . . . . . . . . 8, 10, 11
Introduction . . . . . . . . . . . . . . . . . . . . . . . 2
J
Jump Starting - North America . . . . . . . . . . . . . . . . . . . . . . . 301
K
Keyless EntryRemote (RKE) System . . . . . . . . . 14
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
