168 Driving and Operating
Retained Accessory
Power (RAP)
When the ignition is turned from on
to off, the following features (if
equipped) will continue to function
for up to 10 minutes, or until the
driver door is opened. These
features will also work when the
ignition is in RUN or ACC/
ACCESSORY:
.Infotainment System
. Power Windows (during RAP
this functionality will be lost
when any door is opened)
. Sunroof (during RAP this
functionality will be lost when
any door is opened)
. Auxiliary Power Outlet
. Audio System
. OnStar System
Shifting Into Park
{Warning
It is dangerous to get out of the
vehicle if the vehicle is not in
P (Park) with the parking brake
set. The vehicle can roll.
Do not leave the vehicle when the
engine is running. If you have left
the engine running, the vehicle
can move suddenly. You or others
could be injured. To be sure the
vehicle will not move, even when
you are on fairly level ground,
always set the parking brake and
shift to P (Park).
To shift into P (Park): 1. Hold the brake pedal down and set the parking brake. See
Electric Parking Brake 0179.
2. Press the P (Park) switch on the center console. See Dual
Clutch Transmission 0171.
3. Press ENGINE START/STOP to turn the engine off. If the vehicle is shifted into P (Park)
on a hill, the Electric Parking Brake
(EPB) may apply automatically. The
EPB may not release when the EPB
switch is used. The EPB should
automatically release when the
vehicle is shifted out of P (Park).
Leaving the Vehicle with the
Engine Running
{Warning
It can be dangerous to leave the
vehicle with the engine running.
It could overheat and catch fire.
It is dangerous to get out of the
vehicle if the vehicle is not in
P (Park) with the parking brake
firmly set. The vehicle can roll.
Do not leave the vehicle when the
engine is running. If you have left
the engine running, the vehicle
can move suddenly. You or others
could be injured. To be sure the
vehicle will not move, even when
(Continued)

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12470550) - 2020 - CRC - 4/23/20
Driving and Operating 169
Warning (Continued)
you are on fairly level ground,
always set the parking brake and
shift to P (Park).
If you have to leave the vehicle with
the engine running, be sure the
vehicle is in P (Park) and the
parking brake is set before you
leave it.
Shifting out of Park
This vehicle is equipped with an
electronically controlled
transmission.
If the vehicle has a battery with low
voltage, try charging or jump
starting the battery. See Jump
Starting - North America 0267.
To shift out of P (Park):
1. Ensure the engine is running.
2. Apply the brake pedal. 3. Press or pull the desired switch
on the center console. For
N (Neutral) press and hold the
N (Neutral) switch until the N
indicator illuminates red.
The P indicator will turn white and
the gear indicator on the shift switch
will turn red when the vehicle is no
longer in P (Park).
If the vehicle cannot shift from
P (Park), a Driver Information
Center (DIC) message will display.
See your dealer for service.Parking over Things
That Burn
{Warning
Things that can burn could touch
hot exhaust parts under the
vehicle and ignite. Do not park
over papers, leaves, dry grass,
or other things that can burn.
Active Fuel Management
This vehicle's engine may be
equipped with Active Fuel
Management, which allows the
engine to operate on either all or
half of its cylinders, depending on
the driving conditions.
When less power is required, such
as cruising at a constant vehicle
speed, the system will operate in
the half cylinder mode, allowing the
vehicle to achieve better fuel
economy. When greater power
demands are required, such as
accelerating from a stop, passing,
or merging onto a highway, the
system will maintain full-cylinder
operation.
If the vehicle has an Active Fuel
Management indicator, see Driver
Information Center (DIC) for more
information on using this display.
Extended Parking
It is best not to park with the vehicle
running. If the vehicle is left running,
be sure it will not move and there is
adequate ventilation.

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12470550) - 2020 - CRC - 4/23/20
Driving and Operating 171
{Warning
To prevent exhaust gases from
entering the vehicle and heat from
damaging the vehicle, the engine
cover and all fluid fill plugs must
be secured before closing the
tonneau cover (convertible only)
and operating the vehicle. Make
sure all bolts are torqued to GM
specifications.
Running the Vehicle
While Parked
It is better not to park with the
engine running.
If the vehicle is left with the engine
running, follow the proper steps to
be sure the vehicle will not move.
SeeShifting Into Park 0168 and
Engine Exhaust 0170.
Dual Clutch
Transmission
This vehicle is equipped with a dual
clutch transmission that contains an
integrated rear differential. The dual
clutch transmission provides an
extremely connected feel due to the
direct connection between the
engine and gear box. This
arrangement provides very fast shift
times for maximum performance.
Automatic driving mode is selected
by pulling D on the transmission
range selection panel and provides
fully automatic shifting operation which can be further refined using
driver mode control. Upshifts may
be delayed regardless of mode
selection or ambient temperature
until the engine is warmed up.
Manual operation can also be
selected. See Manual Mode later in
this section.
This transmission is electronically
controlled. The shift switches are on
the center console. The selected
gear position will illuminate red on
the shift switch, while all others will
display in white. The indicator on
the shift switch may flash if the shift
is not immediate or if the gear is not
fully engaged. This may occur in
very cold conditions or when Double
Paddle Declutch is used.
The transmission does not operate
when the vehicle is off.
If the vehicle is in ACC/
ACCESSORY, the transmission can
be shifted into P (Park).
If ENGINE START/STOP is pressed
twice while at a relatively high
speed, the engine will turn off and
the transmission will automatically

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12470550) - 2020 - CRC - 4/23/20
172 Driving and Operating
shift into N (Neutral). Once the
vehicle is stopped, P (Park) can be
selected.
P :This position locks the drive
wheels. Use P (Park) when starting
the vehicle to ensure the vehicle
does not move.
{Warning
It is dangerous to get out of the
vehicle if the vehicle is not in
P (Park) with the parking brake
set. The vehicle can roll.
Do not leave the vehicle when the
engine is running. If you have left
the engine running, the vehicle
can move suddenly. You or others
could be injured. To be sure the
vehicle will not move, even when
you are on fairly level ground,
always set the parking brake and
shift to P (Park). See Shifting Into
Park 0168. When the vehicle is stopped, press
ENGINE START/STOP to turn off
the vehicle. The transmission will
shift into P (Park) automatically
unless N (Neutral) is selected.
The vehicle will not shift into
P (Park) if it is moving too fast. Stop
the vehicle and shift into P (Park).
To shift into and out of P (Park), see
Shifting Into Park
0168 and
Shifting out of Park 0169.
R : Use this gear to back up.
If the vehicle is shifted into
R (Reverse) while the speed is too
high, the vehicle will shift into
N (Neutral). Reduce vehicle speed
and try the shift again.
To shift into R (Reverse): 1. Bring the vehicle to a complete stop.
2. Pull the R (Reverse) switch on the center console.
To shift out of R (Reverse): 1. Bring the vehicle to a complete stop.
2. Shift into the desired gear. At low vehicle speeds, R (Reverse)
can be used to rock the vehicle
back and forth to get out of snow,
ice, or sand without damaging the
transmission. See
If the Vehicle Is
Stuck 0159.
N : In this position, the engine does
not connect with the wheels. To
restart the engine when the vehicle
is already moving, use
N (Neutral) only.
{Warning
Shifting into a drive gear while the
engine is running at high speed is
dangerous. Unless your foot is
firmly on the brake pedal, the
vehicle could move very rapidly.
You could lose control and hit
people or objects. Do not shift
into a drive gear while the engine
is running at high speed.

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12470550) - 2020 - CRC - 4/23/20
Driving and Operating 173
Caution
Shifting out of P (Park) or
N (Neutral) with the engine
running at high speed may
damage the transmission. The
repairs would not be covered by
the vehicle warranty. Be sure the
engine is not running at high
speed when shifting the vehicle.
Caution
The vehicle is not designed to
stay in N (Neutral) for extended
periods of time. It will
automatically shift into P (Park).
To shift into N (Neutral), press and
hold the N (Neutral) switch until the
N indicator is red.
To shift out of N (Neutral): 1. Bring the vehicle to a complete stop.
2. Shift into the desired gear. Maintaining N (Neutral) with
Engine Off
This vehicle includes a method of
keeping the vehicle in N (Neutral)
while the engine is off.
This method is not to be used for
vehicle towing. If the vehicle needs
to be towed, see
Towing the Vehicle
0 271.
Driver Remains in Vehicle : To
place the vehicle in N (Neutral) with
the engine off and the vehicle
occupied:
1. Ensure the vehicle is on level ground, the engine is running
and the vehicle is in P (Park).
2. Apply the brake pedal.
3. Shift to N (Neutral).
4. Turn off the engine and release the brake pedal.
5. The indicator should continue to show N. If it does not, start
the engine and repeat
Steps 2–4.
6. The vehicle will now remain in N (Neutral). Driver Leaves Vehicle :
To place
the vehicle in N (Neutral) with the
engine off and the vehicle
unoccupied:
1. Ensure the vehicle is on level ground, the engine is running
and the vehicle is in P (Park).
2. Apply the brake pedal.
3. Open the door.
4. Shift to N (Neutral).
5. Turn off the engine and release the brake pedal.
6. The indicator should continue to show N. If it does not, start
the engine and repeat
Steps 2–5.
7. Exit the vehicle and close the door.
8. The vehicle may automatically shift to P (Park) upon re-entry.

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12470550) - 2020 - CRC - 4/23/20
Driving and Operating 175
or the Head-Up Display (HUD),
if equipped. SeeHead-Up Display
(HUD) 0110.
When accelerating the vehicle from
a stop in snowy and icy conditions,
shifting to 2 (Second) gear, when
available, will allow the vehicle to
gain more traction.
The Manual Paddle Shift system
can be deactivated by pulling the
D (Drive) switch on the center
console.
With the transmission in D (Drive),
pull the right + paddle or the left
− paddle to place the transmission
in Temporary Manual Paddle
Shift mode.
To exit Temporary Manual Paddle
Shift mode do one of the following:
. Hold the + paddle for more than
one second.
. Drive at a steady speed without
manual shifts or aggressive
cornering for more than
six seconds.
. Bring the vehicle to a stop. While the Manual Paddle Shift
feature is active, the transmission
will automatically downshift through
the gears as the vehicle slows. The
transmission will select 1 (First) gear
as the vehicle stops. From a stop,
the vehicle will start from and hold
1 (First) gear unless Manual Paddle
Shifts are used to shift into a
different gear, or D (Drive) is
selected.
To cause the transmission to
downshift to the lowest gear
possible for the vehicle speed, in
Manual Paddle Shift or Temporary
Manual Paddle Shift mode:
.
Pull and briefly hold the
−paddle. If the paddle continues
to be held as the vehicle slows,
downshifts will continue as
vehicle speed allows.
The Manual Paddle Shift system will
not allow an upshift or a downshift if
vehicle speed is too fast or too slow,
nor will it allow a start from any gear
other than 1 (First) gear.
When in Manual Paddle Shift mode,
if upshifting does not occur when
needed, vehicle speed will be limited to protect the engine. When
in Temporary Manual Paddle Shift
mode, the transmission will
automatically upshift if the
accelerator pedal is pressed all the
way to the floor.
Manual Paddle Shift can be used
with cruise control. See
Cruise
Control 0196.
The vehicle speeds required for
Manual Paddle Shift upshifts
depend on several vehicle inputs,
which will vary the allowed upshift
speed by a few km/h (mph).
To prevent damage to the
powertrain, Manual Paddle
downshifts to a lower gear cannot
be done above certain speeds.

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12470550) - 2020 - CRC - 4/23/20

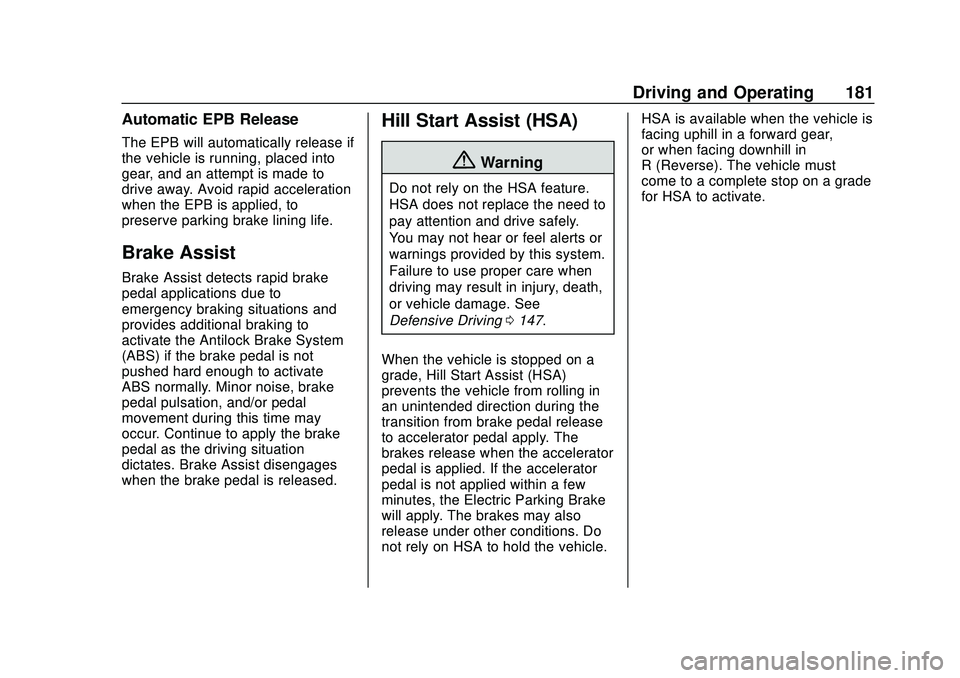

Driving and Operating 181
Automatic EPB Release
The EPB will automatically release if
the vehicle is running, placed into
gear, and an attempt is made to
drive away. Avoid rapid acceleration
when the EPB is applied, to
preserve parking brake lining life.
Brake Assist
Brake Assist detects rapid brake
pedal applications due to
emergency braking situations and
provides additional braking to
activate the Antilock Brake System
(ABS) if the brake pedal is not
pushed hard enough to activate
ABS normally. Minor noise, brake
pedal pulsation, and/or pedal
movement during this time may
occur. Continue to apply the brake
pedal as the driving situation
dictates. Brake Assist disengages
when the brake pedal is released.
Hill Start Assist (HSA)
{Warning
Do not rely on the HSA feature.
HSA does not replace the need to
pay attention and drive safely.
You may not hear or feel alerts or
warnings provided by this system.
Failure to use proper care when
driving may result in injury, death,
or vehicle damage. See
Defensive Driving0147.
When the vehicle is stopped on a
grade, Hill Start Assist (HSA)
prevents the vehicle from rolling in
an unintended direction during the
transition from brake pedal release
to accelerator pedal apply. The
brakes release when the accelerator
pedal is applied. If the accelerator
pedal is not applied within a few
minutes, the Electric Parking Brake
will apply. The brakes may also
release under other conditions. Do
not rely on HSA to hold the vehicle. HSA is available when the vehicle is
facing uphill in a forward gear,
or when facing downhill in
R (Reverse). The vehicle must
come to a complete stop on a grade
for HSA to activate.

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12470550) - 2020 - CRC - 4/23/20
Driving and Operating 183
maintaining control. The vehicle is
safe to drive, but driving should be
adjusted accordingly.
If
dcomes on and stays on:
1. Stop the vehicle.
2. Turn the engine off and wait 15 seconds.
3. Start the engine.
Drive the vehicle. If
dcomes on and
stays on, the vehicle may need
more time to diagnose the problem.
If the condition persists, see your
dealer.
Turning the Systems Off
and On
The TCS/StabiliTrak/ESC button is
on the center console.
Caution
Do not repeatedly brake or
accelerate heavily when TCS is
off. The vehicle driveline could be
damaged.
To turn off only TCS, press and
release
g. The Traction Off lighti
illuminates in the instrument cluster. To turn TCS on again, press and
release
g. The Traction Off lighti
displayed in the instrument cluster
will turn off.
If TCS is limiting wheel spin when
g
is pressed, the system will not turn
off until the wheels stop spinning.
To turn off both TCS and StabiliTrak/
ESC, press and hold
guntil the
Traction Off light
iand StabiliTrak/
ESC OFF light
gilluminate and stay
on in the instrument cluster.
To turn TCS and StabiliTrak/ESC on
again, press and release
g. The
Traction Off light
iand StabiliTrak/
ESC OFF light
gin the instrument
cluster turn off.
If the Tire Pressure Monitor System
(TPMS) system is malfunctioning
and the DIC displays SERVICE
TIRE MONITOR SYSTEM,
StabiliTrak/ESC will be affected as
follows:
. StabiliTrak/ESC cannot be
turned off by the driver.
