Chevrolet BOLT EV Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13556250) - 2020 - CRC - 2/11/20

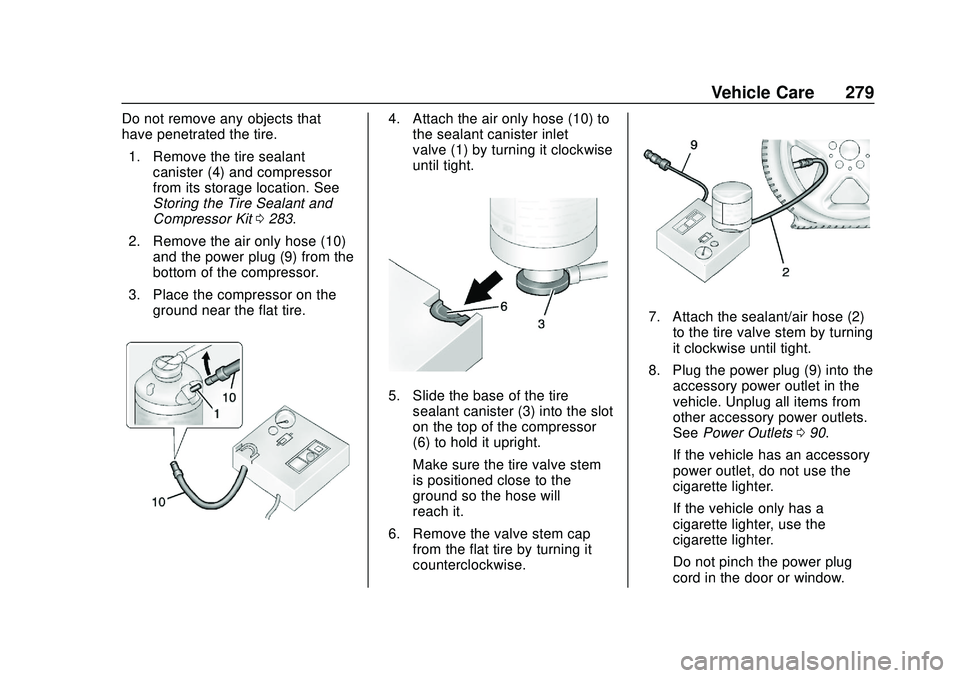

Vehicle Care 279
Do not remove any objects that
have penetrated the tire.1. Remove the tire sealant canister (4) and compressor
from its storage location. See
Storing the Tire Sealant and
Compressor Kit 0283.
2. Remove the air only hose (10) and the power plug (9) from the
bottom of the compressor.
3. Place the compressor on the ground near the flat tire.4. Attach the air only hose (10) tothe sealant canister inlet
valve (1) by turning it clockwise
until tight.
5. Slide the base of the tiresealant canister (3) into the slot
on the top of the compressor
(6) to hold it upright.
Make sure the tire valve stem
is positioned close to the
ground so the hose will
reach it.
6. Remove the valve stem cap from the flat tire by turning it
counterclockwise.
7. Attach the sealant/air hose (2)to the tire valve stem by turning
it clockwise until tight.
8. Plug the power plug (9) into the accessory power outlet in the
vehicle. Unplug all items from
other accessory power outlets.
See Power Outlets 090.
If the vehicle has an accessory
power outlet, do not use the
cigarette lighter.
If the vehicle only has a
cigarette lighter, use the
cigarette lighter.
Do not pinch the power plug
cord in the door or window.

Chevrolet BOLT EV Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13556250) - 2020 - CRC - 2/11/20
282 Vehicle Care
6. Slot on Top of Compressor
7. Pressure Deflation Button
8. Pressure Gauge
9. Power Plug
10. Air Only Hose
If a tire goes flat, avoid further tire
and wheel damage by driving slowly
to a level place. Turn on the hazard
warning flashers. SeeHazard
Warning Flashers 0131.
See If a Tire Goes Flat 0276 for
other important safety warnings.
1. Remove the compressor from its storage location. See
Storing the Tire Sealant and
Compressor Kit 0283. 2. Remove the air only hose (10)
and the power plug (9) from the
bottom of the compressor.
3. Place the compressor on the ground near the flat tire.
Make sure the tire valve stem
is positioned close to the
ground so the hose will
reach it.
4. Remove the valve stem cap from the flat tire by turning it
counterclockwise.
5. Attach the air only hose (10) to the tire valve stem by turning it
clockwise until tight.
6. Plug the power plug (9) into the accessory power outlet in the
vehicle. Unplug all items from
other accessory power outlets.
See Power Outlets 090.
If the vehicle has an accessory
power outlet, do not use the
cigarette lighter.
If the vehicle only has a
cigarette lighter, use the
cigarette lighter. Do not pinch the power plug
cord in the door or window.
7. Start the vehicle. The vehicle must be running while using
the air compressor.
8. Press the on/off button (5) to turn the tire sealant and
compressor kit on.
The compressor will inflate the
tire with air only.
9. Inflate the tire to the recommended inflation
pressure using the pressure
gauge (8). The recommended
inflation pressure can be found
on the Tire and Loading
Information label. See Tire
Pressure 0263.
The pressure gauge (8) may
read higher than the actual tire
pressure while the compressor
is on. Turn the compressor off
to get an accurate pressure
reading. The compressor may
be turned on/off until the
correct pressure is reached.

Chevrolet BOLT EV Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13556250) - 2020 - CRC - 2/11/20

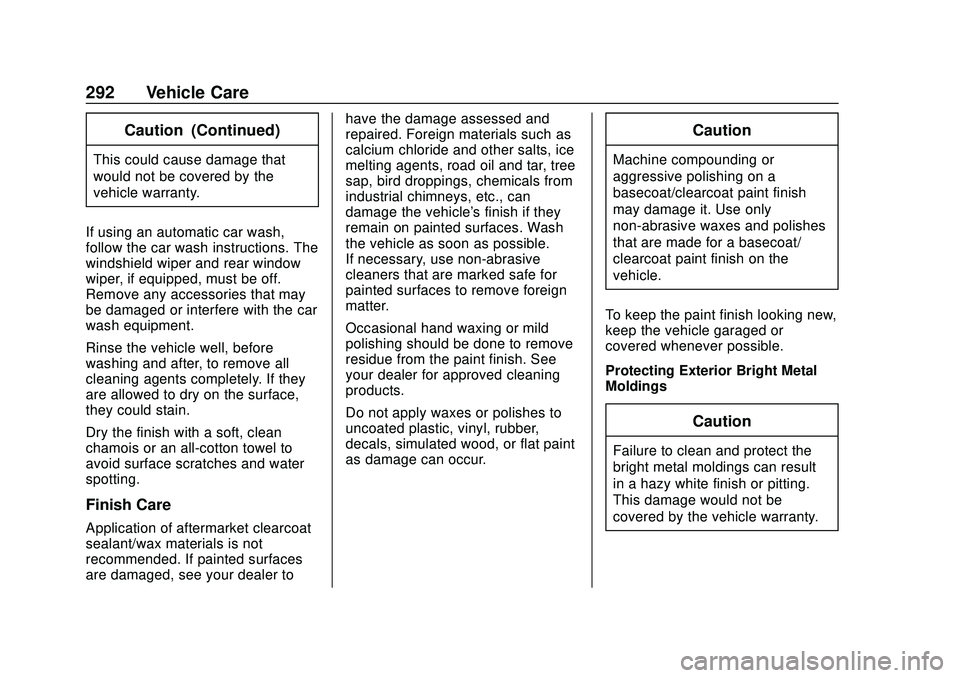

292 Vehicle Care
Caution (Continued)
This could cause damage that
would not be covered by the
vehicle warranty.
If using an automatic car wash,
follow the car wash instructions. The
windshield wiper and rear window
wiper, if equipped, must be off.
Remove any accessories that may
be damaged or interfere with the car
wash equipment.
Rinse the vehicle well, before
washing and after, to remove all
cleaning agents completely. If they
are allowed to dry on the surface,
they could stain.
Dry the finish with a soft, clean
chamois or an all-cotton towel to
avoid surface scratches and water
spotting.
Finish Care
Application of aftermarket clearcoat
sealant/wax materials is not
recommended. If painted surfaces
are damaged, see your dealer to have the damage assessed and
repaired. Foreign materials such as
calcium chloride and other salts, ice
melting agents, road oil and tar, tree
sap, bird droppings, chemicals from
industrial chimneys, etc., can
damage the vehicle's finish if they
remain on painted surfaces. Wash
the vehicle as soon as possible.
If necessary, use non-abrasive
cleaners that are marked safe for
painted surfaces to remove foreign
matter.
Occasional hand waxing or mild
polishing should be done to remove
residue from the paint finish. See
your dealer for approved cleaning
products.
Do not apply waxes or polishes to
uncoated plastic, vinyl, rubber,
decals, simulated wood, or flat paint
as damage can occur.
Caution
Machine compounding or
aggressive polishing on a
basecoat/clearcoat paint finish
may damage it. Use only
non-abrasive waxes and polishes
that are made for a basecoat/
clearcoat paint finish on the
vehicle.
To keep the paint finish looking new,
keep the vehicle garaged or
covered whenever possible.
Protecting Exterior Bright Metal
Moldings
Caution
Failure to clean and protect the
bright metal moldings can result
in a hazy white finish or pitting.
This damage would not be
covered by the vehicle warranty.

Chevrolet BOLT EV Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13556250) - 2020 - CRC - 2/11/20

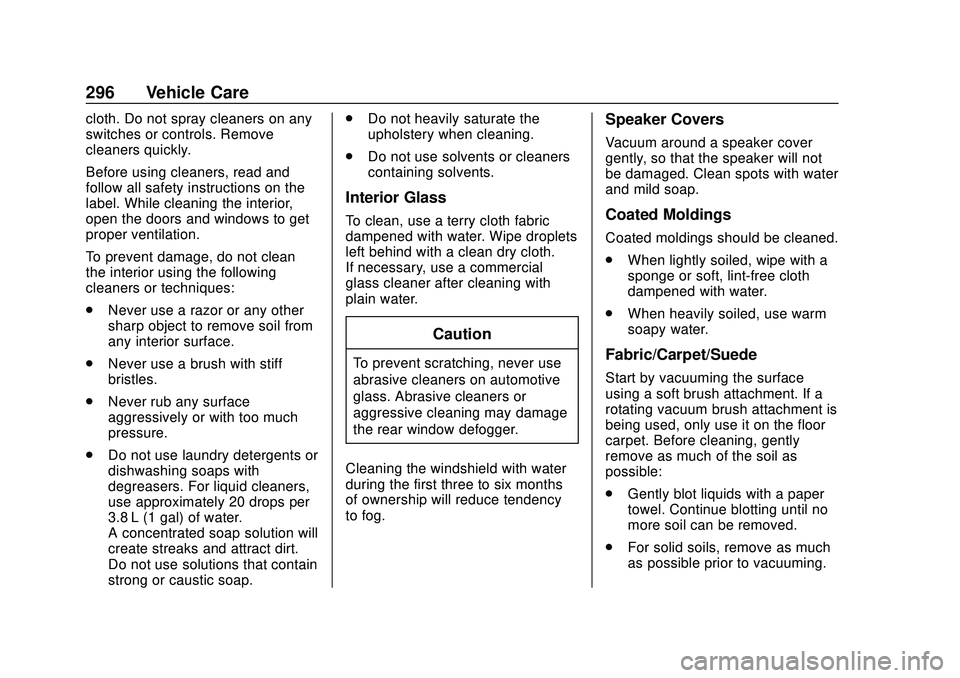

296 Vehicle Care
cloth. Do not spray cleaners on any
switches or controls. Remove
cleaners quickly.
Before using cleaners, read and
follow all safety instructions on the
label. While cleaning the interior,
open the doors and windows to get
proper ventilation.
To prevent damage, do not clean
the interior using the following
cleaners or techniques:
.Never use a razor or any other
sharp object to remove soil from
any interior surface.
. Never use a brush with stiff
bristles.
. Never rub any surface
aggressively or with too much
pressure.
. Do not use laundry detergents or
dishwashing soaps with
degreasers. For liquid cleaners,
use approximately 20 drops per
3.8 L (1 gal) of water.
A concentrated soap solution will
create streaks and attract dirt.
Do not use solutions that contain
strong or caustic soap. .
Do not heavily saturate the
upholstery when cleaning.
. Do not use solvents or cleaners
containing solvents.
Interior Glass
To clean, use a terry cloth fabric
dampened with water. Wipe droplets
left behind with a clean dry cloth.
If necessary, use a commercial
glass cleaner after cleaning with
plain water.
Caution
To prevent scratching, never use
abrasive cleaners on automotive
glass. Abrasive cleaners or
aggressive cleaning may damage
the rear window defogger.
Cleaning the windshield with water
during the first three to six months
of ownership will reduce tendency
to fog.
Speaker Covers
Vacuum around a speaker cover
gently, so that the speaker will not
be damaged. Clean spots with water
and mild soap.
Coated Moldings
Coated moldings should be cleaned.
. When lightly soiled, wipe with a
sponge or soft, lint-free cloth
dampened with water.
. When heavily soiled, use warm
soapy water.
Fabric/Carpet/Suede
Start by vacuuming the surface
using a soft brush attachment. If a
rotating vacuum brush attachment is
being used, only use it on the floor
carpet. Before cleaning, gently
remove as much of the soil as
possible:
.Gently blot liquids with a paper
towel. Continue blotting until no
more soil can be removed.
. For solid soils, remove as much
as possible prior to vacuuming.

Chevrolet BOLT EV Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13556250) - 2020 - CRC - 2/11/20
Vehicle Care 297
To clean:1. Saturate a clean, lint-free colorfast cloth with water.
Microfiber cloth is
recommended to prevent lint
transfer to the fabric or carpet.
2. Remove excess moisture by gently wringing until water does
not drip from the cleaning cloth.
3. Start on the outside edge of the soil and gently rub toward the
center. Fold the cleaning cloth
to a clean area frequently to
prevent forcing the soil in to the
fabric.
4. Continue gently rubbing the soiled area until there is no
longer any color transfer from
the soil to the cleaning cloth.
5. If the soil is not completely removed, use a mild soap
solution followed only by plain
water.
If the soil is not completely
removed, it may be necessary to
use a commercial upholstery
cleaner or spot lifter. Test a small
hidden area for colorfastness before using a commercial upholstery
cleaner or spot lifter. If ring
formation occurs, clean the entire
fabric or carpet.
After cleaning, use a paper towel to
blot excess moisture.
Cleaning High Gloss Surfaces
and Vehicle Information and
Radio Displays
Use a microfiber cloth on high gloss
surfaces or vehicle displays. First,
use a soft bristle brush to remove
dirt that can scratch the surface.
Then gently clean by rubbing with a
microfiber cloth. Never use window
cleaners or solvents. Periodically
hand wash the microfiber cloth
separately, using mild soap. Do not
use bleach or fabric softener. Rinse
thoroughly and air dry before
next use.
Caution
Do not attach a device with a
suction cup to the display. This
may cause damage and would
not be covered by the vehicle
warranty.
Instrument Panel, Leather,
Vinyl, Other Plastic Surfaces,
Low Gloss Paint Surfaces, and
Natural Open Pore Wood
Surfaces
Use a soft microfiber cloth
dampened with water to remove
dust and loose dirt. For a more
thorough cleaning, use a soft
microfiber cloth dampened with a
mild soap solution.
Caution
Soaking or saturating leather,
especially perforated leather, as
well as other interior surfaces,
may cause permanent damage.
(Continued)

Chevrolet BOLT EV Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13556250) - 2020 - CRC - 2/11/20
Service and Maintenance 303
Maintenance Schedule
Additional Required
Services12 000 km/7,500 mi
24 000 km/15,000 mi
36 000 km/22,500 mi
48 000 km/30,000 mi
60 000 km/37,500 mi
72 000 km/45,000 mi
84 000 km/52,500 mi
96 000 km/60,000 mi
108 000 km/67,500 mi
120 000 km/75,000 mi
132 000 km/82,500 mi
144 000 km/90,000 mi
156 000 km/97,500 mi
168 000 km/105,000 mi 180 000 km/112,500 mi
192 000 km/120,000 mi
204 000 km/127,500 mi
216 000 km/135,000 mi
228 000 km/142,500 mi
240 000 km/150,000 mi
Rotate tires and perform Required Services.@ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @
Replace passenger compartment air filter. (1)@ @@@@@
Drain and fill vehicle coolant circuits. (2)@
Replace brake fluid. (3)
Replace windshield wiper blades. (4)
@ @ @ @ @ @ @ @ @ @
Replace hood and/or body lift support gas
struts. (5)@ @
Replace air conditioning desiccant. (6)
Footnotes—Maintenance
Schedule Additional Required
Services
(1) Or every two years, whichever
comes first. More frequent
passenger compartment air filter
replacement may be needed if
driving in areas with heavy traffic,
poor air quality, high dust levels,
or environmental allergens.
Passenger compartment air filter
replacement may also be needed if there is reduced airflow, window
fogging, or odors. Your GM dealer
can help determine when to replace
the filter.
(2)
Or every five years, whichever
comes first. See Cooling System
0 238.
(3) Replace brake fluid every five
years. See Brake Fluid 0241. (4)
Or every 12 months, whichever
comes first. See Wiper Blade
Replacement 0244.
(5) Or every 10 years, whichever
comes first. See Gas Strut(s)0246.
(6) Replace air conditioning
desiccant every seven years.

Chevrolet BOLT EV Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13556250) - 2020 - CRC - 2/11/20
Index 341
Mirrors (cont'd)Convex . . . . . . . . . . . . . . . . . . . . . . . . . 24
Folding . . . . . . . . . . . . . . . . . . . . . . . . . 24
Heated . . . . . . . . . . . . . . . . . . . . . . . . . 25
Manual Rearview . . . . . . . . . . . . . . . 25
Power . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Mirrors, Interior Rearview . . . . . . . . 25
Modes
Driver Selected . . . . . . . . . . . . . . . 186
Monitor System, Tire Pressure . . . . . . . . . . . . . . . . . . . . . . 264
Multi-band Antenna . . . . . . . . . . . . . 143
N
Navigation
Connected Services . . . . . . . . . . 332
New Vehicle Break-In . . . . . . . . . . . 182
O
Odometer . . . . . . . . . . . . . . . . . . . . . . . . 97
Trip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Off-Road
Recovery . . . . . . . . . . . . . . . . . . . . . 175
Older Children, Restraints . . . . . . . 59
One-Pedal Driving . . . . . . . . . . . . . . 190
Online Owner Center . . . . . . . . . . . 315
OnStar . . . . . . . . . . . . . . . . . . . . . . . . . 325
OnStar Additional Information . . . . . . . . . . . . . . . . . . . . 328 OnStar Emergency . . . . . . . . . . . . . 327
OnStar Overview . . . . . . . . . . . . . . . 326
OnStar Security . . . . . . . . . . . . . . . . 328
OnStar System . . . . . . . . . . . . . . . . . 152
Operation
Infotainment System . . . . . . . . . . 137
Options
Charging . . . . . . . . . . . . . . . . . . . . . .117
Outlets Power . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Overview . . . . . . . . . . . . . . . . . . . . . . . 136
Instrument Panel . . . . . . . . . . . . . . . . 5
Underhood Compartment . . . . . 237
Owner Checks and Services . . . . 304
P
Park Shifting Out of . . . . . . . . . . . . . . . . 185
Park Assist . . . . . . . . . . . . . . . . . . . . . 200
Parking Brake and P (Park)
Mechanism Check . . . . . . . . . . 244
Extended . . . . . . . . . . . . . . . . . . . . . 186
Parking or Backing Assistance Systems . . . . . . . . . . 200
Passenger Airbag Status
Indicator . . . . . . . . . . . . . . . . . . . . . . 100 Passenger Compartment Air
Filter . . . . . . . . . . . . . . . . . . . . . . . . . . 168
Passenger Sensing System . . . . . 53
Pedestrian Ahead Indicator . . . . . 104
Pedestrian Safety Signal . . . . . . . . 86
Perchlorate Materials Requirements, California . . . . . . 234
Personalization Vehicle . . . . . . . . . . . . . . . . . . . . . . . 121
Phone Apple CarPlay and
Android Auto . . . . . . . . . . . . . . . . 154
Bluetooth . . . . . . . . . . . . . . . . . . . . . 153
Hands-Free . . . . . . . . . . . . . . . . . . . 155
Plug-In Charging . . . . . . . . . . . . . . . 214
Port USB . . . . . . . . . . . . . . . . . . . . . . . . . . 143
Power Button . . . . . . . . . . . . . . . . . . . . . . . . 182
Door Locks . . . . . . . . . . . . . . . . . . . . . 19
Flows . . . . . . . . . . . . . . . . . . . . . . . . . 107
Indicator Gauge . . . . . . . . . . . . . . . . 99
Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Outlets . . . . . . . . . . . . . . . . . . . . . . . . . 90
Protection, Battery . . . . . . . . . . . . 134
Retained Accessory (RAP) . . . 184
Windows . . . . . . . . . . . . . . . . . . . . . . . 28
Pregnancy, Using Seat Belts . . . . 44

Chevrolet BOLT EV Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13556250) - 2020 - CRC - 2/11/20
342 Index
PrivacyVehicle Data Recording . . . . . . . 324
Program Courtesy Transportation . . . . . . 318
Programmable Charging . . . . . . . . 107
Proposition 65 Warning,
California . . . . . . . . . . . .233, 242, 284,
Back Cover
Propulsion Power Messages . . . 120
Publication Ordering Information . . . . . . . . . . . . . . . . . . . . 321
R
Radio Frequency Statement . . . . 322
RadiosAM-FM Radio . . . . . . . . . . . . . . . . . 140
Satellite . . . . . . . . . . . . . . . . . . . . . . . 141
Reading Lamps . . . . . . . . . . . . . . . . . 133
Ready Indicator . . . . . . . . . . . . . . . . . 106
Rear Camera Mirror . . . . . . . . . . . . . 25
Rear Seat Armrest . . . . . . . . . . . . . . . 38
Rear Seats . . . . . . . . . . . . . . . . . . . . . . 37 Heated . . . . . . . . . . . . . . . . . . . . . . . . . 39
Rear Vision Camera (RVC) . . . . . 200
Rear Window Washer/Wiper . . . . . 88
Rearview Mirrors . . . . . . . . . . . . . . . . 25 Automatic Dimming . . . . . . . . . . . . . 25 Reclining Seatbacks . . . . . . . . . . . . . 34
Recommended Fluids and
Lubricants . . . . . . . . . . . . . . . . . . . . . 307
Records Maintenance . . . . . . . . . . . . . . . . . . 309
Recreational Vehicle Towing . . . . 289
Regenerative Braking . . . . . . . . . . . 194
Reimbursement Program, GM Mobility . . . . . . . . . . . . . . . . . . . 316
Remote Keyless Entry (RKE) System . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Remote Start . . . . . . . . . . . . . . . . . . . . 15
Replacement Parts Airbags . . . . . . . . . . . . . . . . . . . . . . . . . 59
Maintenance . . . . . . . . . . . . . . . . . . 308
Replacing Airbag System . . . . . . . . 59
Replacing LATCH System
Parts after a Crash . . . . . . . . . . . . . 75
Replacing Seat Belt System Parts after a Crash . . . . . . . . . . . . . 46
Reporting Safety Defects
Canadian Government . . . . . . . . 323
General Motors . . . . . . . . . . . . . . . 323
U.S. Government . . . . . . . . . . . . . 322
Requirements
Electrical Battery Charging . . . 229
Restraints Where to Put . . . . . . . . . . . . . . . . . . . 65 Retained Accessory
Power (RAP) . . . . . . . . . . . . . . . . . . 184
Roads Driving, Wet . . . . . . . . . . . . . . . . . . 176
Roadside Assistance Program . . . . . . . . . . . . . . . . . . . . . . . 316
Rotation, Tires . . . . . . . . . . . . . . . . . . 269
S
Safety Defects Reporting
Canadian Government . . . . . . . . 323
General Motors . . . . . . . . . . . . . . . 323
U.S. Government . . . . . . . . . . . . . 322
Safety Locks . . . . . . . . . . . . . . . . . . . . . 20
Safety Signal Pedestrian . . . . . . . . . . . . . . . . . . . . . . 86
Safety System Check . . . . . . . . . . . . 45
Satellite Radio . . . . . . . . . . . . . . . . . . 141
Scheduling Appointments . . . . . . . 318
Sealant Kit, Tire . . . . . . . . . . . . . . . . 277
Seat Belts . . . . . . . . . . . . . . . . . . . . . . . 39
Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Extender . . . . . . . . . . . . . . . . . . . . . . . . 45
How to Wear Seat BeltsProperly . . . . . . . . . . . . . . . . . . . . . . . 40
Lap-Shoulder Belt . . . . . . . . . . . . . . 42
Reminders . . . . . . . . . . . . . . . . . . . . . . 99
Replacing after a Crash . . . . . . . . 46
