Cadillac CT6 Owner Manual (GMNA-Localizing-U.S./Canada-13566829) -
2020 - CRC - 6/14/19

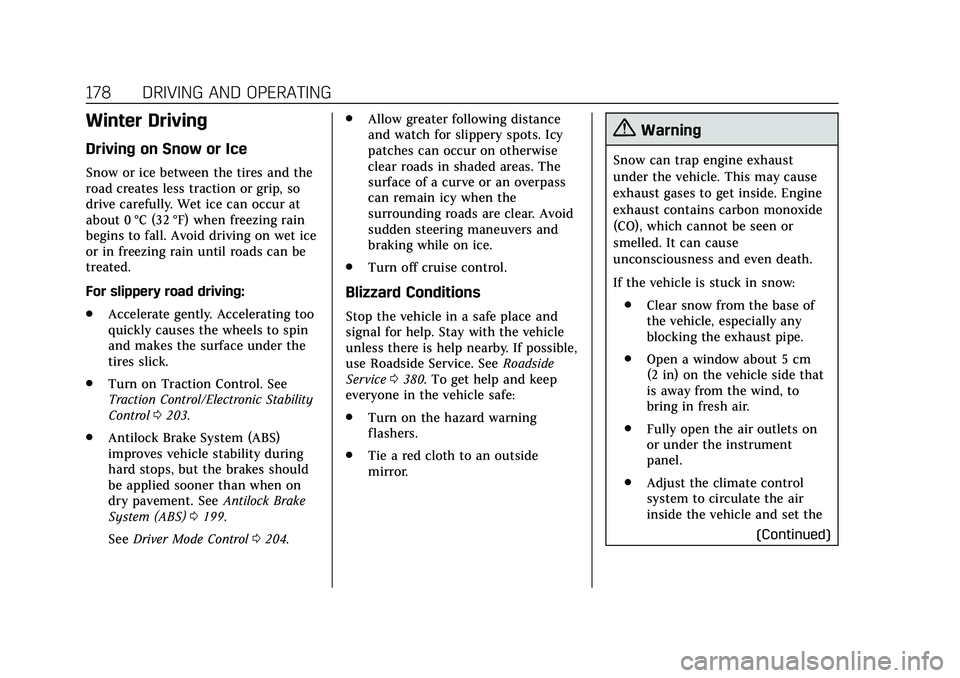

178 DRIVING AND OPERATING
Winter Driving
Driving on Snow or Ice
Snow or ice between the tires and the
road creates less traction or grip, so
drive carefully. Wet ice can occur at
about 0 °C (32 °F) when freezing rain
begins to fall. Avoid driving on wet ice
or in freezing rain until roads can be
treated.
For slippery road driving:
.Accelerate gently. Accelerating too
quickly causes the wheels to spin
and makes the surface under the
tires slick.
. Turn on Traction Control. See
Traction Control/Electronic Stability
Control 0203.
. Antilock Brake System (ABS)
improves vehicle stability during
hard stops, but the brakes should
be applied sooner than when on
dry pavement. See Antilock Brake
System (ABS) 0199.
See Driver Mode Control 0204. .
Allow greater following distance
and watch for slippery spots. Icy
patches can occur on otherwise
clear roads in shaded areas. The
surface of a curve or an overpass
can remain icy when the
surrounding roads are clear. Avoid
sudden steering maneuvers and
braking while on ice.
. Turn off cruise control.
Blizzard Conditions
Stop the vehicle in a safe place and
signal for help. Stay with the vehicle
unless there is help nearby. If possible,
use Roadside Service. See Roadside
Service 0380. To get help and keep
everyone in the vehicle safe:
. Turn on the hazard warning
flashers.
. Tie a red cloth to an outside
mirror.
{Warning
Snow can trap engine exhaust
under the vehicle. This may cause
exhaust gases to get inside. Engine
exhaust contains carbon monoxide
(CO), which cannot be seen or
smelled. It can cause
unconsciousness and even death.
If the vehicle is stuck in snow:
. Clear snow from the base of
the vehicle, especially any
blocking the exhaust pipe.
. Open a window about 5 cm
(2 in) on the vehicle side that
is away from the wind, to
bring in fresh air.
. Fully open the air outlets on
or under the instrument
panel.
. Adjust the climate control
system to circulate the air
inside the vehicle and set the
(Continued)

Cadillac CT6 Owner Manual (GMNA-Localizing-U.S./Canada-13566829) -
2020 - CRC - 6/11/19
270 VEHICLE CARE
Vehicle Care
General Information
General Information . . . . . . . . . . . . . 271
California Proposition65 Warning . . . . . . . . . . . . . . . . . . . . . 271
California Perchlorate Materials Requirements . . . . . . . . . . . . . . . . . . . 272
Accessories and Modifications . . . . . . . . . . . . . . . . . . . 272
Vehicle Checks
Doing Your OwnService Work . . . . . . . . . . . . . . . . . . . . 272
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 273
Engine Compartment Overview . . . . . . . . . . . . . . . . . . . . . . . . . 274
Engine Oil . . . . . . . . . . . . . . . . . . . . . . . . . 277
Engine Oil Life System . . . . . . . . . . . 280
Automatic Transmission Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 281
Engine Air Filter Life System . . . . 281
Engine Air Cleaner/Filter . . . . . . . . . 282
Cooling System . . . . . . . . . . . . . . . . . . . 284
Engine Overheating . . . . . . . . . . . . . . 288
Washer Fluid . . . . . . . . . . . . . . . . . . . . . 289
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 290
Brake Pad Life System . . . . . . . . . . . 291
Brake Fluid . . . . . . . . . . . . . . . . . . . . . . . 291 Battery - North America . . . . . . . . . 292
All-Wheel Drive . . . . . . . . . . . . . . . . . . 293
Starter Switch Check . . . . . . . . . . . . . 294
Park Brake and P (Park)
Mechanism Check . . . . . . . . . . . . . . 294
Wiper Blade Replacement . . . . . . . 295
Windshield Replacement . . . . . . . . 295
Gas Strut(s) . . . . . . . . . . . . . . . . . . . . . . . 296
Headlamp Aiming
Front Headlamp Aiming . . . . . . . . . 297
Bulb Replacement
Bulb Replacement . . . . . . . . . . . . . . . . 297
LED Lighting . . . . . . . . . . . . . . . . . . . . . 297
Electrical System
Electrical System Overload . . . . . . 298
Fuses and Circuit Breakers . . . . . . 298
Engine Compartment Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . 299
Instrument Panel Fuse Block . . . . 306
Rear Compartment Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . 308
Wheels and Tires
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 315
All-Season Tires . . . . . . . . . . . . . . . . . . 316
Winter Tires . . . . . . . . . . . . . . . . . . . . . . 316
Low-Profile Tires . . . . . . . . . . . . . . . . . 317
Summer Tires . . . . . . . . . . . . . . . . . . . . 317
Tire Sidewall Labeling . . . . . . . . . . . 317 Tire Designations . . . . . . . . . . . . . . . . . 319
Tire Terminology and
Definitions . . . . . . . . . . . . . . . . . . . . . . 320
Tire Pressure . . . . . . . . . . . . . . . . . . . . . . 322
Tire Pressure for High-Speed Operation . . . . . . . . . . . . . . . . . . . . . . . . 324
Tire Pressure Monitor System . . . 324
Tire Pressure Monitor Operation . . . . . . . . . . . . . . . . . . . . . . . . 325
Tire Inspection . . . . . . . . . . . . . . . . . . . 329
Tire Rotation . . . . . . . . . . . . . . . . . . . . . 329
When It Is Time for New Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 330
Buying New Tires . . . . . . . . . . . . . . . . 331
Different Size Tires and Wheels . . . . . . . . . . . . . . . . . . . . . . . . . . 333
Uniform Tire Quality Grading . . . 333
Wheel Alignment and Tire Balance . . . . . . . . . . . . . . . . . . . . . . . . . . 334
Wheel Replacement . . . . . . . . . . . . . . 335
Tire Chains . . . . . . . . . . . . . . . . . . . . . . . 335
If a Tire Goes Flat . . . . . . . . . . . . . . . . 336
Tire Changing . . . . . . . . . . . . . . . . . . . . . 337
Compact Spare Tire . . . . . . . . . . . . . . 342Jump Starting
Jump Starting - North America . . . . . . . . . . . . . . . . . . . . . . . . . 343

Cadillac CT6 Owner Manual (GMNA-Localizing-U.S./Canada-13566829) -
2020 - CRC - 6/11/19
316 VEHICLE CARE
Warning (Continued)
.Replace any tires that have
been damaged by impacts
with potholes, curbs, etc.
.Improperly repaired tires
can cause a crash. Only
the dealer or an authorized
tire service center should
repair, replace, dismount,
and mount the tires.
.Do not spin the tires in
excess of 56 km/h
(35 mph) on slippery
surfaces such as snow,
mud, ice, etc. Excessive
spinning may cause the
tires to explode.
See Tire Pressure for High-Speed
Operation 0324 for inflation
pressure adjustment for
high-speed driving.
All-Season Tires
This vehicle may come with all-season
tires. These tires are designed to
provide good overall performance on
most road surfaces and weather
conditions. Original equipment tires
designed to GM's specific tire
performance criteria have a TPC
specification code molded onto the
sidewall. Original equipment
all-season tires can be identified by
the last two characters of this TPC
code, which will be “MS.”
Consider installing winter tires on the
vehicle if frequent driving on snow or
ice-covered roads is expected.
All-season tires provide adequate
performance for most winter driving
conditions, but they may not offer the
same level of traction or performance
as winter tires on snow or ice-covered
roads. See Winter Tires 0316.
Winter Tires
This vehicle was not originally
equipped with winter tires. Winter
tires are designed for increased
traction on snow and ice-covered roads. Consider installing winter tires
on the vehicle if frequent driving on
ice or snow covered roads is expected.
See your dealer for details regarding
winter tire availability and proper tire
selection. Also, see
Buying New Tires
0 331.
With winter tires, there may be
decreased dry road traction, increased
road noise, and shorter tread life.
After changing to winter tires, be alert
for changes in vehicle handling and
braking.
If using winter tires:
. Use tires of the same brand and
tread type on all four wheel
positions.
. Use only radial ply tires of the
same size, load range, and speed
rating as the original equipment
tires.
Winter tires with the same speed
rating as the original equipment tires
may not be available for H, V, W, Y,
and ZR speed rated tires. If winter
tires with a lower speed rating are
chosen, never exceed the tire's
maximum speed capability.

Cadillac CT6 Owner Manual (GMNA-Localizing-U.S./Canada-13566829) -
2020 - CRC - 6/11/19
VEHICLE CARE 317
Low-Profile Tires
If the vehicle has 245/45R19,
245/40R20, or 245/40ZR20 size
tires, they are classified as
low-profile tires.Caution
Low-profile tires are more
susceptible to damage from road
hazards or curb impact than
standard profile tires. Tire and/or
wheel assembly damage can occur
when coming into contact with
road hazards like potholes, or sharp
edged objects, or when sliding into
a curb. The warranty does not cover
this type of damage. Keep tires set
to the correct inflation pressure and
when possible, avoid contact with
curbs, potholes, and other road
hazards.
Summer Tires
This vehicle may come with
245/40ZR20 high performance
summer tires. These tires have a
special tread and compound that are
optimized for maximum dry and wet
road performance. This special tread
and compound will have decreased
performance in cold climates, and on
ice and snow. It is recommended that
winter tires be installed on the vehicle
if frequent driving at temperatures
below approximately 5 °C (40 °F) or on
ice or snow covered roads is expected.
See Winter Tires 0316.
Caution
High performance summer tires
have rubber compounds that lose
flexibility and may develop surface
cracks in the tread area at
temperatures below −7 °C (20 °F).
Always store high performance
summer tires indoors and at
temperatures above −7 °C (20 °F)
when not in use. If the tires have
(Continued)
Caution (Continued)
been subjected to−7 °C (20 °F) or
less, let them warm up in a heated
space to at least 5 °C (40 °F) for
24 hours or more before being
installed or driving a vehicle on
which they are installed. Do not
apply heat or blow heated air
directly on the tires. Always inspect
tires before use. See Tire Inspection
0 329.
Tire Sidewall Labeling
Useful information about a tire is
molded into its sidewall. The
examples show a typical passenger
vehicle tire and a compact spare
tire sidewall.

Cadillac CT6 Owner Manual (GMNA-Localizing-U.S./Canada-13566829) -
2020 - CRC - 6/11/19
332 VEHICLE CARE
tires are not replaced at the same
time. If proper rotation and
maintenance have been done, all
four tires should wear out at
about the same time. SeeTire
Rotation 0329 for information on
proper tire rotation. However, if it
is necessary to replace only one
axle set of worn tires, place the
new tires on the rear axle.
Winter tires with the same speed
rating as the original equipment
tires may not be available for H, V,
W, and ZR speed rated tires. Never
exceed the winter tire's maximum
speed capability when using
winter tires with a lower speed
rating.
{Warning
Tires could explode during
improper service. Attempting to
mount or dismount a tire could
cause injury or death. Only your
(Continued)
Warning (Continued)
dealer or authorized tire service
center should mount or
dismount the tires.
{Warning
Mixing tires of different sizes (other
than those originally installed on
the vehicle), brands, or types may
cause loss of control of the vehicle,
resulting in a crash or other vehicle
damage. Use the correct size, brand,
and type of tire on all four wheels.
{Warning
Using bias-ply tires on the
vehicle may cause the wheel rim
flanges to develop cracks after
many miles of driving. A tire
and/or wheel could fail suddenly
(Continued)
Warning (Continued)
and cause a crash. Use only
radial-ply tires with the wheels
on the vehicle.
If the vehicle tires must be
replaced with a tire that does not
have a TPC Spec number, make
sure they are the same size, load
range, speed rating, and
construction (radial) as the
original tires.
Vehicles that have a tire pressure
monitoring system could give an
inaccurate low-pressure warning if
non-TPC Spec rated tires are
installed. See Tire Pressure Monitor
Operation 0325.
The Tire and Loading Information
label indicates the original
equipment tires on the vehicle.
See Vehicle Load Limits 0179.

Cadillac CT6 Owner Manual (GMNA-Localizing-U.S./Canada-13566829) -
2020 - CRC - 6/11/19
VEHICLE CARE 333
Different Size Tires and
Wheels
If wheels or tires are installed that are
a different size than the original
equipment wheels and tires, vehicle
performance, including its braking,
ride and handling characteristics,
stability, and resistance to rollover
may be affected. If the vehicle has
electronic systems such as antilock
brakes, rollover airbags, traction
control, electronic stability control,
or All-Wheel Drive, the performance
of these systems can also be affected.
{Warning
If different sized wheels are used,
there may not be an acceptable
level of performance and safety if
tires not recommended for those
wheels are selected. This increases
the chance of a crash and serious
injury. Only use GM specific wheel
and tire systems developed for the
vehicle, and have them properly
installed by a GM certified
technician.See
Buying New Tires 0331 and
Accessories and Modifications 0272.
Uniform Tire Quality
Grading
The following information relates
to the system developed by the
United States National Highway
Traffic Safety Administration
(NHTSA), which grades tires by
treadwear, traction, and
temperature performance. This
applies only to vehicles sold in the
United States. The grades are
molded on the sidewalls of most
passenger car tires. The Uniform
Tire Quality Grading (UTQG)
system does not apply to deep
tread, winter tires, compact spare
tires, tires with nominal rim
diameters of 10 to 12 inches
(25 to 30 cm), or to some
limited-production tires.
While the tires available on
General Motors passenger cars
and light trucks may vary with respect to these grades, they must
also conform to federal safety
requirements and additional
General Motors Tire Performance
Criteria (TPC) standards.
Quality grades can be found where
applicable on the tire sidewall
between tread shoulder and
maximum section width. For
example:
Treadwear 200 Traction AA
Temperature A
All Passenger Car Tires Must
Conform to Federal Safety
Requirements In Addition To
These Grades.
Treadwear
The treadwear grade is a
comparative rating based on the
wear rate of the tire when tested
under controlled conditions on a
specified government test course.
For example, a tire graded
150 would wear one and one-half
(1½) times as well on the

Cadillac CT6 Owner Manual (GMNA-Localizing-U.S./Canada-13566829) -
2020 - CRC - 6/11/19
CUSTOMER INFORMATION 381
.Trip Interruption Benefits and
Service: If your trip is interrupted
due to a warranty failure,
incidental expenses may be
reimbursed during the Powertrain
warranty period. Items considered
are hotel, meals, and rental car or
a vehicle being delivered back to
the customer, up to 500 miles.
Cadillac Technician Roadside
Service (U.S. Only)
Cadillac's exceptional Roadside Service
is more than an auto club or towing
service. It provides every Cadillac
owner in the United States with the
advantage of contacting a Cadillac
advisor and, where available, a
Cadillac trained dealer technician who
can provide on-site service.
A dealer technician will travel to your
location within a 30-mile radius of a
participating Cadillac dealership.
If beyond this radius, we will arrange
to have your car towed to the nearest
Cadillac dealership. Each technician
travels with a specially equipped
service vehicle complete with the necessary Cadillac parts and tools
required to handle most roadside
repairs.
Services Not Included in
Roadside Service
.
Impound towing caused by
violation of any laws
. Legal fines
. Mounting, dismounting,
or changing of snow tires, chains,
or other traction devices
Service is not provided if a vehicle is
in an area that is not accessible to the
service vehicle or is not a regularly
traveled or maintained public road,
which includes ice and winter roads.
Off-road use is not covered.
Services Specific to
Canadian-Purchased Vehicles
. Fuel delivery: Reimbursement is
up to 7 liters. Diesel fuel delivery
may be restricted. Propane and
other fuels are not provided
through this service.
. Lock-Out Service: Vehicle
registration is required. .
Trip Interruption Benefits and
Service: Pre-authorization, original
detailed receipts, and a copy of the
repair orders are required. Once
authorization has been received,
the Roadside Service advisor will
help you make arrangements and
explain how to receive payment.
Items considered are hotel, meals,
and rental car or a vehicle being
delivered back to the customer, up
to 800 km.
. Alternative Service: If assistance
cannot be provided right away, the
Roadside Service advisor may give
you permission to get local
emergency road service. You will
receive payment, up to $100, after
sending the original receipt to
Roadside Service. Mechanical
failures may be covered, however
any cost for parts and labor for
repairs not covered by the
warranty are the owner
responsibility.

Cadillac CT6 Owner Manual (GMNA-Localizing-U.S./Canada-13566829) -
2020 - CRC - 6/11/19
INDEX 401
Assistance Systems for Parkingand Backing . . . . . . . . . . . . . . . . . . . . . . . 235
Auto Stop Stop/Start System . . . . . . . . . . . . . . . . 186
Automatic Climate Control System . . . . . 158, 163
Dimming Mirrors . . . . . . . . . . . . . . . . . . . 34
Door Locks . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Emergency Braking (AEB) . . . . . . . . 246
Headlamp System . . . . . . . . . . . . . . . . 152
Transmission . . . . . . . . . . . . . . . . . . . . . . 193
Transmission Fluid . . . . . . . . . . . . . . . 281
Vehicle Hold Light . . . . . . . . . . . . . . . . 127
Automatic Transmission Manual Mode . . . . . . . . . . . . . . . . . . . . . 197
Automatic Vehicle Hold (AVH) . . . . 202
B
Battery
Exterior Lighting BatterySaver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
Load Management . . . . . . . . . . . . . . . . 156
Power Protection . . . . . . . . . . . . . . . . . . 156
Battery - North America . . . . . .292, 343
Blade Replacement, Wiper . . . . . . . . . 295
Boost Gauge . . . . . . . . . . . . . . . . . . . . . . . . . 117
Brake Electric Boost . . . . . . . . . . . . . . . . . . . . . 199 Brake (cont'd)
Parking, Electric . . . . . . . . . . . . . . . . . . 200
System Warning Light . . . . . . . . . . . . 125
Brake Pad Life System . . . . . . . . . . . . . . 291
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 290
Antilock . . . . . . . . . . . . . . . . . . . . . . . . . . . 199
Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 291
Pad Life System . . . . . . . . . . . . . . . . . . . 291
Braking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174 Automatic Emergency (AEB) . . . . . 246
Braking System Front Pedestrian (FPB) . . . . . . . . . . . 247
Break-In, New Vehicle . . . . . . . . . . . . . . 183
Bulb Replacement
Headlamp Aiming . . . . . . . . . . . . . . . . 297
Headlamps . . . . . . . . . . . . . . . . . . . . . . . . 297
Buying New Tires . . . . . . . . . . . . . . . . . . . 331
C
Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . 106
California
Perchlorate MaterialsRequirements . . . . . . . . . . . . . . . . . . . 272
California Proposition 65 Warning . . . . . . . . . . . . .271, 292, 343, Back Cover
Canadian Vehicle Owners . . . . . . . . . . . . . 2 Capacities and Specifications . . . . . . 373
Carbon Monoxide
Engine Exhaust . . . . . . . . . . . . . . . . . . . 192
Trunk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Winter Driving . . . . . . . . . . . . . . . . . . . . 178
Cargo Tie-Downs . . . . . . . . . . . . . . . . . . . . . . . . . 101
Caution, Danger, and Warning . . . . . . . . 2
Center Console Storage . . . . . . . . . . . . . 100
Chains, Tire . . . . . . . . . . . . . . . . . . . . . . . . . 335
Charging Wireless . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Charging System Light . . . . . . . . . . . . . 122
Check Engine Light (MalfunctionIndicator) . . . . . . . . . . . . . . . . . . . . . . . . 123
Child Restraints Infants and Young Children . . . . . . . . 79
Lower Anchors and Tethers forChildren . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Older Children . . . . . . . . . . . . . . . . . . . . . . 77
Securing . . . . . . . . . . . . . . . . . . . . . . . . .92, 94
Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Circuit Breakers . . . . . . . . . . . . . . . . . . . . . 298
Cleaning Exterior Care . . . . . . . . . . . . . . . . . . . . . . 349
Interior Care . . . . . . . . . . . . . . . . . . . . . . 353
