Page 247 of 316

AUDI Q7 2020 Owner´s Manual 4M1012721BA
Checking and Filling

To reduce the risk of lime scale deposits on the
spray nozzles, use clean water with low amounts
of calcium. Always add window cleaner to the wa-
ter. When the

4M1012721BA
Checking and Filling

To reduce the risk of lime scale deposits on the
spray nozzles, use clean water with low amounts
of calcium. Always add window cleaner to the wa-
ter. When the outside temperatures are cold, an
anti-freezing agent should be added to the water
so that it does not freeze.
Message
Eg Please add washer fluid
Fill the washer fluid for the windshield washer
system and the headlight washer system* when
the ignition is switched off.
C) Note
—The concentration of anti-freezing agent
must be adjusted to the vehicle operating
conditions and the climate. A concentration
that is too high can lead to vehicle damage.
— Never add radiator anti-freeze or other addi-
tives to the washer fluid.
— Do not use a glass cleaner that contains
paint solvents, because this could damage
the paint.
Service interval display
The service interval display detects when your ve-
hicle is due for service.
The service interval display works in two stages:
— Inspection or oil change reminder: after driv-
ing a certain distance, a message appears in the
instrument cluster display each time the igni-
tion is switched on or off. The remaining dis-
tance or time is displayed briefly.
— Inspection or oil change due: if your vehicle
has reached an inspection or oil change interval
or both intervals at the same time, the mes-
sage Inspection due! or Oil change due! or Oil
change and inspection due! appears briefly af-
ter switching the ignition on or off.
Checking service intervals
You can check the remaining distance or time un-
til the next oil change or next inspection in the
Infotainment system.
Applies to MMI: Select on the home screen: VE-
HICLE > Settings & Service > Service intervals.
Resetting the indicator
An authorized Audi dealer or authorized Audi
Service Facility will reset the service interval dis-
play after performing service.
If you have changed the oil yourself, you must re-
set the oil change interval.
Applies to: MMI: To reset the display, select on
the home screen: VEHICLE > Settings & Service
> Service intervals.
@) Note
— Only reset the oil change indicator if the oil
was changed.
— Following the service intervals is critical to
maintaining the service life and value of
your vehicle, especially the engine. Even if
the mileage on the vehicle is low, do not ex-
ceed the time for the next service.
245

Page 281 of 316

$AUDI Q7 2020 Owner´s Manual 4M1012721BA Emergency assistance ZA\ WARNING — A drained battery can freeze at tempera- tures around 32 °F (0 °C). If the vehicle bat- tery is frozen, it must be thawed before con- nec$

4M1012721BA
Emergency assistance

ZA\ WARNING
— A drained battery can freeze at tempera-
tures around 32 °F (0 °C). If the vehicle bat-
tery is frozen, it must be thawed before con-
necting the jump start cables. If it is not,
the risk of an explosion and chemical burns
increases. After jump starting the vehicle,
drive to an authorized Audi dealer or author-
ized Audi Service Facility immediately to
have the vehicle battery checked.
— Read the warnings when working in the en-
gine compartment > page 233.
— Handling the jump start cables incorrectly
may cause the vehicle battery to explode
and lead to serious injuries.

() Note
Jump start cables can cause considerable
damage to the vehicle electrical system if
they are connected incorrectly.
@ Tips
— There must be no contact between the
vehicles, or else voltage could flow when
connecting the positive terminal and drain
the vehicle battery of the vehicle providing
the jump start.
— The drained vehicle battery must be con-
nected correctly to the electrical system.
— Switch off electrical equipment that is not
needed.

Jump starting
Both jump start cables must be connected in the
correct order.

Fig. 187 Engine compartment: connectors for jump start
cables or a charger

Fig. 188 Connecting the jump start cables
The jump start cable connections are located in
the engine compartment.
Follow the information about the vehicle battery
=> page 242.
Connecting the positive cable (red) to the
positive terminal
> Open the red cover on the positive terminal
> fig. 187.
1. Attach one end of the positive cable (red) to
the jump-start pin @ © fig. 188 on your vehi-
cle.
2. Attach the other end of the positive cable
(red) to the positive terminal (2) on the pow-
er source.
Connecting the negative cable (black) to the
negative terminal
3. Attach one end of the negative cable (black)
to the negative terminal @) on the power
source.
4. Attach the other end of the negative cable
(black) to the jump-start pin @ on the vehi-
cle.
Starting the engine
> Start the engine in the vehicle giving the charge
and let it run at idle.
> Now start the engine in your vehicle, which has
the drained battery.
> If the engine does not start, stop the starting
procedure after 10 seconds and then repeat it
after approximately 30 seconds.
> Turn on the rear window defogger in your vehi-
cle in order to reduce any voltage peaks that
may occur when disconnecting the jump start
cables. The headlights must be switched off.
279

>

Page 286 of 316

AUDI Q7 2020 Owner´s Manual Fuses and bulbs

ZA WARNING
Do not repair fuses and never replace a blown
fuse with one that has a higher amp rating.
This can cause damage to the electrical sys-
tem and increases the risk of

Page 303 of 316

AUDI Q7 2020 Owner´s Manual 4M1012721BA

Closing
Automatic luggage compartment lid...... 38
Convenience closing.........:0e..e500% 41
HOO « cisco a cstinee ov cose ek oa aw ar 234
Luggage compartment lid...............

4M1012721BA

Closing
Automatic luggage compartment lid...... 38
Convenience closing.........:0e..e500% 41
HOO « cisco a cstinee ov cose ek oa aw ar 234
Luggage compartment lid............... 37
Luggage compartment lid with foot motion . 39
Panoramic glassir00ficc:. «sce ws naenn 0 seen 41
Sunshade (roof) ...............0000000e 41
WIUTCGWS = ssae 5% eae 5b Beee & a ee ge 40
Closing aid (power closing doors).......... 30
Cockpit dimming....................005 51
Cockpit (overview) ..........-..00 eee eee 6
[6(0) (0) 2300 |-) eet er oo 297
Combustion engine................+-6- 100
Coming home/Leaving home
refer to Entry/exit lighting.............. 48
COMPAPEMENES!: » s sccwr » 0 wes 2 6 ezewens 6 0 ommets 82
Compass inthe mirror...............00-4 56
Compliance. « sevice ss weve sv exces 2 v oeae ¥ os 295
Configuration wizard.................0.. 18
CONMECEs: 5 o sue ge MeN s RES aE eee Oe 178
Data plano: « win os mosue ve cman o mane oe 183
Data Privacy..... 0... eee ee eee eee 290
Emergency Call sacs: s sens s eee: veens 184
Tnfotainmetitie. . vcs os woos oo camo 6 eae 178
Infotainment services.............---- 179
Online roadside assistance............. 185
Vehicle control services.............005 180
Connected devices
Device overview ............ 0000. e eee 226
Connections
referto Media..............0000- 210,215
Consumer information............-.0004 292
Consumption
Reducing.......... 0. eee ee eee eee ee 100
Consumption (fuel) ..............000 eee 14
Contacts
Add destination...................... 195
Importing and exporting.............. 176
Memoryscapacltyice « « scsos « « pene < « mene © 176
Opening (business card) ............... 170
Updating inthe MMI.................. 176
Convenience: key’: « scan ss wewm sy ewe + gees 30
Convenience closing...............0005 4l
also refer to Vehicle key..............-5 34
Convenience opening and closing
Windows or panoramic glass roof........ 41
Coolant temperature display.............. 13
Cooling Moder: i = iain. + meee s & aK wv eR 90
Cooling system
Adding
coolant..............2-000005 240
Checking the coolant level............. 240
COOLAHE weeny. = ¢ seuss % 2 eee 9 § eee bY ew 239
Cornering
light: =» sees ¢ 2 eese 2» ewan ss es 45
Cross traffic assist (intersection assistant) .. 153
Cruise control system............000005 130
Cup holders. ....... eee eee cece eee 81
Current consumption..............000005 14
D
Data plans... 2... eee eee eee eee 183
Data: Privatty’s « sss: + 2 sence oo secu vo ein vo 290
Date seca « 2 ssi + a ieee vn wee > OER = RR 14
SQCEIN Gl « sucnsir « ansvinns ou snenene # ¥ ecowase oo) asetn 225
Daytime running lights.................. AS
Declaration of compliance............... 295
DEF (instrument cluster) ..............004 11
Demo mode
refer to Presentation mode............. 199
Destination on the map..............0.. 191
Detailst: os sscmve o vam 2 2 aneee ao ansome 2 2 aeeeT 190
Determining correct load limit........... 260
Digital: cOMpaSs sew: : 2 sees c= reas ve een se 56
Dimensions ...........-..0 0c e eee eee ee 297
Dimming the exterior mirrors............. 52
Dimming the rearview mirror............. 52
Directory
Settings........... 002.2 eee eee eee 176
also refer to ContactS..............00. 170
Display
Gleanings « « exis = > erasers « 2 esecnie ow ears owe 269
Disposalicne is « scsswa se suns « @ mnenes oe mae ow 292
DiStaNCO rss « ¢ cams = o aaae 3 ¢ eeupe « 2 Hee x a 14
DIStanGe WARNING, ames 3 « says se gems «eR 143
Doors
Childisatety lock eric. ss cio so ween a ewes « 40
Door contact switch................200. 50
Mechanically unlocking and locking....... 33
Power closing/closing aid............... 30
Driver information system................ 12
Drives
refer toMed aise « «wees sv wwie 6 owen 21.0,.2;L5

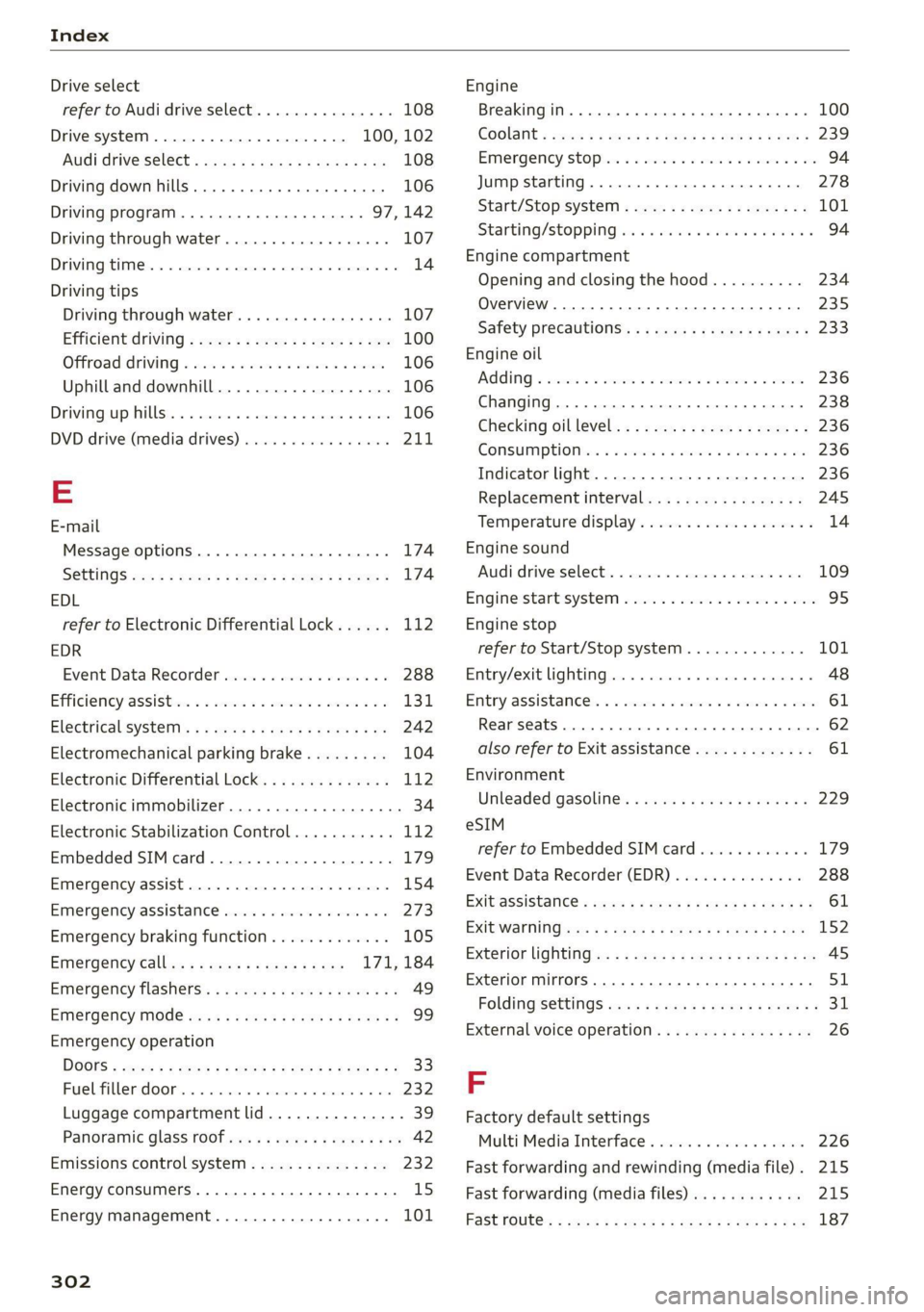

301

Page 304 of 316

AUDI Q7 2020 Owner´s Manual Index

Drive select
refer to Audi drive select.............0. 108
Drive system. ......... 00000000002 100, 102
Audi drive select . ccna icas as eean cain 108
Driving down hills... ... 0... cee
